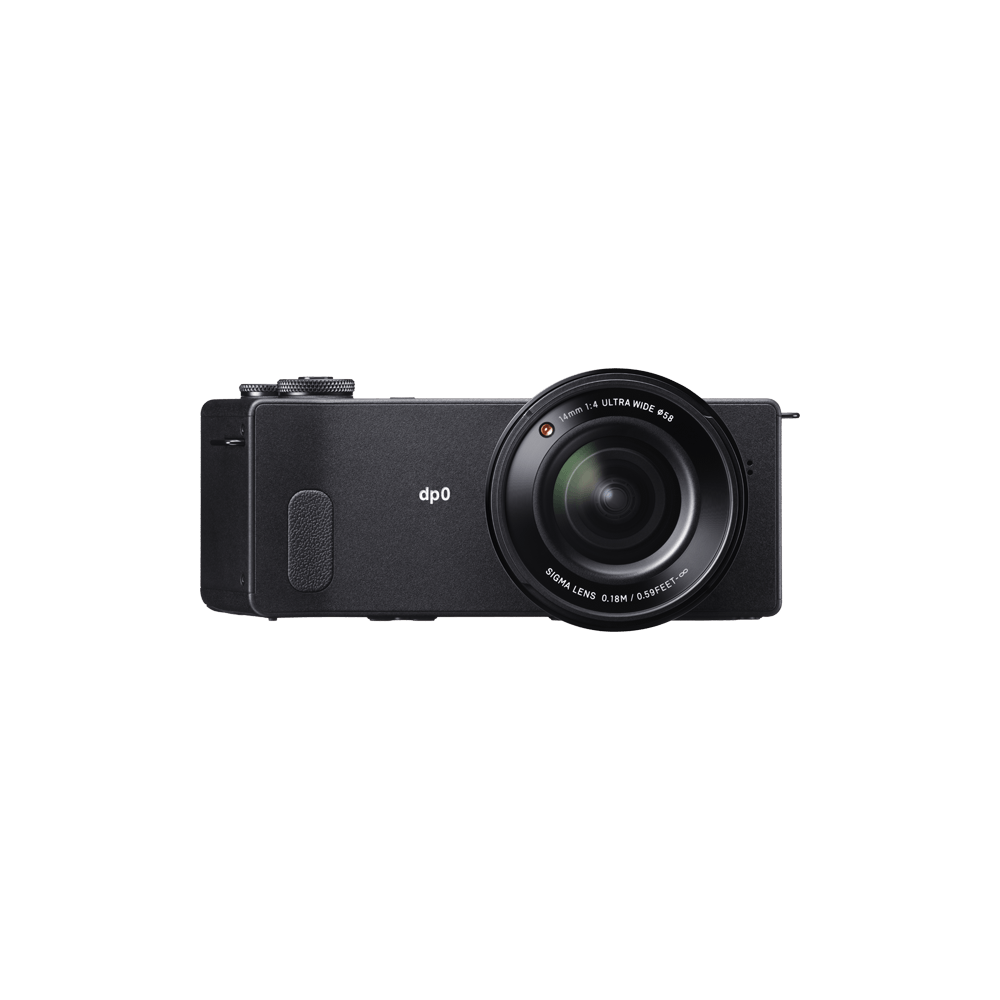

dp0 Quattro

Find a dealer

  • Focal Length

    14mm

  • 35mm Equivalent Focal Length

    Approx.21mm

  • Lens F Number

    F4～F22

  • Number of Diaphragm Blades

    7 Blades

  • Lens Construction

    11 Elements in 8 Groups

  • Shooting Range

    18cm~∞, LIMIT Mode (It is possible to choose Macro, Portrait and Scenery.)

  • Maximum Magnification Ratio

    1:7.8

  • Dimensions

    161.4mm/6.4″(W), 67mm/2.6″(H), 126mm/4.9″(D)

  • Weight

    500g/17.6oz (without battery and memory card)

  • Image Sensor

    FOVEON X3® Direct Image Sensor (CMOS)

  • Image Sensor Size

    23.5×15.7mm

  • Color Photo Detectors

    Effective Pixels: Approx. 29MP
    T (Top) : 5,424×3,616 / M (Middle) : 2,712×1,808 / B (Bottom) : 2,712×1,808
    Total Pixels : Approx. 33MP

  • Storage Media

    SD Card, SDHC Card, SDXC Card, eye-Fi Card Eye-Fi

  • File Format

    Lossless compression RAW data (14-bit), DNG (No compression RAW Data 12-bit), JPEG (Exif2.3), RAW+JPEG

  • JPEG Image Quality

    FINE, NORMAL, BASIC

  • Aspect Ratio

    21:9, 16:9, 3:2, 4:3, 7:6, 1:1

  • RAW(Number of Recording Pixels)

    HIGH
    TOP : 5,424×3,616　MIDDLE : 2,712×1,808　BOTTOM : 2,712×1,808

    LOW
    TOP : 2,704×1,808　MIDDLE : 2,704×1,808　BOTTOM : 2,704×1,808

  • RAW - DNG(Number of Recording Pixels)

    [3:2]
    HIGH : 5,424×3,616　LOW : 2,704×1,808

  • JPEG(Number of Recording Pixels)

    [21:9]
    SUPER-HIGH：7,680×3,296　HIGH：5,424×2,328　LOW：2,704×1,160　S-LO：1,920×816

    [16:9]
    SUPER-HIGH：7,680×4,320　HIGH：5,424×3,048　LOW：2,704×1,520　S-LO：1,920×1,080

    [3:2]
    SUPER-HIGH：7,680×5,120　HIGH：5,424×3,616　LOW：2,704×1,808　S-LO：1,920×1,280

    [4:3]
    SUPER-HIGH：6,816×5,120　HIGH：4,816×3,616　LOW：2,400×1,808　S-LO：1,696×1,280

    [7:6]
    SUPER-HIGH：6,352×5,120　HIGH：4,480×3,616　LOW：2,224×1,808　S-LO：1,584×1,280

    [1:1]
    SUPER-HIGH：5,120×5,120　HIGH：3,616×3,616　LOW：1,808×1,808　S-LO：1,280×1,280

  • ISO Sensitivity

    ISO100–ISO6400 (1/3 steps for appropriate sensitivity), AUTO: High limit, low limit setting is possible between ISO100~ISO6400. When using with flash, it changes depending on the low limit setting.

  • White Balance

    10 types ( Auto, Auto (Lighting Source Priority), Daylight, Shade, Overcast, Incandescent, Fluorescent, Color Temperature, Flash, Custom )

  • Color Mode

    11 types ( Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Sunset Red, Forest Green, FOV Classic Blue, FOV Classic Yellow, Monochrome )*

    *It is not possible to select the mode when it is set as DNG.

  • Auto Focus Type

    Contrast Detection Type

  • AF Point

    9 points select mode, Free move mode (It is possible to change the size of Focus Frame to Spot, Regular and Large.)
    Face Detection AF mode

  • Focus Lock

    Shutter release halfway-down position (AF lock can be done by AE lock button from menu setting)

  • Manual Focus

    Focus Ring Type

  • Metering Systems

    Evaluative Metering, Center-Weighted Average Metering, Spot Metering

  • Exposure Control System

    (P) Program AE (Program Shift is possible), (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual

  • Exposure Compensation

    ±3EV (1/3 stop increments)

  • AE Lock

    AE lock button

  • Auto Bracketing

    Appropriate, under, over; 1/3EV steps up to ±3EV for appropriate exposure

  • Shutter Speed

    1/2000* – 30sec. (*Depending on the aperture value, shutter speed change

  • Drive Modes

    Single, Continuous, Self Timer (2sec. /10sec.) Interval timer

  • LCD Monitor Type

    TFT color LCD monitor

  • Monitor Size

    3.0 inches

  • LCD Pixels

    Approx. 920,000 Pixels

  • LCD Monitor Language

    English / Japanese / German / French / Spanish / Italian / Chinese(Simplified) / Chinese(Traditional) / Korean / Russian / Nederlands / Polski / Português / Dansk / Svenska / Norsk / Suomi

  • Interfaces

    USB / Cable Release Switch

  • Power

    Li-ion Battery Pack BP-51, Battery Charger BC-51, AC Adapter SAC-6 (with DC Connector CN-21) (Optional)

  • Battery Life

    Approx. 200 (+25℃)

  • Accessories

    Lens Cap (Supplied) / Lens Hood LH5-01* (Supplied) / Hot shoe cover (Supplied) / Strap / Li-ion Battery BP-51 (2 pieces) / Battery Charger BC-51 / Battery Charger Cable / USB Cable / Instruction Manual

    *Only for dp0 Quattro

  • Product Barcode

    dp0 Quattro : 00-85126-93152-0 (discontinued)

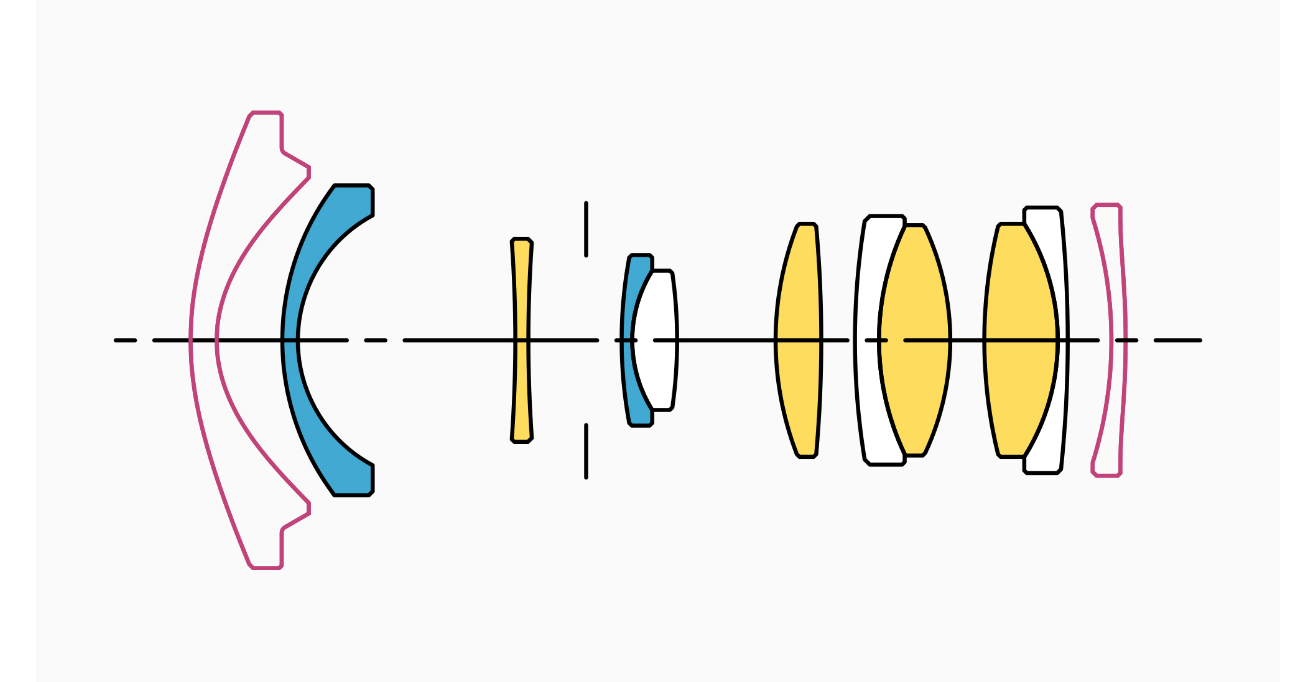

Lens construction

FLD glass

SLD glass

Aspherical lens

MTF Chart

The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens’ performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.

*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.

  • Spatial frequency

    S:Sagittal Line

    M:Meridional Line

  • 10lp/mm

  • 30lp/mm

Diffraction MTF

Geometrical MTF

Distortion

effective distortion

When you take a picture of a lattice pattern, it will appear as the blue dotted line shows. The red line illustrates how the lattice pattern will appear in the actual picture when any lens distortion is taken into account.

relative distortion

In this chart, the horizontal axis shows the ideal image height (the distance from the center to the edge of the image [mm]). The vertical axis shows the extent of distortion. The extent of distortion is represented by how much Y, which is the actual image height, grows (or shrinks) against Y0 which is the ideal image height.

When you take the picture of a square object, if the distortion amount shows a minus value, the image will be seen as expanded (Barrel distortion). If the distortion amount is a plus value, it will be seen as a recessed (Pincushion distortion). When the distortion value is close to 0, the appearance of distortion is very minimal.

Vignetting

The horizontal axis shows the image height (the distance from the center to the edge of the image [mm]).The vertical axis shows the amount of light in the image (based on the amount of light in the image center being 100%). If the peripheral amount of light is lower than the center, the four corners of image will be darker (vignetting).

  • F4

  • F8

  • F16
