DISCONTINUED
dp1 Quattro
-
Focal Length
19mm
-
35mm Equivalent Focal Length
Approx.28mm
-
Lens F Number
F2.8~F16
-
Number of Diaphragm Blades
9 Blades
-
Lens Construction
9 Elements in 8 Groups
-
Shooting Range
20cm~∞, LIMIT Mode (It is possible to choose Macro, Portrait and Scenery.)
-
Maximum Magnification Ratio
1:8.3
-
Dimensions
161.4mm/6.4″(W), 67mm/2.6″(H), 87.1mm/3.4″(D)
-
Weight
425g/15.0oz. (without battery and memory card)
-
Image Sensor
Foveon X3 Direct Image Sensor (CMOS)
-
Image Sensor Size
23.5×15.7mm
-
Color Photo Detectors
Effective Pixels: Approx. 29MP
T (Top) : 5,424×3,616 / M (Middle) : 2,712×1,808 / B (Bottom) : 2,712×1,808
Total Pixels : Approx. 33MP -
Storage Media
SD Card, SDHC Card, SDXC Card, eye-Fi Card
-
File Format
Lossless compression RAW data (14-bit), DNG (No compression RAW Data 12-bit), JPEG (Exif2.3), RAW+JPEG
-
JPEG Image Quality
FINE, NORMAL, BASIC
-
Aspect Ratio
21:9, 16:9, 3:2, 4:3, 7:6, 1:1
-
RAW(Number of Recording Pixels)
HIGH
TOP
5,424×3,616
MIDDLE
2,712×1,808
BOTTOM
2,712×1,808
LOW
TOP
2,704×1,808
MIDDLE
2,704×1,808
BOTTOM
2,704×1,808 -
RAW - DNG(Number of Recording Pixels)
[3:2]
HIGH
5,424×3,616
LOW
2,704×1,808 -
JPEG(Number of Recording Pixels)
[21:9]
SUPER-HIGH
7,680×3,296
HIGH
5,424×2,328
LOW
2,704×1,160
S-LO
1,920×816
[16:9]
SUPER-HIGH
7,680×4,320
HIGH
5,424×3,048
LOW
2,704×1,520
S-LO
1,920×1,080
[3:2]
SUPER-HIGH
7,680×5,120
HIGH
5,424×3,616
LOW
2,704×1,808
S-LO
1,920×1,280
[4:3]
SUPER-HIGH
6,816×5,120
HIGH
4,816×3,616
LOW
2,400×1,808
S-LO
1,696×1,280
[7:6]
SUPER-HIGH
6,352×5,120
HIGH
4,480×3,616
LOW
2,224×1,808
S-LO
1,584×1,280
[1:1]
SUPER-HIGH
5,120×5,120
HIGH
3,616×3,616
LOW
1,808×1,808
S-LO
1,280×1,280 -
ISO Sensitivity
ISO100–ISO6400 (1/3 steps for appropriate sensitivity), AUTO: High limit, low limit setting is possible between ISO100~ISO6400. When using with flash, it changes depending on the low limit setting.
-
White Balance
10 types ( Auto, Auto (Lighting Source Priority), Daylight, Shade, Overcast, Incandescent, Fluorescent, Color Temperature, Flash, Custom )
-
Color Mode
11 types ( Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Sunset Red, Forest Green, FOV Classic Blue, FOV Classic Yellow, Monochrome )*
*It is not possible to select the mode when it is set as DNG. -
Auto Focus Type
Contrast Detection Type
-
AF Point
9 points select mode, Free move mode (It is possible to change the size of Focus Frame to Spot, Regular and Large.)
Face Detection AF mode -
Focus Lock
Shutter release halfway-down position (AF lock can be done by AE lock button from menu setting)
-
Manual Focus
Focus Ring Type
-
Metering Systems
Evaluative Metering, Center-Weighted Average Metering, Spot Metering
-
Exposure Control System
(P) Program AE (Program Shift is possible), (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual
-
Exposure Compensation
±3EV (1/3 stop increments)
-
AE Lock
AE lock button
-
Auto Bracketing
Appropriate, under, over; 1/3EV steps up to ±3EV for appropriate exposure
-
Shutter Speed
1/2000* – 30sec. (*Depending on the aperture value, shutter speed change
-
Drive Modes
Single, Continuous, Self Timer (2sec. /10sec.) Interval timer
-
LCD Monitor Type
TFT color LCD monitor
-
Monitor Size
3.0 inches
-
LCD Pixels
Approx. 920,000 Pixels
-
LCD Monitor Language
English / Japanese / German / French / Spanish / Italian / Chinese(Simplified) / Chinese(Traditional) / Korean / Russian / Nederlands / Polski / Português / Dansk / Svenska / Norsk / Suomi
-
Interfaces
USB / Cable Release Switch
-
Power
Li-ion Battery Pack BP-51, Battery Charger BC-51, AC Adapter SAC-6 (with DC Connector CN-21) (Optional)
-
Battery Life
Approx. 200 (+25℃)
-
Accessories
Lens Cap (Supplied) / Lens Hood LH5-01* (Supplied) / Hot shoe cover (Supplied) / Strap / Li-ion Battery BP-51 (2 pieces) / Battery Charger BC-51 / Battery Charger Cable / USB Cable / Instruction Manual
*Only for dp0 Quattro -
Product Barcode
dp1 Quattro : 00-85126-93058-5 (discontinued)
-

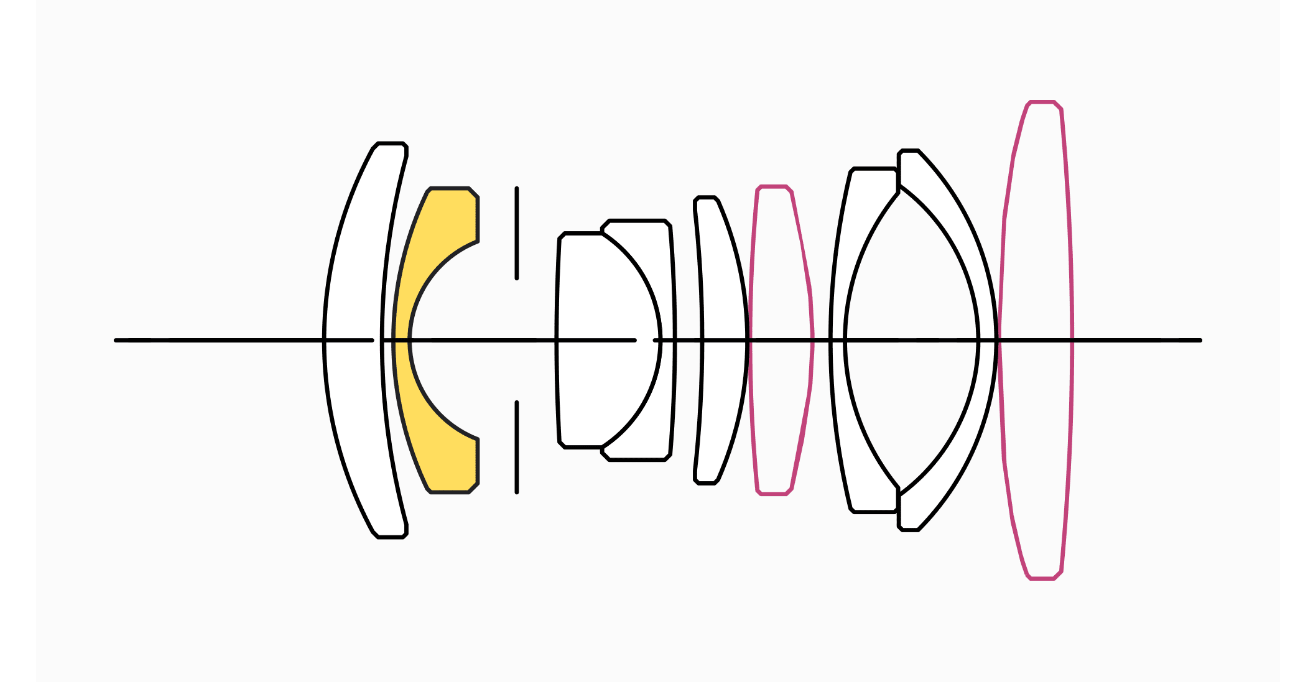

Lens construction
FLD glass
Aspherical lens
-
MTF CHART
Diffraction MTF
Geometrical MTF
-
Spatial frequency
S:Sagittal Line
M:Meridional Line
-
10lp/mm
-
30lp/mm
-
-
DISTORTION
-
VIGNETTING
-
F2.8
-
F5.6
-
F11
-
