Specifications

fp

Format

Type

Interchangeable-lens Mirrorless Type Digital Camera

Memory Media

SD, SDHC, SDXC memory card (UHS-Ⅱ supported) , Portable SSD (USB 3.0 connection, USB bus power supported)

Lens Mount

L-Mount

Image Sensor

Type

35 mm full-frame (35.9 mm x 23.9 mm) Back-illuminated Bayer CMOS sensor

Camera Effective Pixels / Total Pixels

Approx. 24.6 MP / Approx. 25.3 MP

Aspect Ratio

3:2

Color Filter System

RGB Primary color filter

Still Image File Format

Lossless compression RAW(DNG) data 12 bit,14 bit / JPEG(Exif2.3), RAW(DNG)+JPEG:recording is possible

Image Aspect Ratio

[21:9] / [16:9] / [3:2] / [A Size (√2:1) ] / [4:3] / [7:6] / [1:1]

File Size

*() In DC Crop Mode

RAW


HIGH : 6,000×4,000 (3,840×2,560)
LOW : 3,008×2,000 (1,920×1,280)

JPEG

[21:9]

HIGH : 6,000×2,576 (3,840×1,648)
MED : 4,240×1,824 (2,736×1,168)
LOW : 3,008×1,288 (1,920×824)

[16:9]

HIGH : 6,000×3,376 (3,840×2,160)
MED : 4,240×2,392 (2,736×1,536)
LOW : 3,008×1,688 (1,920×1,080)

[3:2]

HIGH : 6,000×4,000 (3,840×2,560)
MED : 4,240×2,832 (2,736×1,824)
LOW : 3,008×2,000 (1,920×1,280)

[A Size (√2:1) ]

HIGH:5,664×4,000 (3,616×2,560)
MED:4,000×2,832 (2,560×1,824)
LOW:2,832×2,000 (1,808×1,280)

[4:3]

HIGH:5,344×4,000 (3,408×2,560)
MED:3,776×2,832 (2,416×1,824)
LOW:2,672×2,000 (1,712×1,280)

[7:6]

HIGH:4,960×4,000 (3,184×2,560)
MED:3,520×2,832 (2,272×1,824)
LOW:2,480×2,000 (1,584×1,280)

[1:1]

HIGH:4,000×4,000 (2,560×2,560)
MED:2,832×2,832 (1,824×1,824)
LOW:2,000×2,000 (1,280×1,280)

Crop

Equivalent to approx.1.5times the focal length of the lens (for 35 mm cameras)

Color Space

sRGB, Adobe RGB

Movie Recording Format

Camera Internal Record

Movie Format

CinemaDNG(8 bit, 10 bit, 12 bit)/ MOV:H.264 (ALL-I, GOP)

Audio Format

Linear PCM (2 ch 48 kHz / 16 bit)

Record Format / Frame rate

3,840 x 2,160 (UHD 4K) / 23.98 p, 24 p, 25 p, 29.97 p
1,920 x 1,080 (FHD) / 23.98 p, 24 p, 25 p, 29.97 p, 48 p, 50 p, 59.94 p, 100 p, 119.88 p

Continuous Shooting Enable Time

Up to 2 hours

Cinema DNG Memory Media Limitation

SD Card (UHS-II) : UHD 8 bit 25 p or less, FHD 12 bit 59.94 p or less
Portable SSD : UHD 12 bit 29.97 p or less, FHD 12 bit 100 p or less, FHD 8 bit 119.88 p or less

HDMI External Output

Movie Format

4:2:2 8 bit
12 bit RAW :External recorder record : ATOMOS Ninja V, Blackmagic Video Assist 12G supported

Audio Format

Linear PCM (2 ch 48 kHz/16 bit)

Record Format / Frame Rate

4,096 x 2,160 (DCI 4K) / 24 p * Only for RAW output
3,840 x 2,160 (UHD 4K) / 23.98 p, 24 p, 25 p, 29.97 p
1,920 x 1,080 (FHD) / 23.98 p, 24 p, 25 p, 29.97 p, 48 p, 50 p, 59.94 p, 100 p, 119.88 p

Focus

AF System / Focus Mode

Contrast detection system, Single AF, Continuous AF (with moving object prediction function), Manual Focus

AF Sensitivity Range / AF Mode

-5 to 18 EV (F1.4:ISO 100) / Auto, 49-point selection mode, Free Move mode, Face/Eye Detection AF mode, Tracking AF mode

AF Lock

Half-press the shutter button, or press the AEL button (setting change required)

Other Focus Functions

AF+MF, MF Assist, MF Guide, Focus Peaking, Release Focus Function, AF-ON, Quick AF, Pre-AF, AF during Image Magnification

Exposure Control

Metering System

Evaluative, Spot, Center Weighted Average

Metering Range

-5 to 18 EV (50 mm F1.4:ISO 100)

Still Image Shooting Mode

(P) Program AE (Program Shift capable), (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual

Movie Shooting Mode

(P) Program AE, (S) Shutter Angle Priority AE, (A) Aperture Priority AE, (M) Manual

ISO Sensitivity (Recommended exposure value)

Base ISO

[Still]
ISO 100,640
[Cine]
CinemaDNG 12 bit / HDMI RAW:ISO 100, 3200
MOV / CinemaDNG 10 bit, 8 bit, HDMI 4:2:2 8 bit:ISO 100, 640

Settable Range

ISO 100-25600 / Expanded sensitivity ISO 6, 12, 25, 50, 51200, 102400

Exposure Compensation

±5 EV (in 1/3 stop increments) : ±3 EV at movie recording

AE Lock

Half-press the shutter button, or press the AEL button (setting change required)

Exposure Bracket

3 shots / 5 shots stage exposure 3EV (1/3 Step, Standard→Underexposure→Overexposure) (Sequence changeable)

Image Stabilization System

Image Stabilization System(EIS)

White Balance

12 types
( Auto, Auto[Lighting Source Priority], Daylight, Shade, Overcast, Incandescent, Fluorescent, Flash, Color Temperature[50K steps], Custom 1, Custom 2, Custom 3 )

Shutter

Shutter Type

Electronic shutter

Shutter Speed

30 to 1/8,000 sec., Bulb up to 300 sec.
* Up to 1/4,000 sec. when using electronic image stabilization

Self Timer

2 sec. / 10 sec.

Drive

Drive Modes

Single Capture, Continuous, Self Timer (2sec. / 10sec.), Interval Timer

Continuous Drive Speed

High Speed:approx. 18 shots/ sec, Medium Speed:approx. 5 shots/ sec, Low Speed:approx. 3 shots/ sec.

Number of Recordable Frames

HIGH: 12 frames, MED: 12 frames, LOW: 24 frames

Monitor

Type / Coverage

TFT color LCD, Aspect Ratio 3:2, 3.15 type, Approx. 2.1M dots , Electrostatic capacitance system touch panel / Approx. 100%

Flash (when to use external flash)

Built-in Flash

Flash Mode

S-TTL automatic light control, Manual, Wireless flash, Multi-emission

Optional Functions

Red-eye Reduction / Slow Synchronization, Rear Curtain Synchronization

Flash Exposure Compensation

Max. ±3 EV in 1/3EV step increments

Flash Sync. Speed

Max. 1/30 sec.
* 1/15 sec. or less at 14 bit RAW

External Flash Support

Available when the HOT SHOE UNIT HU-11 (supplied with this product) is mounted. * S-TTL, Wireless support, X-sync.

Color Mode

15 types
(Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Teal and Orange, Sunset Red, Forest Green, Powder Blue, FOV Classic Blue, FOV Classic Yellow, Duotone, Monochrome, Off )

Director’s Viewfinder

Supported cameras

ARRI

ARRICAM / ARRIFLEX, ALEXA LF/ ALEXA Mini LF, ALEXA SXT, ALEXA Mini, AMIRA, ALEXA65, ALEXA XT

SONY

VENICE

RED

MONSTRO 8K, HELIUM 8K, DRAGON 6K, EPIC MX 5K, GEMINI 5K, KOMODO 6K

Frame Guide

1.33:1, 1.85:1, 2.39:1, Custom 1, Custom 2

Custom Frame

Input (Sensor Area / Aspect Ratio) , Offset, Style (4 styles) , Line (1 to 10 px) , Color (White, Black, Red, Yellow, Green, Cyan, Blue, Magenta) , Shading

Other Functions

Save / Load Settings via QR code, Screenshot, Webcam, In-camera RAW development, Still image capture from recorded movie files, Cinemagraph, Fill Light, HDR shooting (Still / Cine) , Still image shooting during movie shooting

Built-in Microphone / Speaker

Stereo microphone, Monaural speaker

Display Language

English / Japanese / German / French / Spanish / Italian / Simplified Chinese / Traditional Chinese / Korean / Russian / Dutch / Polish / Portuguese / Danish / Swedish / Norwegian / Finnish

Interface

USB Terminal

USB3.1 GEN1 Type-C (supports Mass Stroage, Video Class(UVC), Camera Control)

HDMI Terminal

Type D(Ver.1.4)

Remote

Also used as an external microphone terminal

Timecode Input

Also used as an external microphone terminal

External Microphone Terminal

Φ3.5 mm stereo mini jack (Plug-in power support)

Headphone Output Terminal

Φ3.5 mm stereo mini jack (can be connected when using the dedicated ELECTRONIC VIEWFINDER EVF-11)

Flash-synchro Terminal

Dedicated terminal (with HOT SHOE UNIT HU-11 (supplied with this product) mounted)

Dust and Splash Resistant Structure*

Provided
*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.

Power

Power

Li-ion Battery Pack BP-51
*Internal battery charge via USB terminal available.
(the camera can not be used while charging)

Number of Recordable Still Images

Approx. 280 images

Minutes of Recordable Continuous Shooting

Approx. 70 min.

Dimensions and Weight

Dimensions (W x H x D)

112.6 x 69.9 x 45.3 mm / 4.4 x 2.8 x 1.8 in.

Weight

422 g / 14.9 oz.(including battery and SD card), 370 g / 13.0 oz.(Camera body only)

Operating Environment

Operating Temperature

32 – 104 °F / 0 – +40 °C

Operating Humidity

85 % or less (non-condensing)

Supplied Accessories

  • Li-ion Battery Pack BP-51
  • Strap
  • STRAP HOLDER SH-11
  • USB AC ADAPTER UAC-11
  • USB CABLE (A-C) SUC-11
  • HOT SHOE UNIT HU-11
  • Body Cap
  • Instruction Manual
  • Limited Warranty
  • Warranty Sticker

Optional Accessories

  • HAND GRIP HG-11
  • LARGE HAND GRIP HG-21
  • LCD VIEWFINDER LVF-11
  • ELECTRONIC VIEWFINDER EVF-11
  • BASE PLATE BPL-11
  • CABLE RELEASE CR-41
  • BASE GRIP BG-11
  • DC CONNECTOR CN-21
  • BATTERY CHARGER BC-71
  • AC ADAPTER SAC-7P
  • STRAP HOLDER SH-11 (2pcs)

Product Lineup

fp

  • Body

    Barcode No.
    00-85126-93730-0
  • fp + 45MM F2.8 DG DN | Contemporary

    Barcode No.
    00-85126-93731-7

Accessories

Supplied Accessories

LI-ION BATTERY BP-51

This dedicated battery is included as standard equipment for the SIGMA fp series and SIGMA dp Quattro series.

Barcode No.
00-85126-93039-4

CONVERTER CAP LCT-Ⅱ TL

This is a dedicated body cap for SIGMA fp series.

Barcode No.
00-85126-93732-4

NECK STRAP FOR fp

This is a dedicated neck strap for SIGMA fp series.

Barcode No.
00-85126-93760-7

STRAP HOLDER SH-11 (2 pcs.)

This is a dedicated strap holder for SIGMA fp series. It will be sold as a set of two.

Barcode No.
00-85126-93840-6

HOT SHOE UNIT HU-11

A removable hot shoe unit with a mechanism to prevent HDMI cable from coming off.

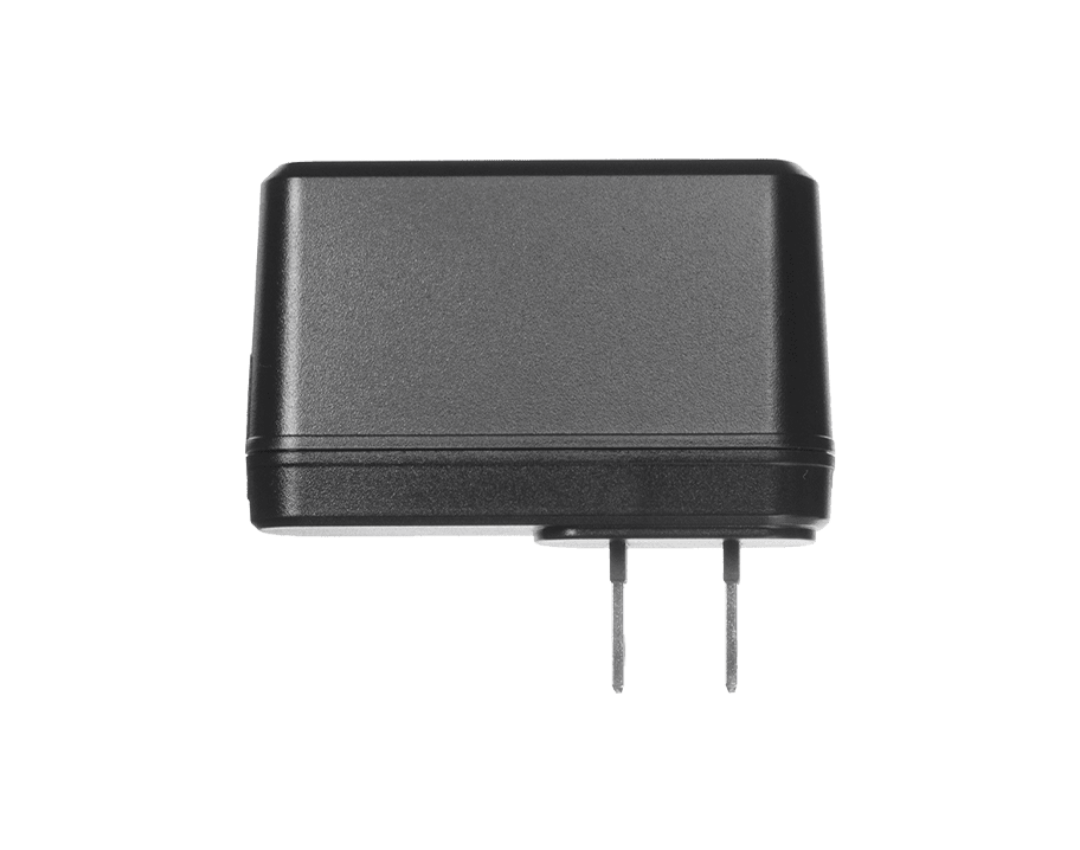

USB AC ADAPTER UAC-11

This is an AC adapter supplied with the SIGMA fp.

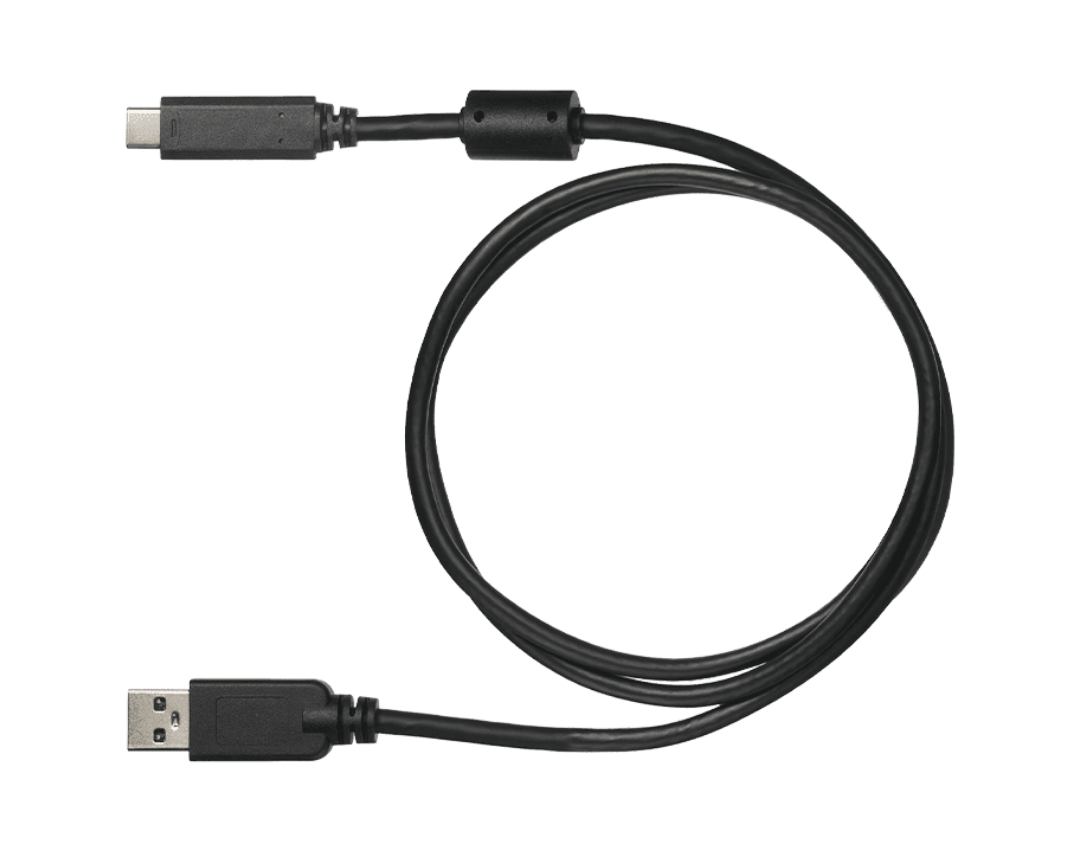

USB CABLE SUC-11

This is an USB cable supplied with the SIGMA fp.

Separately Sold Accessories

HAND GRIP HG-11

A grip designed exclusively for the SIGMA fp series for an improved hold.

Barcode No.
00-85126-93733-1

LARGE HAND GRIP HG-21

A large grip that further enhances a secure hold, designed exclusively for the SIGMA fp series.

Barcode No.
00-85126-93734-8

LCD VIEWFINDER LVF-11

A viewfinder designed exclusively for use with the SIGMA fp series. Mounted over the LCD monitor, it cuts out extraneous light. It has a diopter adjustment of −2 to +1 dpt. With a 2.5x* magnification, it helps photographers to check focus and compose their shots. The specially designed, high-performance lens and advanced lens coating secure excellent visibility.
* The value of magnification was determined based on a definition commonly used for calculating the power of a magnifying glass.
* SIGMA BASE PLATE BPL-11 Supplied.

Barcode No.
00-85126-93735-5

ELECTRONIC VIEWFINDER EVF-11

An external electronic viewfinder(optional) designed exclusively for use with the SIGMA fp series. With its 0.5 inch, 3.68 M dots OLED panel, this high-resolution, high-luminance viewfinder will make you feel immersed in your photography experience more thoroughly than ever.
*The EVF-11 and the HU-11 cannot be mounted on the camera together.

Supplied Accessories

EYECUP EC-31, LARGE EYECUP EC-41, Semi-hard Case VC-07A

Barcode No.
00-85126-93904-5

BASE PLATE BPL-11

A base plate designed exclusively for the SIGMA fp series. In addition to mounting an LCD VIEWFINDER LVF-11 to the body, it can also be utilized to attach standard accessories commonly used for video shooting by using 3/8-inch threads.
* Supplied with the LCD viewfinder (LVF-11).

Barcode No.
00-85126-93736-2

CABLE RELEASE CR-41

A cable release designed exclusively for the SIGMA fp series. It comes with a φ3.5mm stereo mini plug to connect the microphone.

Barcode No.
00-85126-93737-9

BASE GRIP BG-11

When it is attached to the screw hole on the bottom surface of the camera, it allows handgrip-style of shooting. It is compact and convenient and therefore very easy to carry. The bottom part of the Base Grip BG-11 has a screw hole so that it can attach directly to a tripod.

Barcode No.
00-85126-93144-5

DC CONNECTOR CN-21

A connector that connects the SIGMA fp series to an AC adapter or external power supply source.
* Supplied with the dedicated AC adapter “AC ADAPTER SAC-7P”.

Barcode No.
00-85126-93738-6

BATTERY CHARGER BC-71

A battery charger set designed exclusively for the SIGMA fp series’ battery BP-51.

Barcode No.
00-85126-93740-9

AC ADAPTER SAC-7P

A dedicated adapter for using SIGMA fp series with a household power supply. Recommended for long-time shooting, image playback, etc.
Includes DC connector SIGMA DC CONNECTOR CN-21.

Barcode No.
00-85126-93748-5

ELECTRONIC FLASH EF-630

The high-power EF-630 flash enables TTL automatic flash metering. It has wireless flash connectivity and a high-speed synchronization function that can be used at high shutter speeds, giving photographers further scope for creative expression.

MOUNT CONVERTER MC-21

The SIGMA MOUNT CONVERTER MC-21 allows SIGMA SA mount and SIGMA’s CANON EF mount interchangeable lens owners to use their lens investment on L-Mount camera bodies.

MOUNT CONVERTER MC-31

The new MOUNT CONVERTER MC-31 allows you to use your PL mount interchangeable lenses with the L-Mount camera body, such as SIGMA fp / SIGMA fp L.

Supplied Accessories

Cap, Support foot, Hex wrench, Screwdriver,
Mount lock screw, L-Mount shim

Barcode No.
00-85126-93819-2
