Type

Interchangeable-lens Mirrorless Type Digital Camera
Memory Media

SD, SDHC, SDXC memory card (UHS-Ⅱ supported) , Portable SSD (USB 3.0 connection, USB bus power supported)
Lens Mount

L-Mount
Image Sensor Type

35 mm full-frame (36.0 mm x 24.0 mm) Back-illuminated Bayer CMOS sensor
Camera Effective Pixels / Total Pixels

Approx. 61 MP / Approx. 62.4 MP
Aspect Ratio

3:2
Color Filter System

RGB Primary color filter
Still Image File Format

Lossless compression RAW(DNG) data 12 bit,14 bit / JPEG(Exif2.3), RAW(DNG)+JPEG:recording is possible
Image Aspect Ratio

[21:9] , [16:9] , [3:2] , [A Size (√2:1) ] , [4:3] , [7:6] , [1:1]
RAW (File Size)

9.5K：9,520 x 6,328　6.2K：6,240 x 4,144　4.8K：4,768 x 3,168　UHD：3,840 x 2,552　FHD：1,920 x 1,280
JPEG (File Size)

[21:9]
9.5K：9,520 x 4,080　6.2K：6,240 x 2,672　4.8K：4,768 x 2,040　UHD：3,840 x 1,648　FHD：1,920 x 824

[16:9]
9.5K：9,520 x 5,352　6.2K：6,240 x 3,512　4.8K：4,768 x 2,680　UHD：3,840 x 2,160　FHD：1,920 x 1,080

[3:2]
9.5K：9,520 x 6,328　6.2K：6,240 x 4,144　4.8K：4,768 x 3,168　UHD：3,840 x 2,552　FHD：1,920 x 1,280

[A Size (√2:1) ]
9.5K：8,944 x 6,328　6.2K：5,856 x 4,144　4.8K：4,480 x 3,168　UHD：3,616 x 2,552　FHD：1,808 x 1,280

[4:3]
9.5K：8,432 x 6,328　6.2K：5,520 x 4,144　4.8K：4,224 x 3,168　UHD：3,408 x 2,552　FHD：1,696 x 1,280

[7:6]
9.5K：7,856 x 6,328　6.2K：5,152 x 4,144　4.8K：3,920 x 3,168　UHD：3,168 x 2,552　FHD：1,584 x 1,280

[1:1]
9.5K：6,328 x 6,328　6.2K：4,144 x 4,144　4.8K：3,168 x 3,168　UHD：2,552 x 2,552　FHD：1,280 x 1,280

* When a DC lens is attached, it can be used with a recording pixel count of 6.2K or less.
Crop

Equivalent to approx.1.5 to 5 times the focal length of the lens (for 35 mm cameras)
Color Space

sRGB, Adobe RGB
Camera Internal Record

Movie Format
CinemaDNG（8 bit, 10 bit, 12 bit）/ MOV：H.264 （ALL-I, GOP）

Audio Format
Linear PCM (2 ch 48 kHz / 16 bit)

Record Format / Frame rate
3,840 x 2,160 (UHD 4K) / 23.98 p, 24 p, 25 p, 29.97 p
1,920 x 1,080 (FHD) / 23.98 p, 24 p, 25 p, 29.97 p, 48 p, 50 p, 59.94 p, 100 p*, 119.88 p*
* Automatic crop zoom setting is x1.67

Continuous Shooting Enable Time
Up to 2 hours

Cinema DNG Memory Media Limitation
SD Card (UHS-II) : UHD 8 bit 25 p or less, FHD 12 bit 59.94 p or less
Portable SSD : UHD 12 bit 29.97 p or less, FHD 12 bit 100 p or less, FHD 8 bit 119.88 p or less
HDMI External Output

Movie Format
4:2:2 8 bit
12 bit RAW :External recorder record : ATOMOS Ninja V, ATOMOS Ninja V+, ATOMOS Shogun CONNECT, Blackmagic Video Assist 12G supported

Audio Format
Linear PCM (2 ch 48 kHz/16 bit)

Record Format / Frame Rate
4,096 x 2,160 (DCI 4K) / 24 p　* Only for RAW output
3,840 x 2,160 (UHD 4K) / 23.98 p, 24 p, 25 p, 29.97 p
1,920 x 1,080 (FHD) / 23.98 p, 24 p, 25 p, 29.97 p, 48 p, 50 p, 59.94 p, 100 p*, 119.88 p*
* Automatic crop zoom setting is x1.67
AF System / Focus Mode

Image plane phase-difference AF + Contrast detection system, Single AF, Continuous AF (with moving object prediction function), Manual Focus
AF Sensitivity Range / AF Mode

-5 to 18 EV (F1.4:ISO 100) / Auto, 49-point selection mode, Free Move mode, Face/Eye Detection AF mode, Tracking AF mode
AF Lock

Half-press the shutter button, or press the AEL button (setting change required)
Other Focus Functions

AF+MF, MF Magnification (Full Screen, PIP), MF Display, Focus Peaking, Release Focus Function, AF-ON, Quick AF, Pre-AF, AF during Image Magnification, Focus Ring Control (Non-linear, Linear)
Metering System

Evaluative, Spot, Center Weighted Average
Metering Range

-5 to 18 EV (50 mm F1.4:ISO 100)
Still Image Shooting Mode

(P) Program AE (Program Shift capable), (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual
Movie Shooting Mode

(P) Program AE, (S) Shutter Angle/Speed Priority AE, (A) Aperture Priority AE, (M) Manual
ISO Sensitivity (Recommended exposure value)

Base ISO
[Still]
ISO 100,400
[Cine]
CinemaDNG 12 bit / HDMI RAW:ISO 100, 1250
MOV / CinemaDNG 10 bit, 8 bit, HDMI 4:2:2 8 bit:ISO 100, 250

Settable Range
ISO 100-25600 / Expanded sensitivity ISO 6, 12, 25, 50, 51200, 102400
Exposure Compensation

±5 EV (in 1/3 stop increments) : ±3 EV at movie recording
AE Lock

Half-press the shutter button, or press the AEL button (setting change required)
Exposure Bracket

3 shots / 5 shots stage exposure 3EV (1/3 Step, Standard→Underexposure→Overexposure) (Sequence changeable)
Exposure Tool

Brightness Level Monitor (Waveform, Histogram ), Zebra Pattern, False Color (False Color, EL ZONE)
Image Stabilization System

Image Stabilization System(EIS)
White Balance

12 types
( Auto, Auto[Lighting Source Priority], Daylight, Shade, Overcast, Incandescent, Fluorescent, Flash, Color Temperature[50K steps], Custom 1, Custom 2, Custom 3 )
Shutter Type

Electronic shutter
Shutter Speed

30 to 1/8,000 sec., Bulb up to 300 sec.
Self Timer

2 sec., 10 sec. (Countdown Indicator)
Drive Modes

Single Capture, Continuous, Self Timer, Interval Timer
Continuous Drive Speed

High Speed:approx. 10 shots/ sec., Medium Speed:approx. 5 shots/ sec., Low Speed:approx. 3 shots/ sec.
Number of Recordable Frames

DNG+J (14 bit) / 9.5K:12 frames, 6.2K:12 frames, 4.8K or less:12 frames
DNG+J (12 bit) , DNG (14 bit/12 bit) / 9.5K:12 frames, 6.2K:28 frames, 4.8K or less:50 frames
JPEG / 9.5K:14 frames, 6.2K:35 frames, 4.8K or less:57 frames
Monitor Type / Coverage

TFT color LCD, Aspect Ratio 3:2, 3.15 type, Approx. 2.1M dots , Electrostatic capacitance system touch panel / Approx. 100%
Built-in Flash

-
Flash Mode

S-TTL Auto Exposure, Manual Flash, Wireless Flash, Multi Flash
Optional Functions

Red-eye Reduction, Slow Synchronization, Rear Curtain Synchronization
Flash Exposure Compensation

Max. ±3 EV in 1/3EV step increments
Flash Sync. Speed

Max. 1/15 sec.

* 1/10 sec. or less at 14 bit RAW
External Flash Support

Available when the HOT SHOE UNIT HU-11 (supplied with this product) is mounted. * S-TTL, Wireless support, X-sync.
Color Mode

16 types
(Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Warm Gold, Teal and Orange, Sunset Red, Forest Green, Powder Blue, FOV Classic Blue, FOV Classic Yellow, Duotone, Monochrome, Off )
Supported Cloud Connection models

ATOMOS Ninja V+*, ATOMOS Shogun CONNECT

*Available when the ATOMOS CONNECT is mounted.
Director’s Viewfinder Supported cameras

ARRI
ARRICAM / ARRIFLEX, ALEXA LF/ ALEXA Mini LF, ALEXA SXT, ALEXA Mini, AMIRA, ALEXA65, ALEXA XT

SONY
VENICE

RED
MONSTRO 8K, HELIUM 8K, DRAGON 6K, EPIC MX 5K, GEMINI 5K, KOMODO 6K
Director’s Viewfinder Frame Guide

1.33:1, 1.85:1, 2.39:1, Custom 1, Custom 2
Director’s Viewfinder Custom Frame

Input (Sensor Area, Aspect Ratio) , Offset, Style (4 styles) , Line (1 to 10 px) , Color (White, Black, Red, Yellow, Green, Cyan, Blue, Magenta) , Shading
Other Functions

Save / Load Settings via QR code, Screenshot, Webcam, In-camera RAW development, Still image capture from recorded movie files, Cinemagraph, Fill Light, HDR shooting (Still, Cine) , Still image shooting during movie shooting
Built-in Microphone / Speaker

Stereo Microphone, Monaural Speaker
Display Language

English, Japanese, German, French, Spanish, Italian, Simplified Chinese, Traditional Chinese, Korean, Russian, Dutch, Polish, Portuguese, Danish, Swedish, Norwegian, Finnish
USB Terminal

USB3.1 GEN1 Type-C (supports Mass Stroage, Video Class(UVC), Camera Control)
HDMI Terminal

Type D（Ver.1.4）
Remote

Also used as an external microphone terminal
Timecode Input

Also used as an external microphone terminal
External Microphone Terminal

Φ3.5 mm stereo mini jack (Plug-in power support)
Headphone Output Terminal

Φ3.5 mm stereo mini jack (can be connected when using the dedicated ELECTRONIC VIEWFINDER EVF-11)
Flash-synchro Terminal

Dedicated terminal (with HOT SHOE UNIT HU-11 (supplied with this product) mounted)
Dust and Splash Resistant Structure*

Provided

*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.
Power

Li-ion Battery Pack BP-51

* Internal battery charge via USB terminal available.
* USB power supply available.
Number of Recordable Still Images

Approx. 240 images
Minutes of Recordable Continuous Shooting

Approx. 60 min.
Dimensions (W x H x D)

112.6 x 69.9 x 45.3 mm / 4.4 x 2.8 x 1.8 in.
Weight

427 g / 15.1 oz.(including battery and SD card), 375 g / 13.2 oz. (Camera body only)
Operating Temperature

32 – 104 °F / 0 – +40 °C
Operating Humidity

85 % or less (non-condensing)
Supplied Accessories

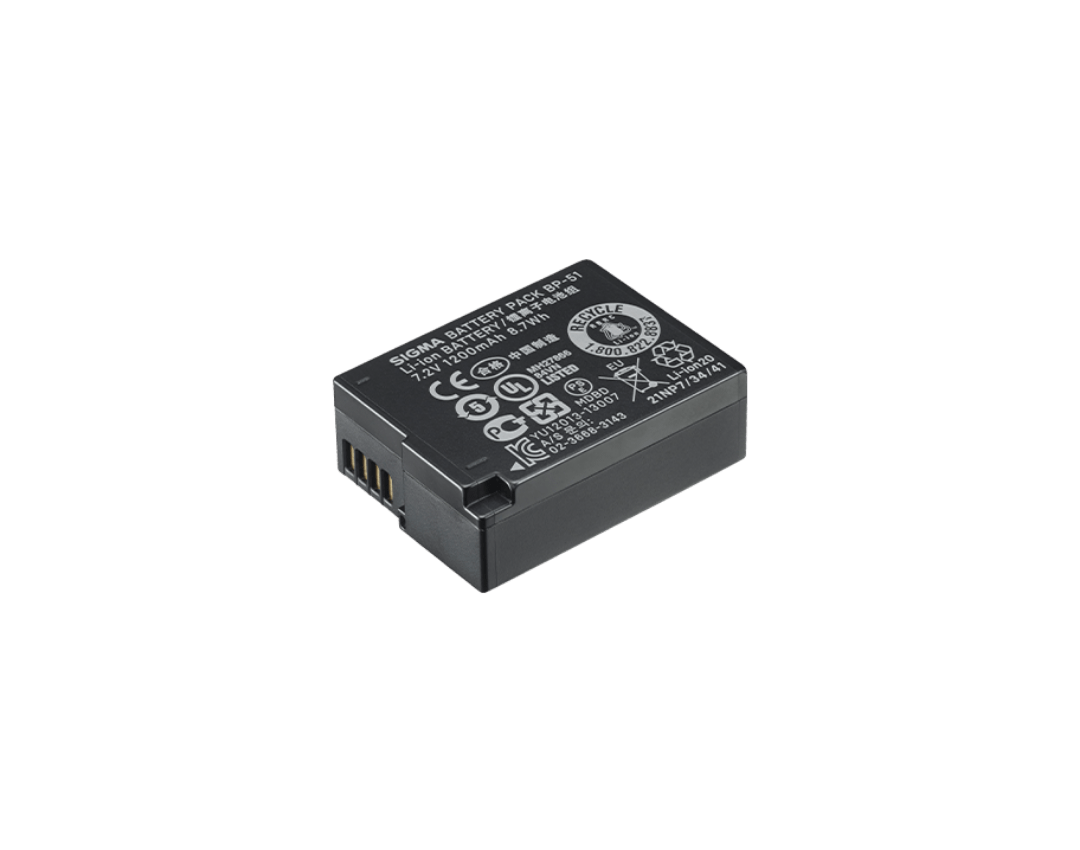

Li-ion Battery Pack BP-51
Strap
STRAP HOLDER SH-11

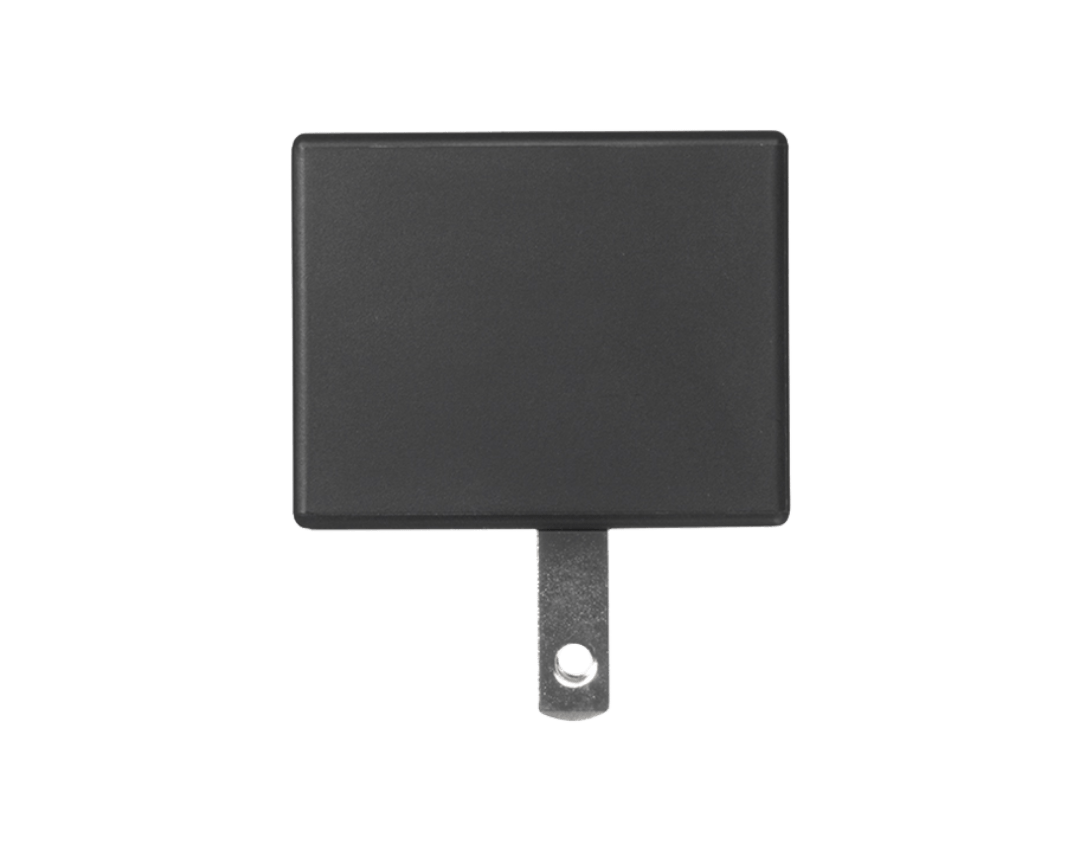

USB AC ADAPTER UAC-21

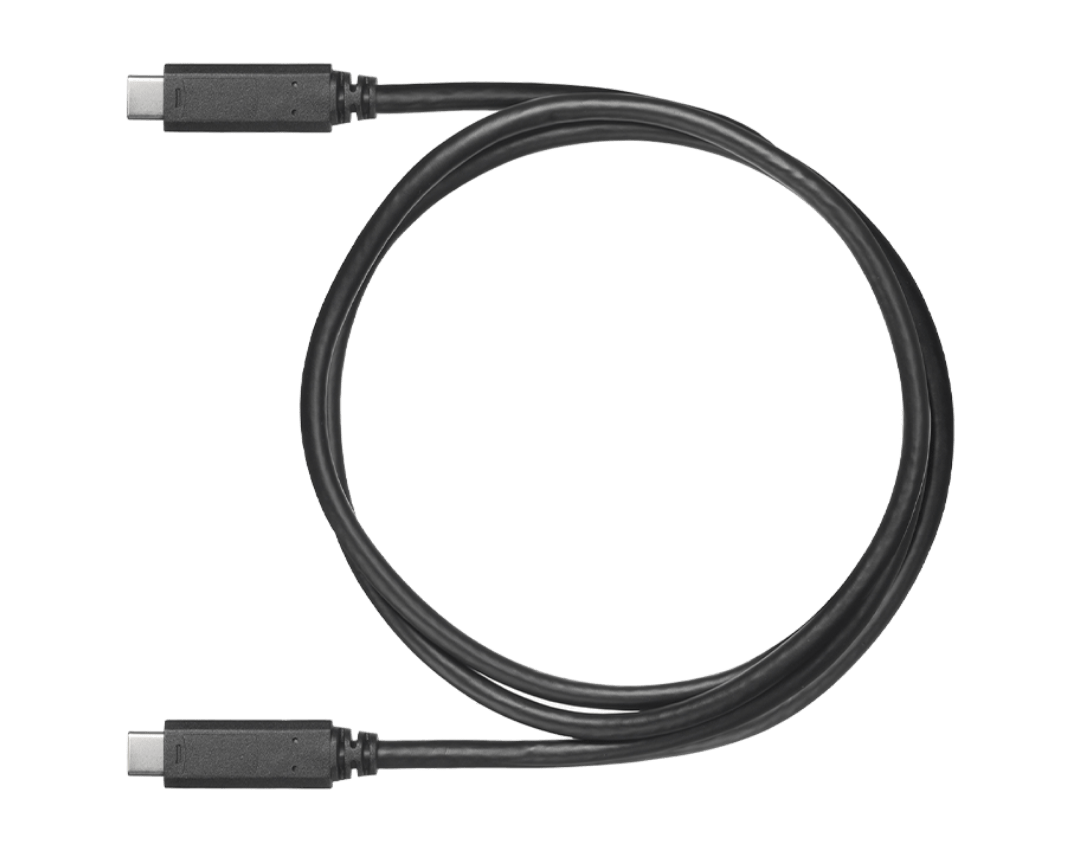

USB CABLE (C-C) SUC-41

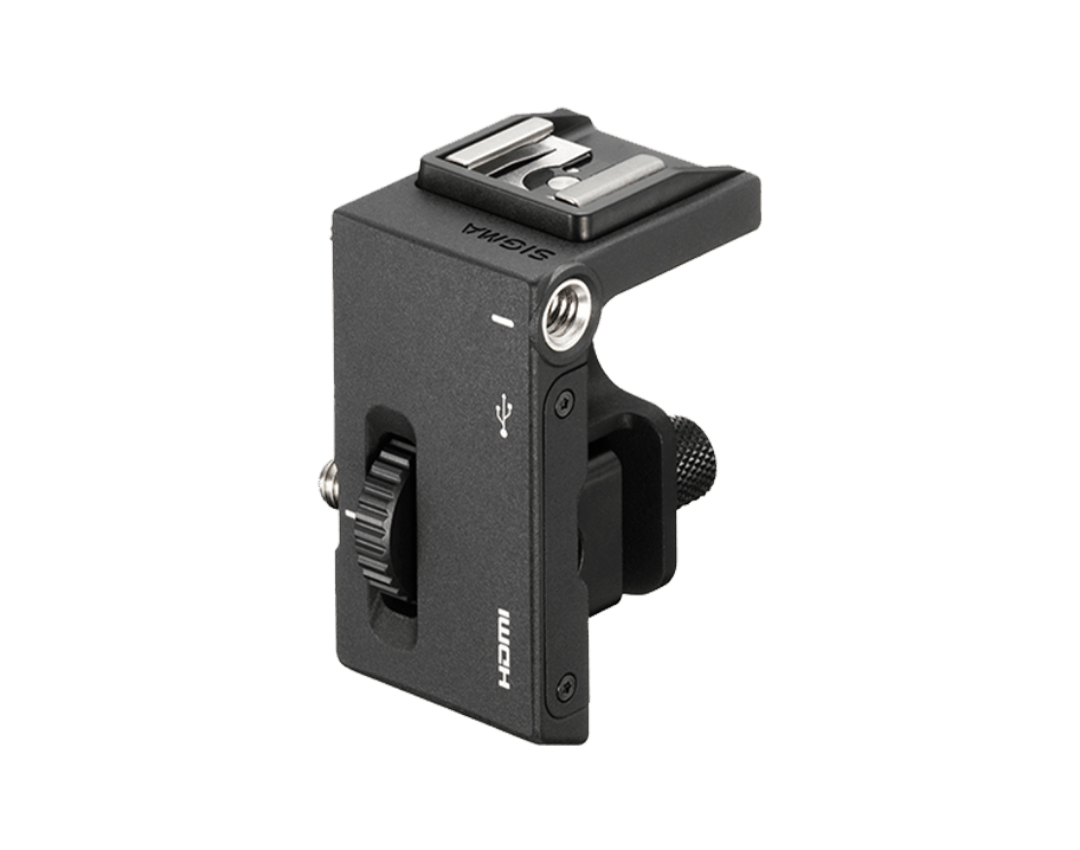

HOT SHOE UNIT HU-11
Body Cap
Instruction Manual
Limited Warranty
Warranty Sticker
Optional Accessories

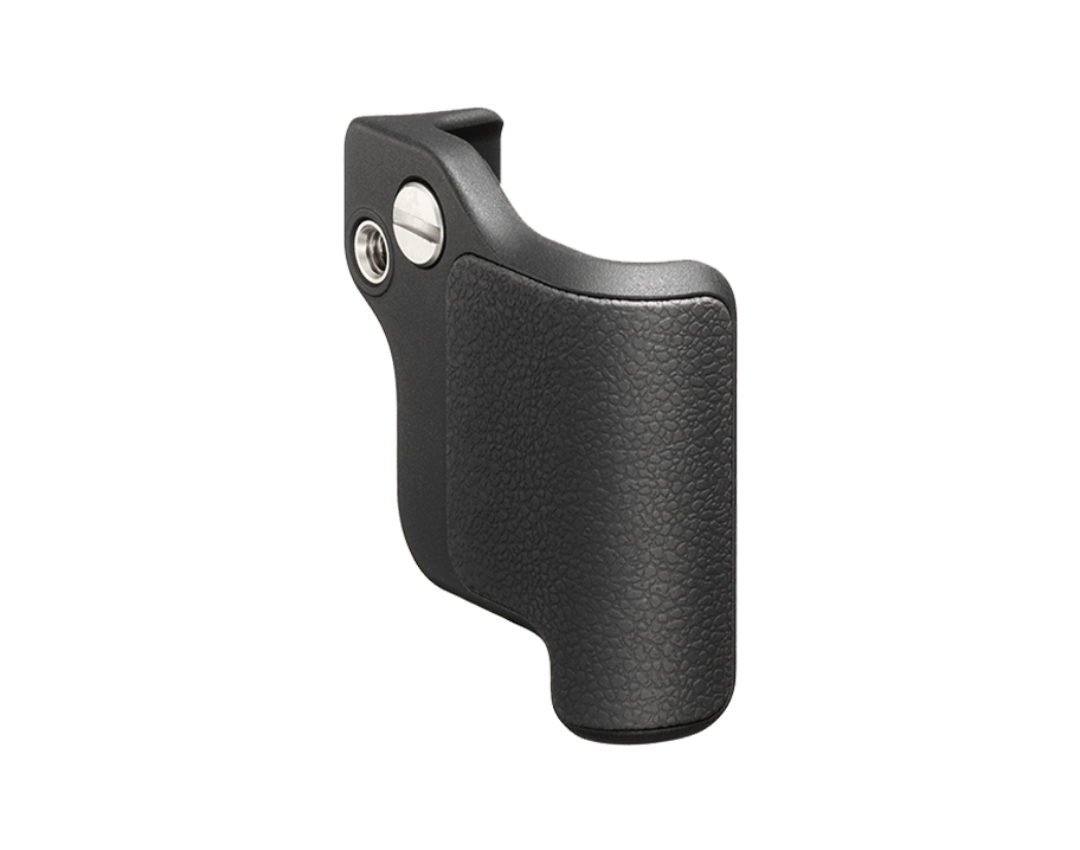

HAND GRIP HG-11

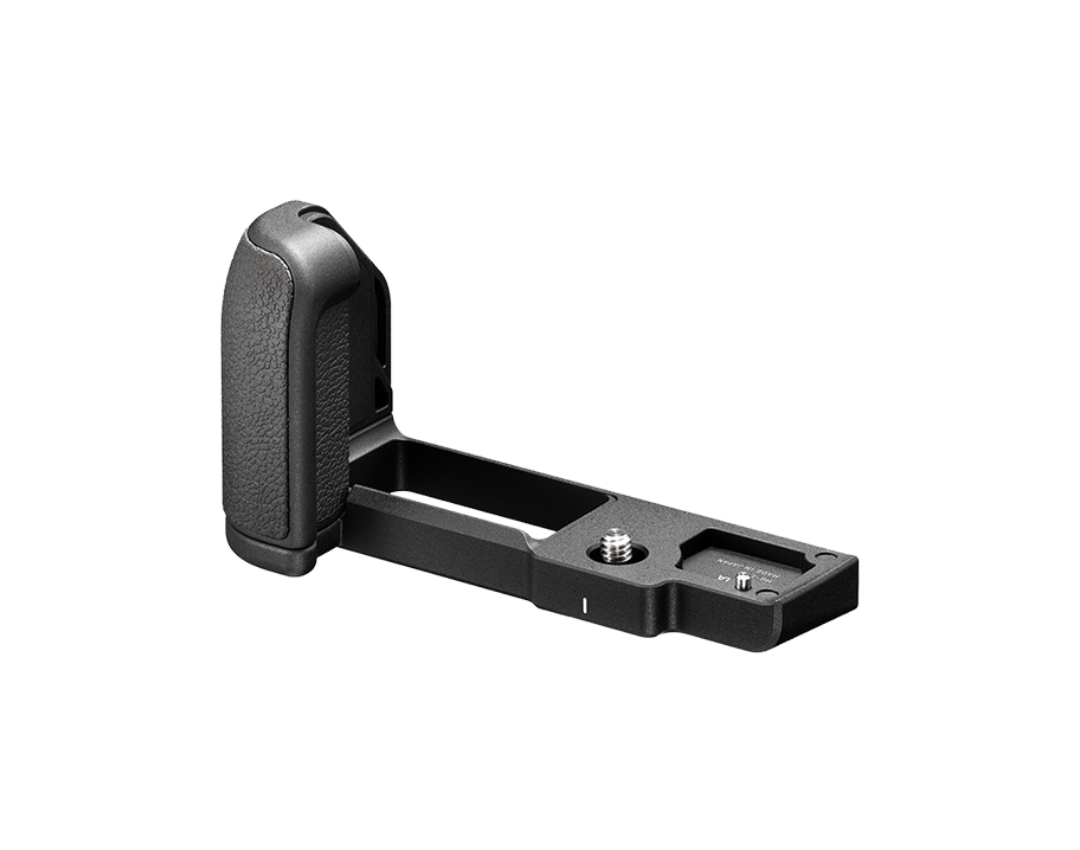

LARGE HAND GRIP HG-21
LCD VIEWFINDER LVF-11
ELECTRONIC VIEWFINDER EVF-11

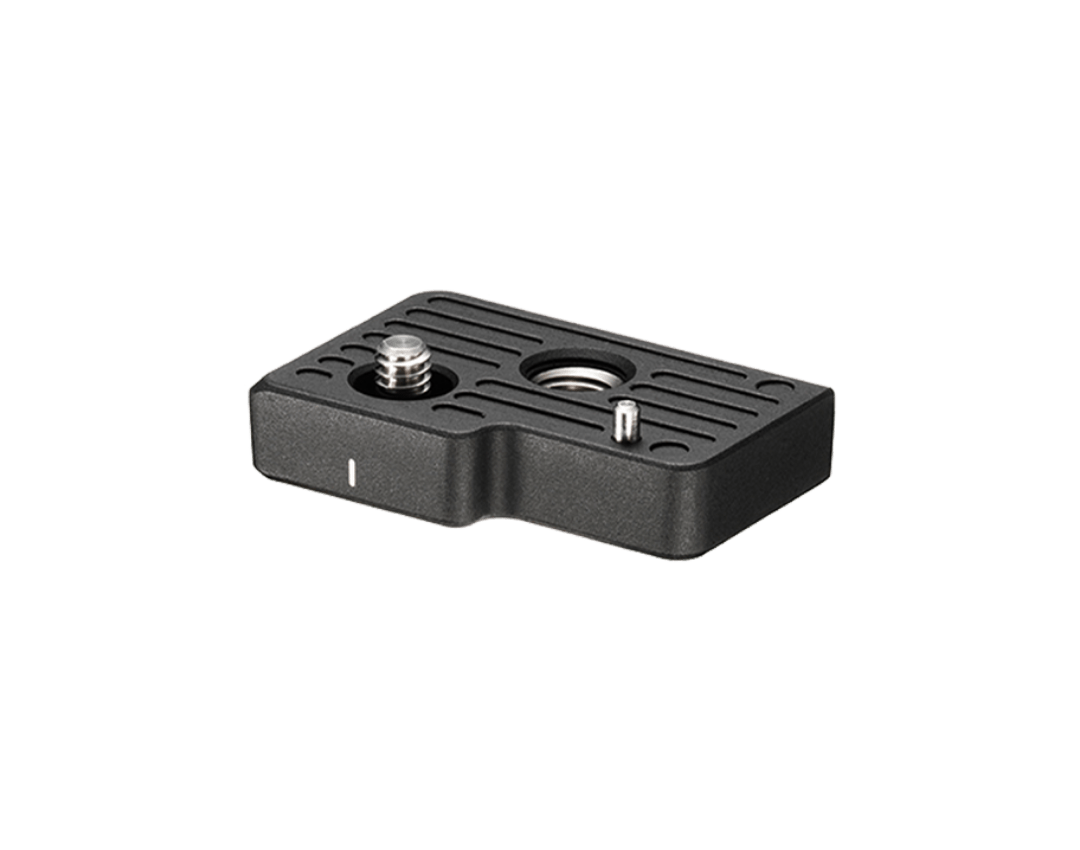

BASE PLATE BPL-11

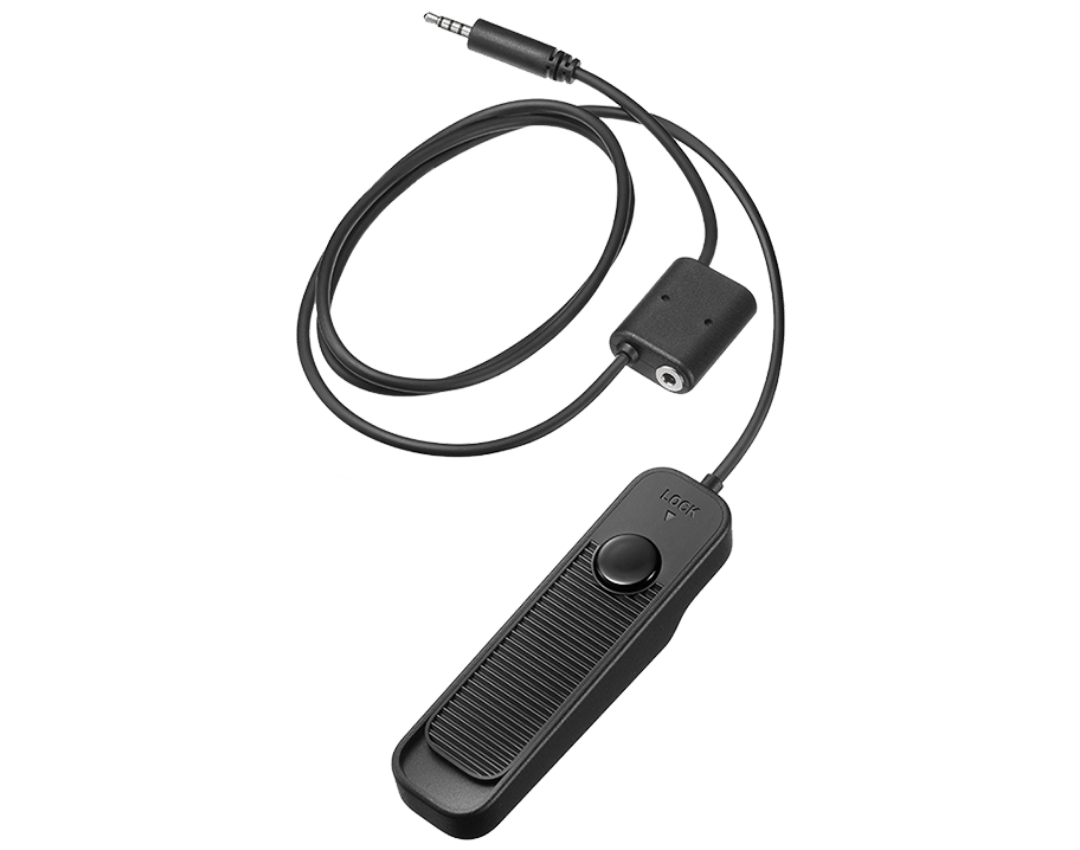

CABLE RELEASE CR-41
BASE GRIP BG-11

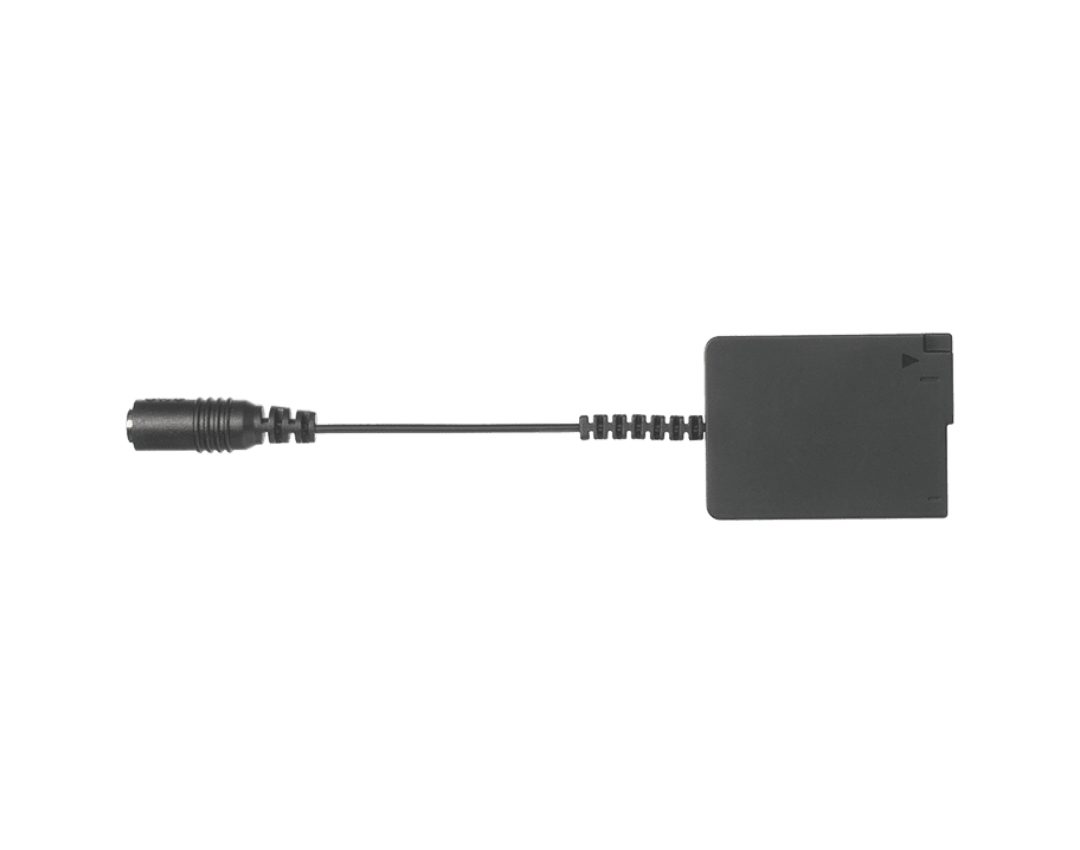

DC CONNECTOR CN-21

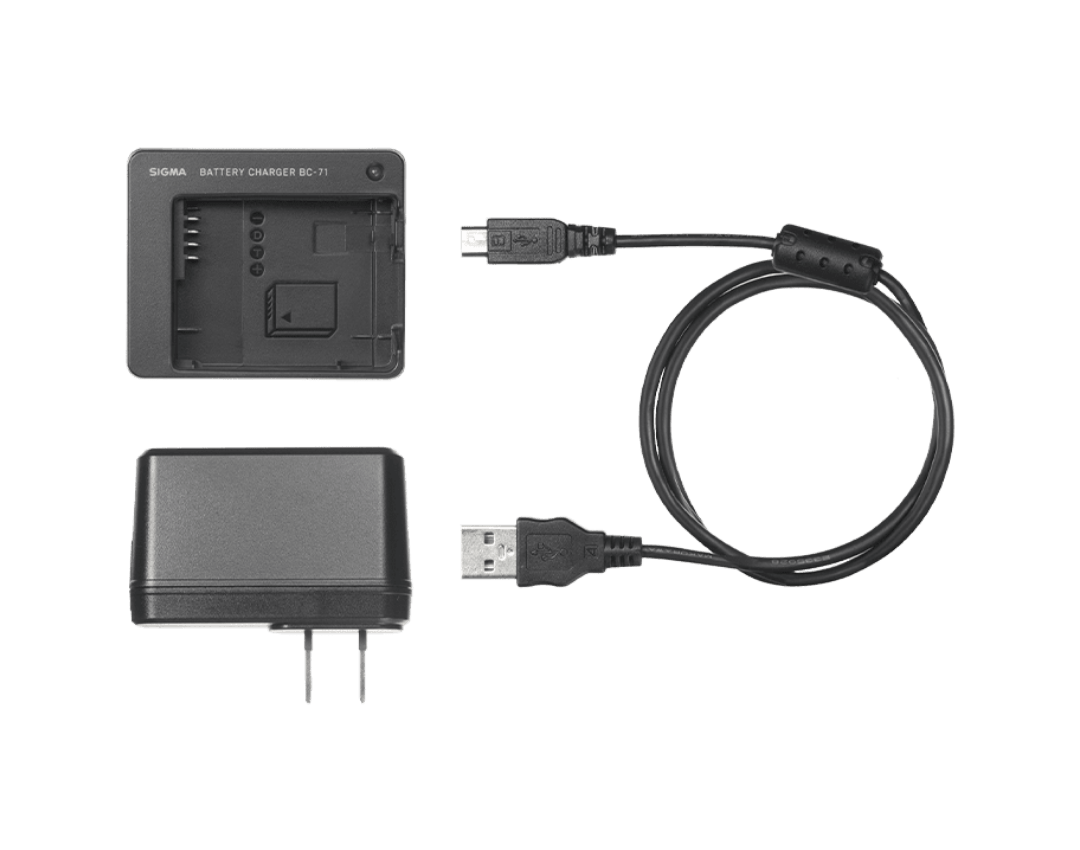

BATTERY CHARGER BC-71

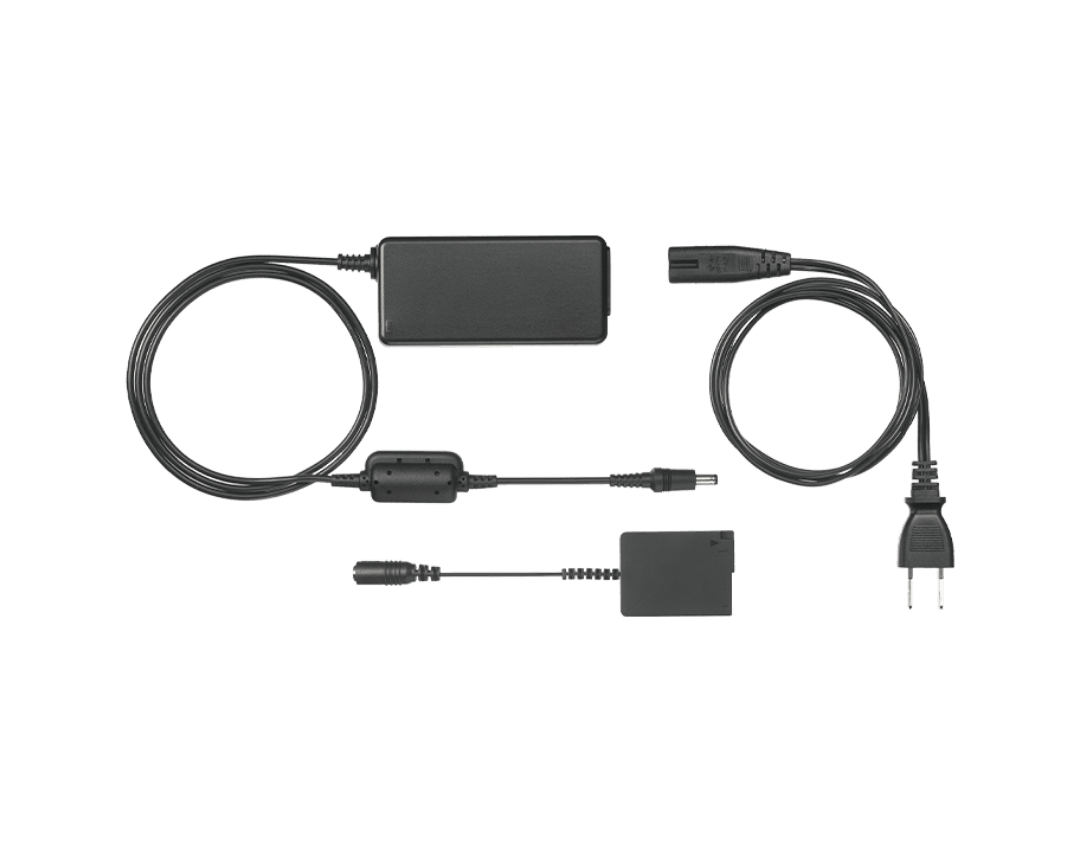

AC ADAPTER SAC-7P

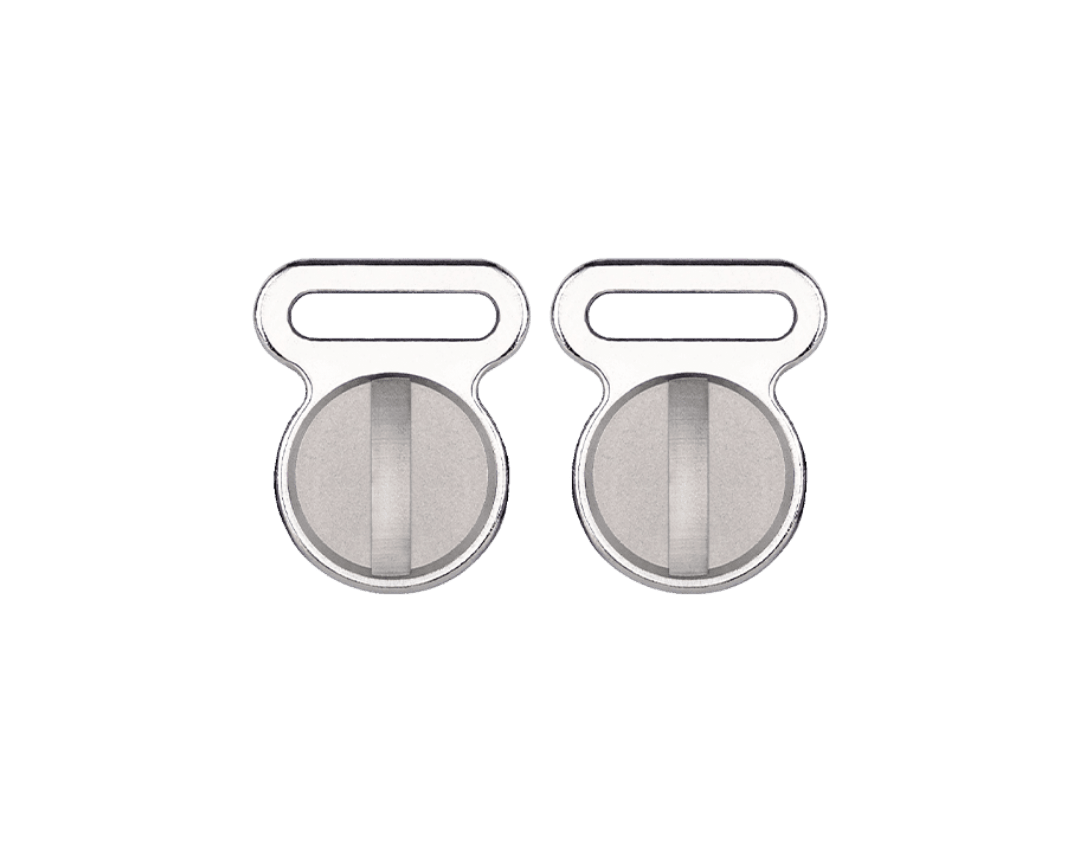

STRAP HOLDER SH-11 (2pcs)
Product Barcode

fp L Body : 00-85126-93903-8
fp L + ELECTRONIC VIEWFINDER EVF-11 : 00-85126-93907-6
Recommended accessories list

READ MORE
Recommended Media Compatibility Chart

READ MORE

61 megapixels. The highest resolution presented by Sigma.

Leveraging our knowhow of image processing technology on Foveon sensors.
Thanks to the ultra-high resolution, Sigma fp L is able to unleash your imagination and feature a low-pass filter to make a further contribution to the optical performance.

The Sigma fp L features a Bayer sensor with approximately 61 effective megapixels, higher than any other Sigma camera before it. In addition to images with fine details, the fp L is capable of creating images that are high-definition and rich in color, thanks to its ultra-high pixel count and Sigma’s experience in developing cameras with a Foveon sensor, are renowned for both the exceptional resolving power and nuanced color gradients due to the unique nature of the X3 sensor. Furthermore, for its image quality that are in principle free of color artifacts, the Foveon sensor legacy was also behind the decision that the fp L should have a low-pass filter to reduce moiré to minimum levels. The use of a low-pass filter was a choice that made sense for a camera with an ample megapixels such as the Sigma fp L.
Higher resolution. Greater freedom.
Every shot is your dream shot.

Crop Zoom

A high pixel count means that images can stand extreme zooming or cropping. This was one aspect of an ultra-high pixel camera that led Sigma to give the fp L a cropped zoom feature that works in both the STILL and CINE modes. Thanks to its ample (approximately 61 effective) megapixels, the fp L can record in full HD quality even at its maximum 5x zoom; because this is accomplished simply by cropping with no digital enhancement, the image quality will not suffer. To use it in a more intuitive way, you can pinch to zoom on the LCD touch screen.
Never miss your moment.

Hybrid Autofocus
Contrast detection autofocus + Phase detection autofocus

In addition to high-precision contrast AF, the Sigma fp L features fast image area phase-detection AF. This hybrid AF allows users to enjoy smooth autofocus that is high-precision, fast, and excellent at tracking a moving subject, whether they are shooting stills or video.
Unlimited power supply.

Long hours of worry-free USB-C cable power supply

The Sigma fp L supports USB charging while the camera is on. You can shoot without interruption while charging the camera using a mobile battery, even outdoors or where you have no access to a power outlet. When using it as a webcam, just connect the fp L to a PC via USB and it works as an audio and video input device while getting its power supply from the PC. This means that you can use it for long hours without having to worry about the battery dying on you.
Carry all the amazing things in your pocket.

The world’s smallest and lightest full-frame mirrorless camera.*

With overall dimension of 112.6 x 69.9 x 45.3mm and body weight of 370g and 375g for the fp and the fp L, respectively, the Sigma fp family is the world’s smallest and lightest* full-frame mirrorless cameras. They are small enough to take for casual use, so you can enjoy the full-frame image quality for your everyday snaps.

*As of March 2021, by Sigma
Abundant of choices for every occasion.

L-Mount lenses.

The Sigma fp series uses the L-Mount*, characterized by a short flange focal length, large diameter, and superior durability. For interchangeable lenses, in addition to the wide-ranging choice of Sigma lenses, other manufacturers’ lenses can also be an option through the L-Mount Alliance with Leica Camera AG and Panasonic Corporation. With the Sigma MOUNT CONVERTER MC-21, Sigma SA mount and Sigma’s CANON EF mount lenses can be used, making the best out of one’s lens investment.

*The L-Mount Trademark is a registered Trademark of Leica Camera AG.

Camera Compatibility
Make your communication more engaging than ever.

Transforming a Sigma fp to a webcam with just a USB cable.

By simply connecting it to a PC via USB, a Sigma fp camera can be used as a webcam. It will bring a stunning, full-frame image quality to live streaming and online communication including video conferencing.
Film like a pro.

Supporting 12bit CinemaDNG recording
Supporting Blackmagic RAW and ProRes RAW HDMI outputs as standard
Professional video interface

For raw video data, the Sigma fp series supports 12-bit CinemaDNG external recording. With 4K UHD/24fps recording, it produces video data that can be used even in filmmaking. It also supports Blackmagic RAW and ProRes RAW over HDMI recording, so you can choose one according to your workflow.
For the operation system, the Sigma fp series features a dedicated interface that supports commonly used cinema cameras, which means it can be taken straight to video production settings.
Your tough companion. Wherever you go.

Dust and Splash Resistant Structure* / Large Heat Sink

A body covered with die-cast aluminum on the front and the back ensures superior robustness and heat dissipation while keeping the body weight light.
The Sigma fp series is protected with the dust and splash resistant sealing on a total of 42 points over the camera body. Combined with a large-size magnesium heat sink that prevents overheating, the Sigma fp series is a reliable choice for shooting in a wide range of conditions as well as long hours of use.
Sigma fp | Large Heat Sink (Multi-languages)

*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.
See outside the frames.

Diverse aspect ratios

In STILL mode, you have seven aspect ratios to choose from. You can either choose one that suits your mood and preference, or try out one that you don’t normally use to discover a new framing and style. The Sigma fp series’ diverse aspect ratio will bring you possibilities to experience something that may change the way you see things.

7 types of aspect ratios
Find your own expression

Cinemagraph / Fill Light / Color mode

In addition to a total of 15 color modes to choose from, the Sigma fp series features a number of functionalities such as Cinemagraph, which is animated GIF that is a hybrid between photography and video, and Fill Light, which is Sigma’s special light control function. These features specially created for the Sigma fp series will help you find your own style.
A camera that whispers. For enjoying precious moments.

Full-time electronic shutter

Shutter shock, sound, and lags: these are disadvantages of mechanical shutters. The Sigma fp series is designed to minimize them in pursuit of a system to adapt to a variety of different shooting scenes. Shooting that requires precision where even the tiniest shake is to be eliminated; shooting in a sound-sensitive situation; shooting without ruining the ambience of the scene; and shooting with good response without missing the perfect shot. These types of shooting will open new horizons in video creation. Furthermore, the absence of a mechanical shutter makes the Sigma fp’s camera structure simpler, which in turn improves its reliability as a camera.
Sigma fp L Features Introduction

Camera	SIGMA fp L
Lens	105mm F2.8 DG DN MACRO \| Art
Shutter Speed	1/640s
Lens F Number	F5.8
ISO	400
Focal Length	105mm
Focal length (35mm equivalent)	105mm
Photographer	Aya Iwasaki
Color Mode	Duotone

Download

Camera	SIGMA fp L
Lens	65mm F2 DG DN \| Contemporary
Shutter Speed	1/500s
Lens F Number	F4
ISO	100
Focal Length	65mm
Focal length (35mm equivalent)	65mm
Photographer	Aya Iwasaki
Color Mode	Teal and Orange

Download

Camera	SIGMA fp L
Lens	65mm F2 DG DN \| Contemporary
Shutter Speed	1/1600s
Lens F Number	F4
ISO	100
Focal Length	65mm
Focal length (35mm equivalent)	65mm
Photographer	Yang Su Tie
Color Mode	Landscape

Download

Camera	SIGMA fp L
Lens	14-24mm F2.8 DG DN \| Art
Shutter Speed	15s
Lens F Number	F16
ISO	100
Focal Length	16mm
Focal length (35mm equivalent)	16mm
Photographer	Yang Su Tie
Color Mode	Landscape

Download

Deconstruction of digital camera.

-the starting point and journey of SIGMA fp

SIGMA has been questioning the genuine value of a digital camera
and how can we break down manufacturer’s ideas of camera-centric hierarchies and categories.

Deconstruction is our answer after rethinking what is essential to the users. We believe a camera should be more than a tool for fulfilling rational needs of photography making, but enriching life as your inspiration.
Therefore, “how can SIGMA be the one to make this happen?”

As the answer to this question, SIGMA set itself to develop a user-oriented digital camera that reflected the idea of “how a camera can be” in a more flexible and true-to-life manner.

A camera that keeps the heart of photography.
As a result, the SIGMA fp is the new form of camera that lets creativity get in.
Because SIGMA believes keeping the essence is the key to genuinely realize the idea of giving freedom back to you.

SIGMA fp L Concept Movie

A big canvas for big moments.

35 mm full-frame Back-illuminated Bayer sensor with approx.61 effective megapixels

Hybrid Autofocus | Contrast detection autofocus + Phase detection autofocus

Supports USB power supply

Impressions

The freedom the fp system provides me is the most precious of all things, and beyond.

fp L The freedom the fp system provides me is the most precious of all things, and beyond. Yang Su Tie Sigma fp L, Sigma 65mm F2 DG DN | ContemporaryISO 100, F4, 1/1600s, 65mm, Color Mode: Landscape The Sigma fp L perfectly balances compactness with

fp L. A powerful but fun tool for such a compact size.

fp L A powerful but fun tool for such a compact size. Alexandre Souêtre 61 MPAn amazing resolution. With the already stunning image quality, as well as dynamic range the Sigma fp had to offer, I found myself getting even more with the fp L. The incr

fp L. A camera that perfectly interprets "Less is more".

fp L A camera that perfectly interprets "Less is more". Colin Prior Sigma fp L, Sigma 28-70mm F2.8 DG DN | ContemporaryISO 100, F11, 1/5s, 28mm Throughout my career as a photographer, one of the issues I've struggled with has been my weight - not my

fp L― Creates WOW image quality large-format prints for photo exhibitions and beyond.

fp L Creates WOW image quality large-format prints for photo exhibitions and beyond. Yuji Hamada For each of my works, I select the best-suited camera from a range of analog and digital cameras. Sometimes I decide not to use a camera at all if I feel
