DISCONTINUED

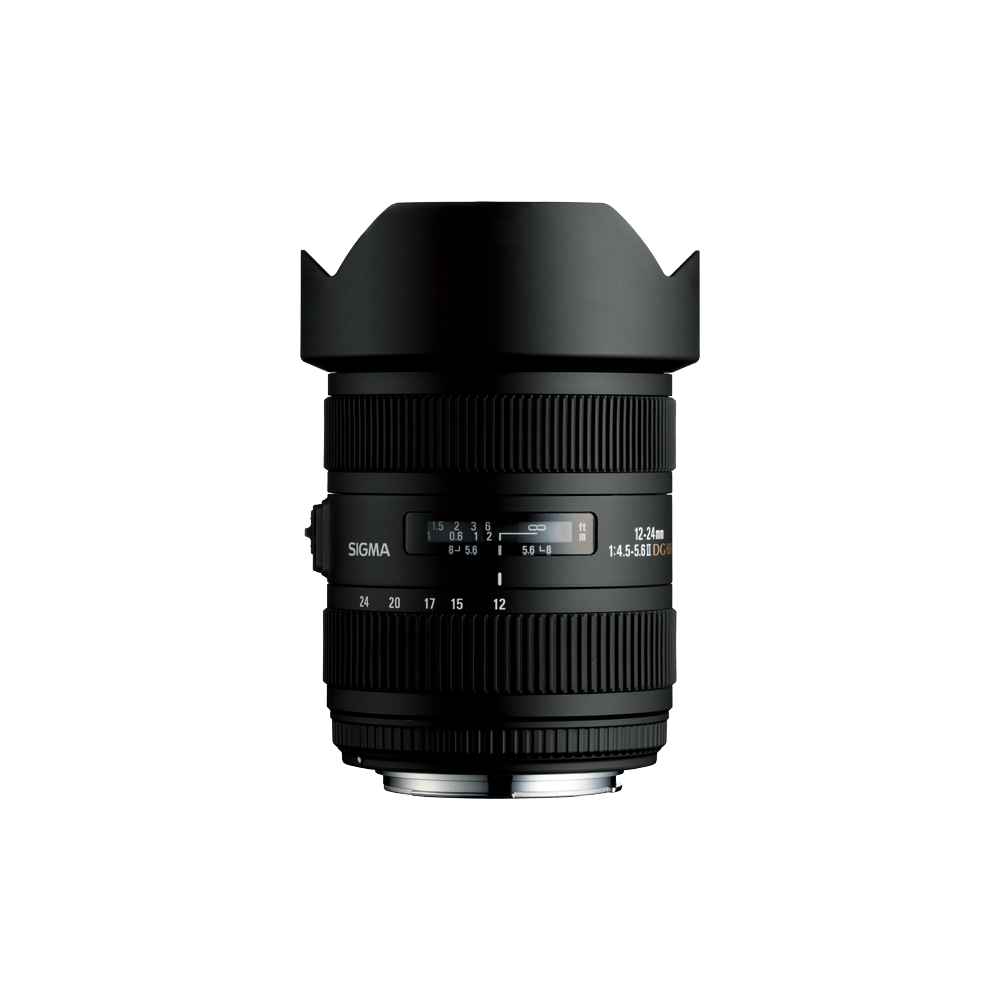

12-24mm F4.5-5.6 II DG HSM
Available mounts
- SIGMA SA-mount
- Canon EF mount
- Nikon F mount
- Sony A-mount
-
Camera Type
DSLR -
Corresponding Mount
SIGMA SA-mount,Canon EF mount,Nikon F mount,Sony A-mount -
Sensor Format
Full-frame [DG] -
Lens Construction
17 elements in 13 groups
-
Angle of View
122 - 84.1°
-
Number of Diaphragm Blades
6 Blades
-
Minimum Aperture
F22
-
Minimum Focusing Distance
28cm/ 11in.
-
Maximum Magnification Ratio
1：6.4
-
Filter Size
-
-
Dimensions (Diameter × Length)
⌀87mm×120.2mm/ 3.4in.×4.7in.
-
Weight
670g/ 23.6oz.
-
Edition Number
-
The three-digit code on the surface of the lens is to indicate the year the lens was first released.
(Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.) -
Supplied Accessories
Case
COVER LENS CAP LC870-01
REAR CAP LCR II
-
Mount / Product Barcode
SIGMA SA-mount：00-85126-20456-3（DISCONTINUED）
Canon EF mount：00-85126-20454-9（DISCONTINUED）
Nikon F mount：00-85126-20455-6（DISCONTINUED）
Sony A-mount：00-85126-20462-4（DISCONTINUED） -
* All figures calculated by SIGMA SA-mount.
* DC lenses have an image circle that covers APS-C size image sensors. Not for use on digital cameras having image sensors larger than APS-C size or on 35mm or APS film cameras, as vignetting will occur. The angle of view varies depending on which camera the lens is mounted on. To find the 35mm camera-equivalent focal length, multiply the DC lens focal length by the crop factor (digital multiplier) of 1.5, 1.6, or 1.7, depending on the brand of DSLR camera on which the lens will be used. To find which DC lens is equivalent to a full-frame lens, divide the focal length of the full frame lens by the same crop factor. AF will not function with Pentax ist* series and K100D DSLR cameras that do not support HSM.
-

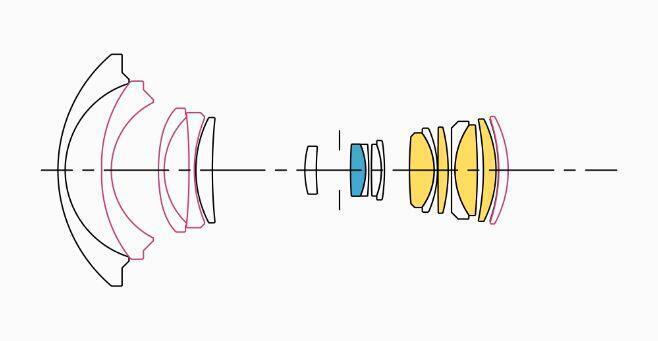

Lens construction
FLD glass
SLD glass
Aspherical lens
