DISCONTINUED

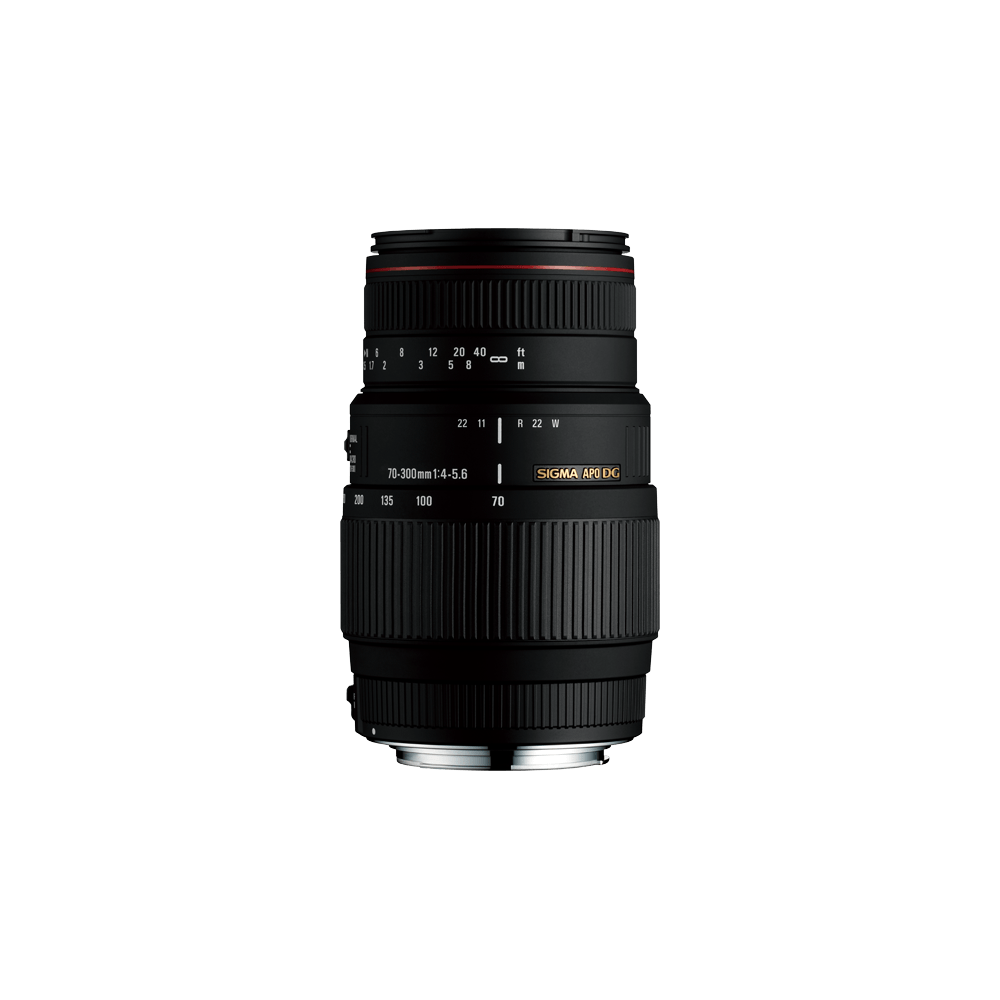

APO 70-300mm F4-5.6 DG MACRO

Available mounts

  • SIGMA SA-mount
  • Canon EF mount
  • Nikon F mount
  • Pentax mount
  • Sony A-mount
DISCONTINUED

  • Camera Type

    DSLR

  • Corresponding Mount

    SIGMA SA-mount,Canon EF mount,Nikon F mount,Pentax mount,Sony A-mount

  • Sensor Format

    Full-frame [DG]

  • Lens Construction

    14 elements in 10 groups

  • Angle of View

    34.3 - 8.2°

  • Number of Diaphragm Blades

    9 Blades

  • Minimum Aperture

    F22

  • Minimum Focusing Distance

    150cm(Macro mode 95cm) / 59.1in. (Macro mode 37.4in.)

  • Maximum Magnification Ratio

    1:4.1(Macro mode 1:2)

  • Filter Size

    ⌀58mm

  • Dimensions (Diameter × Length)

    ⌀76.6mm×122mm/ 3.0in.×4.8in.

  • Weight

    550g/ 19.4oz.

  • Edition Number

    -

    The three-digit code on the surface of the lens is to indicate the year the lens was first released.
    (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

  • Supplied Accessories

    CASE and LENS HOOD (LH635-01)

  • Mount / Product Barcode

    SIGMA SA-mount：00-85126-50840-1（DISCONTINUED）
    Canon EF mount：00-85126-50827-2（DISCONTINUED）
    Nikon F mount：00-85126-50855-5（DISCONTINUED）
    Pentax mount：00-85126-50845-6（DISCONTINUED）
    Sony A-mount：00-85126-50834-0（DISCONTINUED）

  • * All figures calculated by SIGMA SA-mount.
    * Nikon mounts do not have an aperture ring. Some functions may not work depending on the camera model.
    The angle of view varies depending on which camera the lens is mounted on.

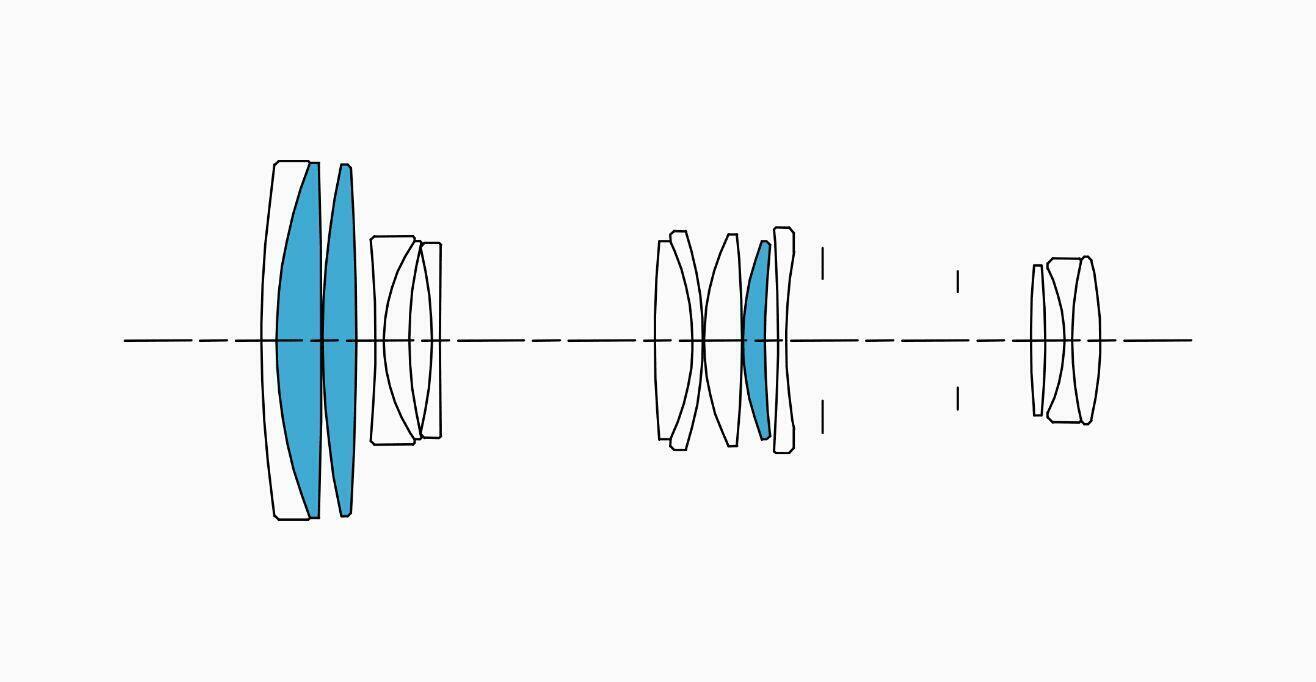

  • Lens construction

    SLD glass
