Art
50mm F1.4 DG HSM

• Camera Type

  DSLR

• Corresponding Mount

  L-Mount, Sony E-mount, SIGMA SA-mount, Canon EF mount, Nikon F mount

• Sensor Format

  Full-frame [DG]

• Lens Construction

  13 elements in 8 groups

• Angle of View

  46.8°

• Number of Diaphragm Blades

  9 (Rounded diaphragm)

• Minimum Aperture

  F16

• Minimum Focusing Distance

  40cm / 15.7 in.

• Maximum Magnification Ratio

  1:5.6

• Filter Size

  φ77mm

• Dimensions (Diameter × Length)

  SIGMA SA-mount：φ85.4mm × 99.9mm / φ3.4in. × 3.9in.

  Sony E-mount：φ85.4mm × 125.9mm / φ3.4in. × 5.0in.

  L-Mount：φ85.4mm × 123.9mm / φ3.3in. × 4.8in.

  *The length of a lens is measured from the filter surface to its mount.

• Weight

  SIGMA SA-mount：815g / 28.7oz.

  Sony E-mount：880g / 31oz.

  L-Mount：905g / 31.9oz.

• Edition Number

  A014

  The three-digit code on the surface of the lens is to indicate the year the lens was first released.
  (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

• Supplied Accessories

  ・Case
  ・LENS HOOD LH830-02
  ・FRONT CAP LCF-77mm III
  ・REAR CAP LCR II

• Mount / Product Barcode

  SIGMA SA-mount：00-85126-31156-8

  Nikon F mount：00-85126-31155-1

  Canon EF mount：00-85126-31154-4

  Sony E-mount：00-85126-31165-0

  L-Mount：00-85126-31169-8

• Camera Compatibility

  LINK

• * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
  * L-Mount is a registered trademark of Leica Camera AG.
  * SONY A-mount have been discontinued in production.

• Offering the best 50mm F1.4 performance in the history of photography,this is the ultimate standard lens

  Putting all of our largeaperture lens development know-how into this lens, we’ve minimized optical aberrations and achieved the very highest level of optical performance.

  A 50mm F1.4 large-aperture lens offers an angle of view similar to human vision, a beautiful bokeh effect, and expressive versatility. It’s a basic specification that lets photographers take many different approaches to their craft. For this very reason, it demands a high level of fundamental performance. Sigma has designed lenses especially for digital SLRs since they first appeared on the market. In 2008, we first introduced the Sigma 50mm F1.4 EX DG HSM. Although compared to the lenses of today it had a fairly large body, this lens offered uncompromising performance and embodied our ideal of the standard lens. Until this time, only camera manufacturers had produced a lens in this specification for DSLRs. Our version of this go-to lens created quite the stir at first. Earning the support of photographers with its exceptional performance, it has become one of our representative lenses. The Sigma F1.4 DG HSM fulfills our design concept and quality requirements at the highest level. While producing a beautiful bokeh effect, it features exceptional peripheral brightness and minimal distortion. Uncompromising in every detail, this large-aperture standard lens offers the ultimate in image quality. Its high resolution makes it perfect for the high-megapixel era. Resolution is extremely crisp at the area in focus, while both front and rear bokeh are silky-smooth. Offering the ultra-high performance that characterizes our Art line, this lens inherits the design principles of the line’s first model, the flagship Sigma 50mm F1.4 DG HSM.

• High resolution plus outstanding bokeh

  While maximizing resolution at the area in focus, this lens offers a silky-smooth bokeh affect to the front and rear. To achieve exceptionally crisp resolution, we have minimized sagittal coma flare, chromatic aberration, and every other type of optical aberration that affects image quality. The result is minute detail without bleeding or streaking, even at wide-open aperture. Moreover, we have also minimized both vignetting and color streaking to the front and rear of the area in focus, thereby establishing a bokeh effect that is natural and aesthetically pleasing.

• Minimized sagittal coma flare

  An ideal large-aperture standard lens offers outstanding image quality across the image plane, even at wide-open aperture. Sagittal coma flare is an optical aberration in which point light sources near the image periphery have a tail (“coma”) instead of appearing round. To minimize this aberration, we have included a precision-molded aspheric lens element in the rearmost lens group. Since it minimizes the streaking of point light sources near the edge of the image, this lens is an excellent choice for shooting heavenly bodies and nighttime illumination. In addition, its beautiful bokeh effect makes it a great go-to lens for portraits, interior shots, and many other applications.

• Minimized axial chromatic aberration

  Axial chromatic aberration is difficult to correct after a photograph is taken using image processing software. For this reason, this lens features SLD (Special Low Dispersion) glass to minimize axial chromatic aberration and deliver sharp, high-contrast image quality throughout the frame.

• Minimized distortion

  Distortion is an optical aberration in which straight lines appear bent or curved. Since adjusting the focus cannot correct this aberration, it must be minimized at the design stage. This lens features aspheric lens elements and an optimized power distribution to minimize distortion from the center of the frame all the way to the edges.

• High peripheral brightness

  Large-aperture lenses are prone to reduced peripheral brightness. In this lens, we have made the forward lens group large-aperture, thereby raising aperture efficiency. The result is minimal reduction of brightness at the image periphery and even image quality throughout the photograph. Even at the wide-open aperture, you can shoot a blue sky without fear of reduced brightness and achieve a beautiful bokeh effect at the same time.

  The x-axis represents image height (distance from center of image in mm), and the y-axis represents the relative illumination at the edge of the image (with illumination at the center of the image defined as 100%). When relative illumination is low, the corners of the image appear dark, resulting in vignetting.

• The finest in materials, usability and functionality

  A refined, integrated design made with the photographer in mind.

  All lenses in Sigma’s new Art line come with a hood with a high-quality rubberized connector and feature a newly designed lens cap and AF/MF switch, and are designed for intuitive use and superior functionality. Inside, HSM (Hyper Sonic Motor) delivers high AF speed and extremely quiet performance. An enhanced algorithm offers even smoother automatic focusing. Full-time manual focus override is another key feature that leaves the artistic touches in the photographer’s hands. The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens. In both the external and internal parts, the optimized use of TSC (Thermally Stable Composite), an excellent match for metal parts, further contributes to the high-precision construction of the lens. In addition, the last three digits of the year the lens was offered for sale are engraved on the barrel for ease of reference.

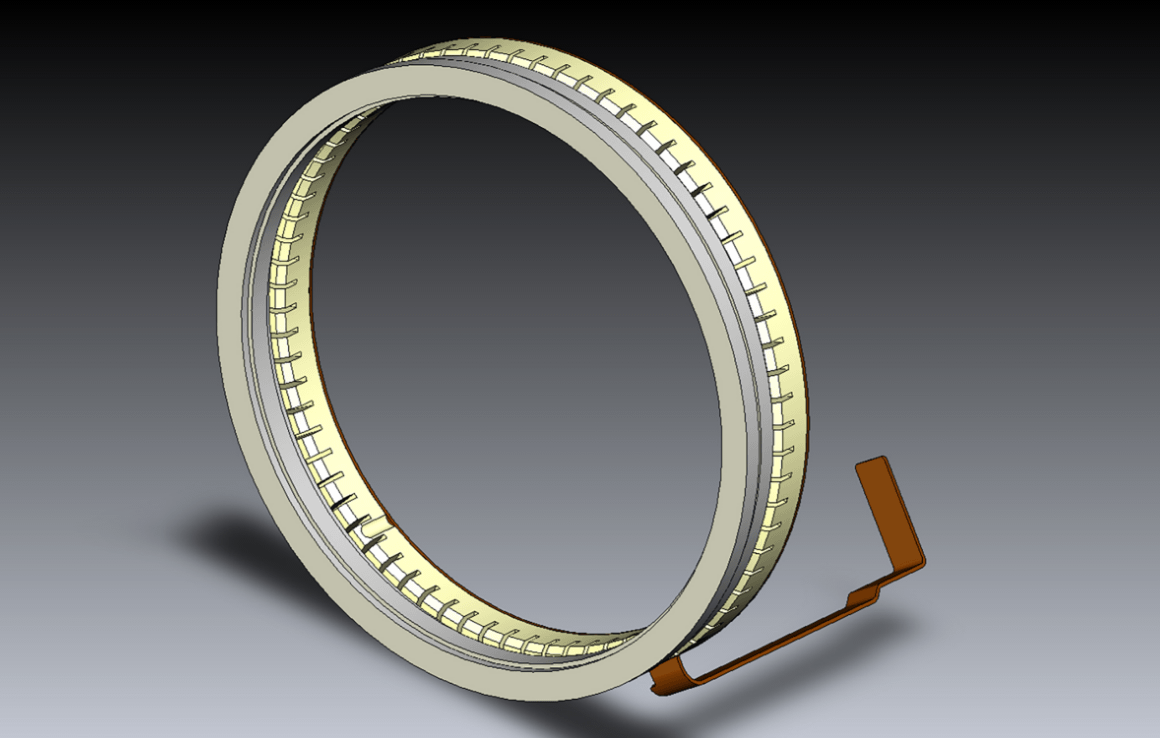

• HSM(Hyper Sonic Motor)

  HSM (Hyper Sonic Motor) delivers high AF speed and extremely quiet performance. An enhanced algorithm offers even smoother automatic focusing. Optimizing AF algorithm, smoother AF is achieved. Also, new firmware offers full-time MF function by rotating the focus ring of the lens while auto focusing. Without changing the AF/MF Focus Mode Switch, it allows faster focus adjustment.

  * The default setting of Full-time MF function varies for each mount.

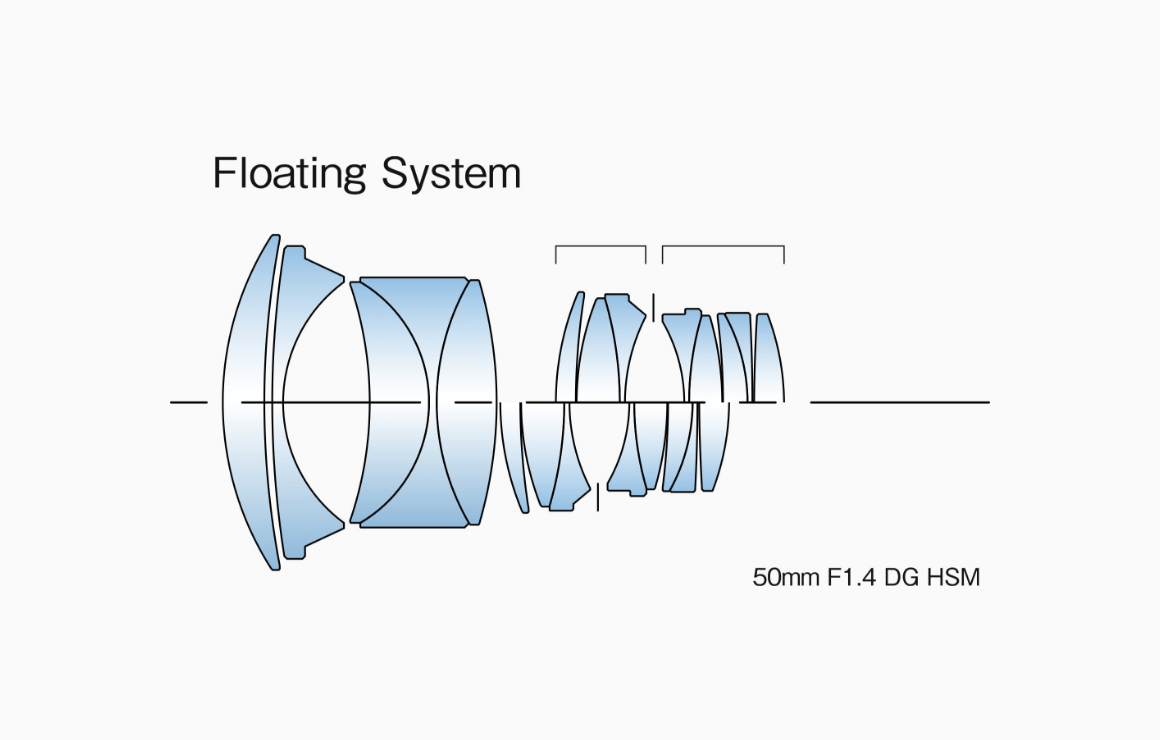

• Minimum focusing distance of just 40cm

  Sigma’s floating system adjusts the distance between lens groups during focusing, thereby reducing the amount of lens movement required. The result is less aberration at different shooting distances. Thanks to this system, this lens offers a minimum focusing distance of just 40 cm, a maximum magnification ratio of 1:5.6, and superb image quality at every shooting distance.

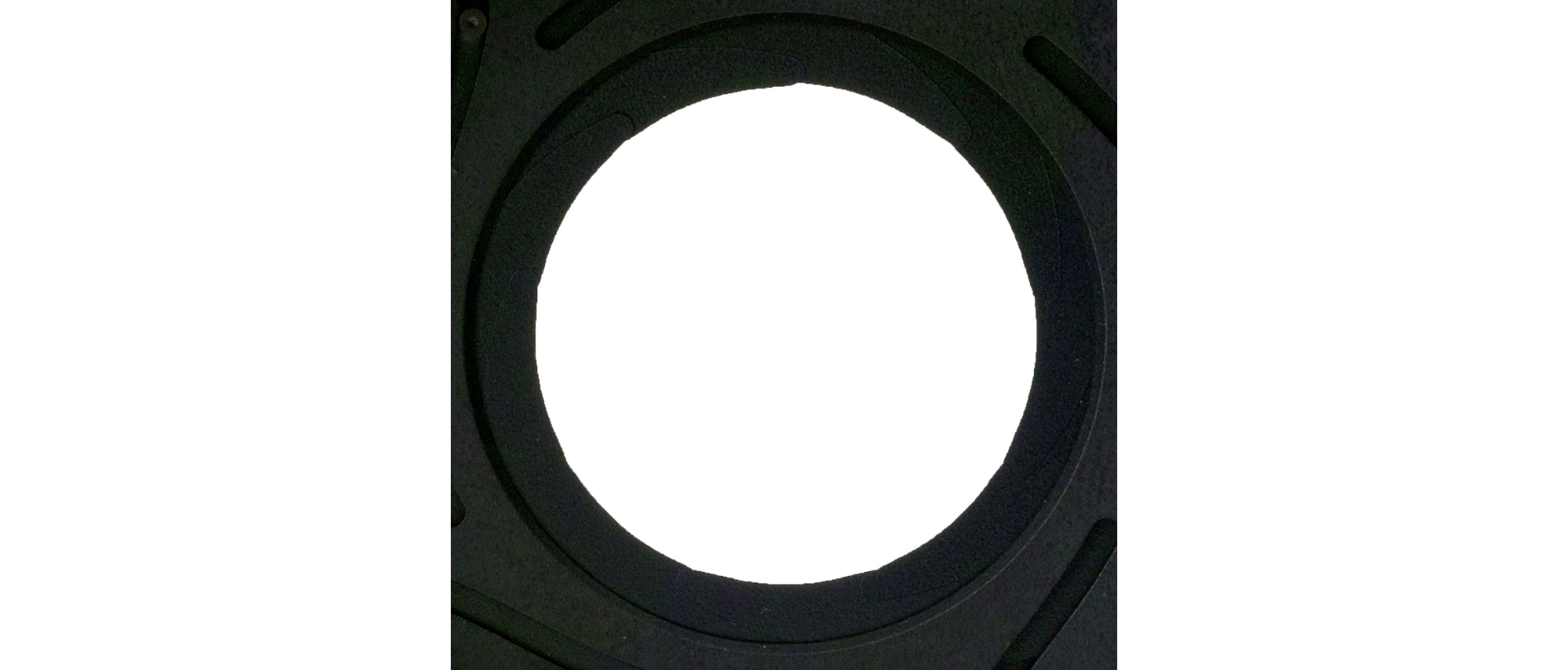

• Rounded diaphragm

  When photographing with point light sources such as electric lights or reflections on a body of water in the background, the rounded 9-blade diaphragm helps produce an attractive bokeh effect—even at large-aperture settings.



• TSC (Thermally Stable Composite)

  Conventionally it is considered essential to leverage the qualities of metal and polycarbonate in camera and lens layout design. A first for the industry, the barrel of the new series of Sigma lenses features a new
  (*)TSC (Thermally Stable Composite) that offers minimal thermal shrinkage combined with exceptional hardness. It also offers 25% greater elasticity than polycarbonate. Since its thermal shrinkage is low, TSC matches well with metal parts, further contributing to the high-precision construction of the lens.

  (*)TSC (Thermally Stable Composite)
  TSC (Thermally Stable Composite) is a type of polycarbonate with a thermal expansion rate similar to that of aluminum. It has high affinity to metal parts which contributes to high quality product manufacturing.

• Flare and ghosting reduction

  From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. Sigma’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions. The included lens hood can be attached to block out extraneous light, which can have a negative effect on rendering performance.

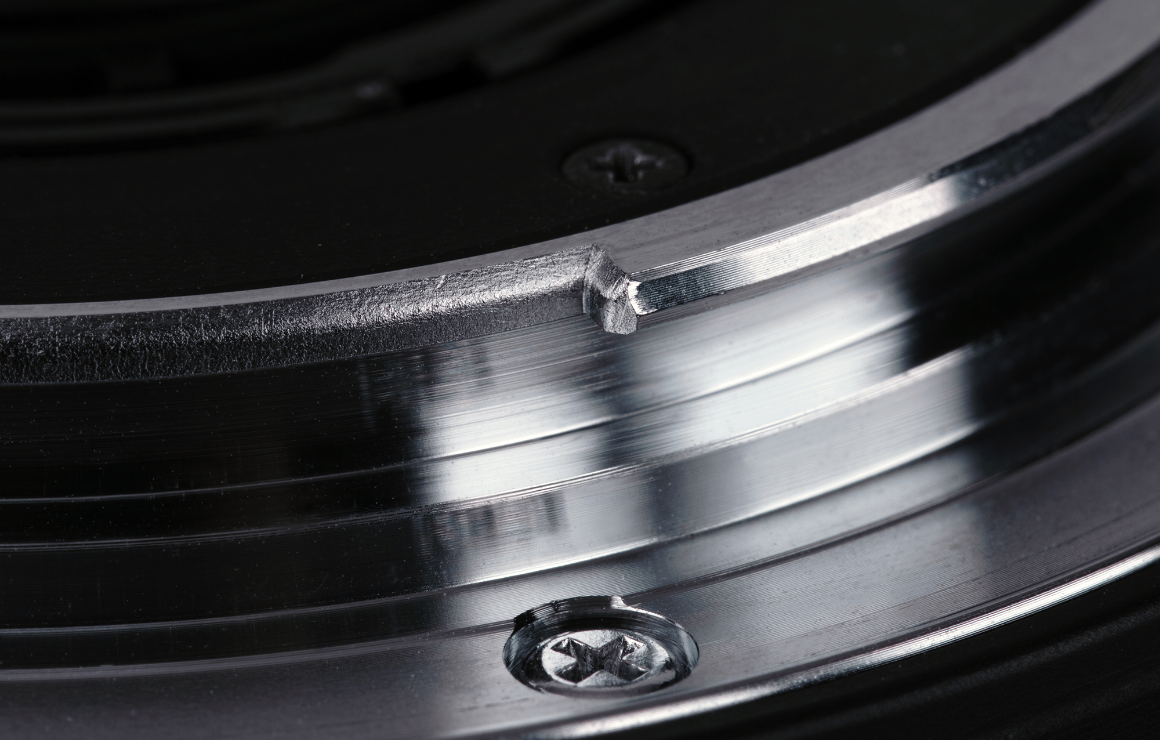

• High-precision, rugged brass bayonet mount

  The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.



Lens construction

SLD glass

Aspherical lens

• Spatial frequency

  S:Sagittal Line

  M:Meridional Line

• 10lp/mm

• 30lp/mm

Diffraction MTF

Geometrical MTF

• F1.4

• F2.8

• F5.6
