    F1.4 brightness at wide-open aperture.The large-diameter
    wide-angle lens that reveals a new horizon of image quality.

    An all-new Art line lens featuring F1.4 brightness.
    Best-in-class optical performance ideal
    for nightscapes and cityscapes.

    Offering best-in-class optical performance, this lens is designed to minimize aberrations for images virtually free of streaking and warping.

    SIGMA has a proven reputation for wide-angle lens design and manufacturing. Drawing on this experience and design know-how, refined through development of the SIGMA 35mm F1.4 DG HSM | Art and 50mm F1.4 DG HSM | Art in our Art line, we have successfully minimized sagittal coma flare, chromatic aberration, distortion, and vignetting to achieve exceptional levels of optical performance with almost no aberration or distortion. This lens provides the best possible performance when photographing a variety of subjects from cityscapes, mountain ranges, and the star-filled night sky to indoor photography with low illumination or scenes that require a smooth bokeh effect. Enjoy the astonishing optical performance of the new F1.4 series that has just joined SIGMA’s iconic Art line.

    Art line delivers high-level artistic expression.

    SIGMA is organizing all its interchangeable lenses into three product lines; Contemporary, Art, and Sports, where each line has a distinctive concept. Designed with a focus on sophisticated optical performance and abundant expressive power, our Art line delivers high-level artistic expression. With the astonishing rendering performance that meets the highest standard, along with landscapes, portraits, still-life, close-ups, and casual snaps, they are perfect for the kind of photography that unleashes the inner artist. Ideal for studio photography, they offer just as much expressive scope when capturing architecture and starry skies and many other scenes.

    Features

    SIGMA expertise
    and leading-edge manufacturing
    technologies deliver breathtaking optical performance.

    Minimizing the optical aberrations
    that tend to affect large-diameter lenses
    makes possible a new horizon of image quality.

    This lens features minimized aberration achieved through the latest design technology and know-how that has been accumulated by SIGMA in its lens development over many years and offers astonishing rendering performance, even at the edges, with ultra-high resolution. Whilst featuring higher resolution around the focus point, the lens offers a smooth and natural bokeh effect. Both high definition rendering without chromatic aberration and natural bokeh expression are possible, even at maximum aperture.

    Leveraging our optical expertise, we have minimized sagittal coma flare for optimal capture of starry nightscapes.

    Sagittal coma flare is the aberration in which a point light source appears as a streak instead of a point, and it affects large-diameter lenses in particular. By positioning aspherical lens elements toward the rear of the 24mm F1.4 DG HSM | Art, we have adjusted the angle of incidence of light for optimal power distribution. Even at wide-open aperture, you will enjoy outstanding image quality. Since streaking of point light sources toward the edges of the image is minimized, this lens is a powerful ally in photographing celestial bodies, nighttime illumination, and more.

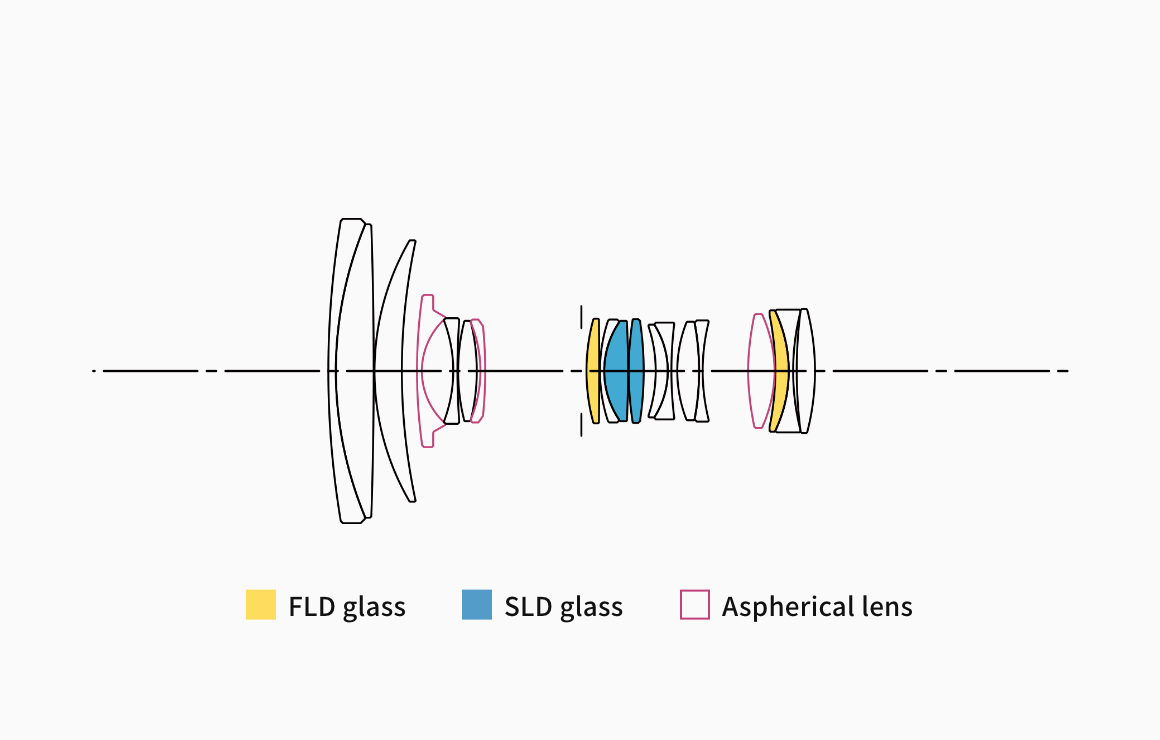

    Minimized chromatic aberrations—thanks to FLD and SLD glass lenses.

    One of the requirements of high rendering performance is the correction of chromatic aberration. Particularly, for axial chromatic aberration, which is challenging to correct even during image processing, the lens development stage is vital in ensuring minimized distortion. The 24mm F1.4 DG HSM | Art incorporates FLD (“F” Low Dispersion) glass and SLD (Special Low Dispersion) glass elements to minimize chromatic aberration of magnification, which is mainly visible around the edge of the image. Moreover, the power distribution ensures the correction of axial chromatic aberration. The result is high image quality throughout the entire focusing range—sharp and high-contrast image rendering without color blur.

    • FLD glass
    • SLD glass
    • Aspherical lens

    High-contrast images with bright edges—even at wide-open aperture.

    Improving efficiency at large apertures and minimizing vignetting, we have designed the lens to secure very good brightness. Even at open aperture, it ensures high-contrast images for indoor photography, astronomical photography, and when photographing blue sky.

    Flare and ghosting reduction

    From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. SIGMA’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions. The included lens hood can be attached to block out extraneous light, which can have a negative effect on rendering performance.

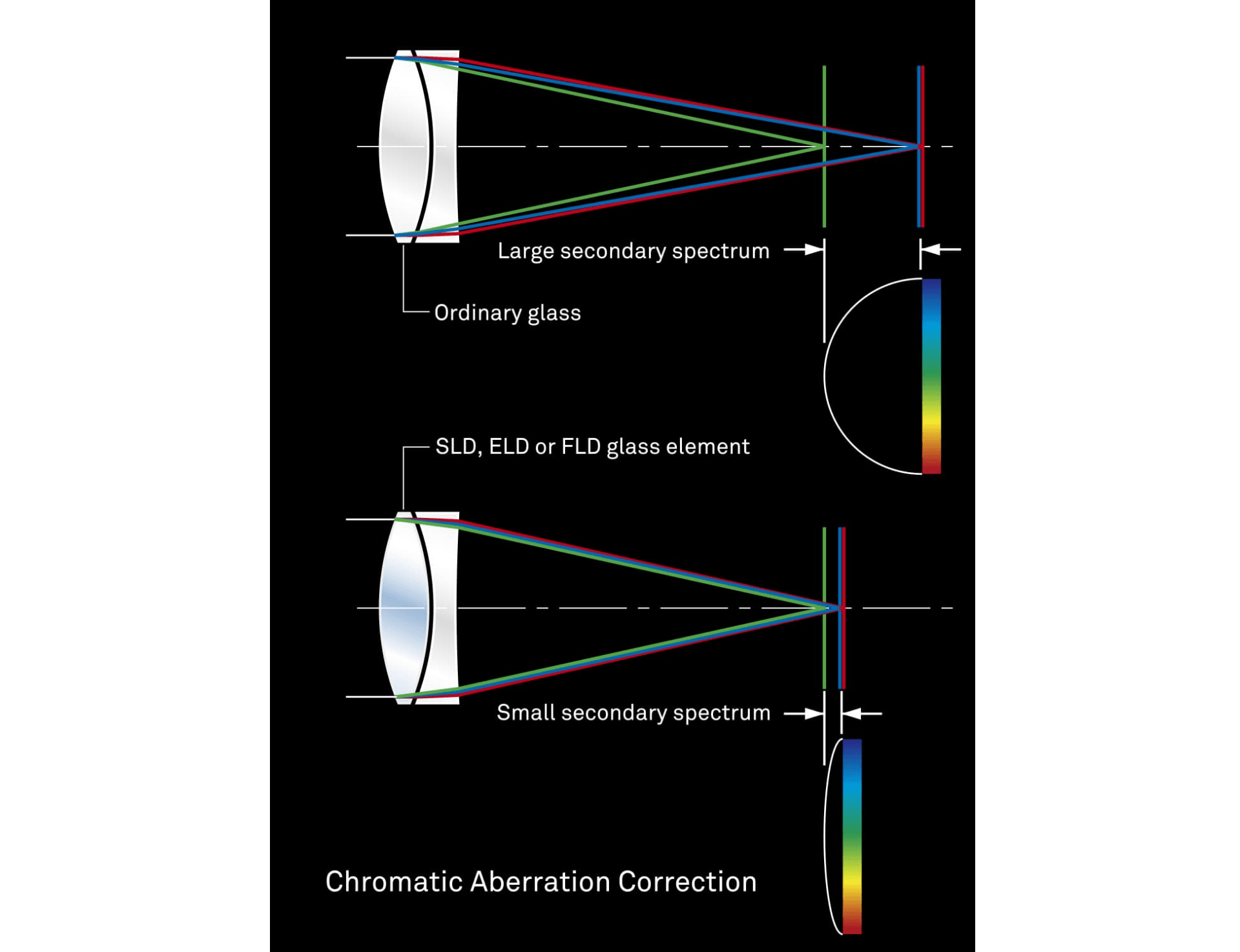

    Exclusive low-dispersion glass

    The degree to which light is refracted by glass depends on the light’s wavelength. This fact causes different colors of light to focus at slightly different points. The result is chromatic aberration, the color fringing that is particularly noticeable in telephoto lenses. Most chromatic aberration can be removed by combining a high-refractivity convex lens element with a low-refractivity concave element. Yet residual chromatic aberration known as “secondary spectrum” may still remain. To minimize this secondary spectrum, which can be a serious issue with conventional lenses, SIGMA lenses feature up to three types of exclusive low-dispersion glass offering superior performance: ELD (Extraordinary Low Dispersion), SLD (Special Low Dispersion) and FLD (“F” Low Dispersion). In particular, FLD glass offers ultra-low dispersion in combination with high transmittance and the anomalous dispersion characteristics of fluorite. Meticulous deployment of these types of exclusive low-dispersion glass and optimization of power distribution gives SIGMA lenses superlative image rendition undiminished by residual chromatic aberration.

    Distortion

    Minimized distortion.

    It is not possible to compensate for distortion that is often observed with wide-angle lenses just by changing the aperture value. Therefore, the lens development stage is vital in ensuring minimized distortion. The SIGMA 24mm F1.4 DG HSM | Art features an adjusted incidence angle of the light source from the surface of the first lens and aspherical glass elements to optimize the power layout at respective positions. This has helped minimize distortion throughout the entire image.

    Vignetting

    F1.4
    F2.8
    F5.6

    MTF chart

    Diffraction MTF

    Geometrical MTF

    The MTF chart gives the result at the wide-open aperture
    Spatial frequency S:Sagittal Line M:Meridional Line
    10lp/mm
    30lp/mm

    Rounded diaphragm

    When photographing with point light sources such as electric lights or reflections on a body of water in the background, the rounded 9-blade diaphragm helps produce an attractive bokeh effect—even at large-aperture settings.

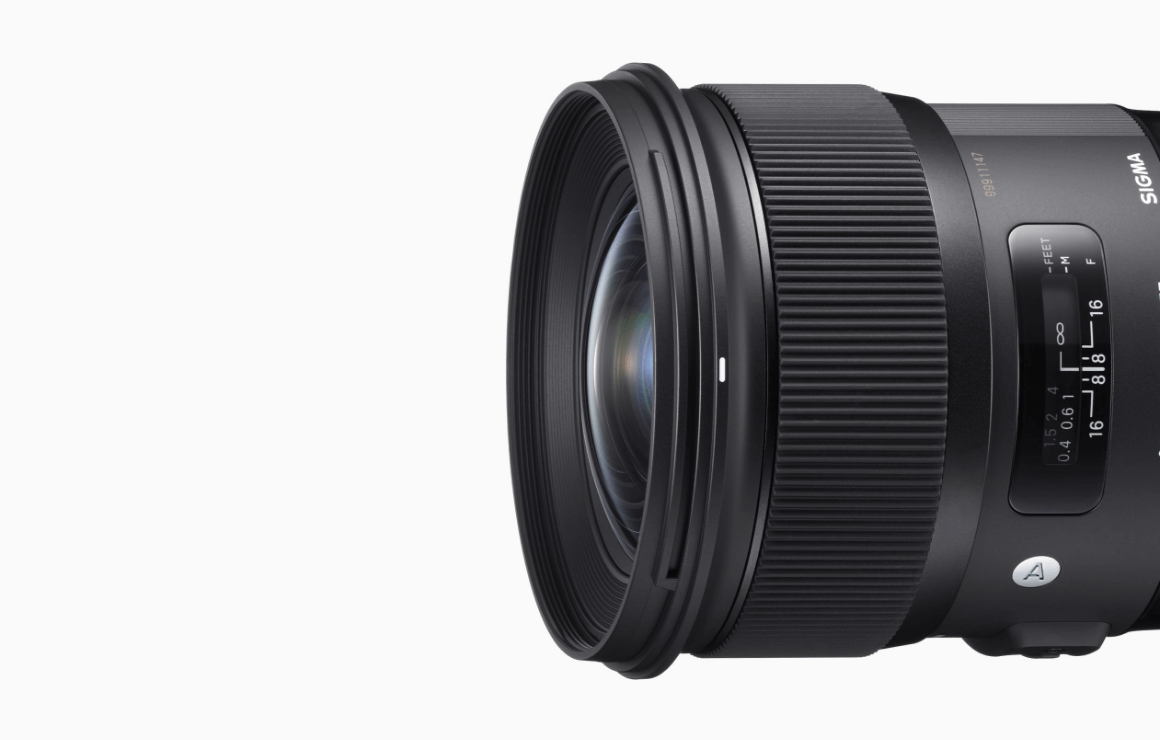

    The finest in materials,
    usability and functionality.

    A refined, integrated design made
    with the photographer in mind.

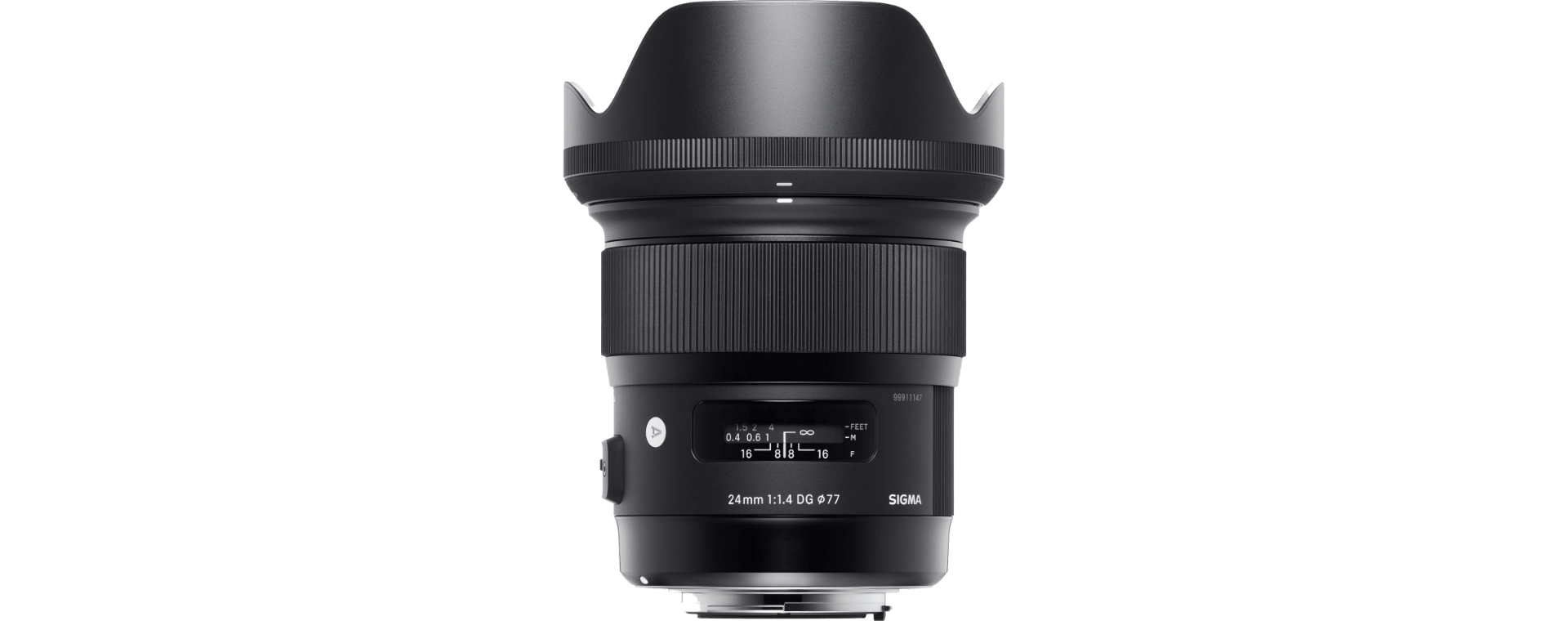

    All lenses in SIGMA’s new Art line come with a hood with a high-quality rubberized connector and feature a newly designed lens cap and AF/MF switch, and are designed for intuitive use and superior functionality. Inside, HSM (hypersonic motor) delivers high AF speed and extremely quiet performance. An enhanced algorithm offers even smoother automatic focusing. Full-time manual focus override is another key feature that leaves the artistic touches in the photographer’s hands. The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens. In both the external and internal parts, the optimized use of TSC (Thermally Stable Composite), an excellent match for metal parts, further contributes to the high-precision construction of the lens. In addition, the last three digits of the year the lens was offered for sale are engraved on the barrel for ease of reference.

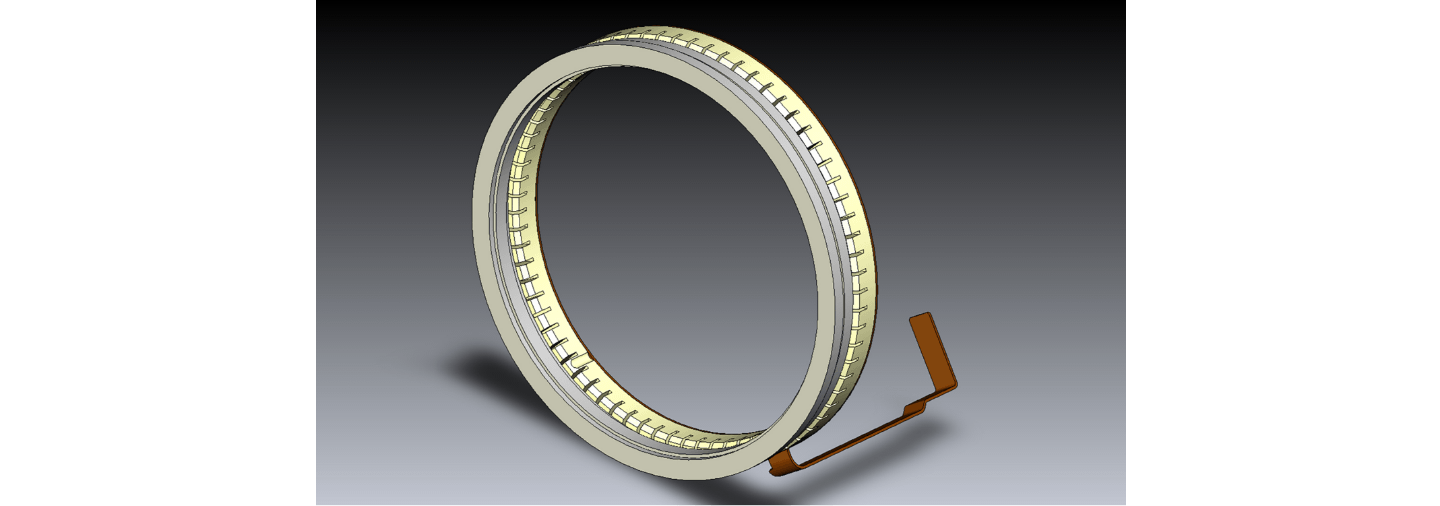

    HSM (Hyper Sonic Motor)

    HSM (Hyper Sonic Motor) delivers high AF speed and extremely quiet performance. SIGMA’s latest AF algorithm makes possible even smoother automatic focusing. After AF has done its job, fulltime MF (manual focus) allows you to make fine adjustments to focus simply by turning the focus ring. Using the SIGMA USB DOCK (sold separately) allows you to access the MO (manual override) function, which allows you to manually focus at any time during AF by turning the focus ring.

    * The operation of full-time MF may vary based on mount type.

    TSC (Thermally Stable Composite)

    Conventionally it is considered essential to leverage the qualities of metal and polycarbonate in camera and lens layout design. A first for the industry, the barrel of the new series of SIGMA lenses features a new TSC (Thermally Stable Composite) that offers minimal thermal shrinkage combined with exceptional hardness. It also offers 25% greater elasticity than polycarbonate. Since its thermal shrinkage is low, TSC matches well with metal parts, further contributing to the high-precision construction of the lens.

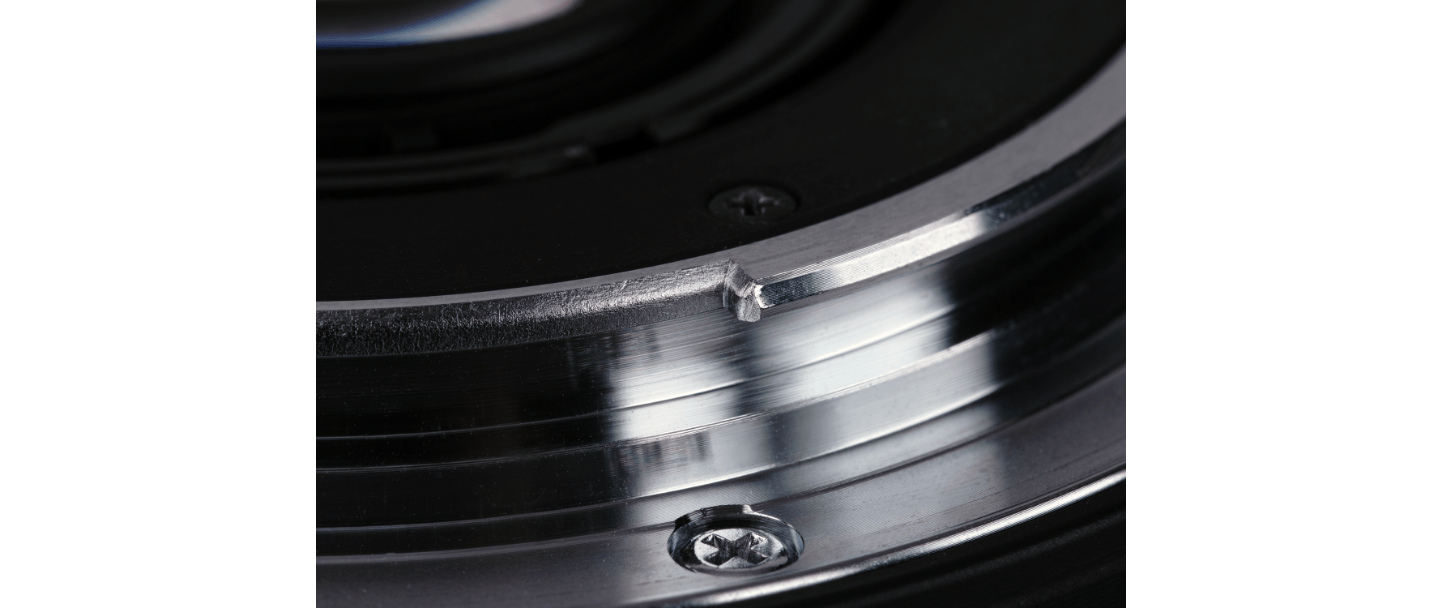

    High-precision,
    rugged brass bayonet mount

    The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.

    ESSENTIALS

    You'll find our philosophy and craftsmanship
    in every product

    Our new lineup fully expresses our approach to lenses and photography itself. All of our lenses belong to one of three lines—Contemporary, Art, or Sports—all of which share our development philosophy and advanced manufacturing system. High performance, high quality, and high end in every respect, these lenses give people who love photography lasting value and consistent, exciting results. The secret is our passion for craftsmanship that we put into every production process and every product.

    Specifications

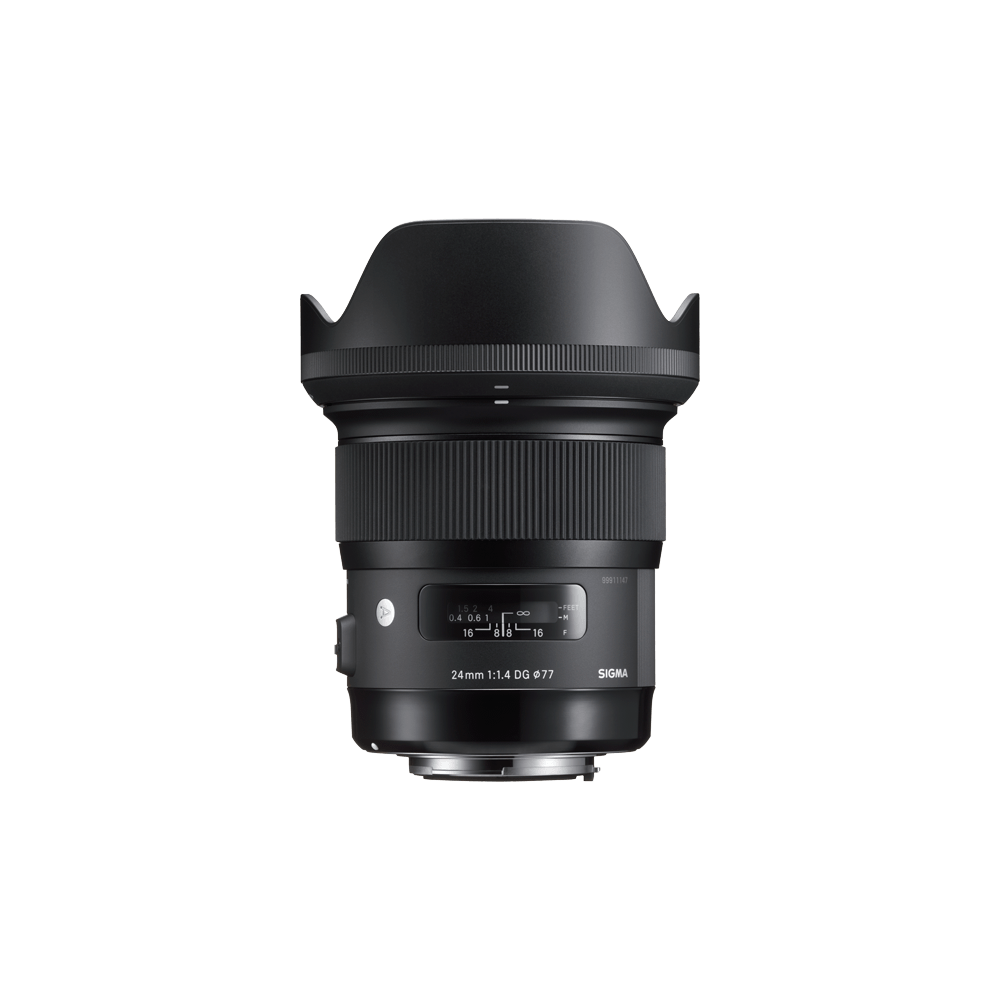

    24mm F1.4 DG HSM | Art

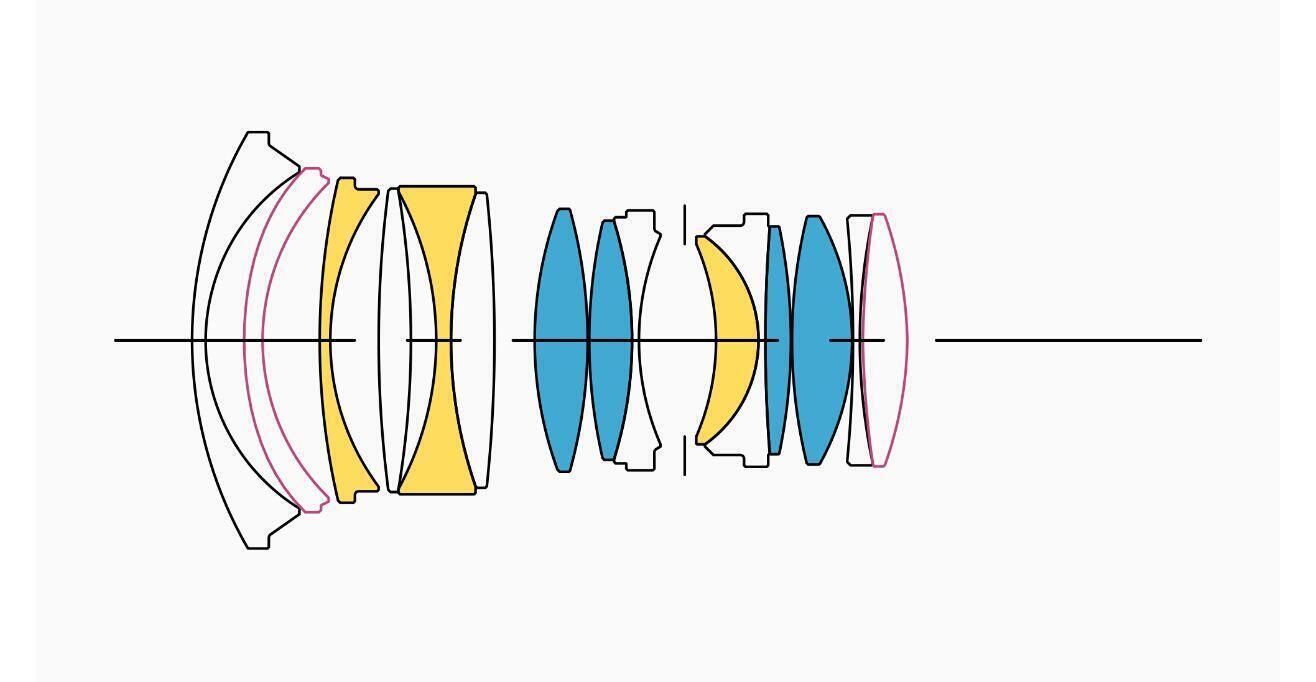

    Lens Construction

    • FLD glass
    • SLD glass
    • ASPHERICAL LENS

    Lens Construction

    15 elements in 11 groups

    Angle of View

    • 84.1°

    Number of Diaphragm Blades

    9 (Rounded diaphragm)

    Minimum Aperture

    F16

    Minimum Focusing Distance

    25cm / 9.8 in.

    Maximum Magnification Ratio

    1:5.3

    Filter size

    φ77mm

    Dimensions (Diameter × Length)

    • SIGMA SA-Mount
      φ85mm × 90.2mm / φ3.3in. × 3.6in.
    • Sony E-Mount
      φ85.4mm × 116.2mm / φ3.4in. × 6.1in.
    • L-Mount
      φ85.4mm × 114.2mm / φ3.3in. × 4.5in.
    • *The length of a lens is measured from the filter surface to its mount.

    Weight

    • SIGMA SA-Mount
      665g / 23.5oz.
    • Sony E-Mount
      760g / 26.8oz.
    • L-Mount
      755g / 26.6oz.

    Edition Number

    A015

    Supplied Accessories

    Case, Petal type lens hood (LH830-03) supplied.

    Corresponding AF Mounts / Barcode No.

    • SIGMA SA-Mount
      00-85126-40156-6
    • Nikon F Mount
      00-85126-40155-9
    • Canon EF Mount
      00-85126-40154-2
    • Sony E-Mount
      00-85126-40165-8
    • L-Mount
      00-85126-40169-6

    Technologies

    Performance / Data

    MTF Chart

    Diffraction MTF

    Geometrical MTF

    The MTF chart gives the result at the wide-open aperture
    Spatial frequency S:Sagittal Line M:Meridional Line
    10lp/mm
    30lp/mm

    MTF chart guide

    Distortion

    Vignetting

    F1.4
    F2.8
    F5.6

    Vignetting guide

    Product Lineup

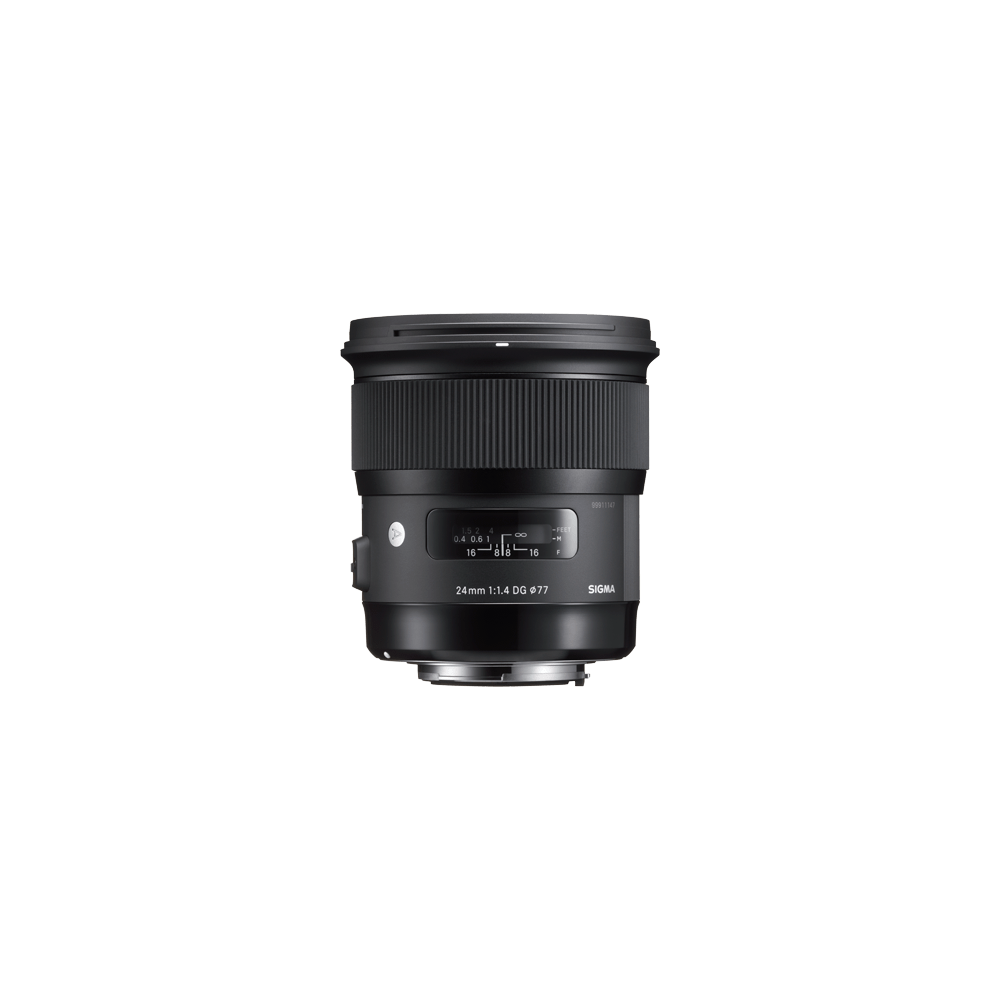

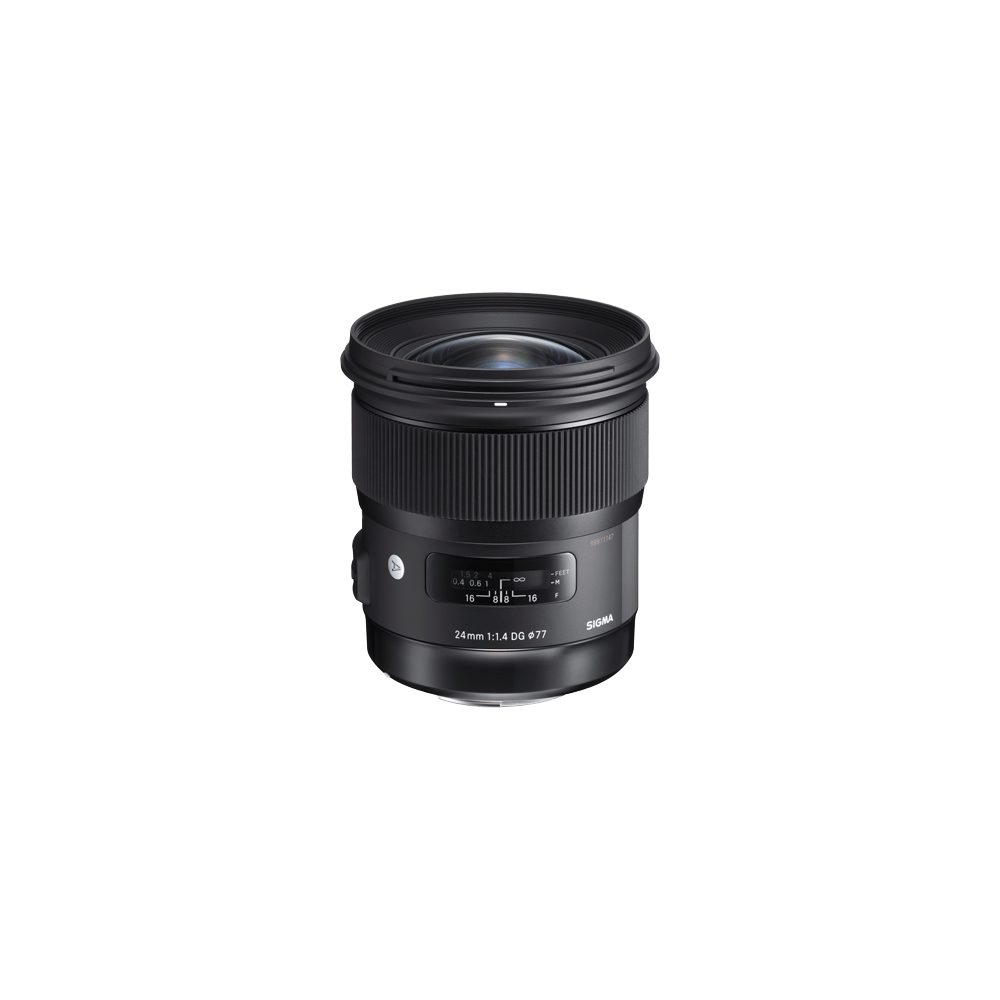

    24mm F1.4 DG HSM | Art

    • SIGMA SA-mount

      Supplied Accessories

      Case, Petal type lens hood (LH830-03) supplied.

      Barcode No.
      00-85126-40156-6
    • Nikon F mount

      Supplied Accessories

      Case, Petal type lens hood (LH830-03) supplied.

      Barcode No.
      00-85126-40155-9
    • Canon EF mount

      Supplied Accessories

      Case, Petal type lens hood (LH830-03) supplied.

      Barcode No.
      00-85126-40154-2
    • Sony E-mount

      Supplied Accessories

      Case, Petal type lens hood (LH830-03) supplied.

      Barcode No.
      00-85126-40165-8
    • L-Mount

      Supplied Accessories

      Case, Petal type lens hood (LH830-03) supplied.

      Barcode No.
      00-85126-40169-6

    Accessories

    Supplied Accessories

    LENS HOOD LH830-03

    Barcode No.
    00-85126-93134-6

    FRONT CAP LCF-77mmⅢ

    Barcode No.
    00-85126-93001-1

    REAR CAP LCR Ⅱ

    * The image is for SIGMA.

    • L-Mount

      Barcode No.
      00-85126-93725-6
    • Sony E-mount

      Barcode No.
      00-85126-92987-9
    • SIGMA SA-mount

      Barcode No.
      00-85126-92949-7
    • Nikon F mount

      Barcode No.
      00-85126-92950-3
    • Canon EF mount

      Barcode No.
      00-85126-92951-0

    Separately Sold Accessories

    PROTECTOR 77mm

    Normal type. Protector is developed to protect the lens surface from dirt and dust as well as scratches. It is an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93109-4

    WR CERAMIC PROTECTOR 77mm

    With many applications in aerospace and other industries, glass ceramic is an extremely tough type of crystallized glass that serves as the foundation for Clear Glass Ceramic. While featuring the high transmittance required of optical devices, this advanced new material combines greater hardness than chemically strengthened glass and greater flexibility than sapphire crystal glass. These qualities make Clear Glass Ceramic the ideal material for protective lens filters.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93182-7

    WR PROTECTOR 77mm

    Water-repellent, Antistatic type. Protector is developed to protect the lens surface from dirt and dust as well as scratches. It is an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93096-7

    WR UV FILTER 77mm

    UV Water-repellent, Antistatic type. UV filter prevents the bluish tone that generates when the weather is fine, by absorbing ultraviolet rays. It is effective in most situations, such as landscape, portrait and general photography on a sunny day. It is also an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93070-7

    WR CIRCULAR PL FILTER 77mm

    PL Water-repellent, Antistatic type. Circular PL filter removes the reflection of water surface and glass windows, and increases the contrast in landscape photography.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93083-7

    USB DOCK UD-01

    By connecting a SIGMA Art, Contemporary, or Sports lens to a computer with the SIGMA USB DOCK, photographers can update the lens firmware and adjust focus position and other parameters.

    • SIGMA SA-mount

      Barcode No.
      00-85126-87856-6
    • Canon EF mount

      Barcode No.
      00-85126-87854-2
    • Nikon F mount

      Barcode No.
      00-85126-87855-9

    USB DOCK UD-11

    • L-Mount

      Barcode No.
      00-85126-87869-6

    MOUNT CONVERTER MC-11

    The SIGMA MOUNT CONVERTER MC-11 allows you to use your SIGMA SA mount and SIGMA EOS mount interchangeable lenses with the Sony E-mount camera body.

    • SIGMA SA-E
      SIGMA SA-mount

      Barcode No.
      00-85126-93251-0
    • CANON EF-E
      Canon EF mount

      Barcode No.
      00-85126-93250-3

    MOUNT CONVERTER MC-21

    The SIGMA MOUNT CONVERTER MC-21 allows SIGMA SA mount and SIGMA’s CANON EF mount interchangeable lens owners to use their lens investment on L-Mount camera bodies.

    • SIGMA SA-L
      SIGMA SA-mount

      Barcode No.
      00-85126-93724-9
    • CANON EF-L
      Canon EF mount

      Barcode No.
      00-85126-93723-2
