DISCONTINUED

ART

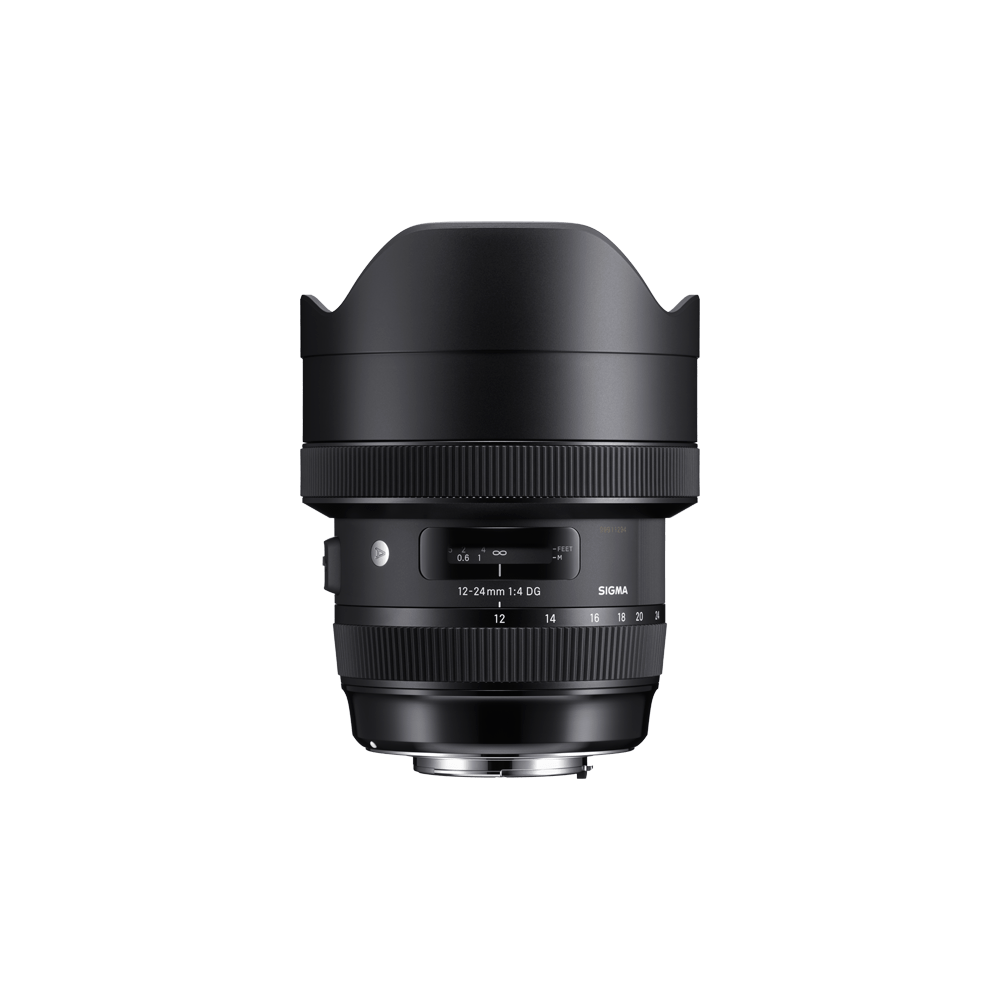

12-24mm F4 DG HSM

Available mounts

  • SIGMA SA-mount
  • Canon EF mount
  • Nikon F mount
DISCONTINUED

  • Camera Type

    DSLR

  • Corresponding Mount

    SIGMA SA-mount,Canon EF mount,Nikon F mount

  • Sensor Format

    Full-frame [DG]

  • Lens Construction

    16 elements in 11 groups

  • Angle of View

    122.0°-84.1°

  • Number of Diaphragm Blades

    9 (Rounded diaphragm)

  • Minimum Aperture

    F22

  • Minimum Focusing Distance

    24cm* / 9.4in. *At 24mm end of the zoom range

  • Maximum Magnification Ratio

    1:4.9

  • Filter Size

    -

  • Dimensions (Diameter × Length)

    φ102.0mm × 131.5mm / φ4.0in. × 5.2in.

    *The length of a lens is measured from the filter surface to its mount.

  • Weight

    1,150g / 40.6oz.

  • Edition Number

    A016

    The three-digit code on the surface of the lens is to indicate the year the lens was first released.
    (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

  • Supplied Accessories

    Case, Cover Lens Cap LC1020-01

  • Mount / Product Barcode

    SIGMA SA-mount：00-85126-20556-0（DISCONTINUED）
    Canon EF mount：00-85126-20554-6（DISCONTINUED）
    Nikon F mount：00-85126-20555-3（DISCONTINUED）

  • * All figures calculated by SIGMA SA-mount.
    * The Nikon mount version of this lens includes an electromagnetic diaphragm mechanism. Functionality may be limited on some camera bodies. *For Nikon F mount cameras, please see (*)Nikon camera compatibility

    (*)Nikon F mount camera compatibility

    Lenses for Nikon F mount with an electromagnetic diaphragm mechanism can be used with the following cameras.

    Z7Ⅱ※,Z7※,Z6Ⅱ※,Z6※,Z5※,Z50※,D6, D5, D4S, Df, D850, D810, D810A, D780, D750, D610, D500, D7500, D7200, D7100, D5600, D5500, D5300, D5200, D5100, D5000, D3500, D3400, D3300, D3200, D3100
    ※Can be used with the Nikon "Mount Adapter FTZ" attached

    Before using with one of the cameras listed below, please update the lens to the latest firmware version.
    D4, D3X, D3S, D3, D800, D800E, D700, D600, D300S, D300, D7000
    * The lens cannot be used with the cameras not listed above (including film single‐lens reflex cameras).

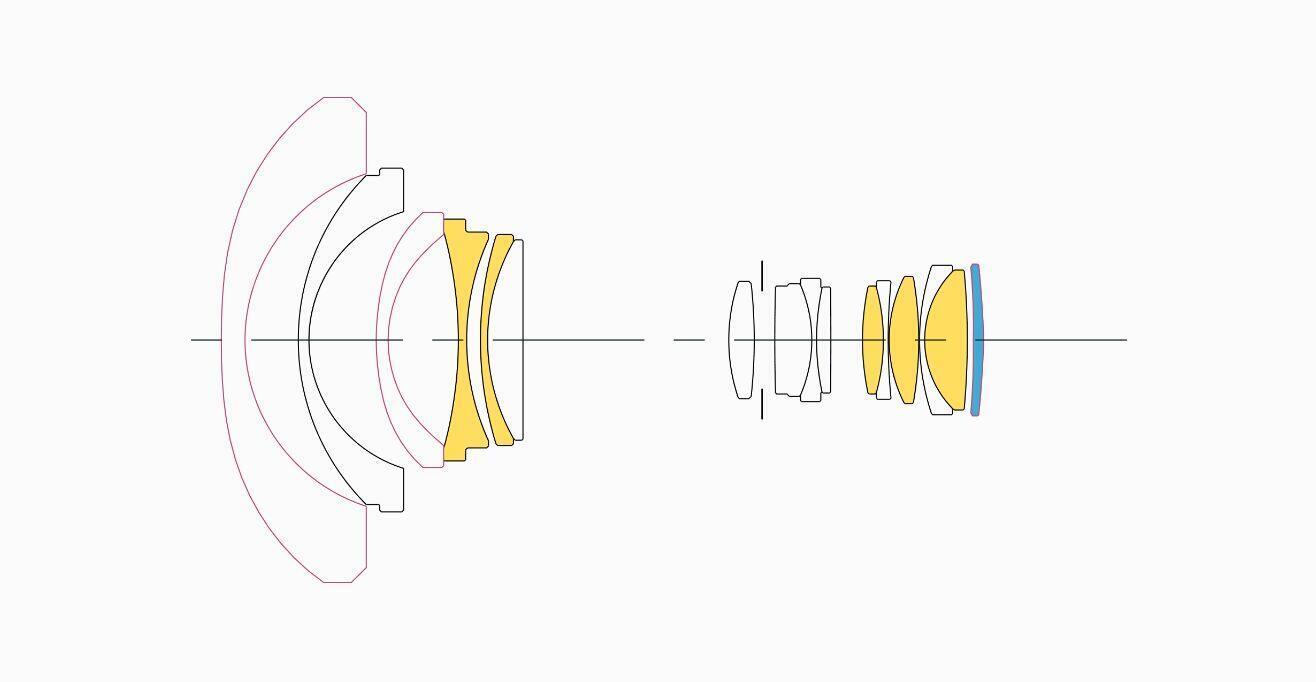

  • Lens construction

    FLD glass

    SLD glass

    Aspherical lens

  • MTF CHART

    Diffraction MTF

    Diffraction MTF

    Geometrical MTF

    Geometrical MTF

    • Spatial frequency

      S:Sagittal Line

      M:Meridional Line

    • 10lp/mm

    • 30lp/mm

  • DISTORTION

  • VIGNETTING

    • F4

    • F8

    • F16
