DISCONTINUED

ART

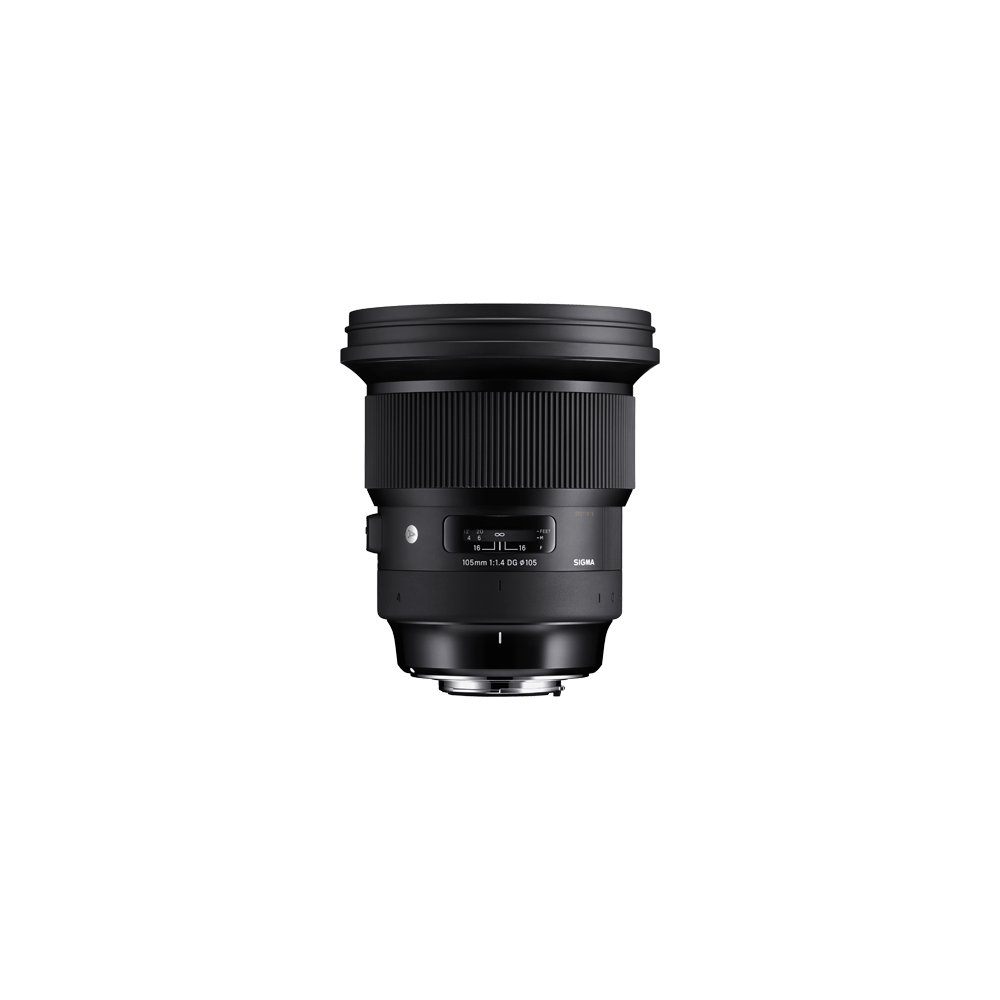

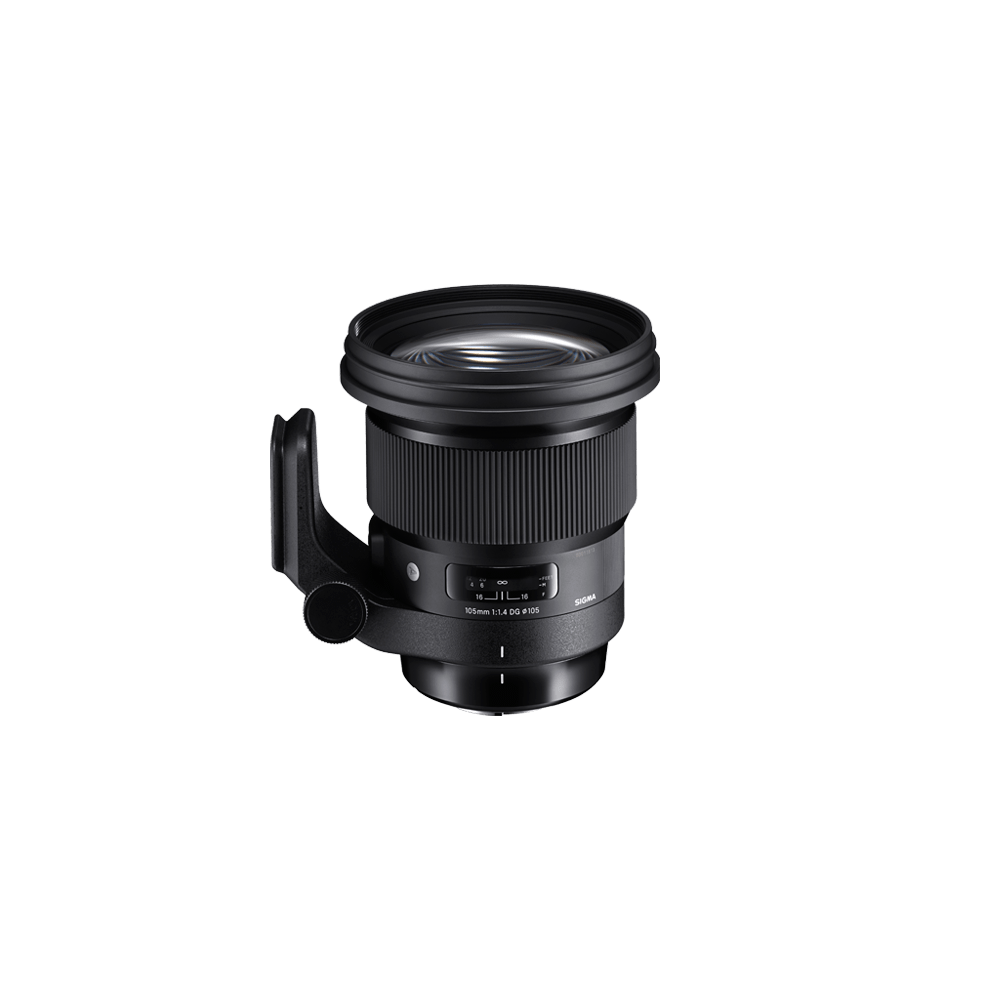

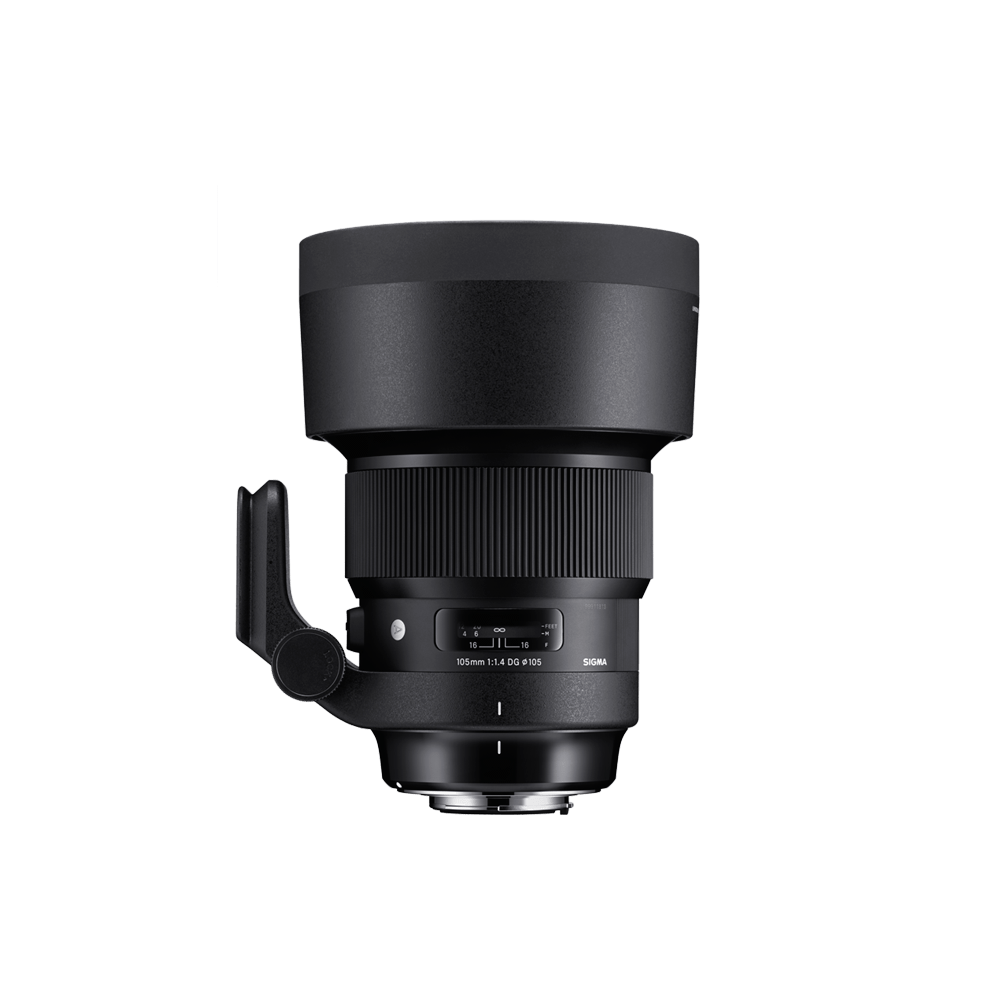

105mm F1.4 DG HSM

Available mounts

  • L-Mount
  • Sony E-mount
  • SIGMA SA-mount
  • Canon EF mount
  • Nikon F mount
DISCONTINUED

  • Camera Type

    DSLR

  • Corresponding Mount

    L-Mount,Sony E-mount,SIGMA SA-mount,Canon EF mount,Nikon F mount

  • Sensor Format

    Full-frame [DG]

  • Lens Construction

    17 elements in 12 groups

  • Angle of View

    23.3°

  • Number of Diaphragm Blades

    9 (Rounded diaphragm)

  • Minimum Aperture

    F16

  • Minimum Focusing Distance

    100cm / 39.4in.

  • Maximum Magnification Ratio

    1:8.3

  • Filter Size

    φ105mm

  • Dimensions (Diameter × Length)

    L-Mount：φ115.9mm × 155.5mm / Φ4.5in. × 6.1in.

    Sony E-mount：φ115.9mm × 157.5mm / Φ4.6in. × 6.2in.

    SIGMA SA-mount：Φ115.9mm × 131.5mm / Φ4.6in. × 5.2in.

    *The length of a lens is measured from the filter surface to its mount.

  • Weight

    L-Mount：1,745g / 61.6oz.

    Sony E-mount：1,720g / 60.7oz.

    SIGMA SA-mount：1,645g / 58.0oz.

  • Edition Number

    A018

    The three-digit code on the surface of the lens is to indicate the year the lens was first released.
    (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

  • Supplied Accessories

    Case
    LENS HOOD LH1113-01
    TRIPOD SOCKET TS-111
    PROTECTIVE COVER PT-21
    FRONT CAP LCF-105mm III
    REAR CAP LCR II

  • Mount / Product Barcode

    L-Mount：00-85126-25969-3（DISCONTINUED）
    Sony E-mount：00-85126-25965-5（DISCONTINUED）
    SIGMA SA-mount：00-85126-25956-3（DISCONTINUED）
    Canon EF mount：00-85126-25954-9（DISCONTINUED）
    Nikon F mount：00-85126-25955-6（DISCONTINUED）

  • * The Nikon mount version of this lens includes an electromagnetic diaphragm mechanism. Functionality may be limited on some camera bodies. *For Nikon F mount cameras, please see (*)Nikon camera compatibility
    * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
    * L-Mount is a registered trademark of Leica Camera AG.
    * Although dust and splash resistant structure allows the lens to be used in light rain, it is not the same as being waterproof.

    (*)Nikon F mount camera compatibility

    Lenses for Nikon F mount with an electromagnetic diaphragm mechanism can be used with the following cameras.

    Z7Ⅱ※,Z7※,Z6Ⅱ※,Z6※,Z5※,Z50※,D6, D5, D4S, Df, D850, D810, D810A, D780, D750, D610, D500, D7500, D7200, D7100, D5600, D5500, D5300, D5200, D5100, D5000, D3500, D3400, D3300, D3200, D3100
    ※Can be used with the Nikon "Mount Adapter FTZ" attached

    Before using with one of the cameras listed below, please update the lens to the latest firmware version.
    D4, D3X, D3S, D3, D800, D800E, D700, D600, D300S, D300, D7000
    * The lens cannot be used with the cameras not listed above (including film single‐lens reflex cameras).

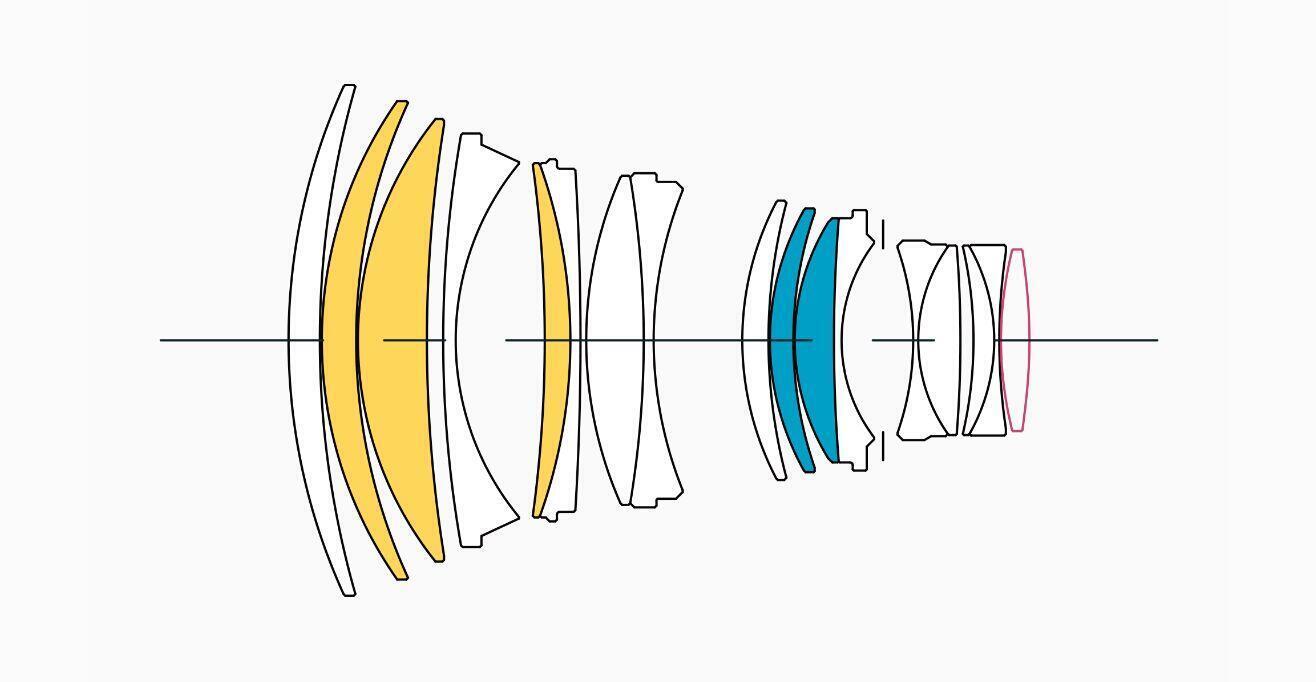

  • Lens construction

    FLD glass

    SLD glass

    Aspherical lens

  • MTF CHART

    Diffraction MTF

    Geometrical MTF

    • Spatial frequency

      S:Sagittal Line

      M:Meridional Line

    • 10lp/mm

    • 30lp/mm

  • DISTORTION

  • VIGNETTING

    • F1.4

    • F2.8

    • F5.6
