100-400mm F5-6.3 DG OS HSM

Available mounts

  • SIGMA SA-mount
  • Canon EF mount
  • Nikon F mount
DISCONTINUED

  • Camera Type

    DSLR

  • Corresponding Mount

    SIGMA SA-mount,Canon EF mount,Nikon F mount

  • Sensor Format

    Full-frame [DG]

  • Lens Construction

    21 elements in 15 groups

  • Angle of View

    24.4°­ - 6.2°

  • Number of Diaphragm Blades

    9 (Rounded diaphragm)

  • Minimum Aperture

    F22

  • Minimum Focusing Distance

    160cm / 63in.

  • Maximum Magnification Ratio

    1:3.8

  • Filter Size

    φ67mm

  • Dimensions (Diameter × Length)

    φ86.4mm × 182.3mm / φ3.4in. × 7.2in.
    *The length of a lens is measured from the filter surface to its mount.

  • Weight

    1,160g

  • Edition Number

    C017

    The three-digit code on the surface of the lens is to indicate the year the lens was first released.
    (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

  • Supplied Accessories

    LENS HOOD LH770-­04
    FRONT CAP LCF-67mm III
    REAR CAP LCR II

  • Mount / Product Barcode

    SIGMA SA-mount：00-85126-72956-1（DISCONTINUED）
    Canon EF mount：00-85126-72954-7（DISCONTINUED）
    Nikon F mount：00-85126-72955-4（DISCONTINUED）

  • *Values are for SIGMA SA-mount
    *The Nikon mount version of this lens includes an electromagnetic diaphragm mechanism. Functionality may be limited on some camera bodies.
    *For Nikon F mount cameras, please see (*)Nikon camera compatibility

    (*)Nikon F mount camera compatibility

    Lenses for Nikon F mount with an electromagnetic diaphragm mechanism can be used with the following cameras.

    Z7Ⅱ※,Z7※,Z6Ⅱ※,Z6※,Z5※,Z50※,D6, D5, D4S, Df, D850, D810, D810A, D780, D750, D610, D500, D7500, D7200, D7100, D5600, D5500, D5300, D5200, D5100, D5000, D3500, D3400, D3300, D3200, D3100
    ※Can be used with the Nikon "Mount Adapter FTZ" attached

    Before using with one of the cameras listed below, please update the lens to the latest firmware version.
    D4, D3X, D3S, D3, D800, D800E, D700, D600, D300S, D300, D7000
    * The lens cannot be used with the cameras not listed above (including film single‐lens reflex cameras).

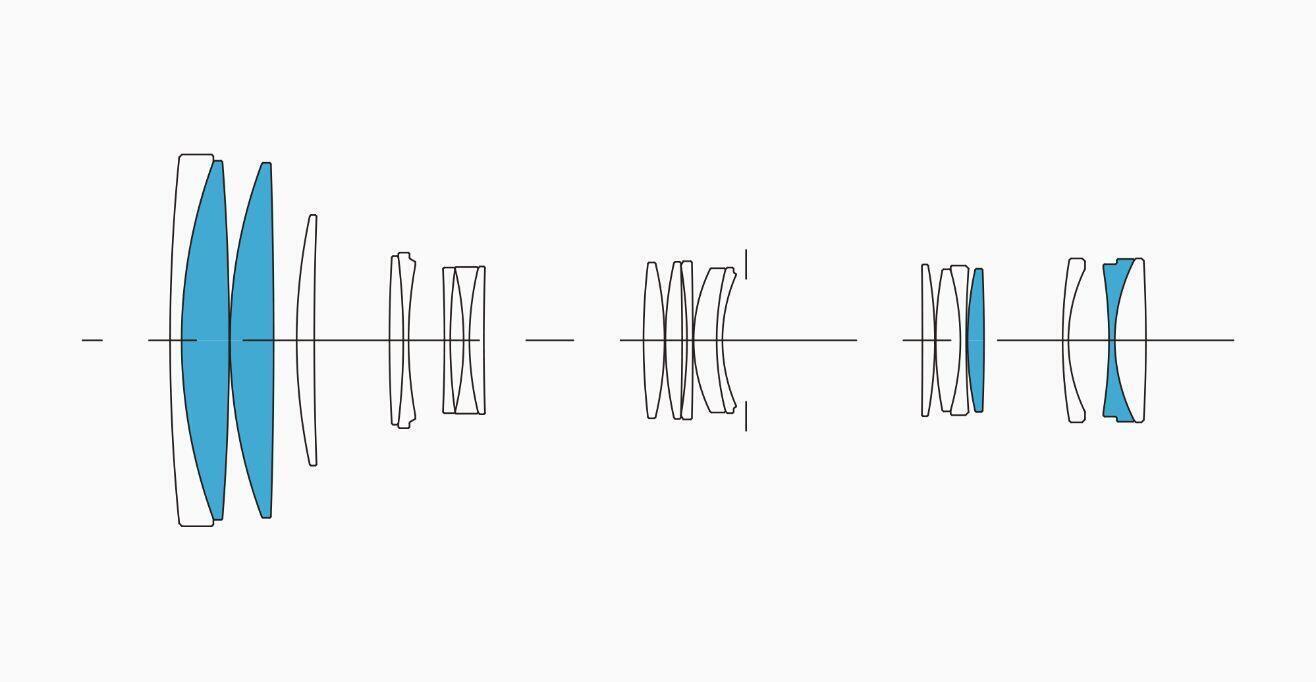

  • Lens construction

    SLD glass

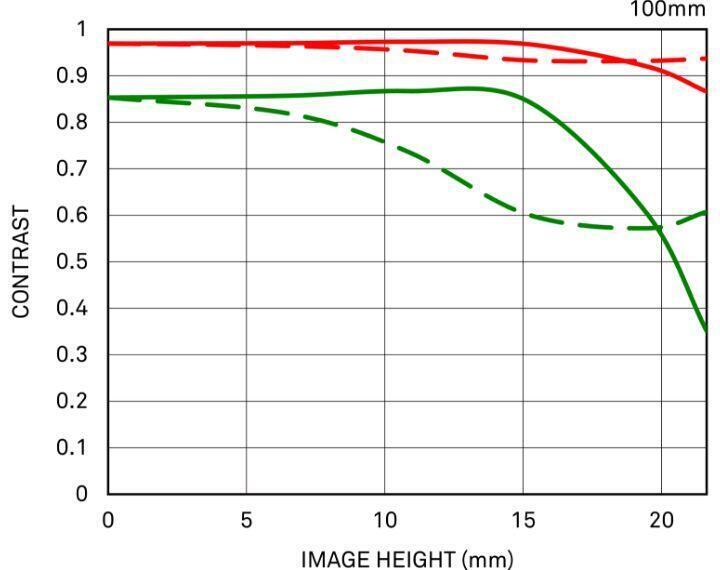

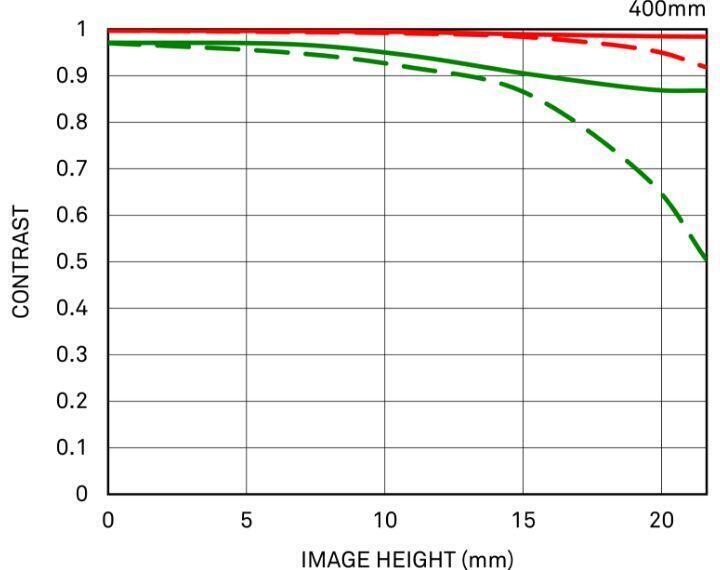

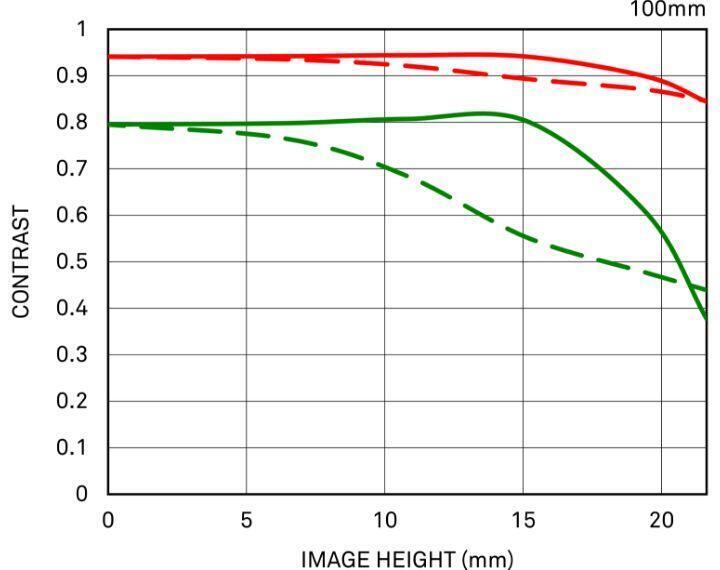

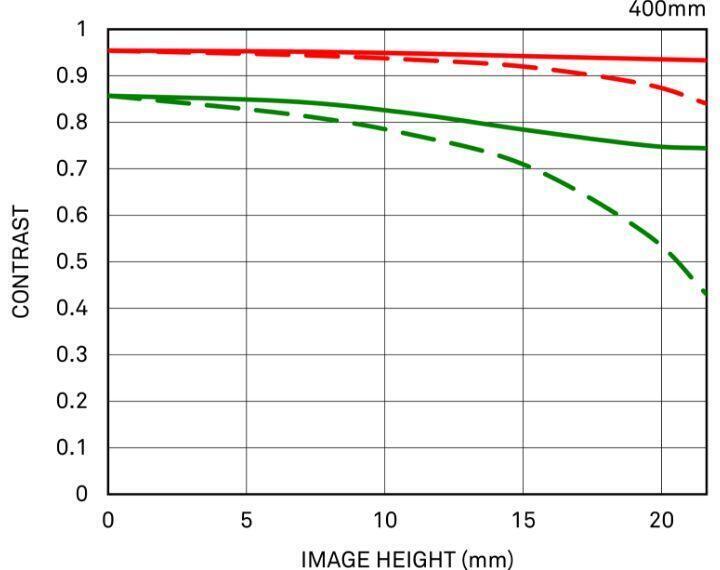

  • MTF CHART

    Diffraction MTF

    Diffraction MTF

    Geometrical MTF

    Geometrical MTF

    • Spatial frequency

      S:Sagittal Line

      M:Meridional Line

    • 10lp/mm

    • 30lp/mm

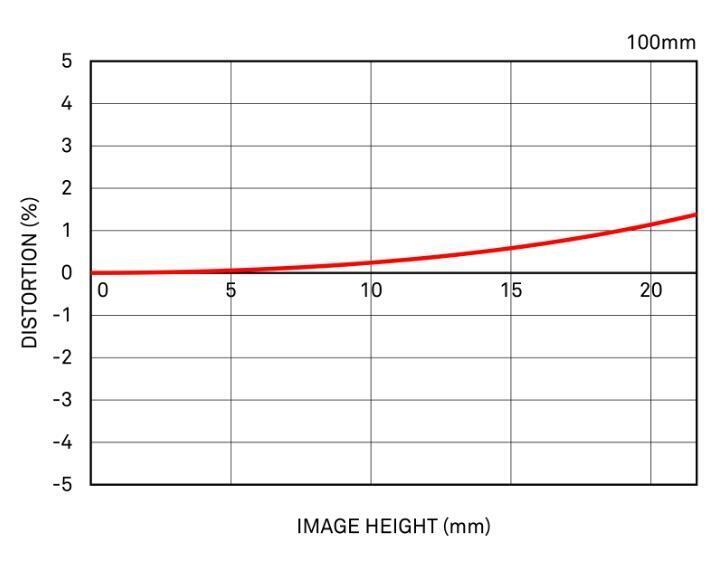

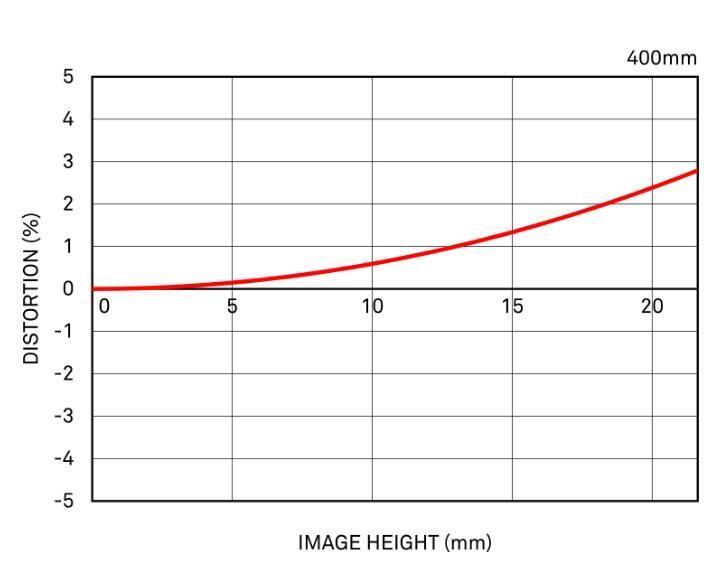

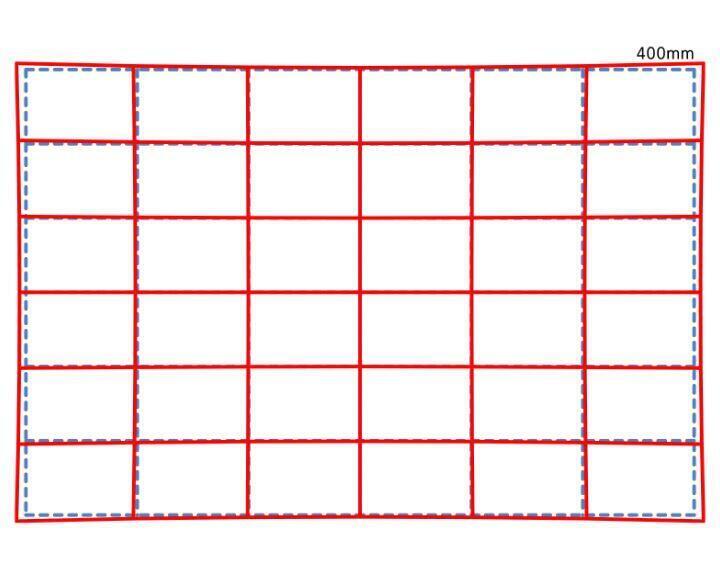

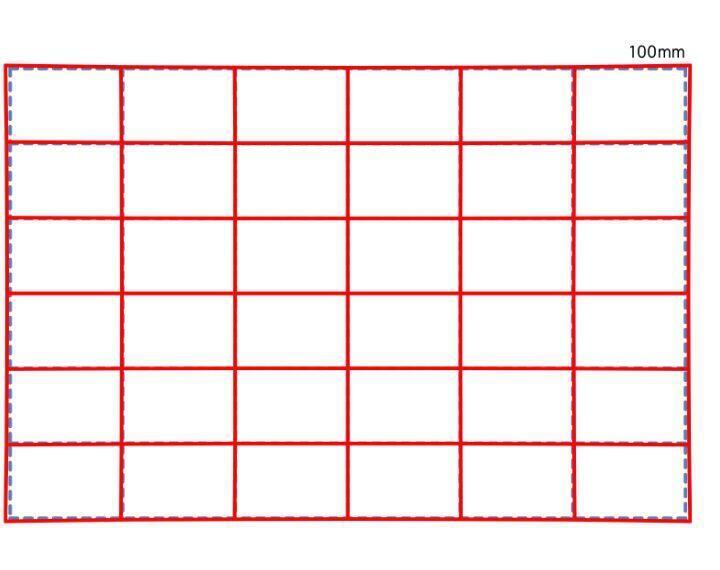

  • DISTORTION

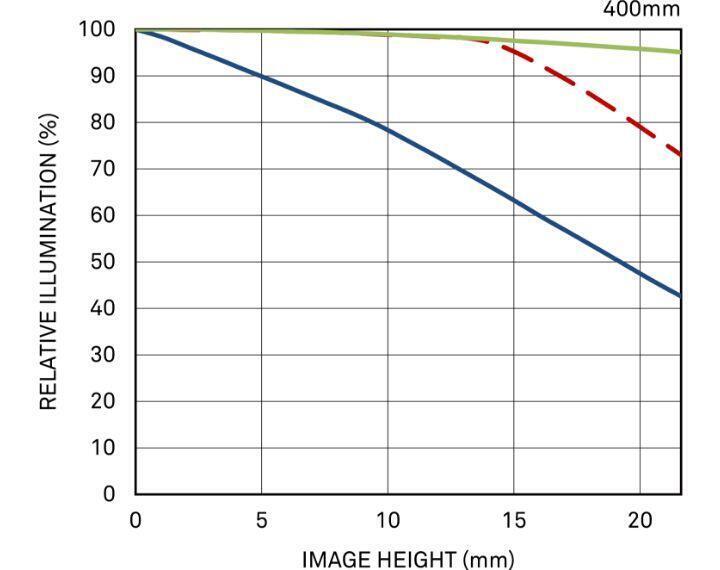

  • VIGNETTING

    • FF5(100mm) - F6.3(400mm)

    • FF11(100mm) - F11(400mm)

    • FF22(100mm) - F22(400mm)
