DISCONTINUED

SPORTS

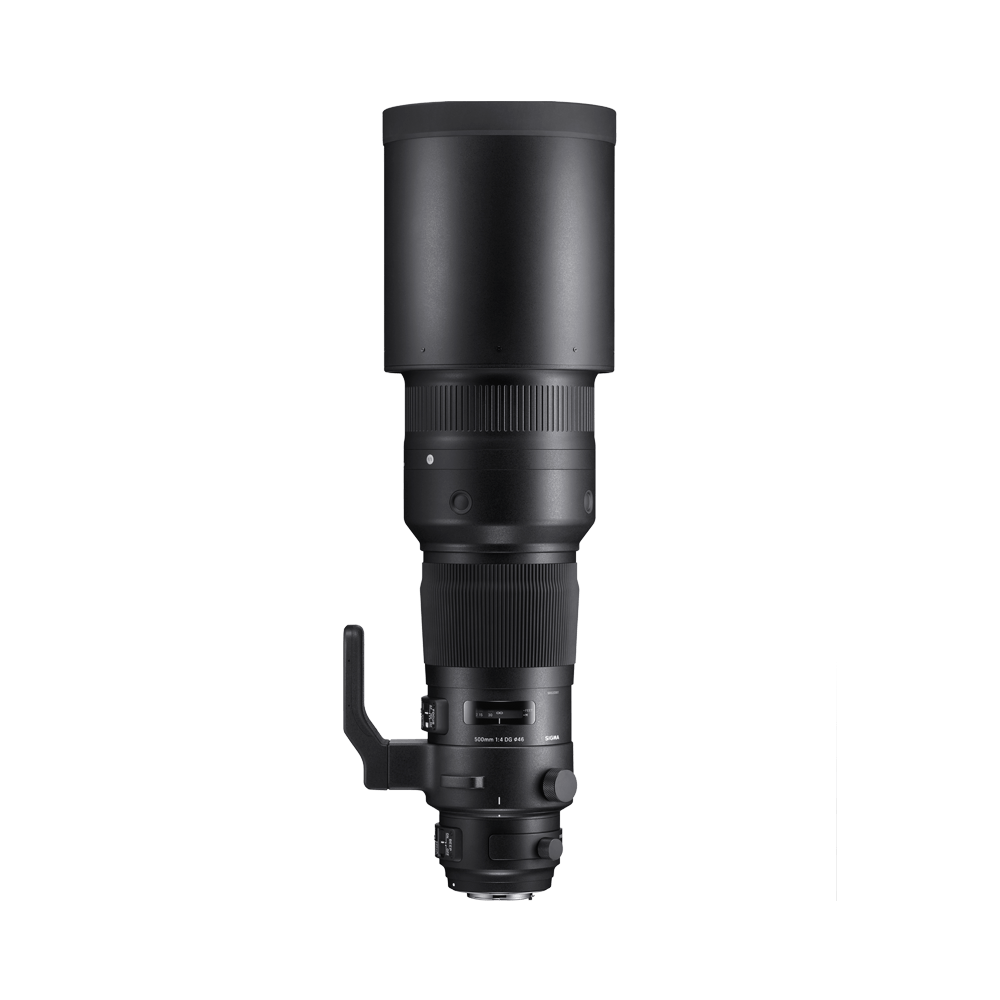

500mm F4 DG OS HSM

Available mounts

  • SIGMA SA-mount
  • Canon EF mount
  • Nikon F mount
DISCONTINUED

  • Camera Type

    DSLR

  • Corresponding Mount

    SIGMA SA-mount,Canon EF mount,Nikon F mount

  • Sensor Format

    Full-frame [DG]

  • Lens Construction

    16 elements in 11 groups

  • Angle of View

    5°

  • Number of Diaphragm Blades

    9 (rounded diaphragm)

  • Minimum Aperture

    F32

  • Minimum Focusing Distance

    350cm / 137.8in.

  • Maximum Magnification Ratio

    1:6.5

  • Filter Size

    Φ46mm (Rear)

  • Dimensions (Diameter × Length)

    Φ144.8mm × 380.3mm / Φ5.7in. × 15in.
    *The length of a lens is measured from the filter surface to its mount.

  • Weight

    3,310g

  • Edition Number

    S016

    The three-digit code on the surface of the lens is to indicate the year the lens was first released.
    (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

  • Supplied Accessories

    Case
    LENS HOOD LH1388-01
    COVER LENS CAP LC-185E
    FILTER HOLDER WITH WR PROTECTOR 46MM
    REAR CAP LCR II
    TRIPOD SOCKET TS-91 fixed

  • Mount / Product Barcode

    SIGMA SA-mount：00-85126-18556-5（DISCONTINUED）
    Canon EF mount：00-85126-18554-1（DISCONTINUED）
    Nikon F mount：00-85126-18555-8（DISCONTINUED）

  • * All figures calculated by SIGMA SA-mount.
    * The Nikon mount version of this lens includes an electromagnetic diaphragm mechanism. Functionality may be limited on some camera bodies. *For Nikon F mount cameras, please see (*)Nikon camera compatibility
    * Although dust and splash resistant structure allows the lens to be used in light rain, it is not the same as being waterproof.

    (*)Nikon F mount camera compatibility
    Lenses for Nikon F mount with an electromagnetic diaphragm mechanism can be used with the following cameras.

    Z7Ⅱ※,Z7※,Z6Ⅱ※,Z6※,Z5※,Z50※,D6, D5, D4S, Df, D850, D810, D810A, D780, D750, D610, D500, D7500, D7200, D7100, D5600, D5500, D5300, D5200, D5100, D5000, D3500, D3400, D3300, D3200, D3100
    ※Can be used with the Nikon "Mount Adapter FTZ" attached

    Before using with one of the cameras listed below, please update the lens to the latest firmware version.
    D4, D3X, D3S, D3, D800, D800E, D700, D600, D300S, D300, D7000
    * The lens cannot be used with the cameras not listed above (including film single‐lens reflex cameras).

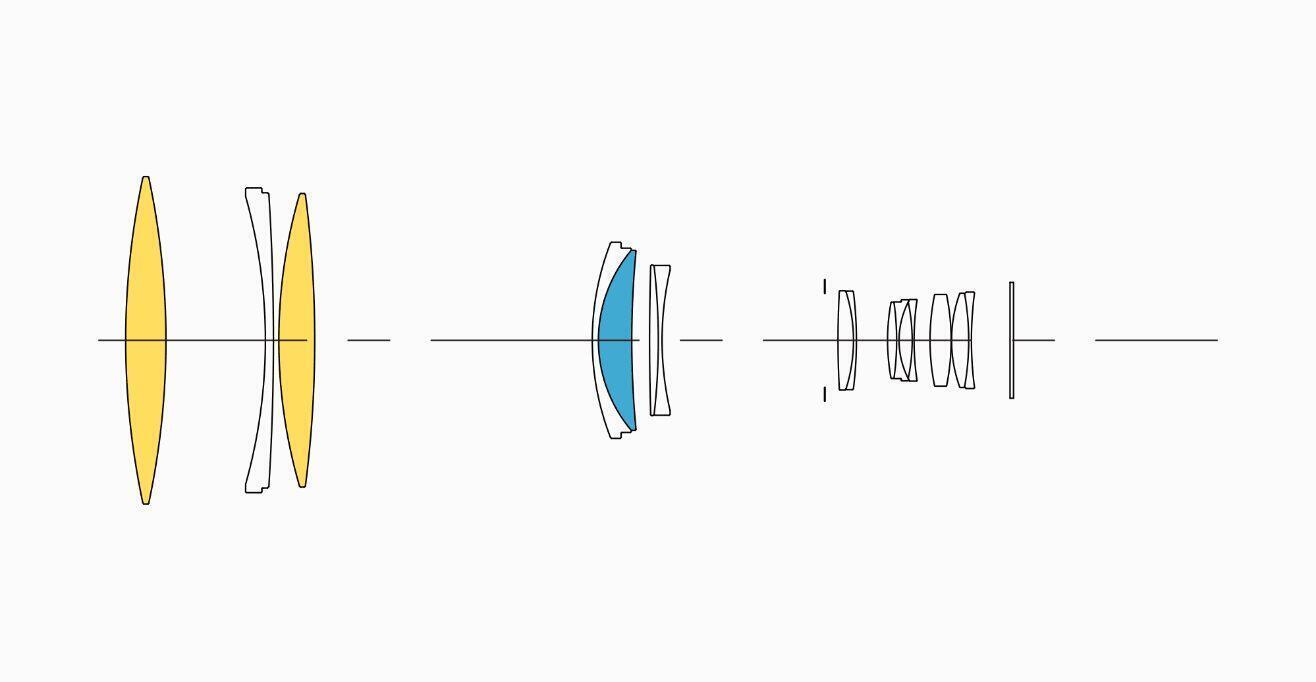

  • Lens construction

    FLD glass

    SLD glass

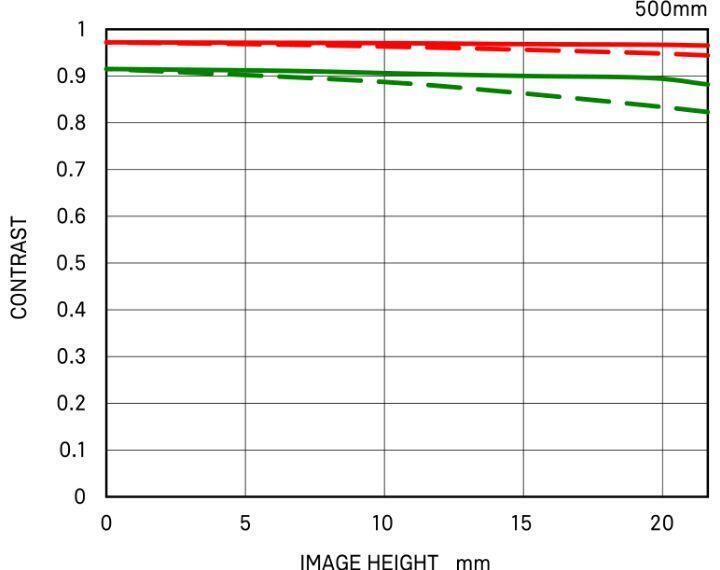

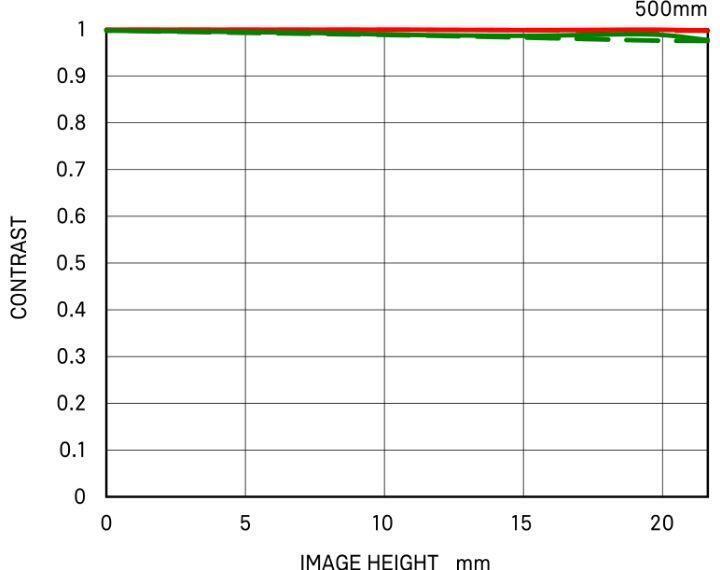

  • MTF CHART

    Diffraction MTF

    Geometrical MTF

    • Spatial frequency

      S:Sagittal Line

      M:Meridional Line

    • 10lp/mm

    • 30lp/mm

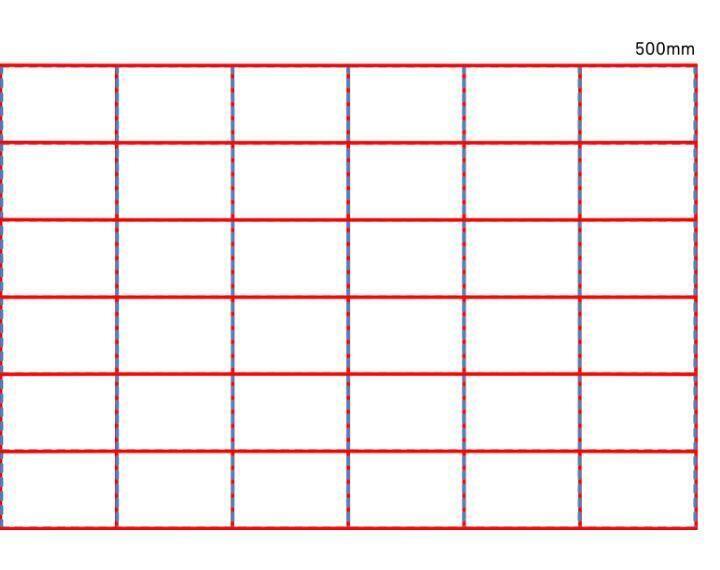

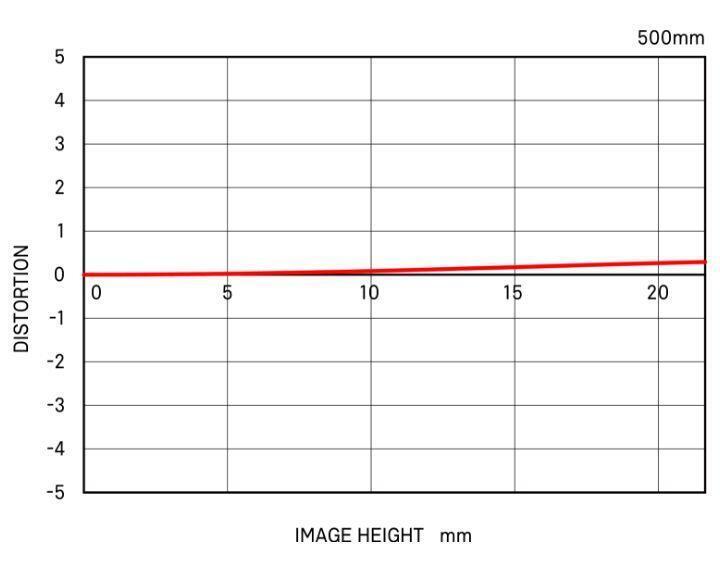

  • DISTORTION

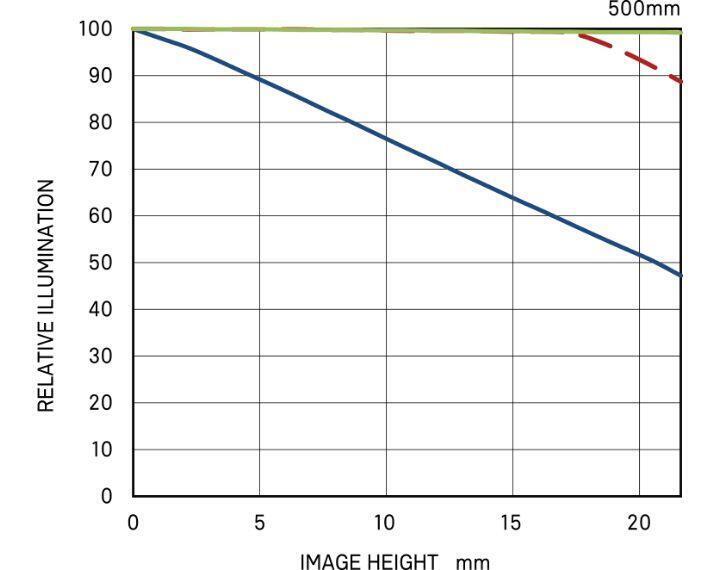

  • VIGNETTING

    • F4

    • F8

    • F16

SUPPLIED ACCESSORIES

SEPARATELY SOLD ACCESSORIES
