History

    Stunning resolution and clarity
    for a breathtaking visual experience—
    a razor-sharp macro lens joins
    the Art line

    The successor of the legendary,
    razor-sharp macro lens—
    the SIGMA MACRO 70mm F2.8 EX DG

    In recent years, macro lenses in the standard range have tended to employ inner focusing with the goal of maximizing autofocus speed. In contrast, the new SIGMA 70mm F2.8 DG MACRO | Art lens is designed to prioritize optical performance, fulfilling the demanding image quality requirements that define the Art line. In the standard to mid-telephoto range, it delivers stunning resolution and incredible clarity that greatly exceed expectations for a macro lens. The coreless DC motor further enhances image quality, while an optimized algorithm helps offer extremely smooth autofocus performance for a weightier, high-performance lens. Photography enthusiasts will recall a certain legendary, razor-sharp macro lens—the SIGMA MACRO 70mm F2.8 EX DG—and be glad to learn it is available in a new form, updated with outstanding Art line quality.

    Features

    Design prioritizing
    optical performance

    Top-level performance at every shooting distance

    • FLD glass
    • SLD glass
    • Aspherical lens

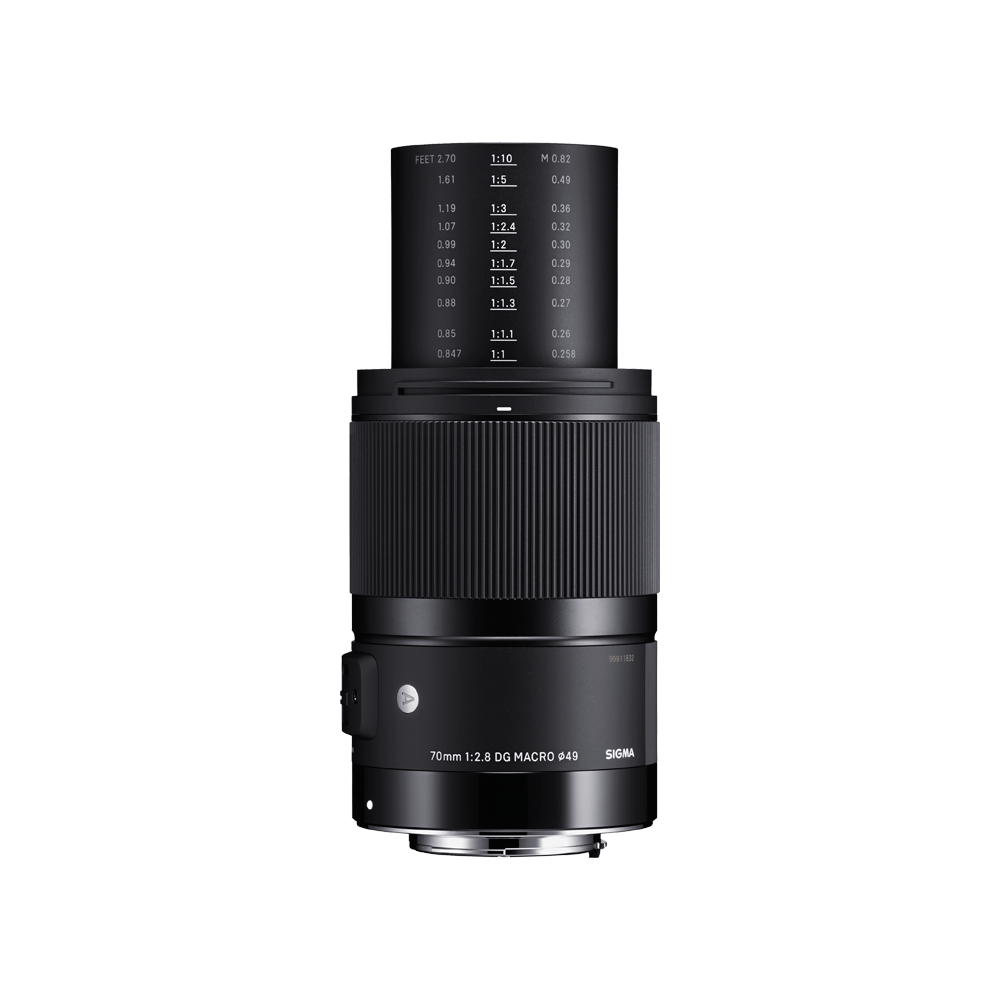

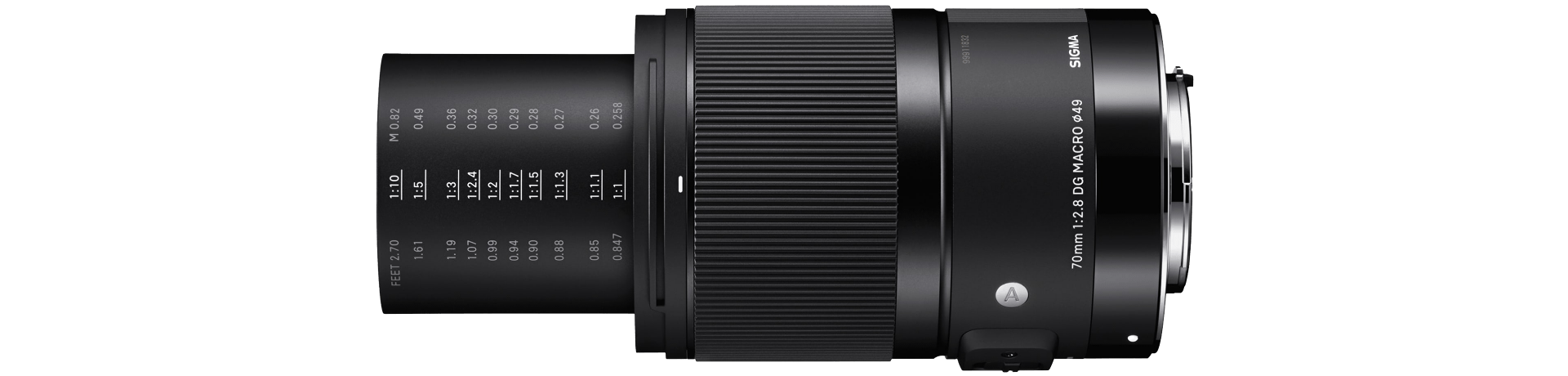

    In order to realize top-level performance at every shooting distance, the lens features an extending, floating, two-group focus mechanism. This configuration minimizes aberration to produce optimal results at any focus distance. To minimize axial chromatic aberration, the optical system incorporates two FLD glass elements, two SLD glass elements, and one element with a high rate of anomalous partial dispersion and a high index of refraction. In addition, two aspherical lens elements help increase resolution at close shooting distances. This optical system makes possible a razor-sharp in-focus area contrasted with a bokeh area free of color streaking.

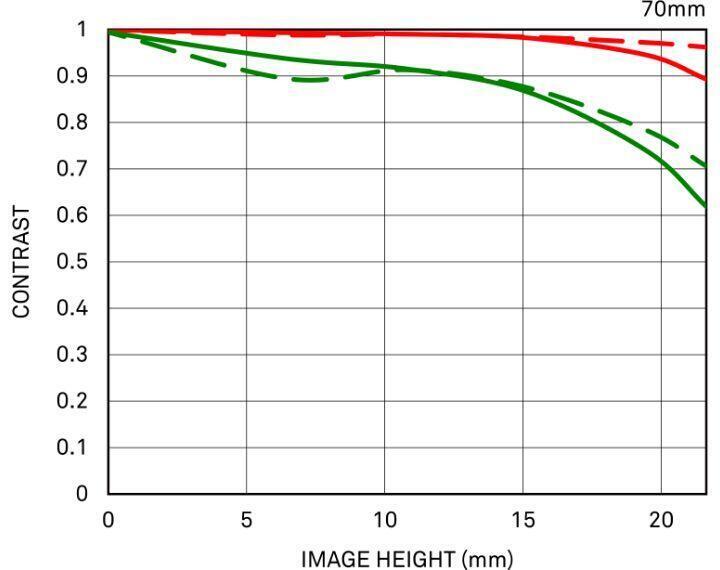

    MTF chart

    Diffraction MTF

    Geometrical MTF

    The MTF chart gives the result at the wide-open aperture
    Spatial frequency S:Sagittal Line M:Meridional Line
    10lp/mm
    30lp/mm

    Designed to minimize flare and ghosting

    From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. SIGMA’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions. The included lens hood can be attached to block out extraneous light, which can have a negative effect on rendering performance.

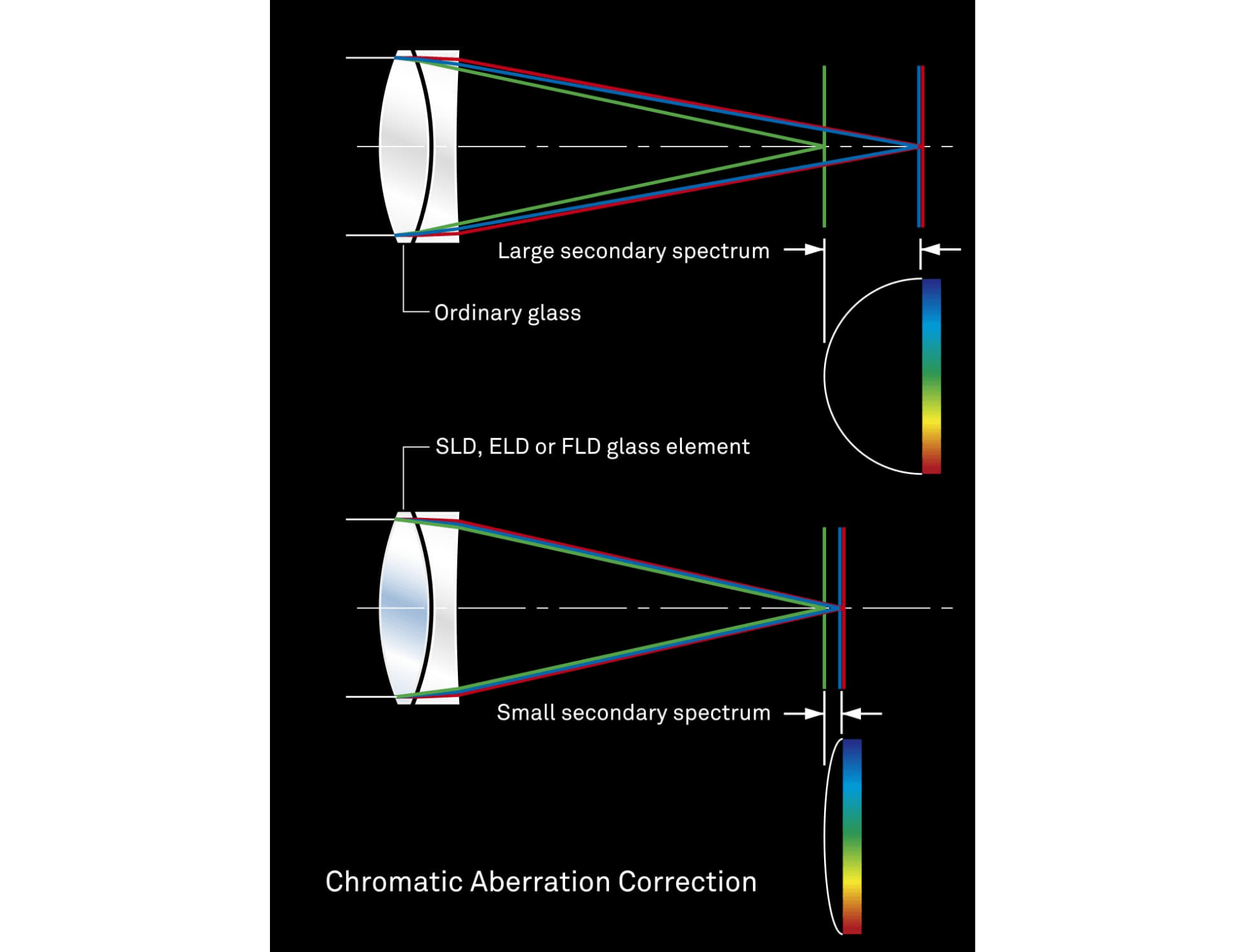

    Exclusive low-dispersion glass

    The degree to which light is refracted by glass depends on the light’s wavelength. This fact causes different colors of light to focus at slightly different points. The result is chromatic aberration, the color fringing that is particularly noticeable in telephoto lenses. Most chromatic aberration can be removed by combining a high-refractivity convex lens element with a low-refractivity concave element. Yet residual chromatic aberration known as “secondary spectrum” may still remain. To minimize this secondary spectrum, which can be a serious issue with conventional lenses, SIGMA lenses feature up to three types of exclusive low-dispersion glass offering superior performance: ELD (Extraordinary Low Dispersion), SLD (Special Low Dispersion) and FLD (“F” Low Dispersion). In particular, FLD glass offers ultra-low dispersion in combination with high transmittance and the anomalous dispersion characteristics of fluorite. Meticulous deployment of these types of exclusive low-dispersion glass and optimization of power distribution gives SIGMA lenses superlative image rendition undiminished by residual chromatic aberration.

    Focus-by-wire system
    for comfortable
    and precise focusing

    The focus-by-wire system eliminates the direct mechanical connection between the focus ring and the focus drive system. Controlled by SIGMA’s latest algorithm, a newly developed coreless DC motor adjusts focus with optimal speed and low noise. Full-time manual focus is available even during autofocus, allowing the photographer to make minute focus adjustments simply by turning the focus ring. In addition, the focus ring’s large angle of rotation helps the photographer achieve the extremely precise focusing required for effective macro photography.

    Fast AF with full-time manual focus

    Full-time manual focus function allows the lens to be switched to manual focus simply by rotating the focus ring.

    Note: The operation of full-time MF may vary based on mount type.

    Mount with dust- and splash-proof construction

    The lens mount incorporates rubber sealing※ to protect the mount from dust and water drops.

    * Except for SIGMA mount

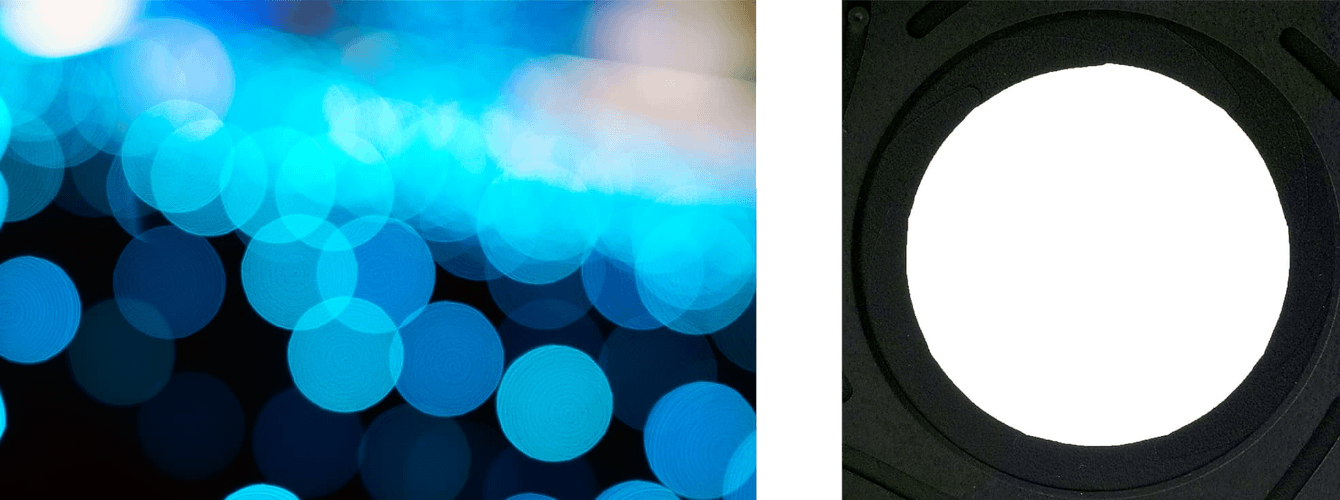

    Rounded diaphragm

    The 9-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.

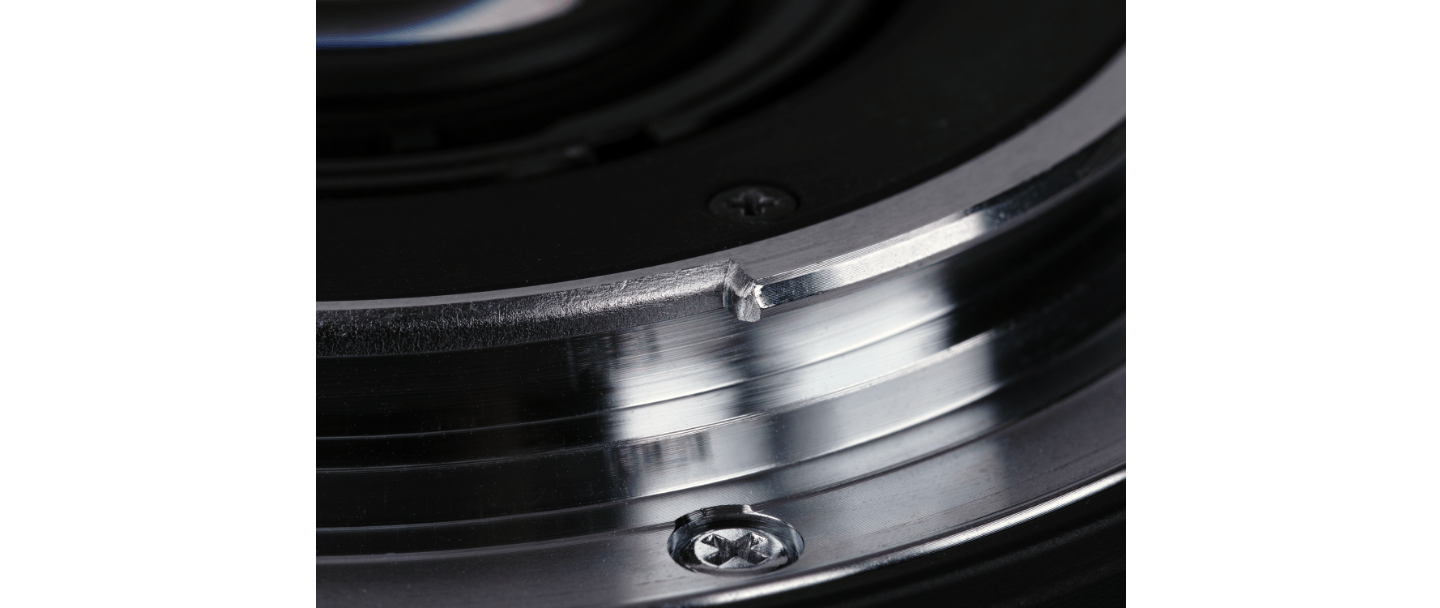

    High-precision,
    rugged brass bayonet mount

    The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.

    Compatible with full-frame
    Sony E-mount cameras

    The version of this lens compatible with Sony E-mount mirrorless cameras contains the same optical system as for SLRs. SIGMA MOUNT CONVERTER MC-11 is not required, as the lens performs the same functions as the converter, including in-camera image stabilization and in-camera lens aberration correction. In addition, the lens is compatible with Sony’s Continuous AF, which is not addressed by MOUNT CONVERTER MC-11. SIGMA plans to offer over time Sony E-mount versions of every full-frame prime lens currently available in the Art line, from 14mm to 135mm.

    Note: This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony

    Compatible with Canon Lens Aberration Correction

    The Canon mount version of this lens is compatible with the Canon Lens Aberration Correction function.* Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

    * Function not available on all Canon cameras. Available corrections may vary depending on the Canon camera model.

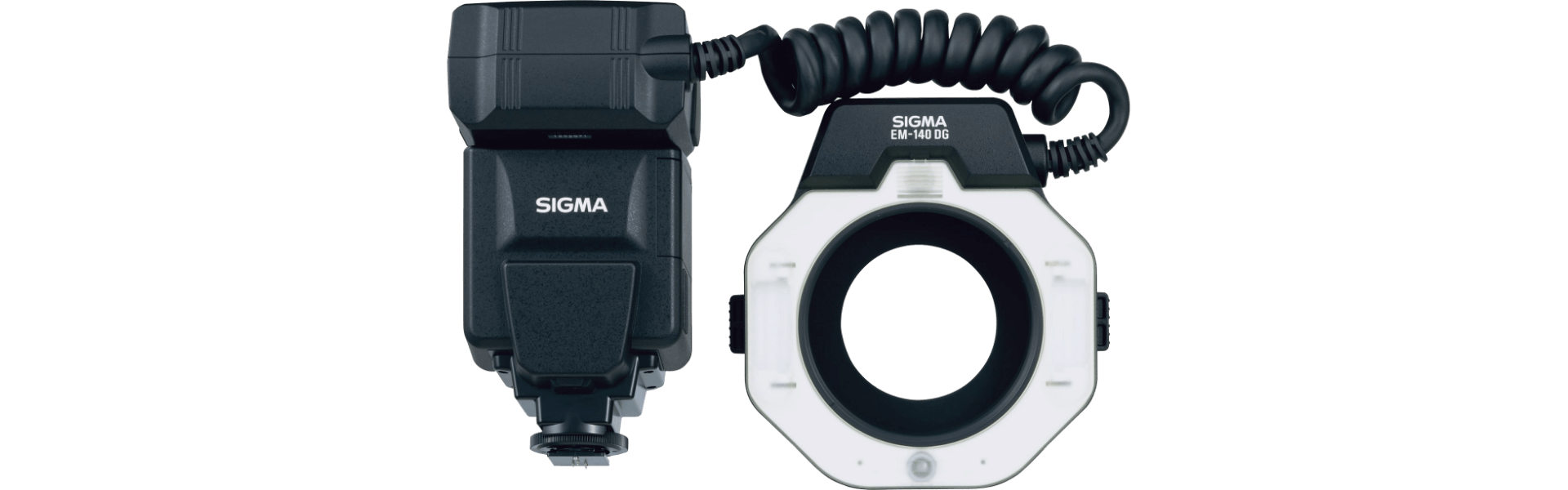

    Compatible with
    ELECTRONIC FLASH MACRO EM-140 DG

    Exclusively for SIGMA 70mm F2.8 DG MACRO | Art, the 65mm MACRO FLASH ADAPTER makes the lens compatible with ELECTRONIC FLASH MACRO EM-140 DG (both accessories sold separately).*Thanks to the 72mm filter thread, a 72mm adapter can also be added so as to accommodate macro flashes other than EM-140 DG as well as ring lights.

    * SIGMA SA mount only

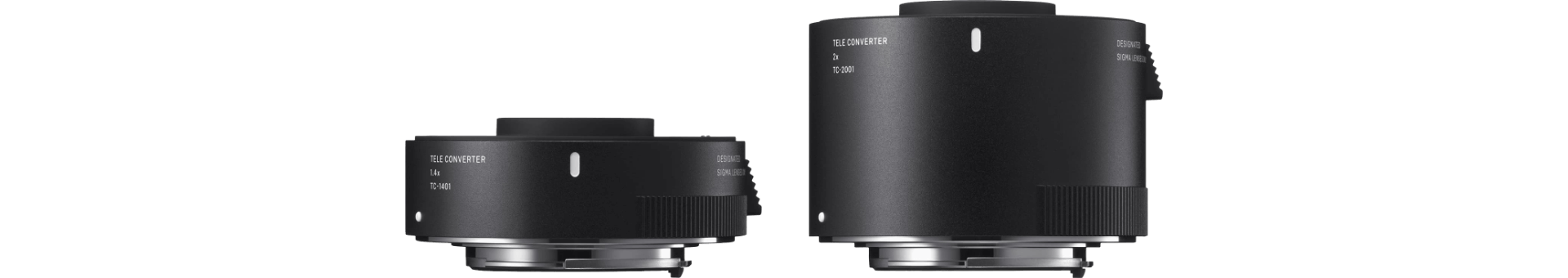

    Compatible with
    SIGMA TELE CONVERTERS*1

    The lens is compatible with SIGMA TELE CONVERTERS (sold separately) designed for the company’s new lens lines. SIGMA TELE CONVERTER TC-1401 allows the lens to be used as a 98mm F4 mid-telephoto macro with autofocus functionality,*2 while SIGMA TELE CONVERTER TC-2001 allows the lens to be used as a 140mm F5.6 mid-telephoto macro with manual focus.

    *1 Not available for L-Mount and Sony E-mount lenses
    *2 Autofocus available at 0.5m to infinity.

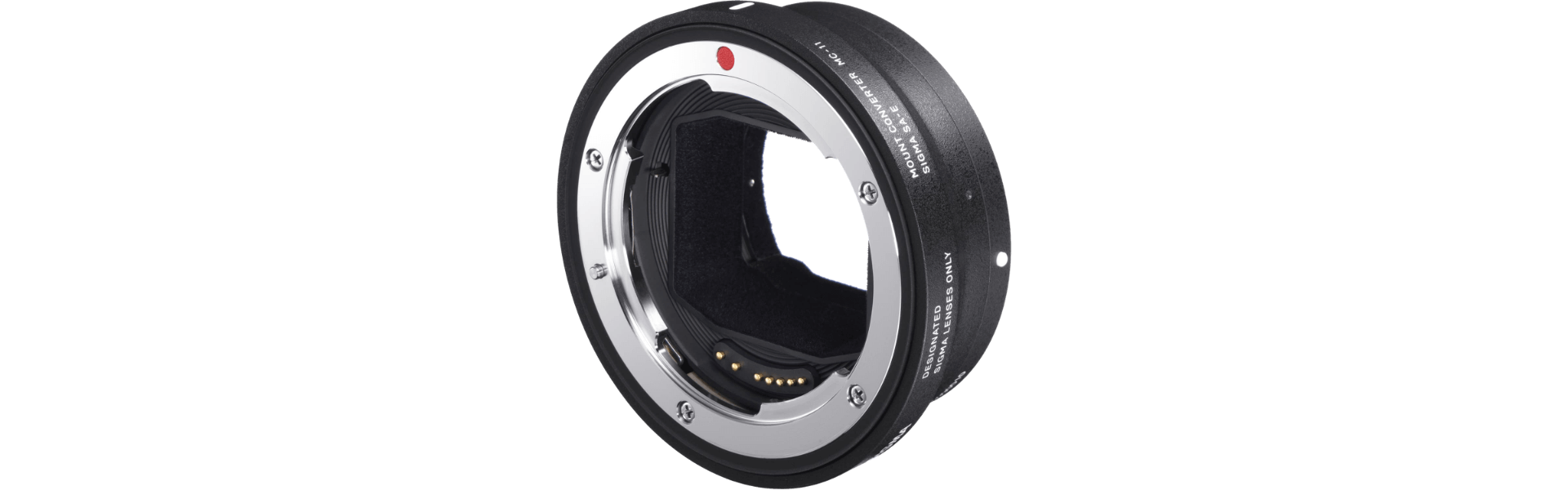

    Compatible with
    Mount Converter MC-11*

    Mount Converter MC-11 allows you to use your SIGMA SA mount and SIGMA EOS mount (Canon-compatible) interchangeable lenses with the Sony E-mount camera body.

    * SIGMA and Canon mount lenses

    ESSENTIALS

    You'll find our philosophy and craftsmanship
    in every product

    Our new lineup fully expresses our approach to lenses and photography itself. All of our lenses belong to one of three lines—Contemporary, Art, or Sports—all of which share our development philosophy and advanced manufacturing system. High performance, high quality, and high end in every respect, these lenses give people who love photography lasting value and consistent, exciting results. The secret is our passion for craftsmanship that we put into every production process and every product.

    Specifications

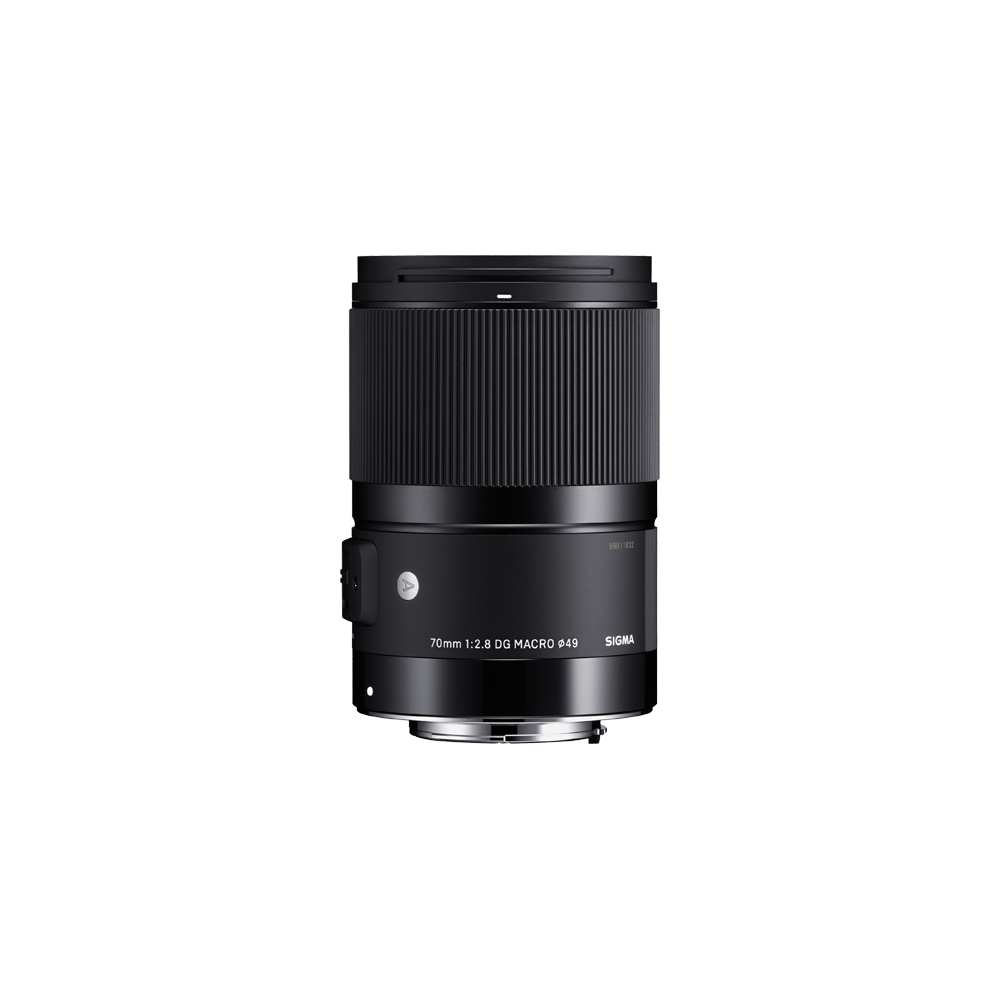

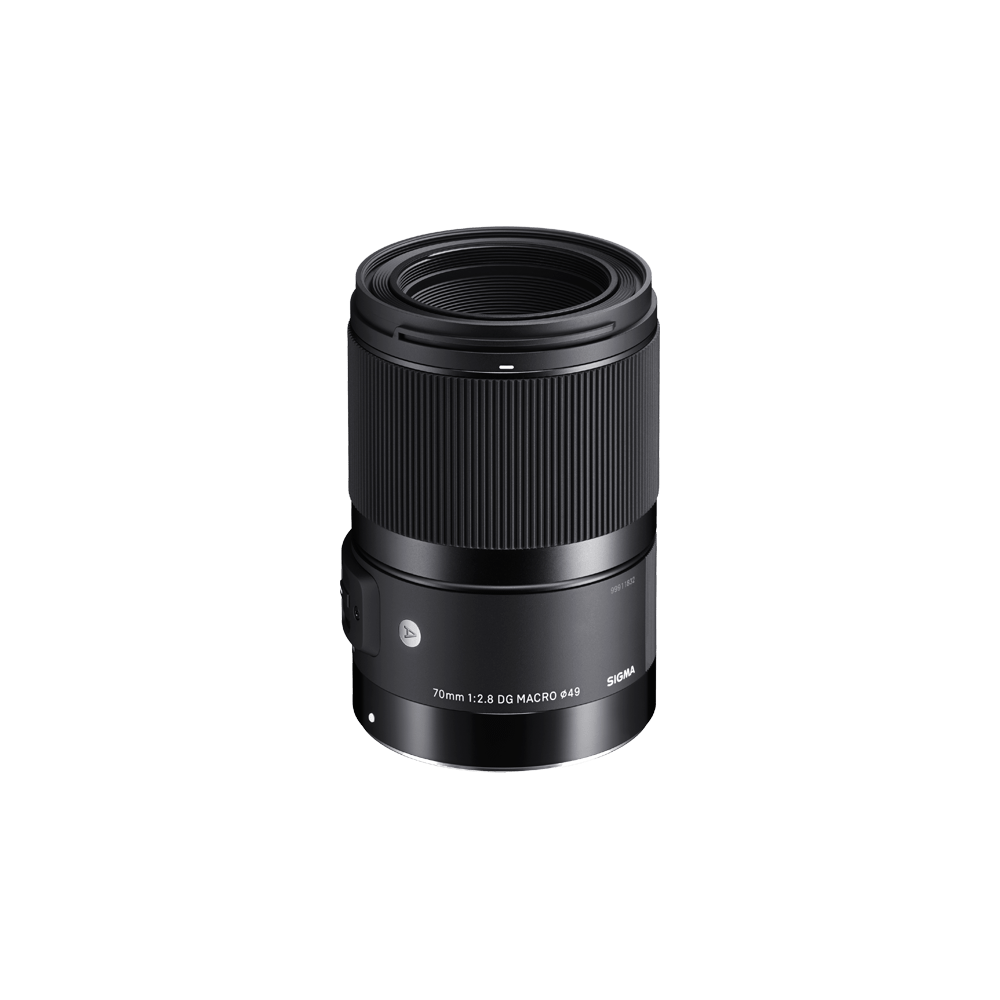

    70mm F2.8 DG MACRO | Art

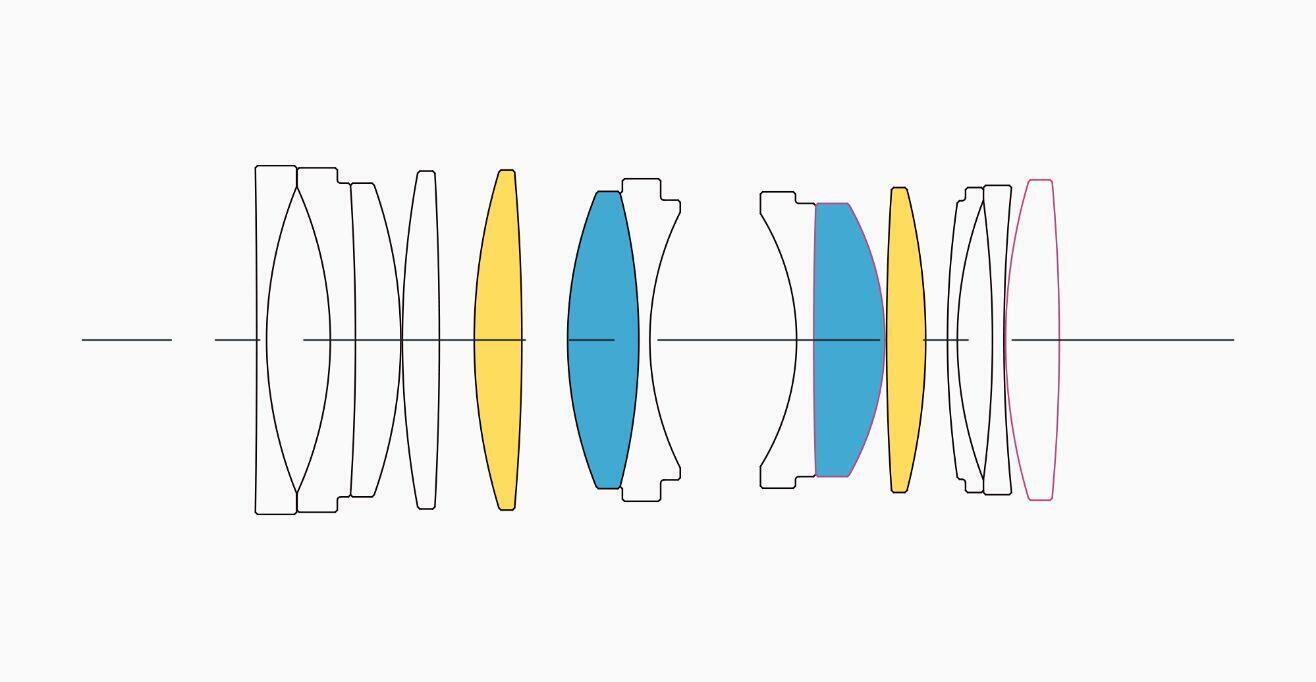

    Lens Construction

    • FLD glass
    • SLD glass
    • ASPHERICAL LENS

    Lens Construction

    13 elements in 10 groups

    Angle of View

    • 34.3°

    Number of Diaphragm Blades

    9 (Rounded diaphragm)

    Minimum Aperture

    F22

    Minimum Focusing Distance

    25.8cm / 10.2in

    Maximum Magnification Ratio

    1:1

    Filter size

    φ49mm

    Dimensions (Diameter × Length)

    • SIGMA SA-Mount
      φ70.8mm × 105.8mm / φ2.8in. × 4.2in.
    • Sony E-Mount
      φ70.8mm × 131.8mm / φ2.8in. × 5.2in.
    • L-Mount
      φ70.8mm × 129.8mm / φ2.8 in. × 5.1in.
    • *The length of a lens is measured from the filter surface to its mount.

    Weight

    • SIGMA SA-Mount
      515g / 18.2oz.
    • Sony E-Mount
      570g / 20.1oz.
    • L-Mount
      605g / 21.3oz.

    Edition Number

    A018

    Supplied Accessories

    Case and Lens Hood (LH708-01) supplied.

    Corresponding AF Mounts / Barcode No.

    • SIGMA SA-Mount
      00-85126-27156-5
    • Canon EF Mount
      00-85126-27154-1
    • Sony E-Mount
      00-85126-27165-7
    • L-Mount
      00-85126-27169-5

    Technologies

    Performance / Data

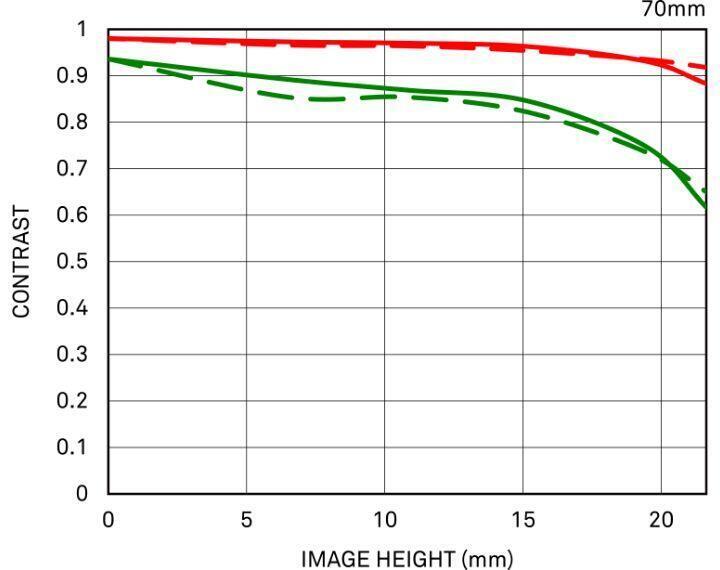

    MTF Chart

    Diffraction MTF

    Geometrical MTF

    The MTF chart gives the result at the wide-open aperture
    Spatial frequency S:Sagittal Line M:Meridional Line
    10lp/mm
    30lp/mm

    MTF chart guide

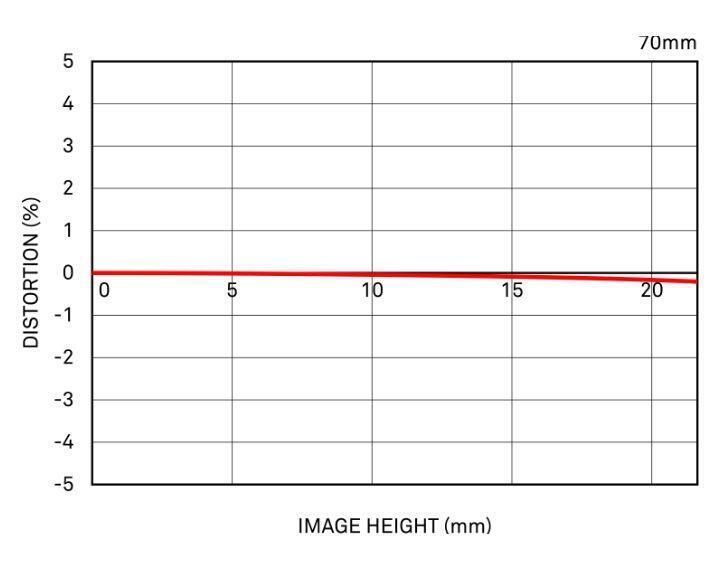

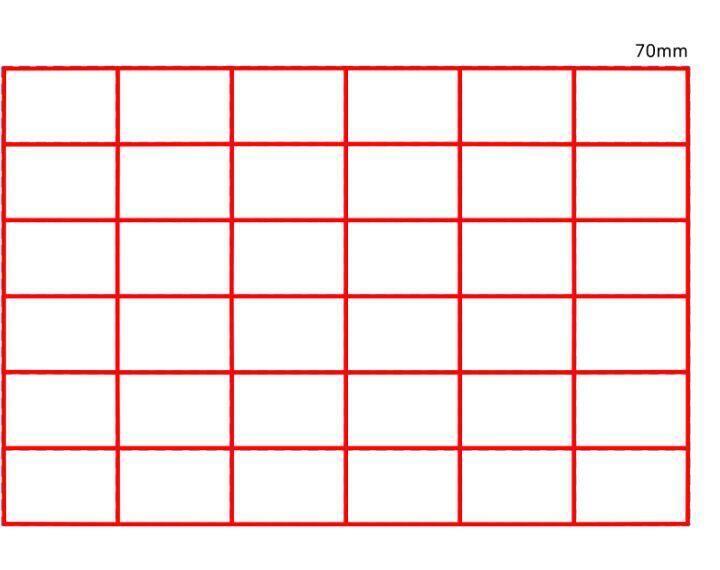

    Distortion

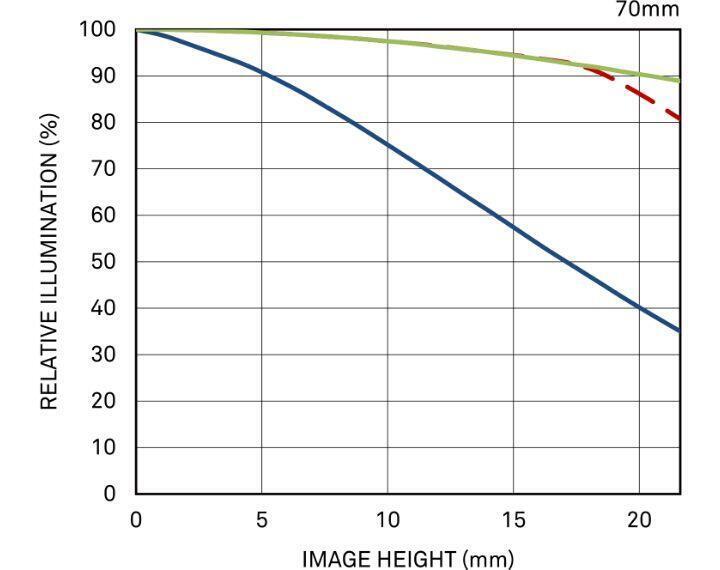

    Vignetting

    F2.8
    F5.6
    F11

    Vignetting guide

    Product Lineup

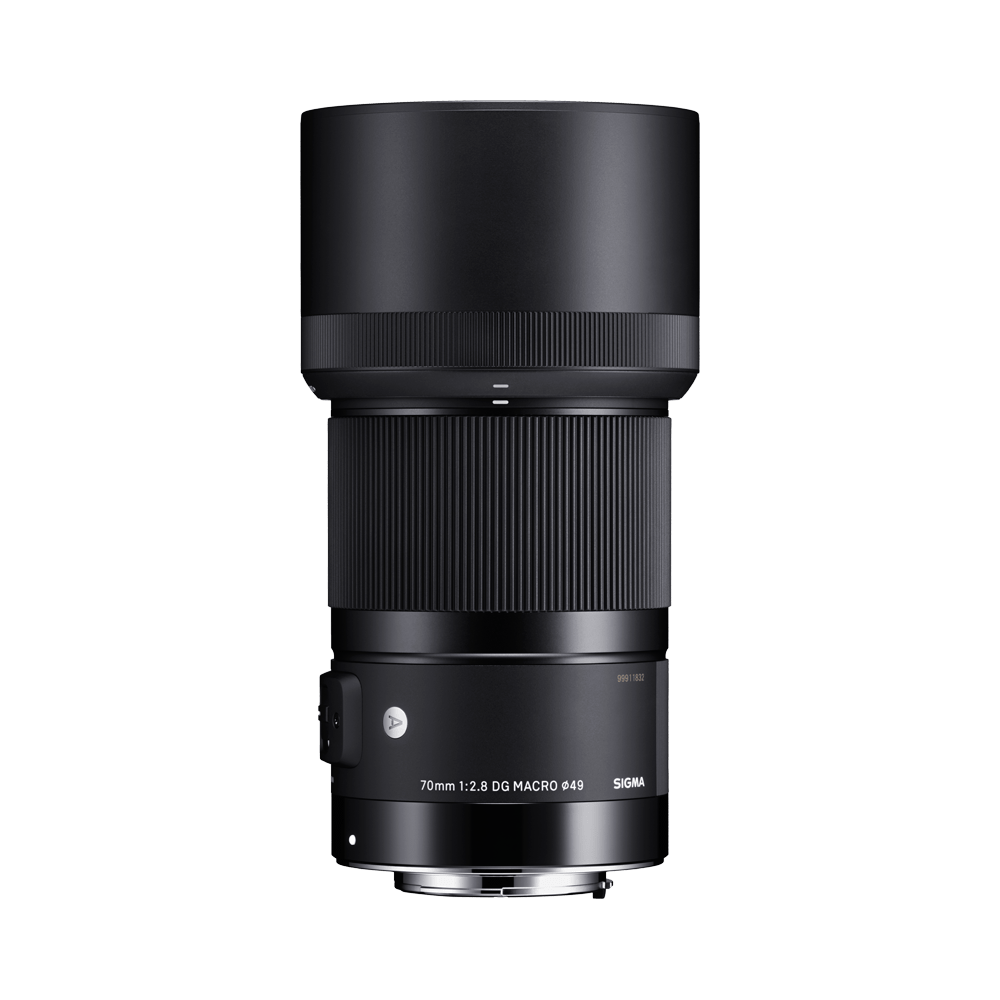

    70mm F2.8 DG MACRO | Art

    • SIGMA SA-mount

      Supplied Accessories

      Case and Lens Hood (LH708-01) supplied.

      Barcode No.
      00-85126-27156-5
    • Canon EF mount

      Supplied Accessories

      Case and Lens Hood (LH708-01) supplied.

      Barcode No.
      00-85126-27154-1
    • Sony E-mount

      Supplied Accessories

      Case and Lens Hood (LH708-01) supplied.

      Barcode No.
      00-85126-27165-7
    • L-Mount

      Supplied Accessories

      Case and Lens Hood (LH708-01) supplied.

      Barcode No.
      00-85126-27169-5

    Accessories

    Supplied Accessories

    LENS HOOD LH708-01

    Barcode No.
    00-85126-93663-1

    FRONT CAP LCF-49mmⅢ

    Barcode No.
    00-85126-93013-4

    REAR CAP LCR Ⅱ

    * The image is for SIGMA.

    • L-Mount

      Barcode No.
      00-85126-93725-6
    • Sony E-mount

      Barcode No.
      00-85126-92987-9
    • SIGMA SA-mount

      Barcode No.
      00-85126-92949-7
    • Canon EF mount

      Barcode No.
      00-85126-92951-0

    Separately Sold Accessories

    WR PROTECTOR 49mm

    Water-repellent, Antistatic type. Protector is developed to protect the lens surface from dirt and dust as well as scratches. It is an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93089-9

    PROTECTOR 49mm

    Normal type. Protector is developed to protect the lens surface from dirt and dust as well as scratches. It is an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93102-5

    WR UV FILTER 49mm

    UV Water-repellent, Antistatic type. UV filter prevents the bluish tone that generates when the weather is fine, by absorbing ultraviolet rays. It is effective in most situations, such as landscape, portrait and general photography on a sunny day. It is also an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93063-9

    WR CIRCULAR PL FILTER 49mm

    PL Water-repellent, Antistatic type. Circular PL filter removes the reflection of water surface and glass windows, and increases the contrast in landscape photography.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93076-9

    TELE CONVERTER TC-1401

    Teleconverters that are newly designed to match the new lens line-ups can be attached. offered magnification of focal length of TC-1401 is 1.4 times and that of TC-2001 is 2 times respectively.

    • SIGMA SA-mount

      Supplied Accessories

      Case

      Barcode No.
      00-85126-87956-3
    • Canon EF mount

      Supplied Accessories

      Case

      Barcode No.
      00-85126-87954-9

    TELE CONVERTER TC-2001

    Teleconverters that are newly designed to match the new lens line-ups can be attached. offered magnification of focal length of TC-1401 is 1.4 times and that of TC-2001 is 2 times respectively.

    • SIGMA SA-mount

      Supplied Accessories

      Case

      Barcode No.
      00-85126-87056-0
    • Canon EF mount

      Supplied Accessories

      Case

      Barcode No.
      00-85126-87054-6

    ELECTRONIC FLASH MACRO EM-140 DG

    *SIGMA fp only

    Supplied Accessories

    Case、MACRO FLASH ADAPTER (φ55mm、φ62mm)

    Barcode No.
    00-85126-92264-1

    MACRO FLASH ADAPTER 65mm

    Barcode No.
    00-85126-93662-4

    USB DOCK UD-01

    By connecting a SIGMA Art, Contemporary, or Sports lens to a computer with the SIGMA USB DOCK, photographers can update the lens firmware and adjust focus position and other parameters.

    • SIGMA SA-mount

      Barcode No.
      00-85126-87856-6
    • Canon EF mount

      Barcode No.
      00-85126-87854-2

    USB DOCK UD-11

    • L-Mount

      Barcode No.
      00-85126-87869-6

    MOUNT CONVERTER MC-11

    The SIGMA MOUNT CONVERTER MC-11 allows you to use your SIGMA SA mount and SIGMA EOS mount interchangeable lenses with the Sony E-mount camera body.

    • SIGMA SA-E
      SIGMA SA-mount

      Barcode No.
      00-85126-93251-0
    • CANON EF-E
      Canon EF mount

      Barcode No.
      00-85126-93250-3

    MOUNT CONVERTER MC-21

    The SIGMA MOUNT CONVERTER MC-21 allows SIGMA SA mount and SIGMA’s CANON EF mount interchangeable lens owners to use their lens investment on L-Mount camera bodies.

    • SIGMA SA-L
      SIGMA SA-mount

      Barcode No.
      00-85126-93724-9
    • CANON EF-L
      Canon EF mount

      Barcode No.
      00-85126-93723-2
