    The second newly-designed
    “Art zoom” dedicated
    for mirrorless cameras

    Best-in-class performance
    and large-aperture standard zoom lens
    that offers high resolution throughout the entire zoom range.

    Best performance can be provided due to a large-aperture zoom. This creed made an extremely high sense of resolution achieved in 14-24mm F2.8 DG DN | Art, the SIGMA’s first Art zoom dedicated for mirrorless cameras. It is also inherited in 24-70mm F2.8 DG DN | Art, the second Art zoom. By exerting superiority in mirrorless camera-dedicated designs, the lens size and weight are successfully reduced, while achieving uniformity and high resolution from the center to the periphery throughout the zoom range. Furthermore, compatibility with the latest mirrorless camera bodies and functions assists in various photographic environments and meets the high demands of professional or advanced amateur photographers. Following 14–24mm F2.8 DG DN | Art, 24–70mm F2.8 DG DN | Art has appeared as the flagship of the new-generation Art zoom and ultimate large-aperture standard zoom lens.

    DG
    DN

    Impression

    24mm, F2.8, ISO100, 1/640s ©Yoshino Adachi

    24mm, F5.6, ISO100, 1/250s ©Yoshino Adachi

    24mm, F5.6, ISO100, 1/250s ©Satoru Korenaga

    26mm, F2.8, ISO100, 1/2500s ©Yoshino Adachi

    70mm, F2.8, ISO100, 1/80s ©Yoshino Adachi

    70mm, F2.8, ISO100, 1/160s ©Satoru Korenaga

    Features

    Best-in-class optical performance

    The F2.8 Art zoom flagship zoom lens series is developed primarily to achieve superior optical performance. As extra-low dispersion glass materials, six sheets of “F” low dispersion (FLD) glass and two sheets of special low dispersion (SLD) glass are lavishly employed while taking advantage of an optical design dedicated for mirrorless lenses. By employing three aspheric lenses, this zoom lens thoroughly subdues aberrations such as axial chromatic aberration or sagittal coma aberration, which are difficult to correct in post-processing, tailors the resolution and achieves uniformity and superior optical performance from the center to the periphery throughout the zoom range.
    The mirrorless camera-dedicated design successfully contributes to reduction in the lens size and weight.

    Ensuring compatibility with the latest full-frame mirrorless camera bodies

    The SIGMA 24–70mm F2.8 DG DN ensures compatibility with various types of the latest full-frame mirrorless camera bodies tailored for L-Mount and Sony E-Mount so as to be capable of exerting the best performance under any photographic circumstances, assuming that professional or advanced amateur photographers use it. To the AFL button, for example, various functions can be assigned from a camera body*, which enhance the operability while photographing. Employing a stepping motor and the latest algorithm successfully establishes a good balance between acceleration and quietness of the AF drive. This enables stress-free focusing. Furthermore, this lens is compatible with the Eye-Detection AF used more frequently in mirrorless cameras, which is capable of high-precision focusing at the time of portrait photography.

    * This has a constraint depending on camera bodies used.

    Adaptable to various uses and photographic environments

    In consideration of shooting under challenging shooting conditions, the dust- and splash-proof structure and water- and oil-repellent coating are adopted. In addition, a variety of functions, such as an AFL button that can assign various functions to the lens barrel, a zoom lock switch that is unlocked by zoom operation, a nice touch AF / MF switch, are provided.

    Basic functions
    1AF/MF switch 2AFL button 3Zoom lock switch

    SIGMA’s unique coating technology Nano Porous Coating

    The super multi-layer coating is combined with SIGMA’s unique coating technology “NPC (Nano Porous Coating)”. The lens has been designed to be less susceptible to strong incident light such as backlight.
    “NPC (Nano Porous Coating)” incorporates porous silica as the coating material. The porous silica layer has nano-sized holes with air inside. Having holes of this size enables a large reduction in the refractive index, allowing the reflectance to be lowered more than conventional anti-reflective coatings. As a result, reflected light causing flares and ghosting is sharply reduced, achieving clear image quality.

    About the shortest shooting distance

    The minimum focusing distance is 18 cm at the wide-angle end. This allows you to come closer to a subject than the end of a hood to take photographs*. The maximum magnifications are 1:2.9 at the wide-angle end and 1:4.5 at the telephoto end, which provides a wider range of expression by close-up photography.

    * Be extremely careful that the front lens element does not hit the subject when photographing. Remove the lens hood from the camera body before use when photographing at the minimum focusing distance at the wide-angle end.

    Other features

    Designed to minimize flare and ghosting

    From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. In addition to Super Multi-Layer Coating, Nano Porous Coating is employed. These coatings reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions.

    Rounded diaphragm
    (11-blade)

    The 11-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.

    Hood with lock

    Features a hood with lock to prevent dropping the hood.

    High-precision,
    rugged brass bayonet mount

    The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.

    ESSENTIALS

    You'll find our philosophy and craftsmanship
    in every product

    Our new lineup fully expresses our approach to lenses and photography itself. All of our lenses belong to one of three lines—Contemporary, Art, or Sports—all of which share our development philosophy and advanced manufacturing system. High performance, high quality, and high end in every respect, these lenses give people who love photography lasting value and consistent, exciting results. The secret is our passion for craftsmanship that we put into every production process and every product.

    Specifications

    24-70mm F2.8 DG DN | Art

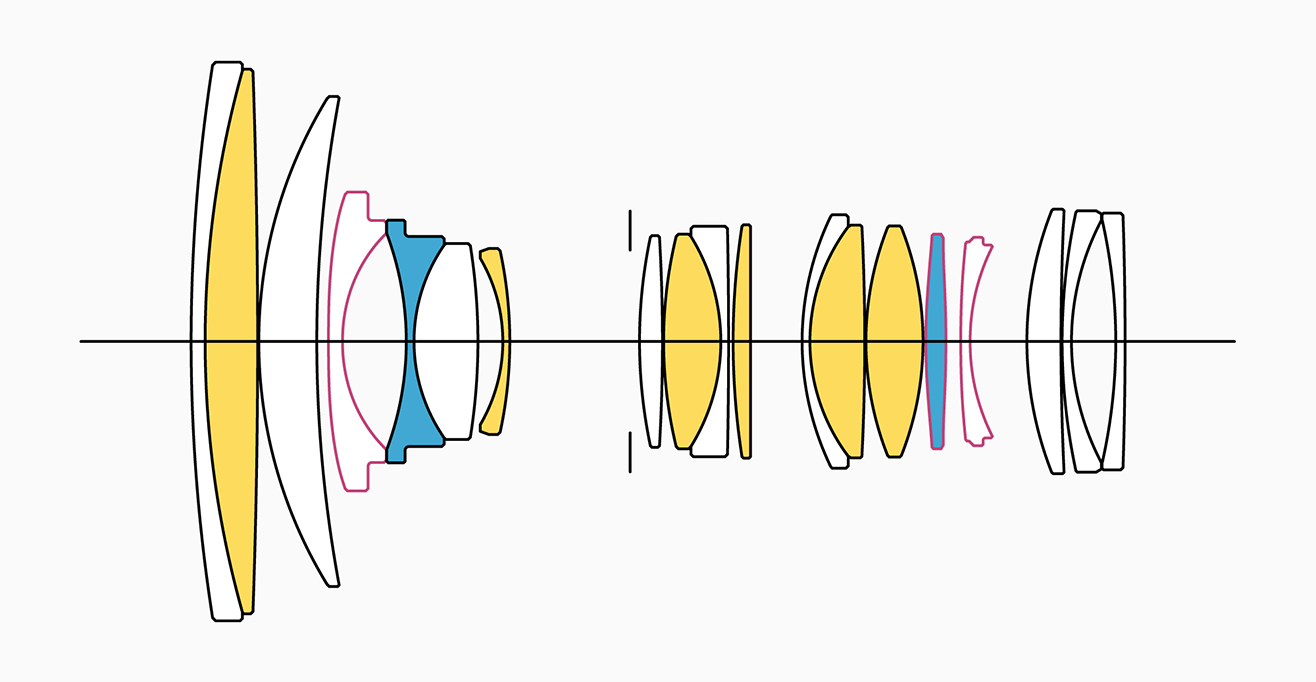

    Lens Construction

    • FLD glass
    • SLD glass
    • ASPHERICAL LENS

    Lens Construction

    19 elements in 15 groups

    Angle of View

    • 84.1° - 34.3°

    Number of Diaphragm Blades

    11 (Rounded diaphragm)

    Minimum Aperture

    F22

    Minimum Focusing Distance

    18-38cm / 7.1in.-15.0in.

    Maximum Magnification Shooting

    Wide 1:2.9 - Tele 1:4.5

    Filter size

    φ82mm

    Dimensions (Diameter × Length)

    • L-Mount
      φ87.8mm × 122.9mm / φ3.5in. × 4.8in.
    • Sony E-Mount
      φ87.8mm × 124.9mm / φ3.5in. × 4.9in.
    • *The length of a lens is measured from the filter surface to its mount.

    Weight

    • L-Mount
      835g / 29.5oz.
    • Sony E-Mount
      830g / 29.0oz.

    Edition Number

    A019

    Supplied Accessories

    Case, Petal Type Hood with Lock (LH878-03)

    Corresponding AF Mounts / Barcode No.

    • L-Mount
      00-85126-57869-5
    • Sony E-Mount
      00-85126-57865-7

    Technologies

    Performance / Data

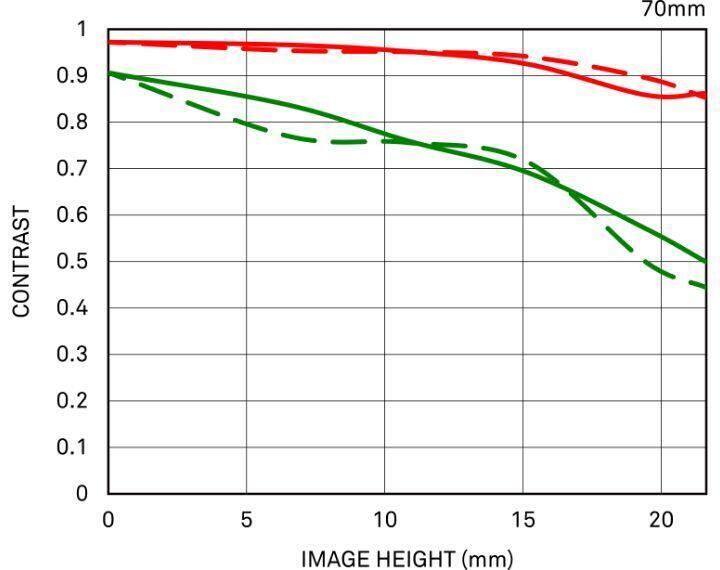

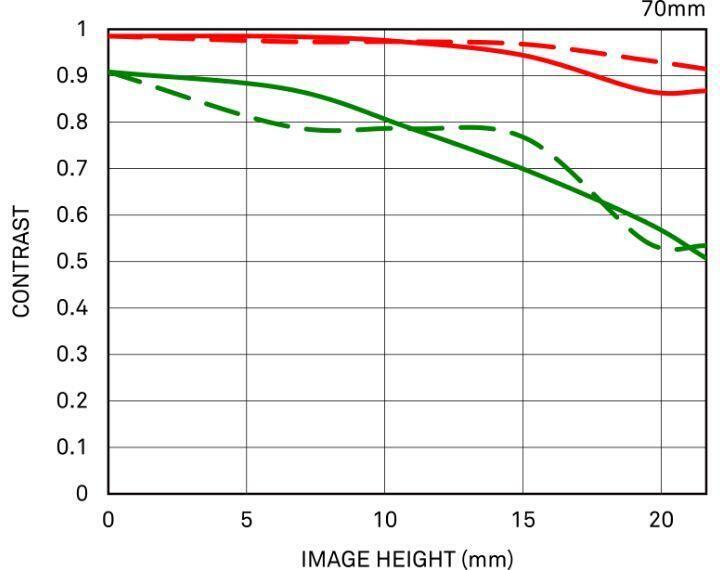

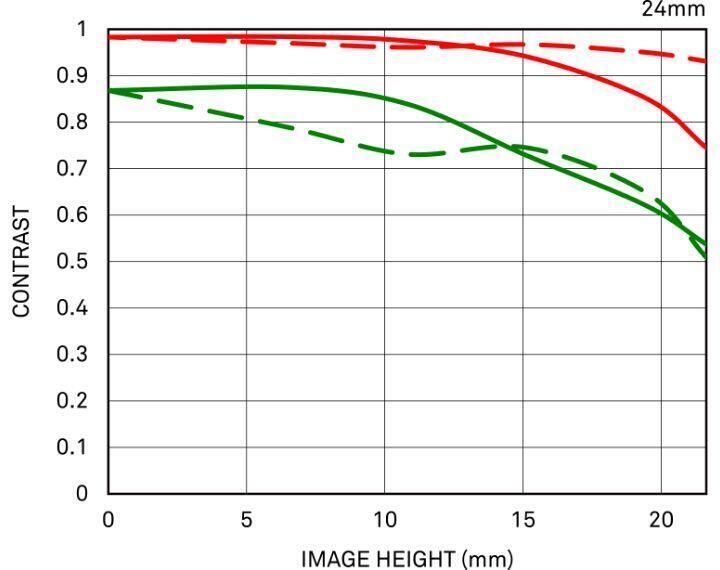

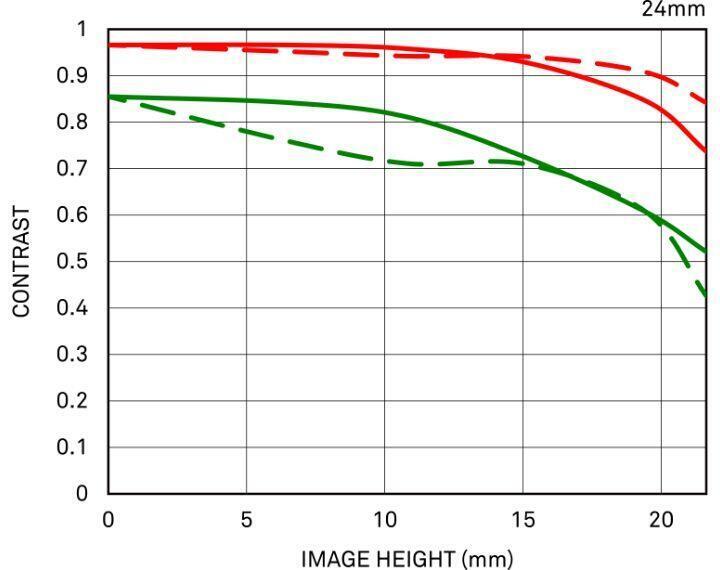

    MTF Chart

    Diffraction MTF

    Geometrical MTF

    The MTF chart gives the result at the wide-open aperture
    Spatial frequency S:Sagittal Line M:Meridional Line
    10lp/mm
    30lp/mm

    MTF chart guide

    Product Lineup

    24-70mm F2.8 DG DN | Art

    • L-Mount

      Supplied Accessories

      Case, Petal Type Hood with Lock (LH878-03)

      Barcode No.
      00-85126-57869-5
    • Sony E-mount

      Supplied Accessories

      Case, Petal Type Hood with Lock (LH878-03)

      Barcode No.
      00-85126-57865-7

    Accessories

    Supplied Accessories

    FRONT CAP LCF-82mm Ⅲ

    Barcode No.
    00-85126-93002-8

    REAR CAP LCR Ⅱ

    * The image is for SIGMA.

    • L-Mount

      Barcode No.
      00-85126-93725-6
    • Sony E-mount

      Barcode No.
      00-85126-92987-9

    LENS HOOD LH878-03

    Barcode No.
    00-85126-93837-6

    Separately Sold Accessories

    WR CERAMIC PROTECTOR 82mm

    With many applications in aerospace and other industries, glass ceramic is an extremely tough type of crystallized glass that serves as the foundation for Clear Glass Ceramic. While featuring the high transmittance required of optical devices, this advanced new material combines greater hardness than chemically strengthened glass and greater flexibility than sapphire crystal glass. These qualities make Clear Glass Ceramic the ideal material for protective lens filters.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93183-4

    WR PROTECTOR 82mm

    Water-repellent, Antistatic type. Protector is developed to protect the lens surface from dirt and dust as well as scratches. It is an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93097-4

    PROTECTOR 82mm

    Normal type. Protector is developed to protect the lens surface from dirt and dust as well as scratches. It is an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93110-0

    WR UV FILTER 82mm

    UV Water-repellent, Antistatic type. UV filter prevents the bluish tone that generates when the weather is fine, by absorbing ultraviolet rays. It is effective in most situations, such as landscape, portrait and general photography on a sunny day. It is also an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93071-4

    WR CIRCULAR PL FILTER 82mm

    PL Water-repellent, Antistatic type. Circular PL filter removes the reflection of water surface and glass windows, and increases the contrast in landscape photography.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93084-4

    USB DOCK UD-11

    • L-Mount

      Barcode No.
      00-85126-87869-6
