Camera Type
Mirrorless
-
Corresponding Mount
L-Mount, Sony E-mount
-
Sensor Format
Full-frame [DG]
-
Lens Construction
11 groups, 14 elements
-
Angle of View
46.8°
-
Number of Diaphragm Blades
11 (rounded diaphragm)
-
Minimum Aperture
F16
-
Minimum Focusing Distance
45cm / 17.8in.
-
Maximum Magnification Ratio
1:6.8
-
Filter Size
φ72mm
-
Dimensions (Diameter × Length)
L-Mount：φ78.2mm × 109.5mm / φ3.1in. x 4.3in.
Sony E-mount：φ78.2mm × 111.5mm / φ3.1in. × 4.4in.
-
Weight
L-Mount：670g / 23.6oz.
Sony E-mount：660g / 23.3oz.
-
Edition Number
A023
The three-digit code on the surface of the lens is to indicate the year the lens was first released.
(Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.) -
Supplied Accessories
・Case
・LENS HOOD LH782-02
・FRONT CAP LCF-72mm III
・REAR CAP LCR II -
Mount / Product Barcode
L-Mount：00-85126-31569-6
Sony E-mount：00-85126-31565-8
-
Camera Compatibility
LINK
-
* This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
* L-Mount is a registered trademark of Leica Camera AG.
-
The "Art F1.4" standard with uncompromising optical performance
Based on the latest optical design technology, the lens incorporates 14 elements in 11 groups, with 3 aspherical lenses and 1 SLD glass element. The lens effectively suppresses various aberrations such as astigmatism and field curvature, which cannot be corrected in-camera. Despite the large aperture of F1.4, the image formation performance on the periphery of the image has been pursued and sagittal coma flare has been minimized to the extent that the lens can withstand even challenging star and night scenes, with demanding severe point light source imaging, from wide open. In addition to clear image quality with no color blur throughout the entire image circle, the large, natural bokeh beauty of F1.4 can be fully utilized in photography.
-
High-speed AF for nimble and comfortable shooting

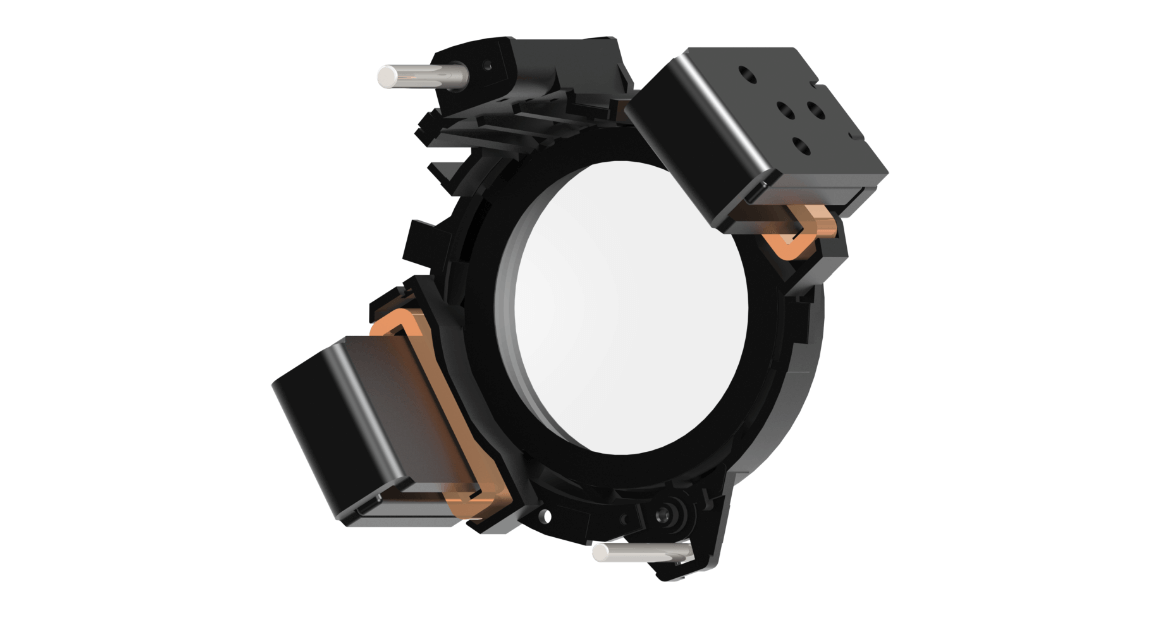

The Sigma 50mm F1.4 DG DN | Art is the first in the Art line exclusively designed for full-frame mirrorless cameras to adopt the “HLA” linear motor (High-response Linear Actuator) . In addition, by using a single double-sided aspheric lens as the focus element, the lens offers fast and quiet focusing and high tracking performance despite its large aperture. With a maximum aperture of 1.4 and a high-performance AF system, the lens can be used in a variety of situations, including shooting in dark places, shooting moving subjects, snapshots, and even video.
-

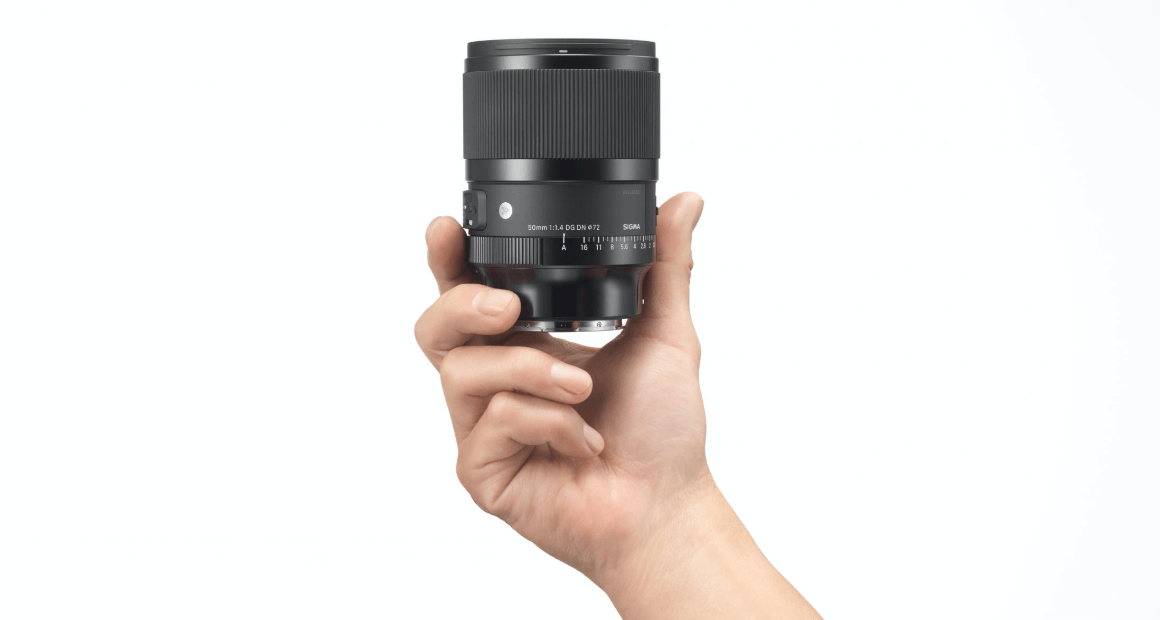

High performance, yet slim and compact
The development of the Sigma 50mm F1.4 DG DN | Art was focused on slimming down the lens barrel by reducing the weight of a focus lens and optimizing the lens unit layout, to pursue the “optimum size” for mirrorless systems without compromising the “maximum emphasis on optical performance” concept of Sigma’s Art line. This lens has succeeded in achieving both top-class performance, and the size required for a light and mobile photographic tool.
-
Full range of functions and high build quality

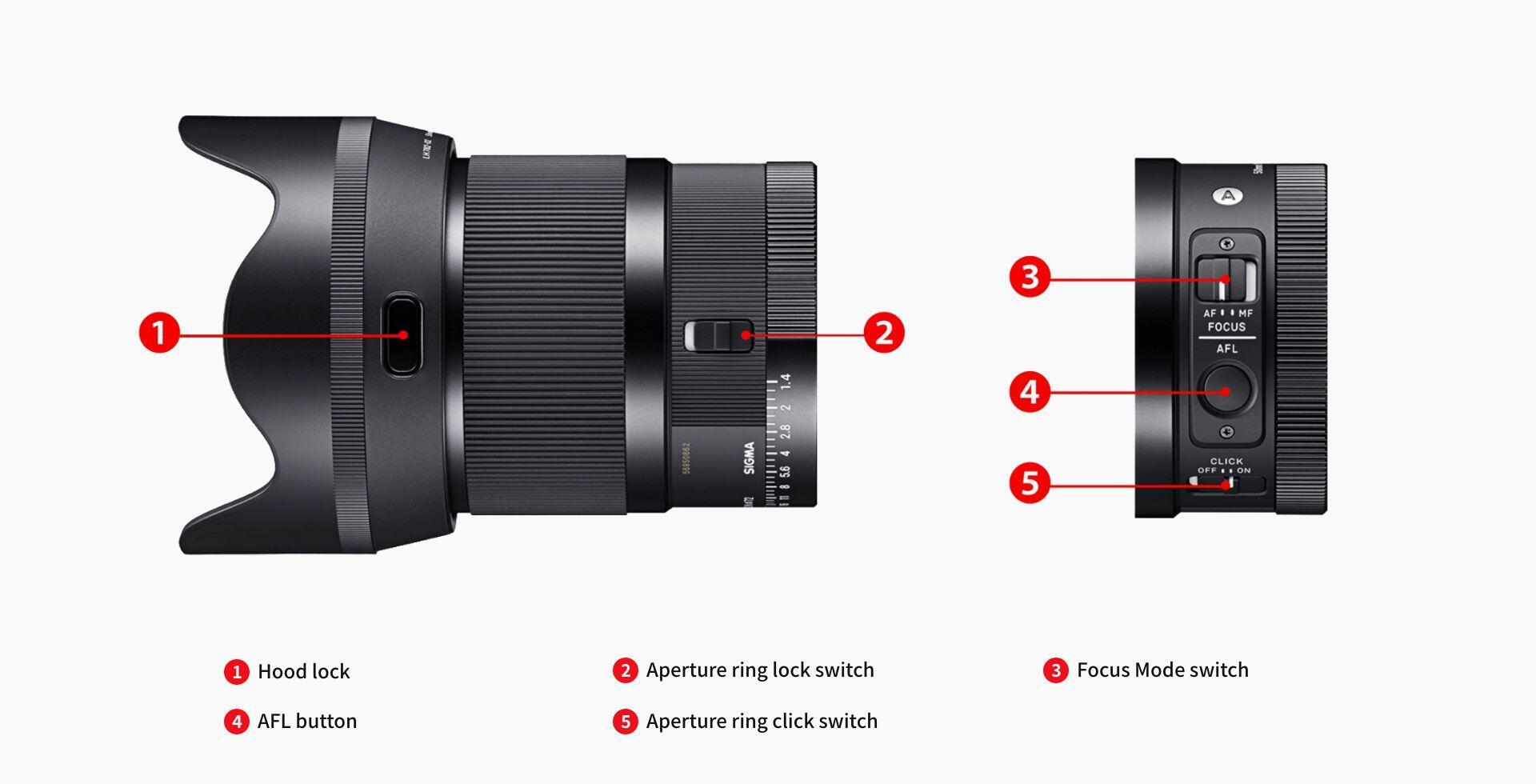

The lens barrel is equipped with a Focus Mode switch, an Aperture ring click switch to turn the click on and off, an Aperture ring lock switch to prevent unintended operation, and an AFL button to assign any function from the camera. These features are designed for intuitive operation during shooting.
-

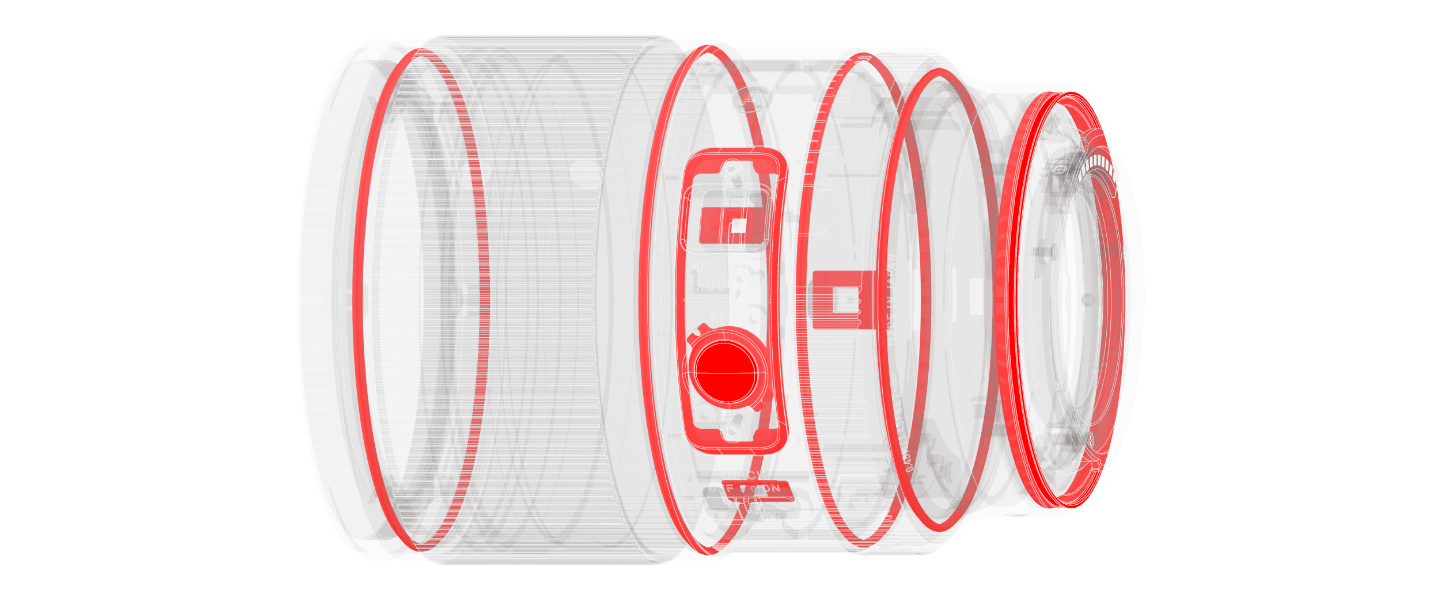

Dust and Splash Resistant Structure for security in various shooting situations
The lens is equipped with a dust and splash resistant structure, and the front element of the lens is applied with a water and oil repellent coating, making it suitable for a wide range of shooting environments. The lens is compact, lightweight, and easy to use, while at the same time ensuring high build quality assured by the Aizu factory’s reliable processing technology of “Made in Japan”.
-

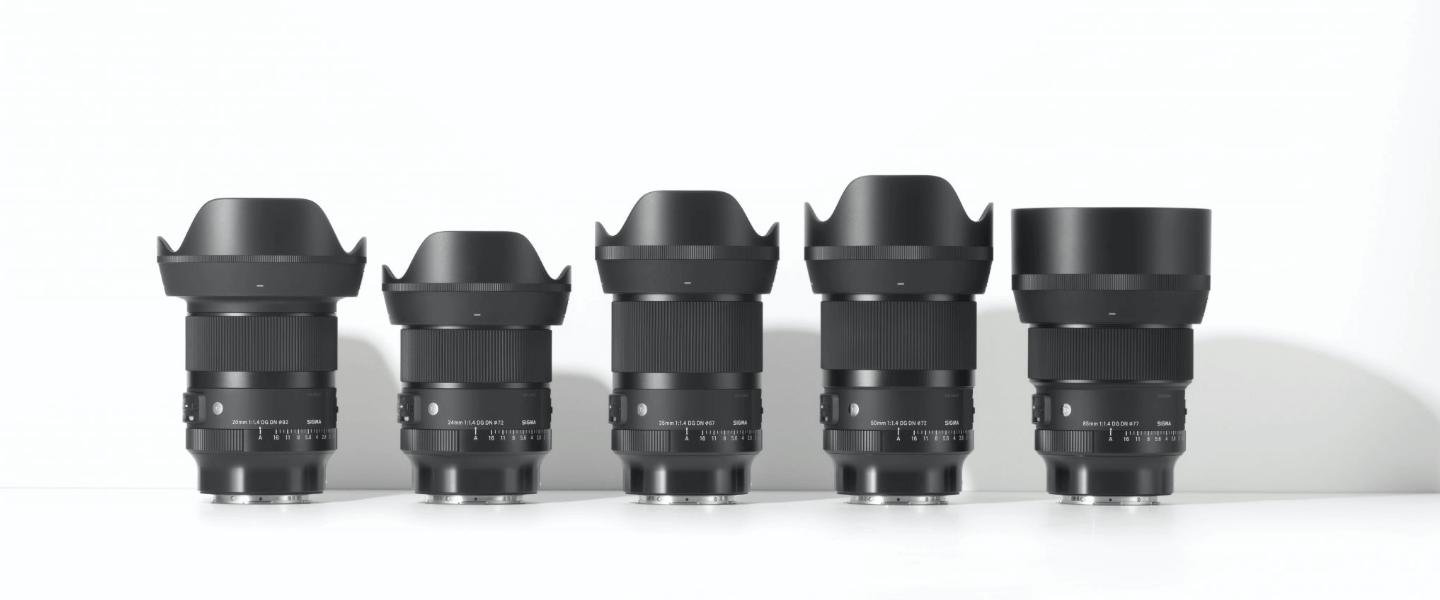

DG DN "Art F1.4" series lineup includes 5 lenses from 20mm to 85mm
20mm F1.4 DG DN | Art, 24mm F1.4 DG DN | Art, 35mm F1.4 DG DN | Art, 50mm F1.4 DG DN | Art, 85mm F1.4 DG DN | Art

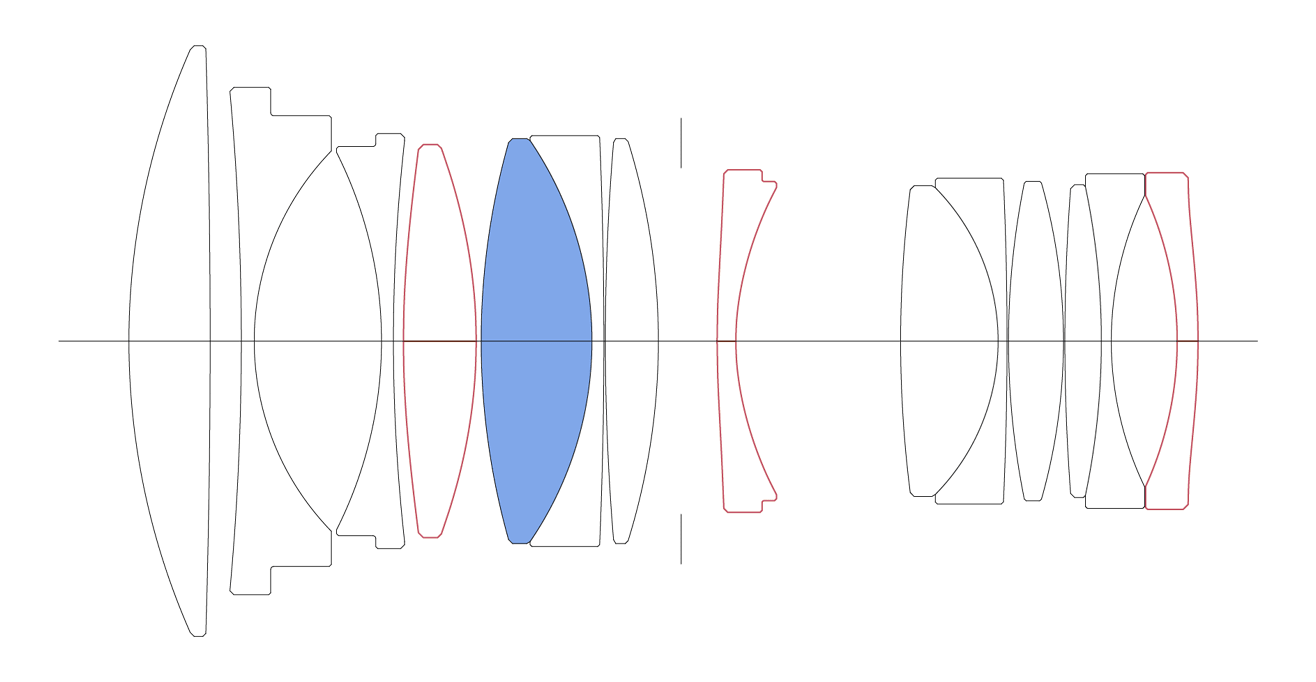

Lens construction
SLD glass
Aspherical lens
MTF Chart
The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens’ performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.
*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.
-
Spatial frequency
S:Sagittal Line
M:Meridional Line
-
10lp/mm
-
30lp/mm
Diffraction MTF
Geometrical MTF
-
Lens construction: 14 elements in 11 groups (1 SLD and 3 aspherical lenses)
-
Compatible with high-speed autofocus
-
Support for DMF, AF + MF
-
Compatible with AF assist (Sony E-mount only)
-
Support for switching between linear and non-linear focus ring settings (L-Mount only)
-
Petal type LENS HOOD LH782-02
-
Compatible with Sigma USB DOCK UD-11 (sold separately; L-Mount only)
-
Designed to minimize flare and ghosting
-
Every single lens undergoes Sigma’s proprietary MTF measuring system
-
11-blade rounded diaphragm
-
High-precision, durable brass bayonet mount
| Camera | SONY α1 |
|---|---|
| Shutter Speed | 1/3,200s |
| Lens F Number | F2.5 |
| ISO | 100 |
| Focal Length | 50mm |
| Photographer | Hagiwara Kazuyuki |
| Camera | SIGMA fp L |
|---|---|
| Shutter Speed | 1/20s |
| Lens F Number | F1.4 |
| ISO | 100 |
| Focal Length | 50mm |
| Photographer | Yamaguchi Noriko |
| Camera | SONY α7 III |
|---|---|
| Shutter Speed | 1/500s |
| Lens F Number | F1.8 |
| ISO | 400 |
| Focal Length | 50mm |
| Photographer | Elliot Aubin |
| Camera | SONY α7R IV |
|---|---|
| Shutter Speed | 1/80s |
| Lens F Number | F1.4 |
| ISO | 100 |
| Focal Length | 50mm |
| Photographer | Maike Wittreck |
| Camera | SONY α7R IV |
|---|---|
| Shutter Speed | 1/200s |
| Lens F Number | F1.4 |
| ISO | 100 |
| Focal Length | 50mm |
| Photographer | Maike Wittreck |
| Camera | SIGMA fp L |
|---|---|
| Shutter Speed | 1/100s |
| Lens F Number | F1.4 |
| ISO | 320 |
| Focal Length | 50mm |
| Photographer | Stewart Weir |
| Camera | SONY α1 |
|---|---|
| Shutter Speed | 1/1,600s |
| Lens F Number | F1.4 |
| ISO | 100 |
| Focal Length | 50mm |
| Photographer | Hagiwara Kazuyuki |
| Camera | SONY α1 |
|---|---|
| Shutter Speed | 1/400s |
| Lens F Number | F1.4 |
| ISO | 100 |
| Focal Length | 50mm |
| Photographer | Hagiwara Kazuyuki |
| Camera | SIGMA fp L |
|---|---|
| Shutter Speed | 1/1000s |
| Lens F Number | F1.4 |
| ISO | 100 |
| Focal Length | 50mm |
| Photographer | Yamaguchi Noriko |
| Camera | SIGMA fp L |
|---|---|
| Shutter Speed | 1/1000s |
| Lens F Number | F1.4 |
| ISO | 100 |
| Focal Length | 50mm |
| Photographer | Yamaguchi Noriko |
| Camera | SONY α7R IV |
|---|---|
| Shutter Speed | 1/200s |
| Lens F Number | F2.5 |
| ISO | 800 |
| Focal Length | 50mm |
| Photographer | Meg Loeks |
“Art F1.4 50mm” for mirrorless.
The new standard for artistic expression, presented by Sigma.
The highest level of expressive performance, high-speed AF,
and compactness―all combined in perfection.
The new standard for “Art F1.4” large-aperture standard prime.
Designed with a focus on sophisticated optical performance and tremendous expressive power, Sigma’s Art line delivers high-level artistic quality. The newest addition to the F1.4 series, which has become synonymous with the Art line, is the Sigma 50mm F1.4 DG DN | Art, a large-aperture standard lens designed exclusively for full-frame mirrorless cameras. While retaining the concept of the original Sigma 50mm F1.4 DG HSM | Art that defined the reputation of the Art F1.4 series, Sigma has reexamined from the very beginning what is truly important in a standard lens used in a wide range of shooting situations. By incorporating all the latest technologies, this lens has achieved a high degree of compatibility between the optimum size and high-speed AF required for today’s mirrorless systems, while maintaining the highest-class optical performance. In addition to the brightness of the large F1.4 aperture and the large, beautiful bokeh effect, various aberrations have been optimally balanced in pursuit of uniform and balanced image quality throughout the entire image range, from the center to the edges of the frame. The result is the new “Art F1.4 50mm,” a lens that is truly all-around capable in terms of expressive performance, maneuverability, and usability, and is designed to help photographers create their best work. Introducing the 50mm F1.4 DG DN | Art, Sigma’s ideal “standard” lens.
