Contemporary
24mm F2 DG DN

• Camera Type

  Mirrorless

• Corresponding Mount

  L-Mount, Sony E-mount

• Sensor Format

  Full-frame [DG]

• Lens Construction

  13 elements in 11 groups

• Angle of View

  84.1°

• Number of Diaphragm Blades

  9(Rounded diaphragm)

• Minimum Aperture

  F22

• Minimum Focusing Distance

  24.5cm / 9.7in.

• Maximum Magnification Ratio

  1:6.7

• Filter Size

  φ62mm

• Dimensions (Diameter × Length)

  L-Mount：φ70mm × 72mm / φ2.8in. × 2.8in.

  Sony E-mount：φ70mm × 74mm / φ2.8in. × 2.9in.

  *The length of a lens is measured from the filter surface to its mount.

• Weight

  L-Mount：365g / 12.9oz.

  Sony E-mount：360g / 12.7oz.

• Edition Number

  C021

  The three-digit code on the surface of the lens is to indicate the year the lens was first released.
  (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

• Supplied Accessories

  ・Magnetic metal lens cap LCF62-01M
  ・LENS HOOD LH656-02
  ・FRONT CAP LCF-62mm III
  ・REAR CAP LCR II

• Mount / Product Barcode

  L-Mount：00-85126-40369-0

  Sony E-mount：00-85126-40365-2

• Camera Compatibility

  LINK

• * L-Mount is a registered trademark of Leica Camera AG.
  * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.

• I series Premium Compact Primes for mirrorless users

  The Sigma I series features full-frame-compatible lenses that offer mirrorless users a new and better alternative, both in the experience of shooting with the lens and in the impressive results it is able to achieve.

  One of the key advantages of mirrorless cameras is their smaller form-factor, and this new 24mm optic is designed to be perfectly matched to these more compact systems without sacrificing performance. This combination of superb optical quality with exceptional portability, not previously possible with DSLR systems, will bring new opportunities to this and future generations of photographers.

  Simultaneously, Sigma is aware that, in this day and age when we have such huge diversity when it comes to what we use to photograph, as represented by smartphones, people look for something more than a mere act of “taking pictures” when they choose to own a camera and lenses.

  Sigma’s excellence in development and processing technologies has been built up since it was founded in 1961, and has become further sophisticated with the introduction of the Sigma Global Vision in 2012. With this as a base Sigma has given careful thought to how photographers use and enjoy their lenses, including optical design, advanced functionality, build quality and the experience of picking up and using the lens, and with all of this carefully considered the I series was born.

• 20mm, 24mm, 35mm, 50mm and 65mm - five lenses with F2 brightness in the lineup



  Contemporary
  20mm F2 DG DN



  Contemporary
  24mm F2 DG DN



  Contemporary
  35mm F2 DG DN



  Contemporary
  50mm F2 DG DN



  Contemporary
  65mm F2 DG DN

• New standards of optical performance for the Contemporary line

  The Sigma 24mm F2 DG DN | Contemporary, like the Sigma 35mm F2 DG DN | Contemporary and the Sigma 65mm F2 DG DN | Contemporary , combines the highest level of optical performance even at its maximum aperture of F2 and a well-balanced body.

  The lens uses two SLD glass elements and one FLD glass element to correct axial chromatic aberration, which is a particular concern with bright lenses. It also incorporates two high-precision glass-molded aspherical elements, made possible by the processing technology of Sigma’s sole production facility in Aizu. This has enabled the total number of lens elements to be kept down and the size and weight of the lens to be reduced, while providing excellent correction of various aberrations.

  In anticipation of wide-angle lens applications, Sigma’s optical designers have ensured the lens resolution is extremely high, and is uniform from the center to the periphery of the image. Sagittal coma flare is also well suppressed, giving the lens a high degree of rendering power that makes it ideal for night sky photography.

  The AF drive system incorporates a quiet, high-speed stepping motor. This allows photographers to capture every detail of the spacious 24mm scene with light AF.



• Use of multiple high-precision aspherical glass molded lenses

  The surface of molds for glass molding, which is a process that forms optical components by pressing glass materials at high temperatures, requires ultra-high precision. Sigma uses high-precision molds whose surfaces are controlled with an accuracy of ±5 nanometers (0.000005 mm) or smaller. High precision aspherical glass molded lenses archives both good aberration correction and compact lens size.

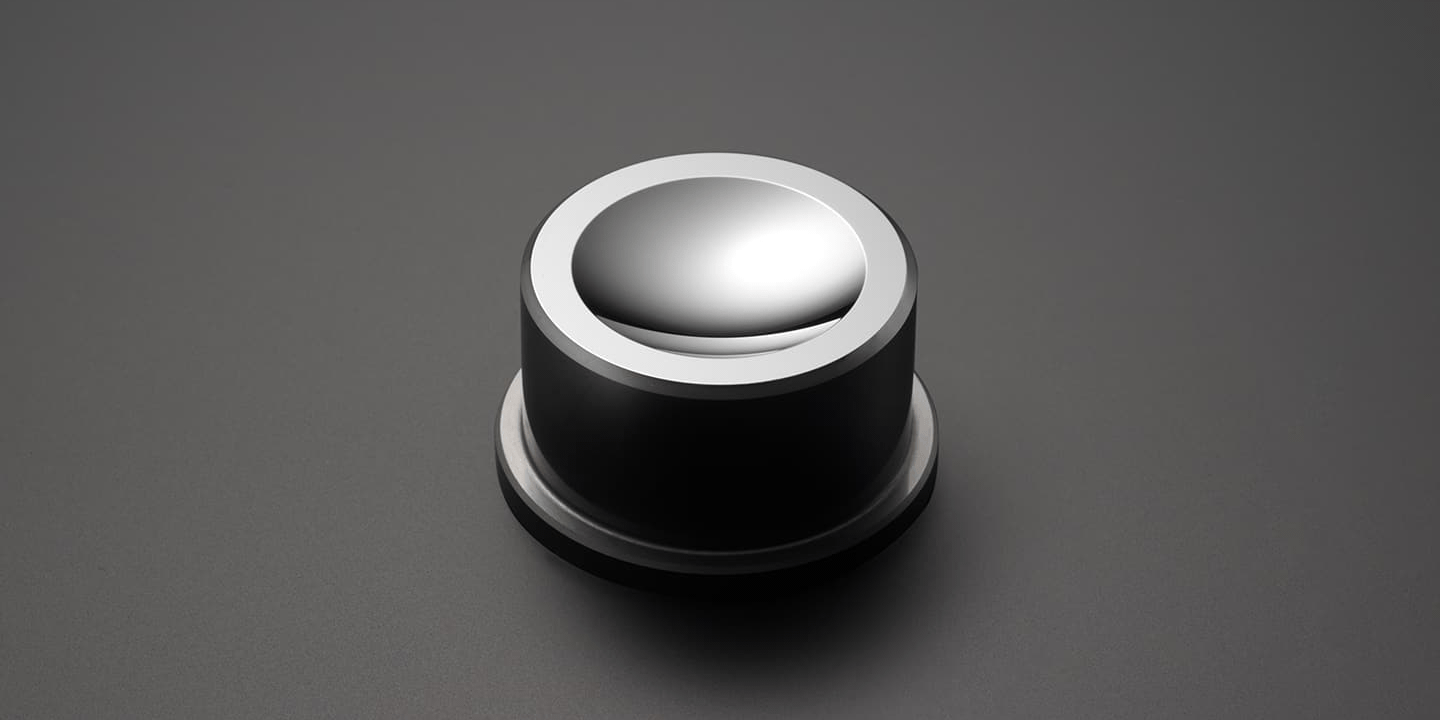

  Mold for aspherical glass molded lenses

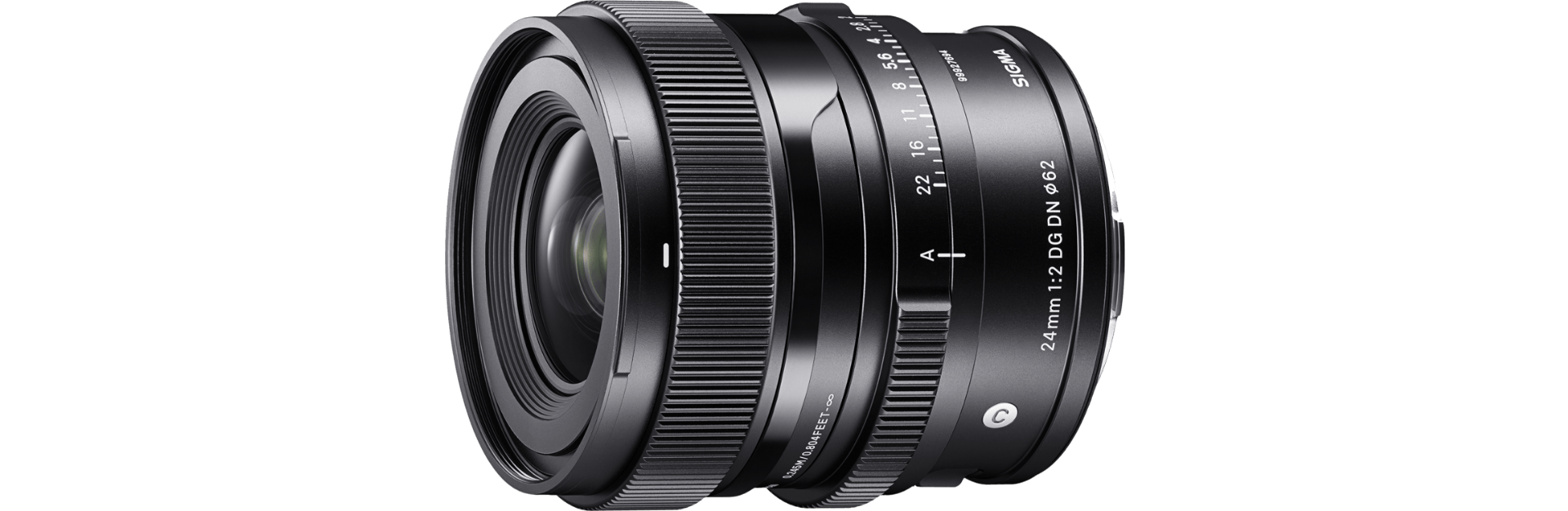

• Exceptional I series build quality with a compact form-factor

  All I series lenses have an all-metal construction. The precision-cut aluminum parts not only give the barrel a sleek, stylish finish, but provide superb durability that improves the quality of the entire product. Metal materials are also used in internal structures that slide with the operation ring for added robustness. These high-precision components crafted with Sigma’s cutting-edge metalworking technology are also used in Sigma’s CINE LENS line-up for professional cinematographers and provide a tactile, ergonomic feel that make the lens a pleasure to use.

  The cover ring between the focus ring and the aperture ring has hairline processing that is also used for the rear cylinder of the Art line. This covering functions as a finger hold when attaching or detaching the lens.

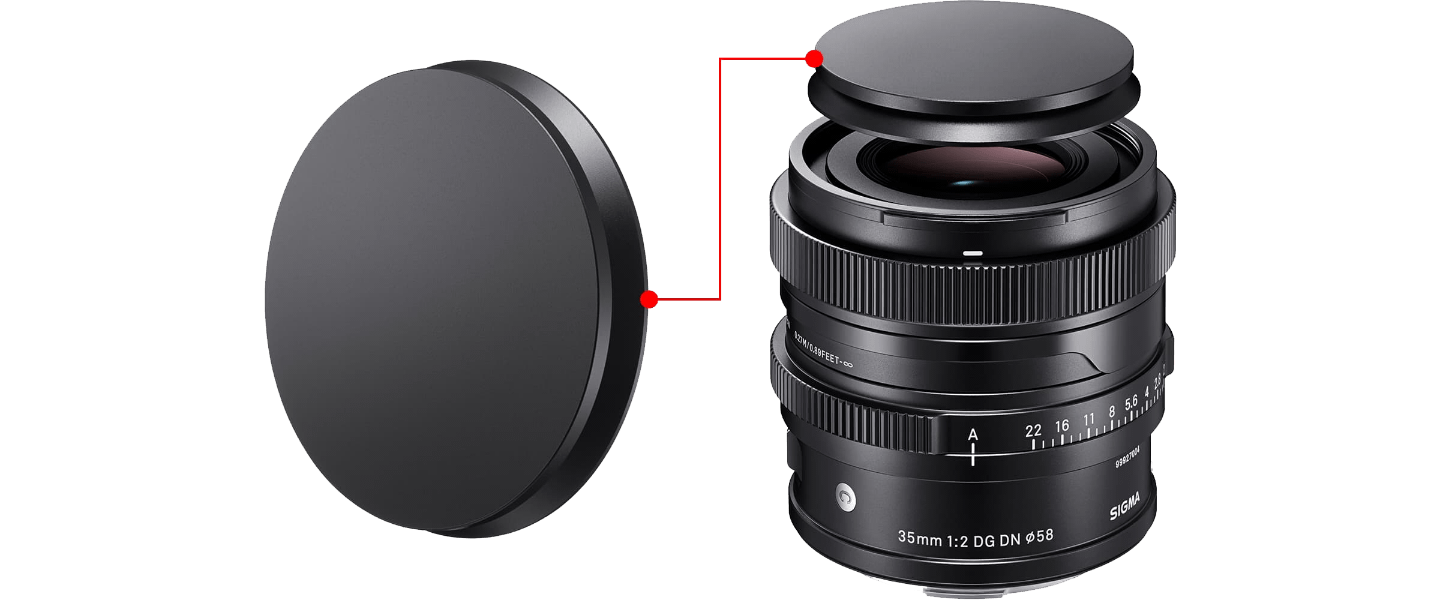

• Magnetic metal lens cap

  The I series lenses* are accompanied by a dedicated magnetic metal lens cap, in addition to a normal plastic cap. This dedicated metal cap clips to the front surface of the lens magnetically. It is no exaggeration to say that this meticulously crafted cap represents the finishing touch for the I series.

  ＊Except 45mm F2.8 DG DN | Contemporary



  Sigma I series | Magnetic Metal lens Cap Promotion Video

  *This image is 35mm.
  *Cannot be used when a filter is attached.

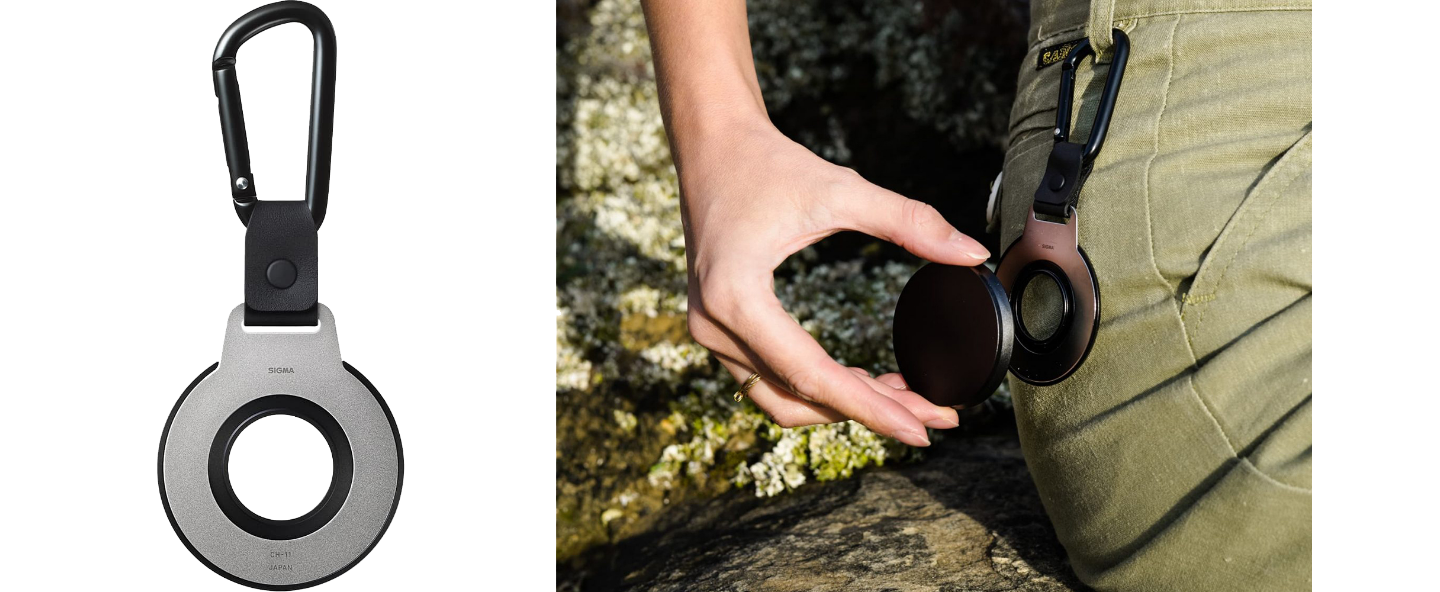

• Magnetic metal lens cap holder LENS CAP HOLDER CH-11 (sold separately)

  When a cap is removed from the lens it should have a proper place where it can be kept. Using this as a starting point, a cap holder using the magnetic force of the dedicated cap was created.
  With the cap attached to the ring plate, and the plate clipped to a bag or belt, the cap is always within easy reach and is less likely to get lost. Plus, its elegant design is a stylish addition to a photographer’s equipment.



Lens construction

SLD glass

FLD glass

Aspherical lens

• Spatial frequency

  S:Sagittal Line

  M:Meridional Line

• 10lp/mm

• 30lp/mm

Diffraction MTF

Geometrical MTF

• Lens construction: 13 elements in 11 groups, with 1 FLD, 2 SLD and 2 aspherical lens elements

• Compatible with high-speed autofocus

• Support DMF and AF+MF

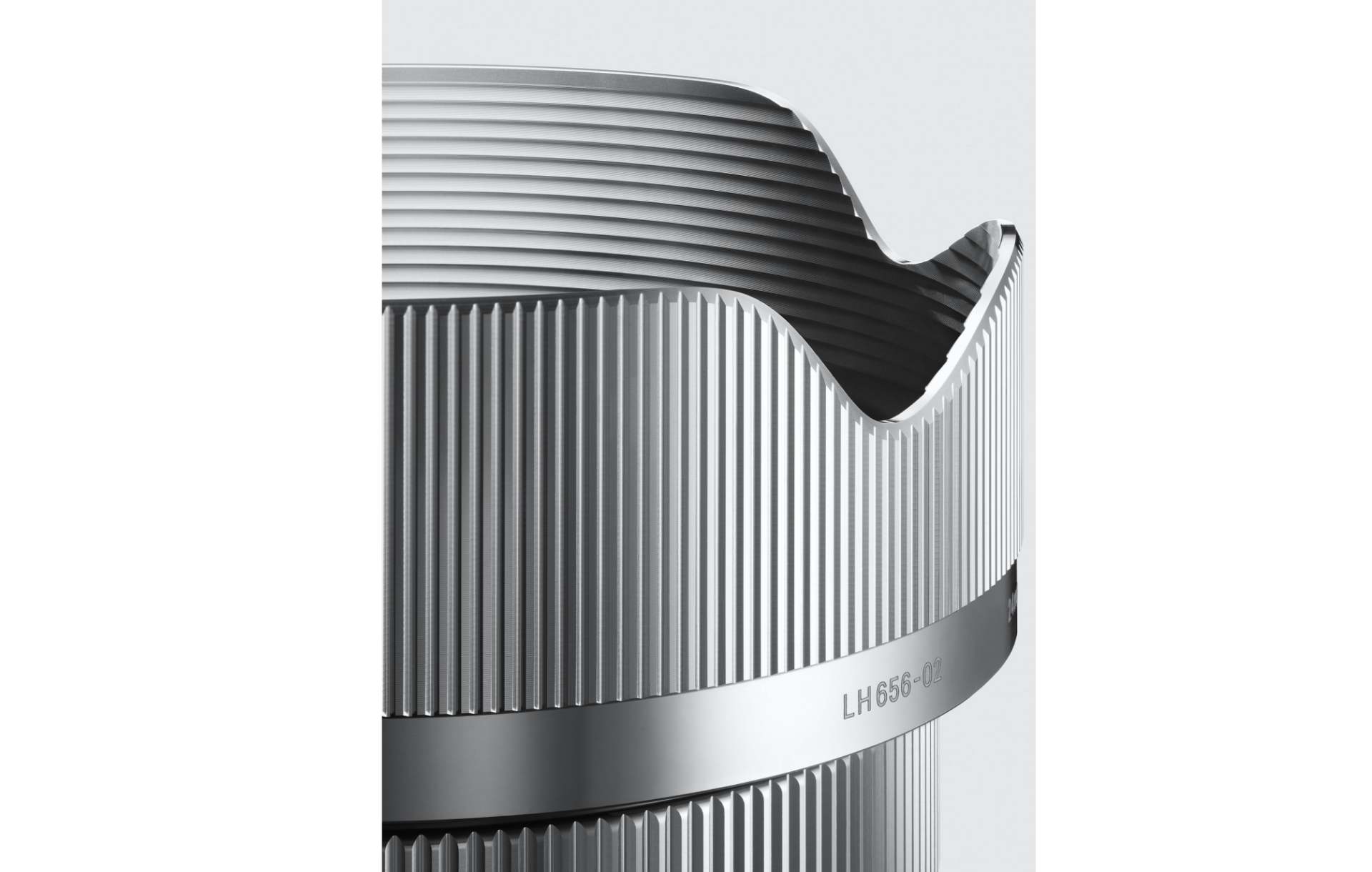

• Petal-type lens hood (LH656-02)

• Magnetic metal lens cap (LCF62-01M)

• Compatible with Sigma USB DOCK UD-11 (sold separately / for L-Mount only)

• Designed to minimize flare and ghosting

• Every single lens undergoes Sigma’s proprietary MTF measuring system

• 9-blade rounded diaphragm

• High-precision, durable brass bayonet mount
