    The ultimate portable, wide-angle mirrorless prime

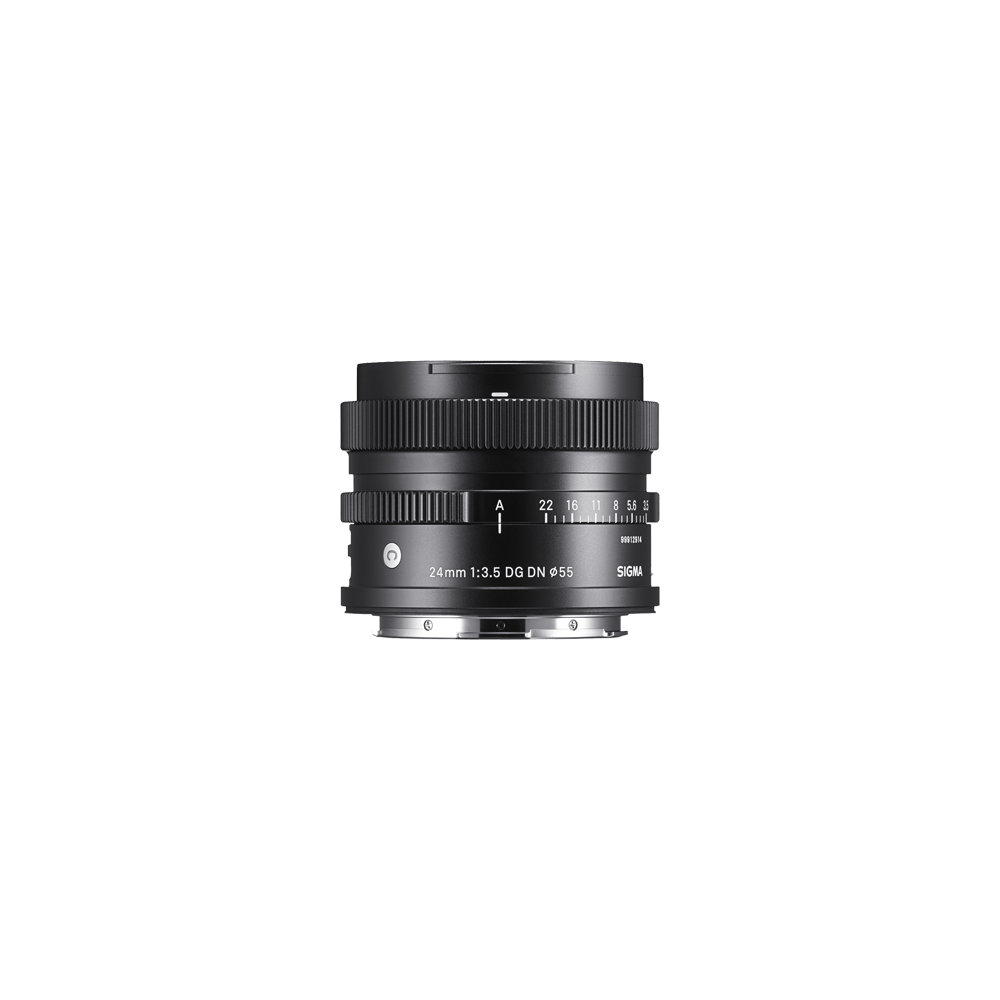

    The I series SIGMA 24mm F3.5 DG DN | Contemporary
    brings exceptional detail and beautiful bokeh.
    Free your imagination with this incredible
    wide-angle prime for mirrorless cameras.

    The SIGMA I series introduces compact, beautifully designed, high-performance optics for mirrorless camera systems. In its first collection, SIGMA introduces a 24mm wide-angle prime lens to the Contemporary lens line-up that offers excellent portability and versatility.
    The all-new 24mm F3.5 DGDN | Contemporary offers a very compact design similar to that of the 45mm F2.8 DG DN | Contemporary. Despite its small size, there is no compromise on performance –it is capable of capturing the finest details as required when shooting on high resolution full-frame cameras.
    With a very short minimum focus distance of around 10cm and a maximum reproduction ratio of 1:2, it enables photographers to shoot more freely, without worrying about the distance between the lens and the subject.
    The robust and stylish I series lens body finish brings a more satisfying shooting experience. The 24mm F3.5 DG DN | Contemporary is a versatile prime that will become an extension of your creative vision.

    Impression

    SIGMA fp, ISO100, F13, 1/200s ©Go Ando

    SIGMA fp, ISO100, F6.3, 1/400s ©Go Ando

    SIGMA fp, ISO100, F4, 1/125s ©Mina Daimon

    SIGMA fp, ISO100, F4, 1/2500s ©Mina Daimon

    SIGMA fp, ISO100, F5, 1/800s ©Mina Daimon

    Features

    I series|A new photographic experience,
    “Premium Compact Primes” for mirrorless users

    The SIGMA I series features full-frame-compatible lenses that offer mirrorless users a new and better alternative, both in the experience of shooting with the lens and in the impressive results it is able to achieve.
    One of the key advantages of mirrorless cameras is their smaller form-factor, and this new 24mm optic is designed to be perfectly matched to these more compact systems without sacrificing performance. This combination of superb optical quality with exceptional portability, not previously possible with DSLR systems, will bring new opportunities to this and future generations of photographers.
    Simultaneously, SIGMA is aware that, in this day and age when we have such huge diversity when it comes to what we use to photograph, as represented by smartphones, people look for something more than a mere act of “taking pictures” when they choose to own a camera and lenses.
    SIGMA’s excellence in development and processing technologies has been built up since its founding in 1961, and has become further sophisticated with the introduction of the SIGMA Global Vision in 2012. With this as a base, SIGMA has given careful thought how photographers use and enjoy their lenses, including optical design, advanced functionality, build quality and the experience of picking up and using the lens, and with all of this carefully considered, the I series was born.

    Beautiful details and bokeh
    for every scene

    The high resolving power of the 24mm F3.5 DG DN | Contemporary covers the entire image from the center to the edges, which means photographers can rely on edge-to-edge sharpness at all apertures when shooting wide-angle scenes. With a minimum focus distance of around 10cm and a maximum reproduction ratio of 1:2, it enables photographers to explore a subject more freely, from capturing distant landscapes to photographing close-ups of smaller objects.

    In addition to the attractive bokeh, it also gives photographers near-circular out-of-focus highlights, even at the edges of the frame. This helps create a close-up image of an in-focus subject with a blurred background, a technique that is very useful in a variety of settings.
    The lens features the latest optical design optimized for mirrorless systems. This includes high-precision, glass-molded aspherical elements created with advanced processing technology, and SLD glass and high refractive index glass elements. Together they make it possible to combine high optical performance with compactness. In addition, the smooth focus drive system designed around a quiet and fast stepping motor also makes the 24mm F3.5 DG DN | Contemporary a desirable choice for shooting video.

    Use of multiple high-precision aspherical glass molded lenses

    The surface of molds for glass molding, which is a process that forms optical components by pressing glass materials at high temperatures, requires ultra-high precision. SIGMA uses high-precision molds whose surfaces are controlled with an accuracy of ±5 nanometers (0.000005 mm) or smaller. High precision aspherical glass molded lenses archives both good aberration correction and compact lens size.

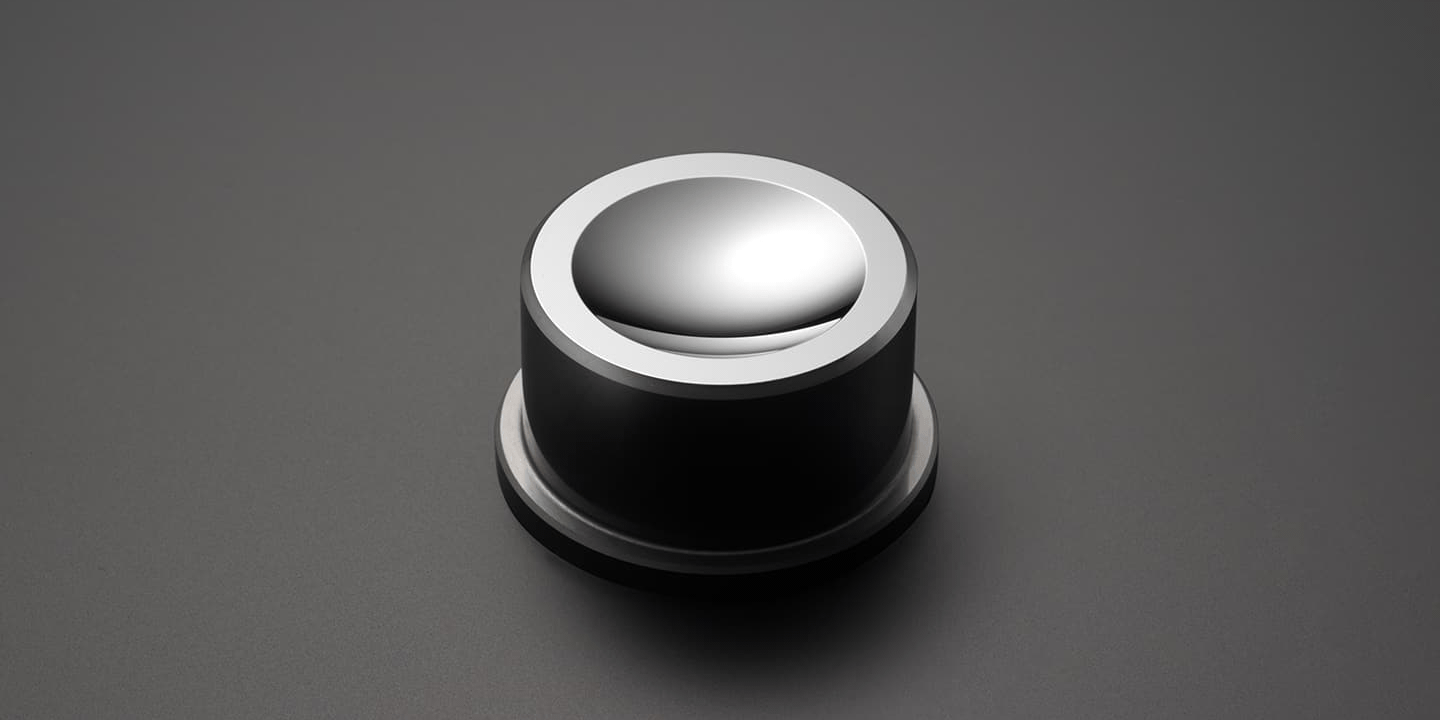

    *Mold for aspherical glass molded lenses

    Exceptional I series build quality
    with a compact form-factor

    All I series lenses have an all-metal construction. The precision-cut aluminum parts not only give the barrel a sleek, stylish finish, but provide superb durability, which improves the quality of the entire product. Metal materials are also used in internal structures that slide with the operation ring for added robustness. These high-precision components crafted with SIGMA’s cutting-edge metalworking technology are also used in SIGMA’s cine lens line-up for professional cinematographers and provides an exquisite feel to touch as well as sound effects, making photographers want to reach for it and play with it over and over again.

    With a pairing with the 45mm F2.8 DG DN | Contemporary in mind, the 24mm F3.5 DG DN | Contemporary is compatible with the same filter size of 55mm, with a matching outermost diameter and similar overall lengths. With a combined weight of only 440g / 15.5oz.*, these two lenses can be used in tandem as part of a high-spec and compact camera system that covers a wide range of shooting situations.

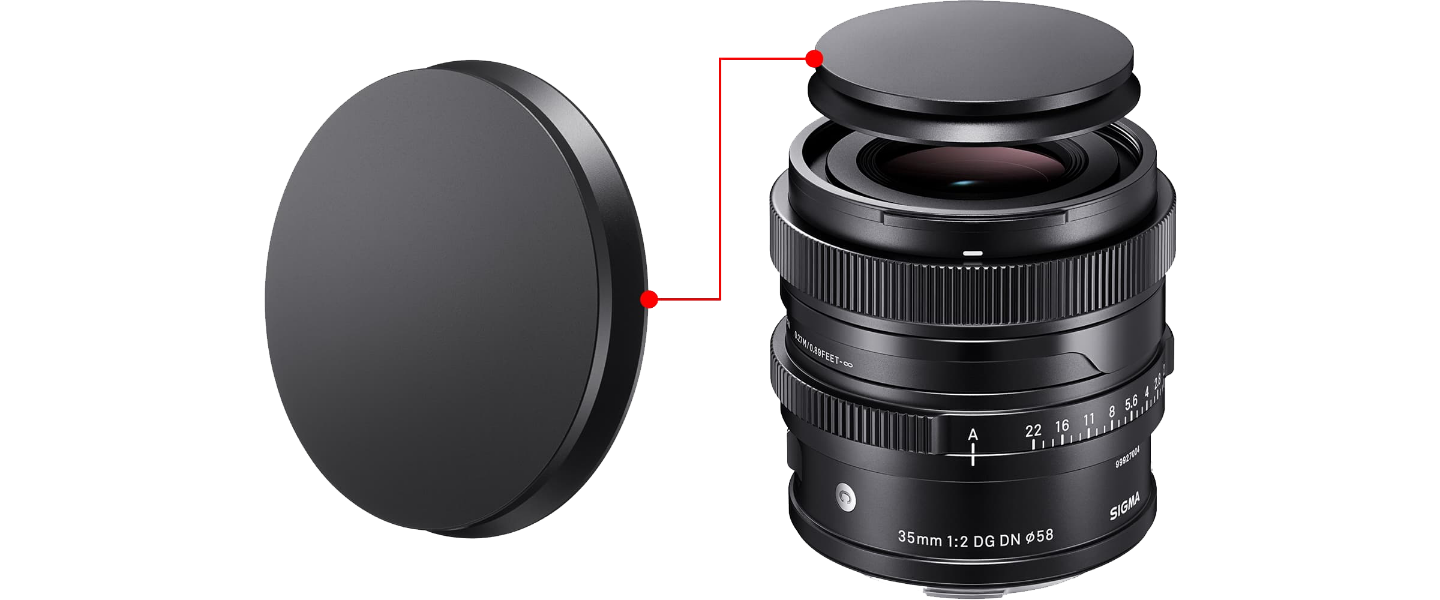

    Magnetic metal lens cap

    The 24mm F3.5 DG DN | Contemporary, 35mm F2 DG DN | Contemporary and 65mm F2 DG DN | Contemporary of the I series are accompanied by a dedicated magnetic metal lens cap, in addition to a normal plastic cap. This dedicated metal cap clips to the front surface of the lens magnetically. It is no exaggeration to say that this meticulously crafted cap represents the finishing touch for the I series.

    *Cannot be used when a filter is attached.

    *This image is 35mm

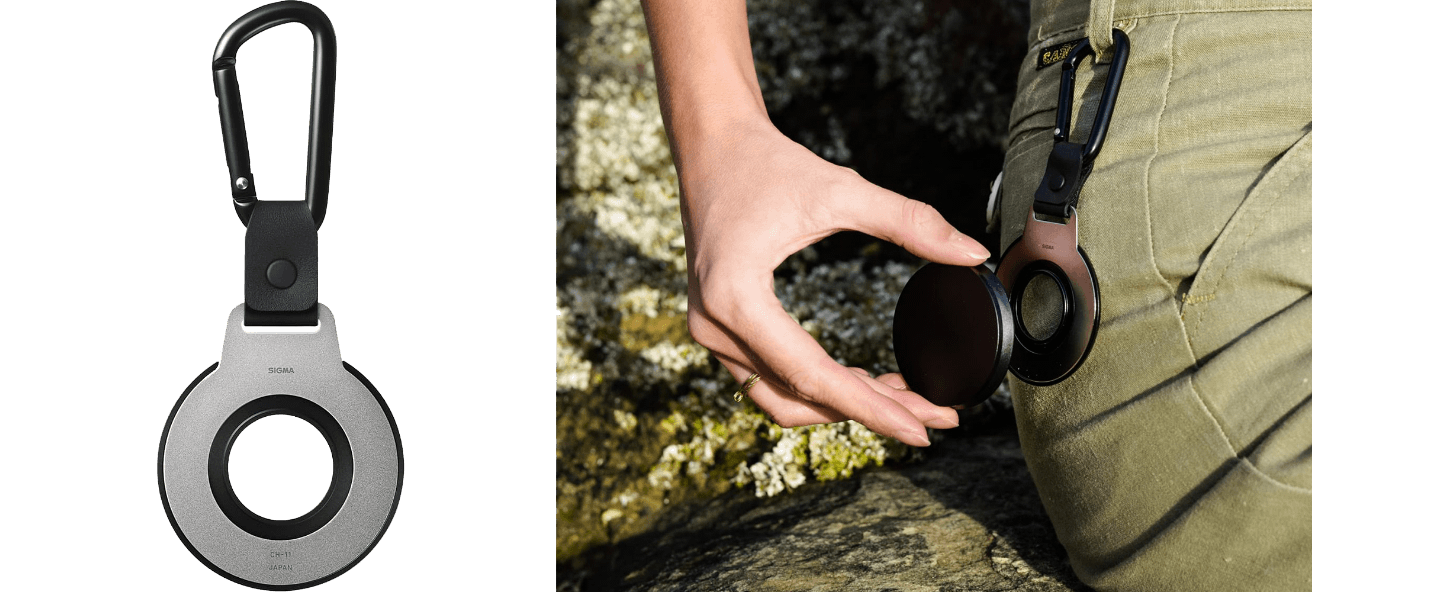

    Magnetic metal lens cap holder (sold separately)

    When a cap is removed from the lens it should have a proper place where it can be kept. Using this as a starting point, a cap holder using the magnetic force of the dedicated cap was created.
    With the cap attached to the ring plate, and the plate clipped to a bag or belt, the cap is always within easy reach and is less likely to get lost. Plus, its elegant design is a stylish addition to a photographer’s equipment.

    Additional features

    Lens construction: 10 elements in 8 groups, with 1 SLD glass and 3 aspherical lenses


    Compatible with high-speed autofocus


    Stepping motor


    Compatible with lens-based optical correction
    *Function available on supported cameras only. Available corrections may vary depending on the camera model.


    Mount with dust-and splash-proof structure


    Super Multi-Layer Coating


    Aperture ring


    Focus Mode Switch


    Petal Type Lens Hood


    Compatible with SIGMA USB DOCK UD-11 (sold separately / for L-Mount only)


    Designed to minimize flare and ghosting


    Supports DMF, AF+MF (for Sony E-mount only)


    Inner focus


    7-blade rounded diaphragm


    High-precision, durable brass bayonet mount


    ESSENTIALS

    You'll find our philosophy and craftsmanship
    in every product

    Our new lineup fully expresses our approach to lenses and photography itself. All of our lenses belong to one of three lines—Contemporary, Art, or Sports—all of which share our development philosophy and advanced manufacturing system. High performance, high quality, and high end in every respect, these lenses give people who love photography lasting value and consistent, exciting results. The secret is our passion for craftsmanship that we put into every production process and every product.

    Specifications

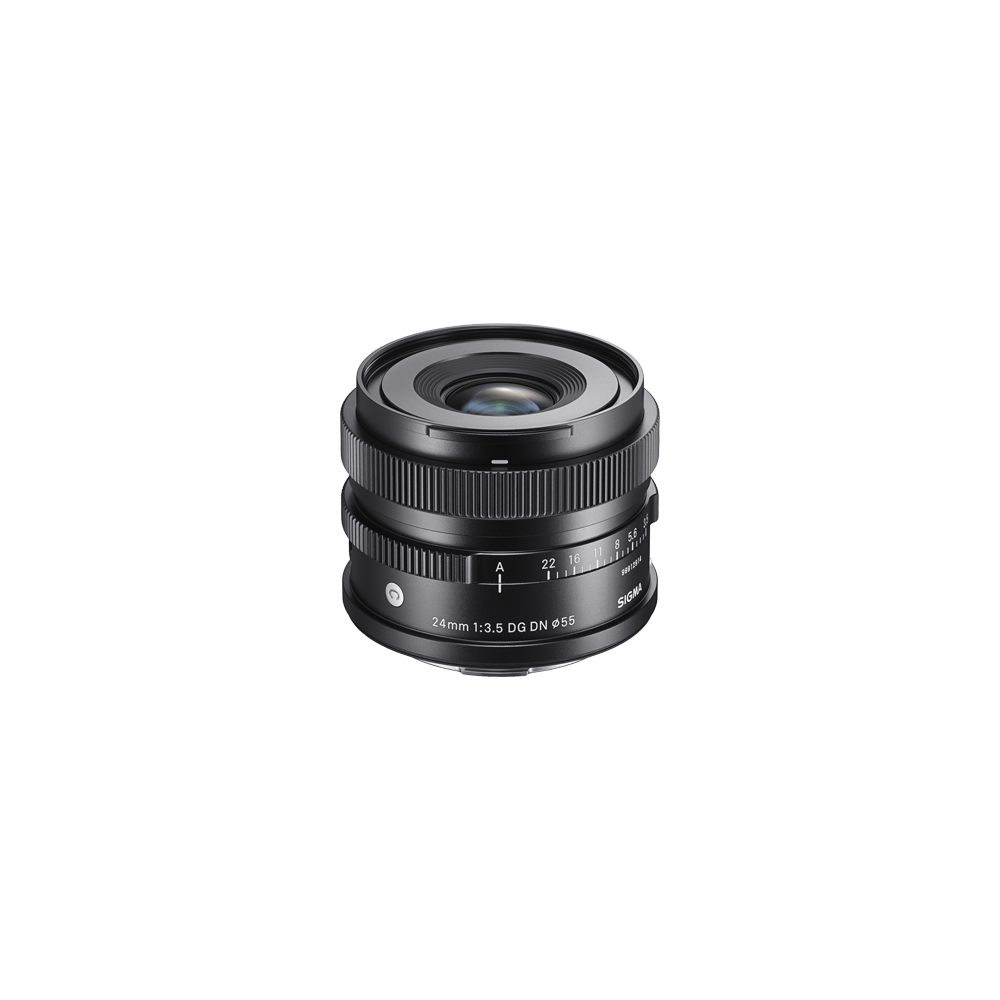

    24mm F3.5 DG DN | Contemporary

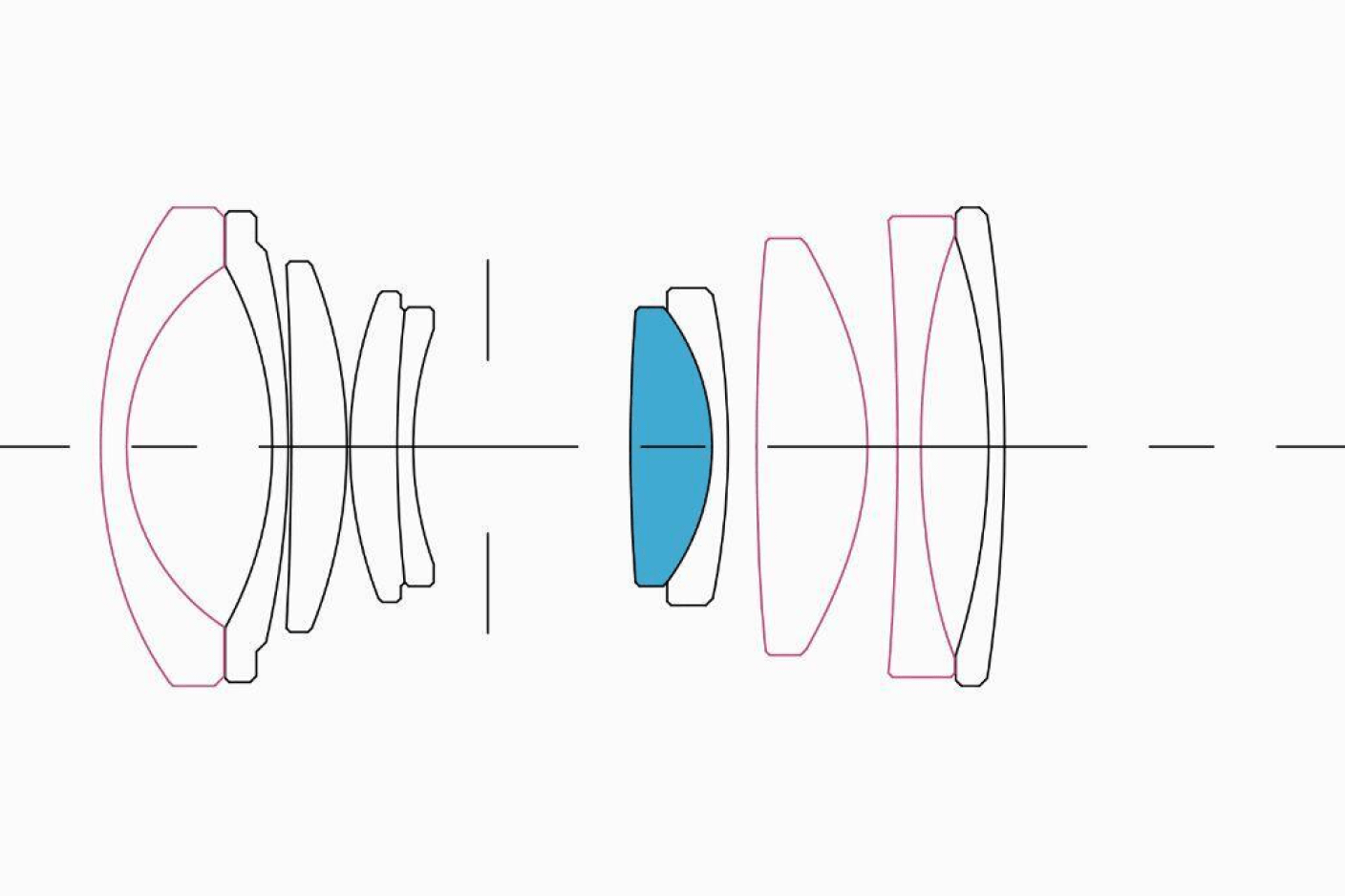

    Lens Construction

    • SLD glass
    • ASPHERICAL LENS

    Lens Construction

    10 elements in 8 groups

    Angle of View

    • 84.1°

    Number of Diaphragm Blades

    7(Rounded diaphragm)

    Minimum Aperture

    F22

    Minimum Focusing Distance

    10.8cm / 4.3in.

    Maximum Magnification Shooting

    1:2

    Filter size

    φ55mm

    Dimensions (Diameter × Length)

    • L-Mount
      φ64mm x 48.8mm / φ2.5in. x 1.9in.
    • Sony E-Mount
      φ64mm x 50.8mm/ φ2.5in. x 2.0in.
    • *The length of a lens is measured from the filter surface to its mount.

    Weight

    • L-Mount
      225g / 7.9oz.
    • Sony E-Mount
      230g / 8.1oz.

    Edition Number

    C021

    Supplied Accessories

    Magnetic metal lens cap FRONT CAP LCF55-01M, Petal type Lens Hood (LH576-01) included.

    Corresponding AF Mounts / Barcode No.

    • L-Mount
      00-85126-40469-7
    • Sony E-Mount
      00-85126-40465-9

    Technologies

    Performance / Data

    MTF Chart

    Diffraction MTF

    Geometrical MTF

    The MTF chart gives the result at the wide-open aperture
    Spatial frequency S:Sagittal Line M:Meridional Line
    10lp/mm
    30lp/mm

    MTF chart guide

    Product Lineup

    24mm F3.5 DG DN | Contemporary

    • L-Mount

      Supplied Accessories

      Magnetic metal lens cap FRONT CAP LCF55-01M, Petal type Lens Hood (LH576-01) included.

      Barcode No.
      00-85126-40469-7
    • Sony E-mount

      Supplied Accessories

      Magnetic metal lens cap FRONT CAP LCF55-01M, Petal type Lens Hood (LH576-01) included.

      Barcode No.
      00-85126-40465-9

    Accessories

    Supplied Accessories

    FRONT CAP LCF55-01M

    Barcode No.
    00-85126-93868-0

    FRONT CAP LCF-55mmⅢ

    Barcode No.
    00-85126-93006-6

    LENS HOOD LH576-01

    Barcode No.
    00-85126-93867-3

    REAR CAP LCR Ⅱ

    * The image is for SIGMA.

    • L-Mount

      Barcode No.
      00-85126-93725-6
    • Sony E-mount

      Barcode No.
      00-85126-92987-9

    Separately Sold Accessories

    LENS CAP HOLDER CH-11

    Barcode No.
    00-85126-93866-6

    USB DOCK UD-11

    • L-Mount

      Barcode No.
      00-85126-87869-6

    PROTECTOR 55mm

    Normal type. Protector is developed to protect the lens surface from dirt and dust as well as scratches. It is an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93104-9

    WR PROTECTOR 55mm

    Water-repellent, Antistatic type. Protector is developed to protect the lens surface from dirt and dust as well as scratches. It is an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93091-2

    WR UV FILTER 55mm

    UV Water-repellent, Antistatic type. UV filter prevents the bluish tone that generates when the weather is fine, by absorbing ultraviolet rays. It is effective in most situations, such as landscape, portrait and general photography on a sunny day. It is also an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93065-3

    WR CIRCULAR PL FILTER 55mm

    PL Water-repellent, Antistatic type. Circular PL filter removes the reflection of water surface and glass windows, and increases the contrast in landscape photography.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93078-3
