• Camera Type

  Mirrorless

• Corresponding Mount

  L-Mount, Sony E-mount

• Sensor Format

  Full-frame [DG]

• Lens Construction

  20 elements in 15 groups (6 FLD, 2 SLD, 3 aspherical elements)

• Angle of View

  34.3° -12.3°

• Number of Diaphragm Blades

  11 (rounded diaphragm)

• Minimum Aperture

  F22

• Minimum Focusing Distance

  65 (W) - 100 (T) cm

• Maximum Magnification Ratio

  1:5.2 (at focal length 200mm)

• Filter Size

  φ77mm

• Dimensions (Diameter × Length)

  L-Mount：φ90.6mm × 205.0mm / φ3.6in. × 8.1in.

  Sony E-mount：φ90.6mm × 207.0mm / φ3.6in. × 8.1in.

• Weight

  L-Mount：1,345g / 47.4oz

  Sony E-mount：1,335g / 47.1oz.

• Edition Number

  S023

  The three-digit code on the surface of the lens is to indicate the year the lens was first released.
  (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

• Supplied Accessories

  ・Case
  ・LENS HOOD LH860-01
  ・TRIPOD SOCKET TS-151
  ・FRONT CAP LCF-77mm III
  ・REAR CAP LCR II

• Mount / Product Barcode

  L-Mount：00-85126-59169-4

  Sony E-mount：00-85126-59165-6

• Camera Compatibility

  LINK

• * The appearance and specifications of the product are subject to change.
  * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
  * L-Mount is a registered trademark of Leica Camera AG.

• High-speed AF and optical stabilizer function that maximize superior optical performance

  The Sigma 70-200mm F2.8 DG DN OS | Sports, developed with professional use in mind, offers not only high optical performance, but also high-speed AF with a dual HLA (High-response Linear Actuator) and an optical stabilizer function with up to 7.5 stops. The Sports line lenses offer high optical performance, and all functions are based on state-of-the-art technology.

• High descriptive performance at all zoom and focus ranges

  The latest optical design, which employs luxurious glass materials including 6 FLD and 2 SLD elements of special low-dispersion glass, delivers high resolving power throughout the entire zoom range. Three aspherical lenses are used, as they are now indispensable for superior optical performance and streamlined lens construction. The exceptionally high precision of the aspherical lenses, which take advantage of the technical capabilities of Sigma’s only production facility, the Aizu factory, further improves optical performance. The incorporated floating focus is advantageous in improving short-range performance, ensuring a stable, high-level image quality throughout the entire range from the minimum focusing distance to infinity.



  FLD glass

  SLD glass

  Aspherical lens

• High-speed AF with a dual HLA

  The Sigma 70-200mm F2.8 DG DN OS | Sports with floating focus has a structure in which the two focus groups move in opposite directions, thereby reducing the amount of focus lens movement by about half. In addition, the use of an HLA (High-response Linear Actuator) motor in each of the two focus groups enables high-speed autofocusing. In addition to being fast and accurate, the lens also employs a control program that is designed to be quiet, so users can shoot movies comfortably without worrying about noise.

• OS2 algorithm in optical stabilizer function

  The latest OS2 optical stabilization algorithm provides an extremely high image stabilization effect of 7.5 stops at the wide end and 5.5 stops at the telephoto end*. The lens is equipped with two OS modes: Mode 1 is suitable for general shooting, and Mode 2 is ideal for panning shots of motorsports and other sports. In Mode 2, Sigma’s Intelligent OS, an algorithm specially designed for panning shots, enables effective image stabilization even when the camera is moved vertically or diagonally, irrespective of the horizontal and vertical orientation. This ensures that the subject’s movement can be captured without losing the panning shot effect.

  ＊Based on CIPA guidelines (Measured at 70mm and 200mm with a 35mm full-frame image sensor)

• Designed to minimize focus breathing

  The lens has been designed to suppress focus breathing. The change in angle of view due to focus shift is minimized, creating a natural-looking focus shift when recording video.

• Designed to minimize flare and ghosting

  Flare and ghosting, which reduce image quality, are addressed under all conditions of incident light based on the most advanced simulation technology. High backlight resistance enables clear and sharp images under any lighting conditions.

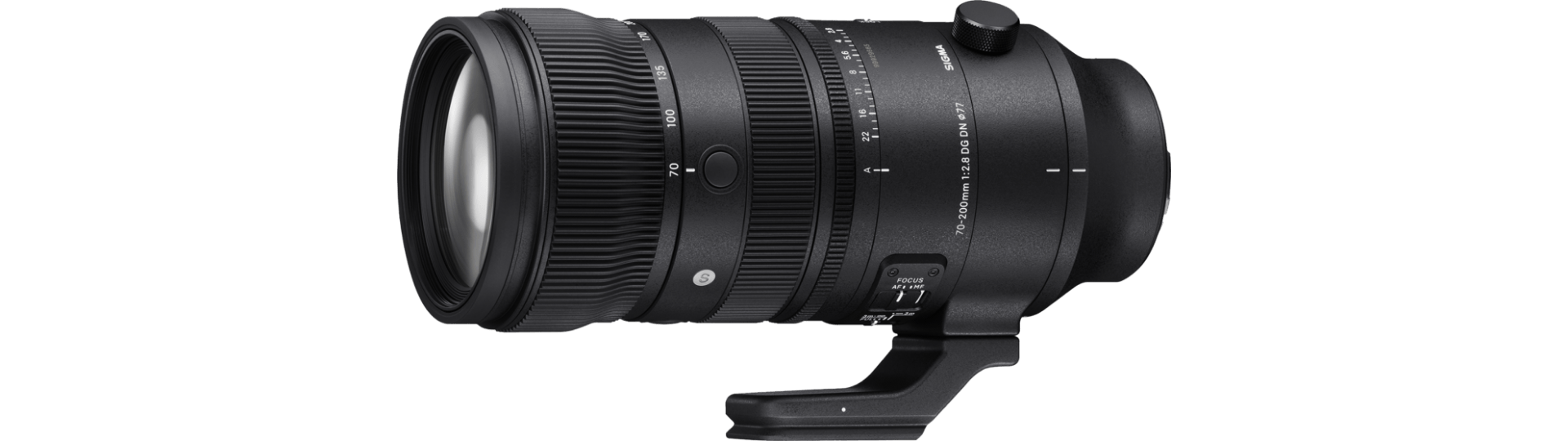

• Top-level build quality condensed into a highly mobile lens

  Sigma is committed to excellent build quality in all its lenses. Among them, the Sigma 70-200mm F2.8 DG DN OS | Sports, which is part of the Sports line, offers not only high weather resistance performance for shooting in harsh environments, but also improved quality and durability through the use of cutting-edge materials in appropriate places based on a streamlined optical and mechanical design. At the same time, a high level of mobility is also realized, resulting in a professional equipment that can be used with confidence over the long term.

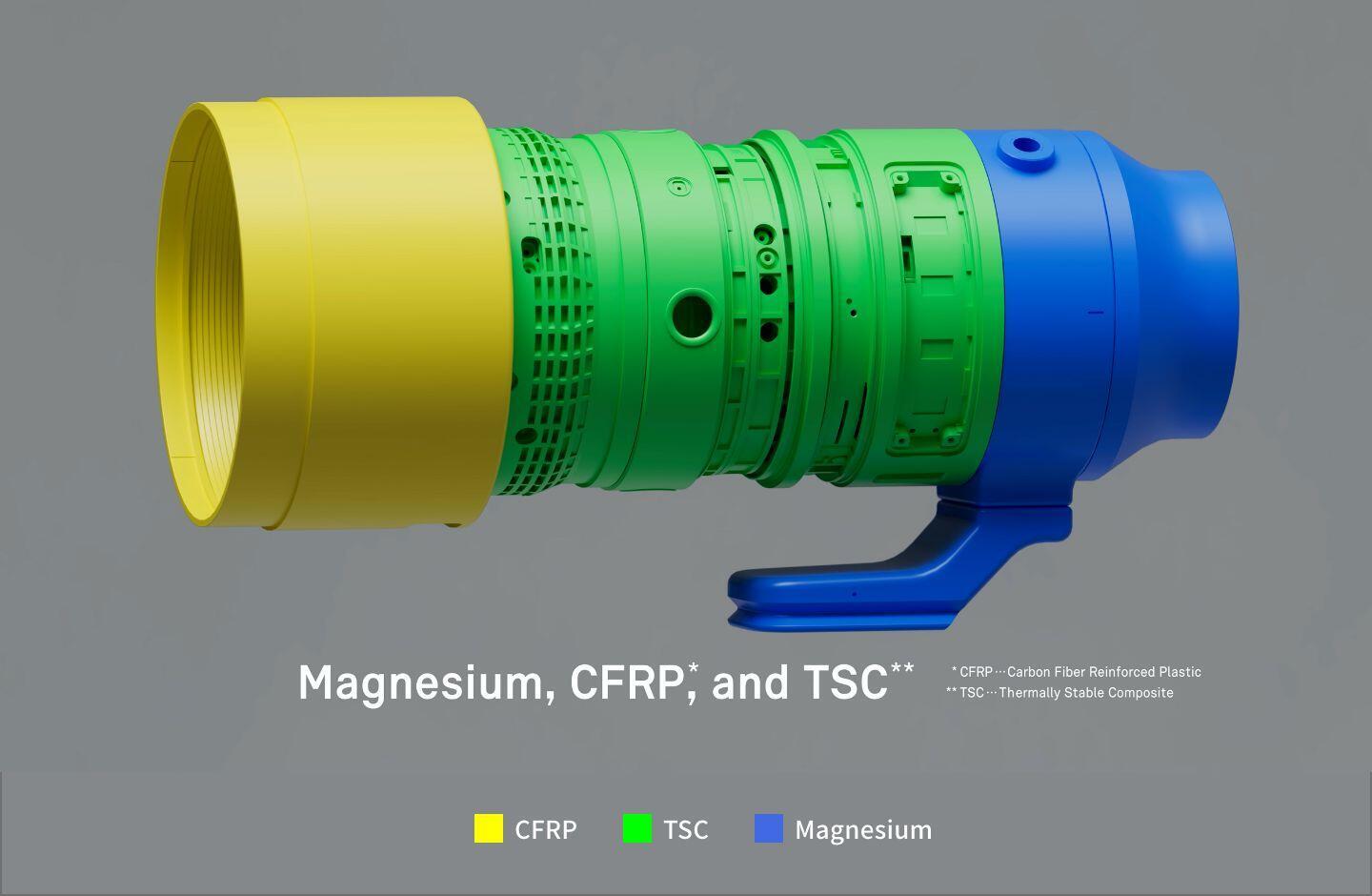

• High quality and durability despite its small size and lightweight

  The latest optical and mechanical design streamlines the lens configuration and internal structure, resulting in a significantly smaller and lighter body than the previous Sigma 70-200mm F2.8 DG OS HSM | Sports model. The body, including the hood, features a “multi-material structure” that optimally arranges materials such as magnesium, CFRP*1, and TSC*2. Even with enhanced mobility, the lens features Sigma’s renowned excellent build quality, including high durability, reliable rigidity, and various control rings and switches that have been carefully designed to feel good.

  *1 CFRP (carbon fiber reinforced plastic), a light but strong material used in the interior and exterior fittings of aircraft, among many other applications.

  *2 TSC (Thermally Stable Composite) is a type of polycarbonate with a thermal expansion rate similar to that of aluminum. It has high affinity to metal parts which contributes to high quality product manufacturing.



• Adoption of inner zoom mechanism

  The zoom mechanism employs an inner zoom. Since the total length of the lens does not change with zoom operation, it is easy to handle when shooting hand-held, highly stable when installed on a gimbal, and resistant to dust and water droplets.

• Weatherability of Sports line specifications

  The mount connection, manual focus ring, zoom ring, switches, switch panel and exterior connection are all dust and splash resistant* to prevent dust and dirt from entering the lens. Further, the front element of the lens features a water and oil repellent coating to facilitate maintenance when water droplets or dust adhere to the lens.

  *The structure is designed to be dust and splash resistant, but not waterproof. Be careful not to bring the lens in contact with a large amount of water. Water inside the lens may cause major damage and even render the lens unrepairable.



• A wealth of functions to assist professional photographers

  In addition to an aperture ring, a magnesium tripod mount, and various switches, the highly mobile lens has a wealth of functions available, enabling a more comfortable and versatile shooting experience for users.



• Equipped with an aperture ring

  This is the first Sigma zoom lens for still photography to be equipped with an aperture ring. It is also equipped with an aperture ring click switch and an aperture ring lock switch, allowing for aperture operation suited to the shooting application.


  * When turned ON at the position A, the iris ring is locked at A. When turned ON at a position other than A, it is locked within the range between the maximum to minimum apertures and will not engage at the position A.

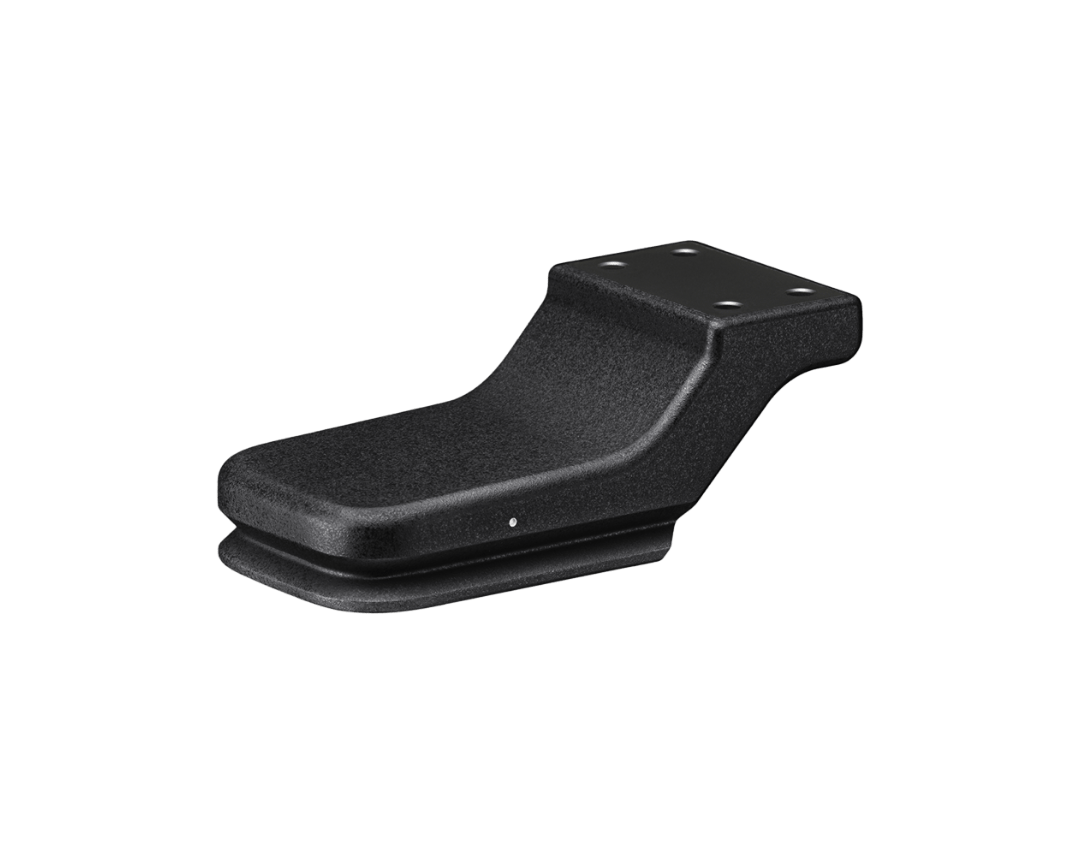

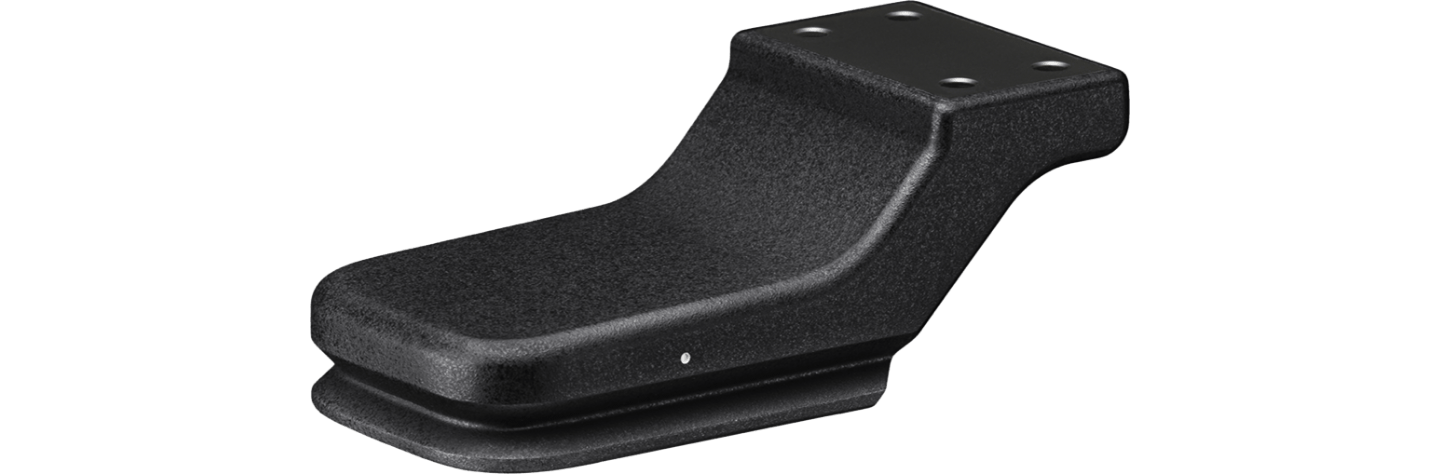

• Newly developed tripod socket

  The lens body incorporates an Arca-Swiss compatible magnesium alloy tripod socket. The detachable leg is newly designed for the Sigma 70-200mm F2.8 DG DN OS | Sports in order to achieve a compact and lightweight design.

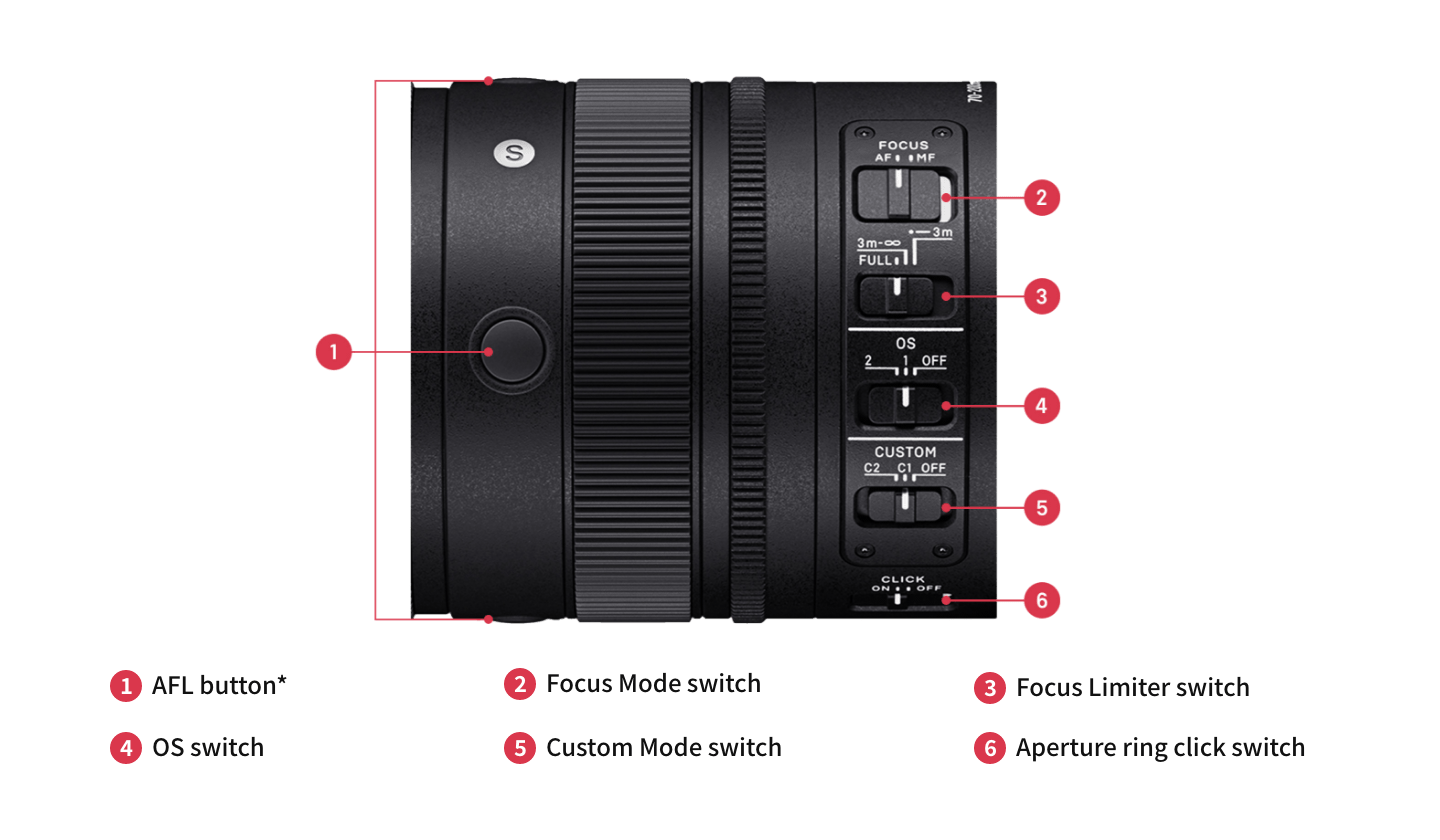

• Customizable functions

  Equipped with a Focus Limiter switch, the lens enables users to limit the focus driving range during AF when necessary, allowing quick and precise focusing.
  Further, the lens features three AFL buttons ready to be assigned to preferred functions using the camera. The AFL buttons are easy to operate regardless of how the camera is oriented or which settings are used.
  For the L-Mount version, the Sigma USB DOCK UD-11 can be used to set OS operation or focus limiter range for the Custom Mode switch.

  * Only on compatible cameras. Available functions may vary depending on the camera used.

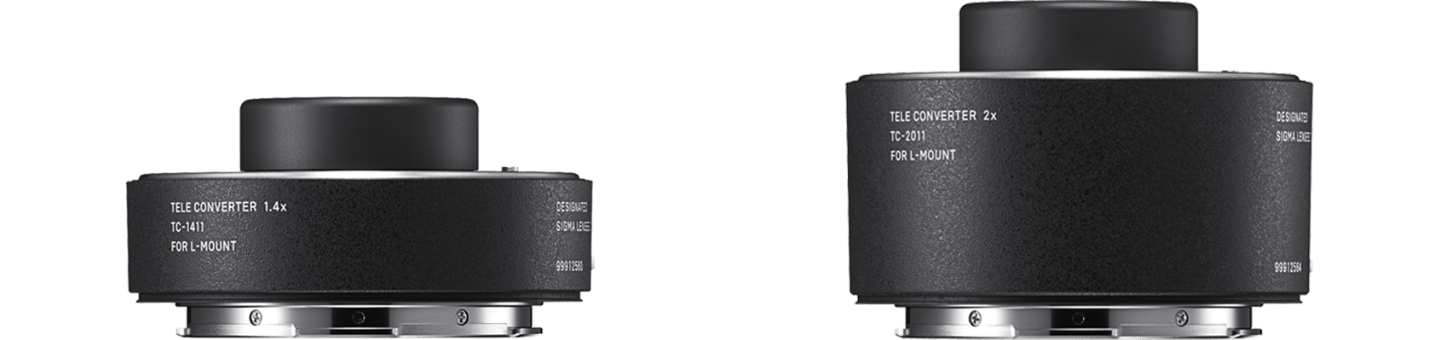

• Tele Converter for L-Mount (1.4x / 2.0x)

  The L-Mount version of the lens is compatible with the Sigma TELE CONVERTER TC-1411 (1.4x) and TC-2011 (2.0x). Using a tele converter, the focal length can be multiplied by 1.4x and even 2x, for AF-enabled shooting at ultra-telephoto focal lengths of up to 400mm.

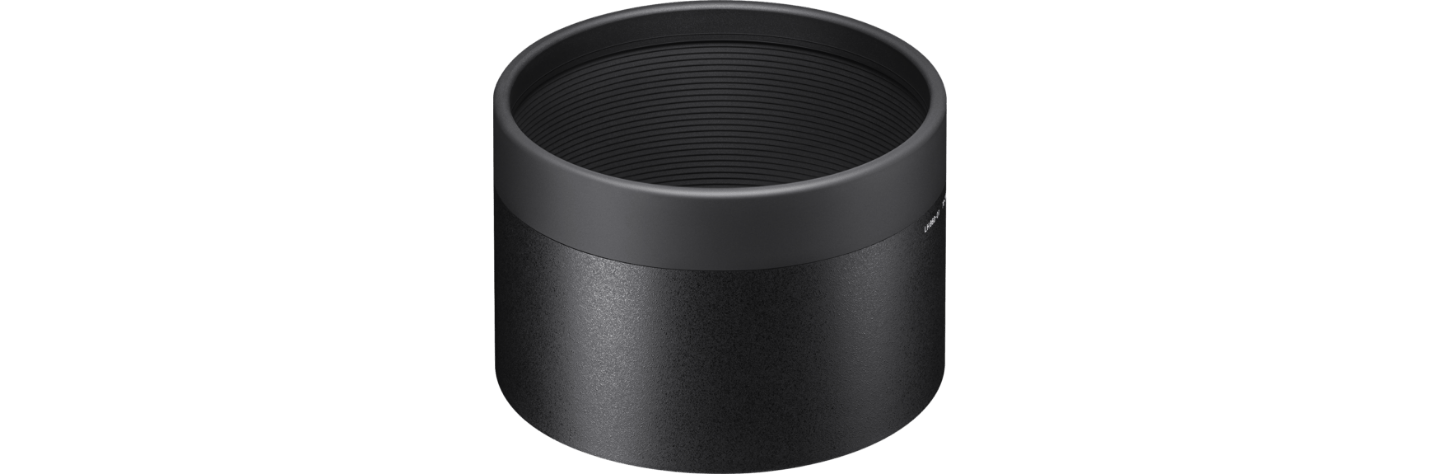

• Cover-type lens hood included

  A lightweight, high-strength, exclusive cover-type lens hood made of CFRP* is included. In addition to its slim design that does not impair the mobility of the lens, the tip of the hood is rubberized to protect the lens from abrasion and scratches caused by placing the lens upside down.

  *CFRP (carbon fiber reinforced plastic), a light but strong material used in the interior and exterior fittings of aircraft, among many other applications.

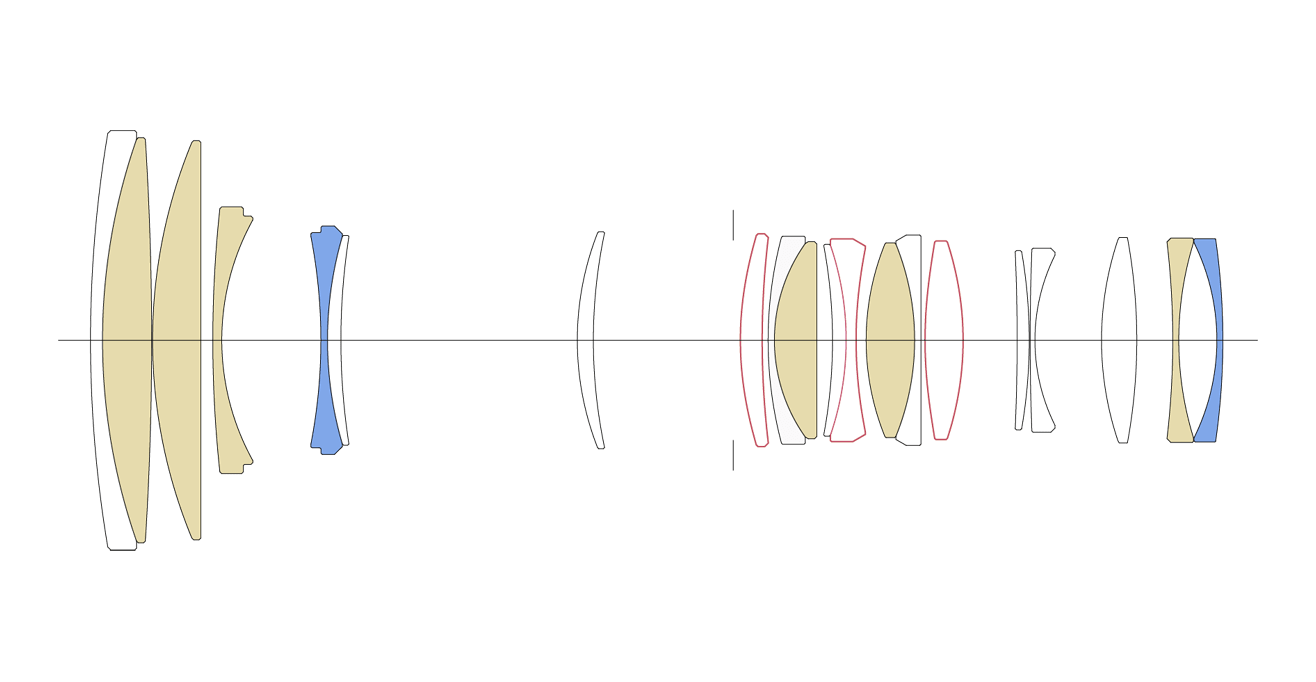

Lens construction

FLD glass

SLD glass

Aspherical lens

• Spatial frequency

  S:Sagittal Line

  M:Meridional Line

• 10lp/mm

• 30lp/mm

Diffraction MTF

Diffraction MTF

Geometrical MTF

Geometrical MTF

Diffraction MTF (TC-1411)

Diffraction MTF (TC-1411)

Geometrical MTF (TC-1411)

Geometrical MTF (TC-1411)

Diffraction MTF (TC-2011)

Diffraction MTF (TC-2011)

Geometrical MTF (TC-2011)

Geometrical MTF (TC-2011)

• OS (Optical Stabilizer) function

  Sigma's original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.

• OS2

  OS2 is the newly developed optical stabilizer algorithm. Compared to the previous algorithm used by Sigma lenses, OS2 improves the effect of optical stabilization significantly.

• Inner Zoom

  The lens incorporates an inner zoom. With their unchanging barrel length, these lenses also enhance balance and stability for the photographer. Furthermore, since the front of the lens does not rotate, polarizing filters can be used with extra convenience.

• Inner focus system

  To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.

• HLA (High-response Linear Actuator)

  HLA is Sigma's proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.

• Nano Porous Coating

  The super multi-layer coating is combined with Sigma's unique coating technology "NPC (Nano Porous Coating)". The lens has been designed to be less susceptible to strong incident light such as backlight.
  "NPC (Nano Porous Coating)" incorporates porous silica as the coating material. The porous silica layer has nano-sized holes with air inside. Having holes of this size enables a large reduction in the refractive index, allowing the reflectance to be lowered more than conventional anti-reflective coatings. As a result, reflected light causing flares and ghosting is sharply reduced, achieving clear image quality.

• Super Multi-Layer Coating

  Sigma's own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma's Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast.

• Water and oil repellent coating

  Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.

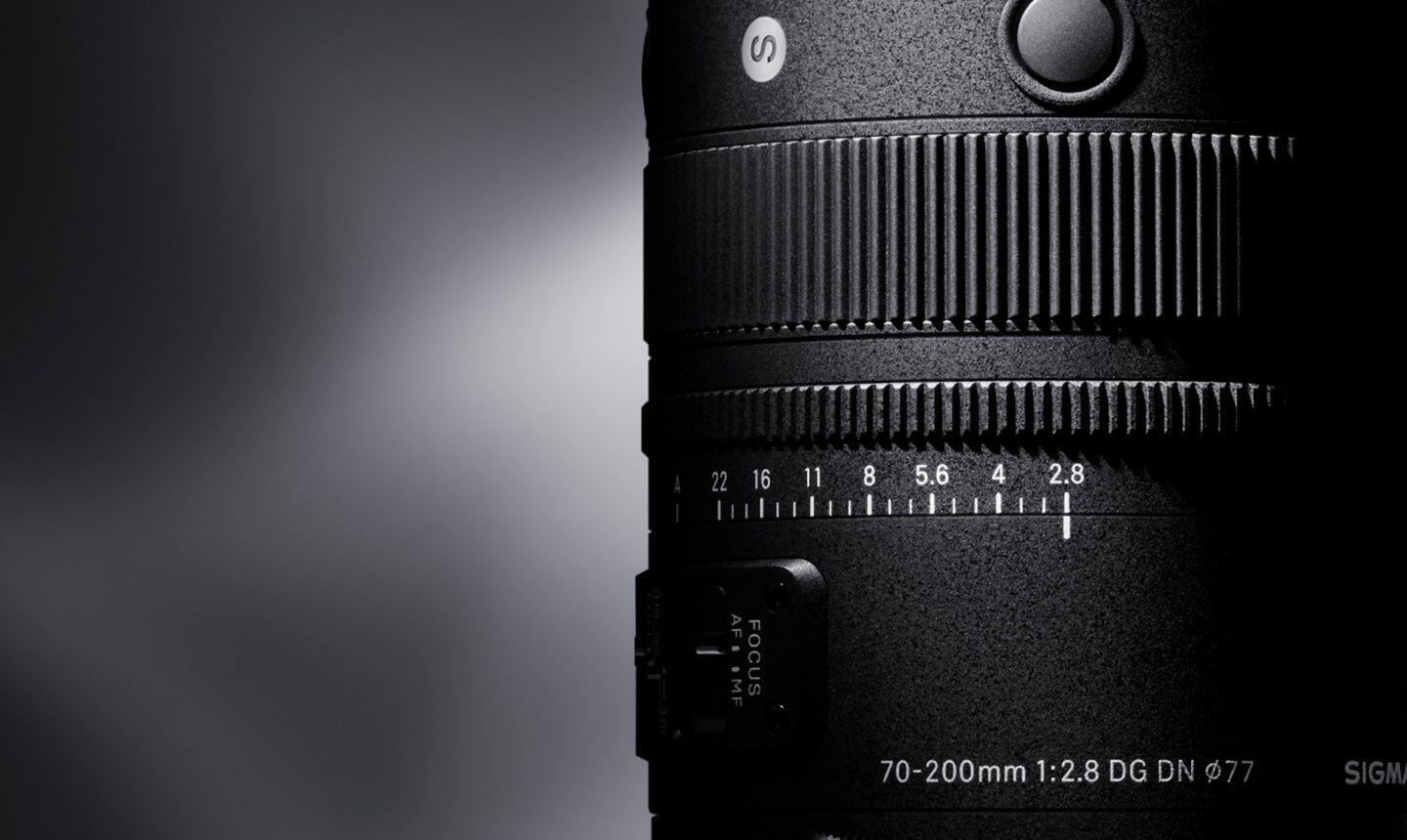

• Aperture ring

  Aperture ring, designed to help users work intuitively

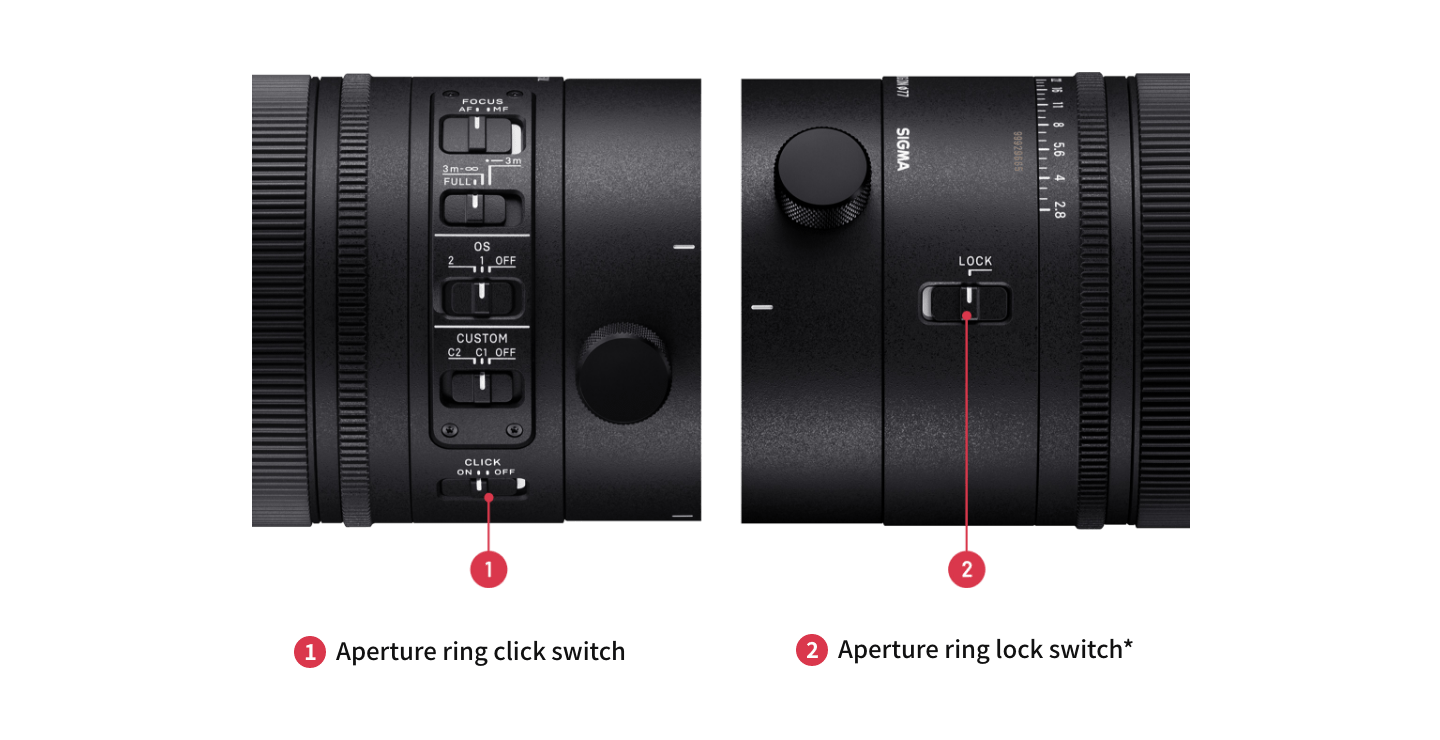

• Aperture ring click switch

  Mounted with a de-click function for removing clicks by the aperture ring click switch, enabling seamless operations that are especially useful such as during video shooting.

• Aperture ring lock switch

  A ring lock system to prevent from unintended movement of the aperture ring during shooting.

• AFL button

  the AFL button can be assigned with various functions widens the range of operations available on the lens.

• Focus Limiter

  Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.

• Focus Mode Switch

  Using this swich, it is possible to switch the focus mode between AF and MF.

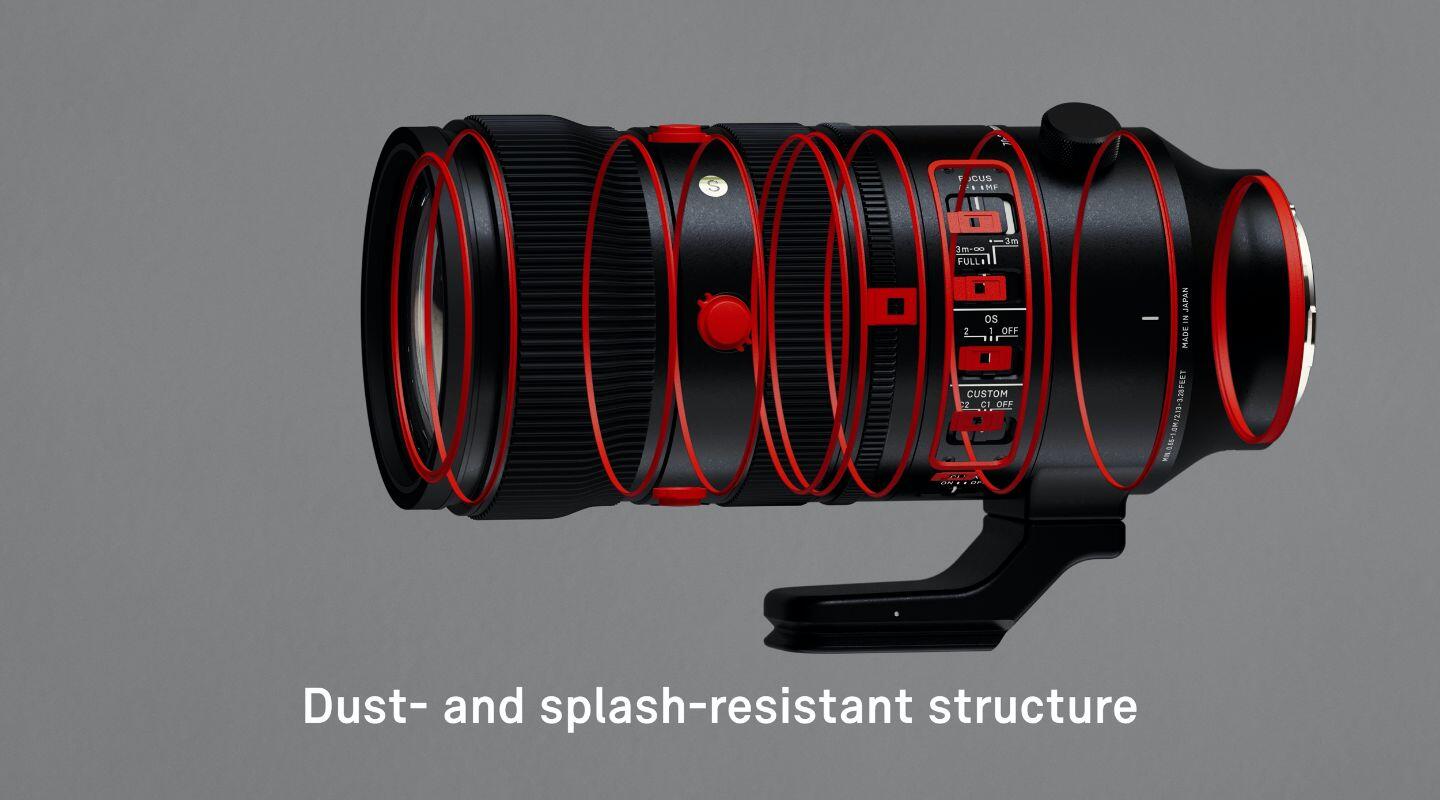

• Dust and Splash Resistant Structure

  This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.

  *Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.

• Lens construction: 20 elements in 15 groups (6 FLD, 2 SLD, 3 aspherical elements)

• Compatible with high-speed autofocus

• Compatible with Lens Aberration Correction

• Supports DMF and AF+MF

• Compatible with AF assist (Sony E-mount only)

• Support for switching between linear and non-linear focus ring settings (for L-Mount only)

• OS switch

• Custom Mode switch

• LENS HOOD LH860-01

• TRIPOD SOCKET TS-151 *Detachable lens foot type

• Compatible with Sigma TELE CONVERTER TC-1411 / TC-2011 (sold separately / for L-Mount only)

• Compatible with Sigma USB DOCK UD-11 (sold separately / for L-Mount only)

• Designed to minimize flare and ghosting

• Every single lens undergoes Sigma’s proprietary MTF measuring system

• 11-blade rounded diaphragm

• High-precision, durable brass bayonet mount
