    Take your mirrorless to the next level
    ― benefit from the finest performance
    that the SIGMA’s first F1.2 large aperture prime delivers.

    Bringing the “pursuit of ultimate image quality”
    to the next level
    with an F1.2 Art line lens for mirrorless cameras

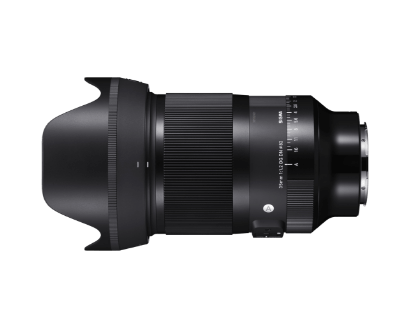

    First wide-angle AF lens with F1.2 maximum aperture for the full-frame Sony E-mount and L-Mount system. This lens enables a creation of artwork with astounding resolution and large bokeh effects, such as portraits that make use of a shallow depth of field. It brings the development concept of the Art line “pursuit of ultimate image quality” to the next level. While utilizing optical correction function inside the camera, aberrations that are difficult to post-process are thoroughly corrected thanks to the optical design and it thereby enhances resolution.

    DG
    DN

    Features

    Newly developed high-performance
    lens series for full-frame
    mirrorless cameras

    With mirrorless cameras emerging at an accelerated pace, expectations towards lenses suited for high-performance full-frame mirrorless cameras are growing. Unfortunately, many photographers may feel that they have little choices for mirrorless lens systems in terms of performance, size, extensive lineup, and due to the burden of having to use multiple systems. SIGMA has thus developed and proposes this new full-frame mirrorless lens series as the optimal solution to this challenge.

    SIGMA will develop interchangeable lenses with unprecedented specifications and performance by designs that benefit from the short flange focal length feature of mirrorless cameras while retaining the concepts of “Contemporary,” “Art,” and “Sports.” We will announce three models as the first lenses from this series.

    SIGMA’s First F1.2
    maximum aperture,
    large-diameter prime lens

    The “Art line in the age of mirrorless cameras” pursues ultimate performance as a large-diameter lens with a focal length of 35mm and also achieves a maximum aperture of F1.2. Three SLD glass elements and three aspherical lenses including a double-sided aspherical lens are optimally arranged in a lens construction of 17 elements in 12 groups. In addition to the optical design that makes use of the characteristic of the short flange focal length, it effectively takes advantage of the correction function inside the camera to correct distortion and peripheral illumination. Various aberrations that are difficult to correct by post-processing, such as sagittal coma flare, are thoroughly corrected by the compilation of the optical design technologies that SIGMA has cultivated, achieving an overwhelming resolution that can resolve over 50 million pixels.

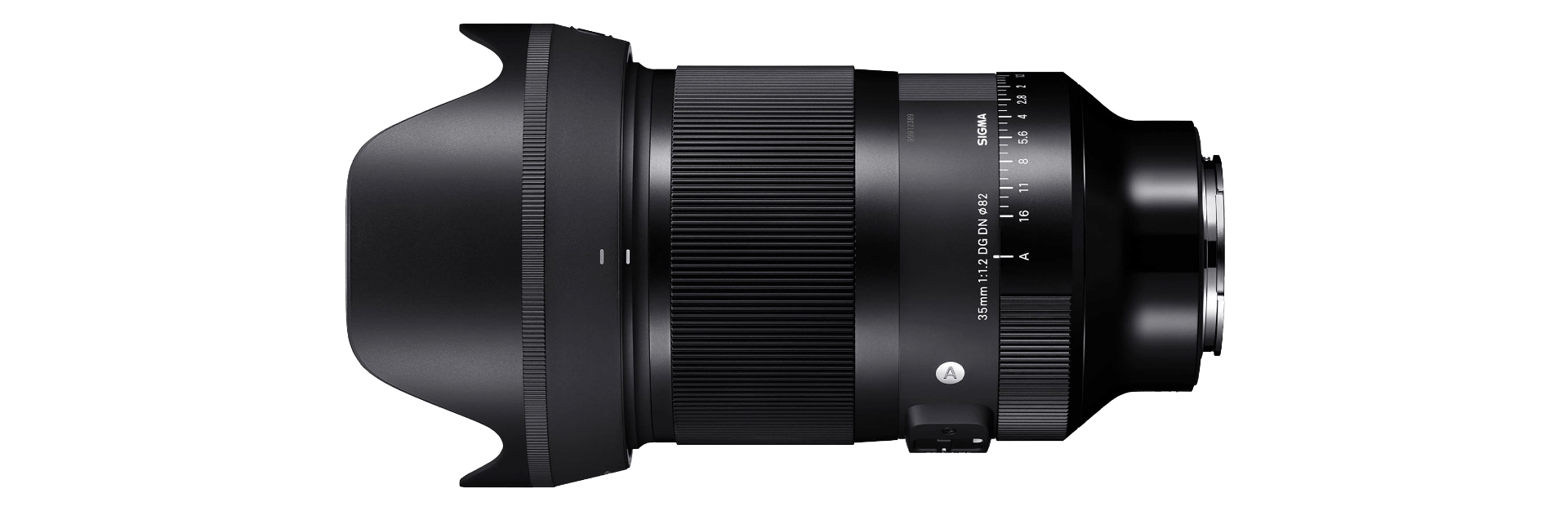

    High operability that supports various shooting situations in both still and video

    In autofocus photography, comfortable shooting for a F1.2 large-diameter lens is achieved by the large hyper sonic motor (HSM) that gets desired torque required to drive the focus lens group. In manual focus photography, the focus ring driven by the focus-by-wire system with the optimized torque setting responds to fine operations of the photographer.

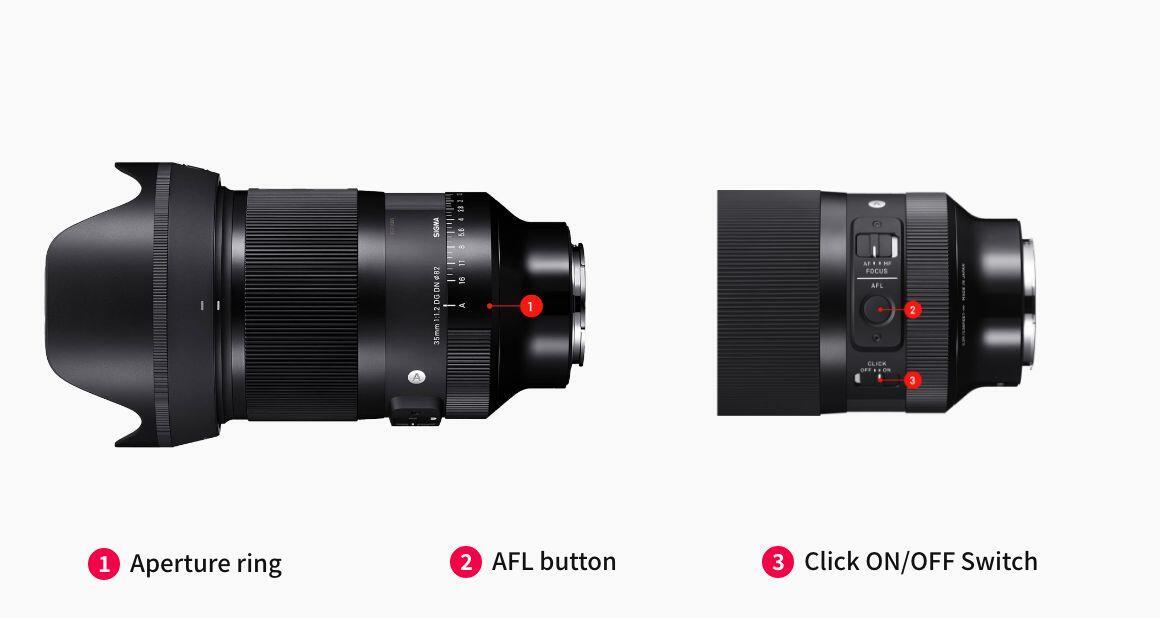

    1Aperture ring

    2AFL button
    3Click ON/OFF Switch

    The aperture ring1 is also mounted with a de-click function for removing clicks by the Click ON/OFF Switch3, enabling seamless operations that are especially useful such as during video shooting. Furthermore, the AFL button2 which can be assigned with various functions widens the range of operations available on the lens.

    Substantial functions enable user confidence, even in tough environments

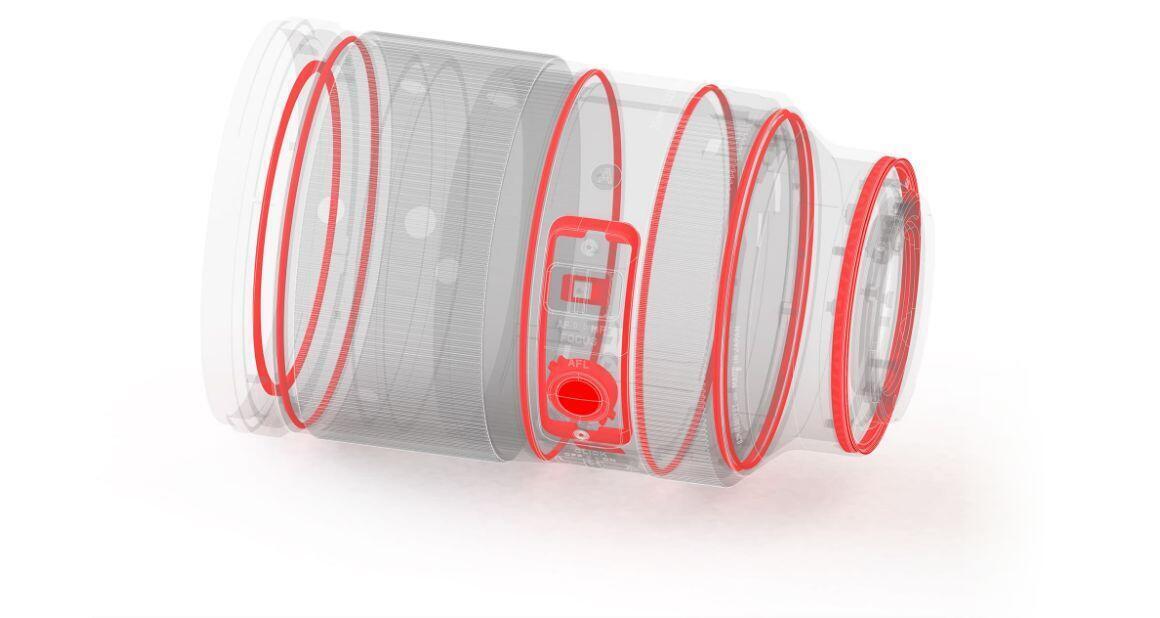

    The lens features the dust- and splash-proof structure additionally with the water- and oil-repellent coating on the frontmost surface of the lens, which also supports shooting in various environments.

    Other Features

    Compatible with Lens Aberration Correction

    Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

    Designed to minimize flare and ghosting

    From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as back lighting. SIGMA’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in back light conditions.

    High-precision,
    rugged brass bayonet mount

    The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.

    The large HSM delivers highly responsive autofocus

    The large hypersonic motor (HSM) delivers ample torque to the focusing group for outstanding speed, ensuring exceptionally stable performance even at lower speeds. Along with the optimized AF algorithm, this feature delivers fast autofocus photography.

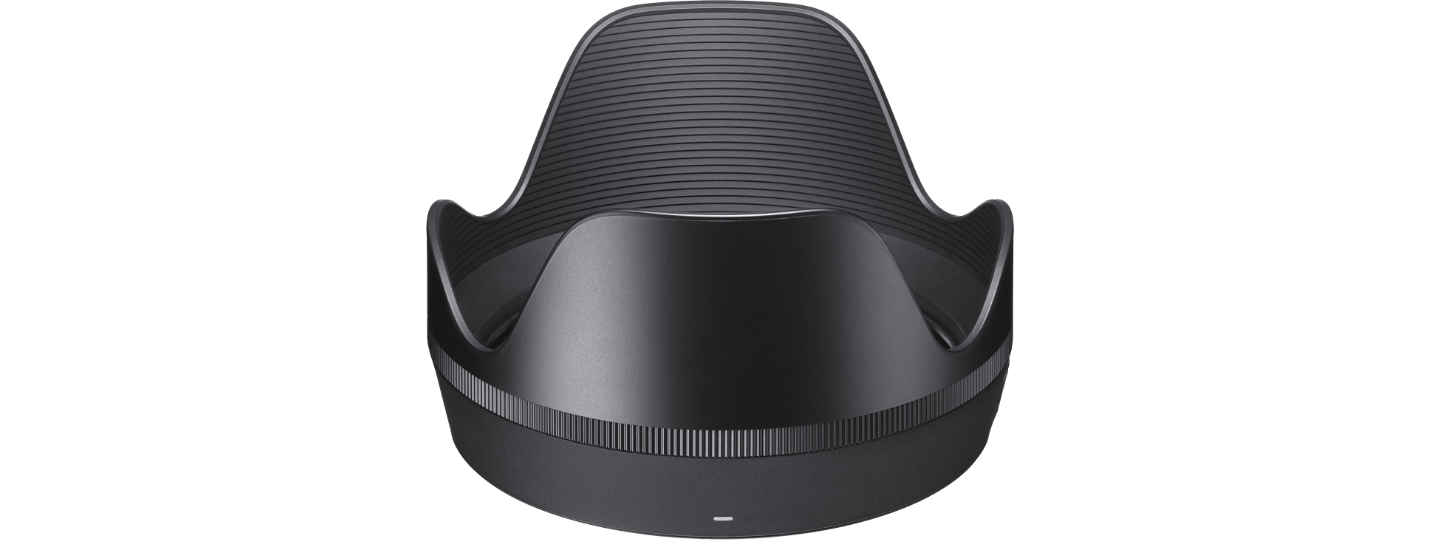

    Hood with lock

    Features a hood with lock to prevent dropping the hood.

    Rounded diaphragm (11-blade)

    The 11-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.

    ESSENTIALS

    You'll find our philosophy and craftsmanship
    in every product

    Our new lineup fully expresses our approach to lenses and photography itself. All of our lenses belong to one of three lines—Contemporary, Art, or Sports—all of which share our development philosophy and advanced manufacturing system. High performance, high quality, and high end in every respect, these lenses give people who love photography lasting value and consistent, exciting results. The secret is our passion for craftsmanship that we put into every production process and every product.

    Specifications

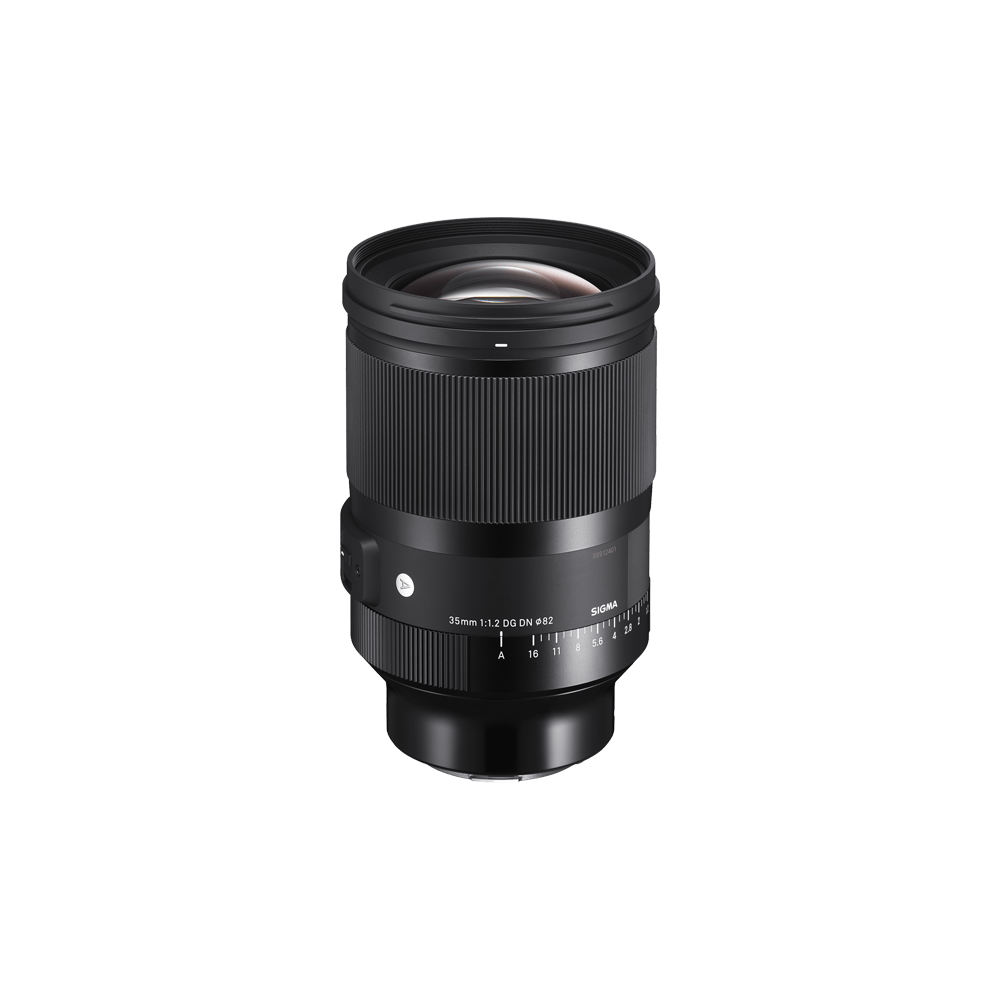

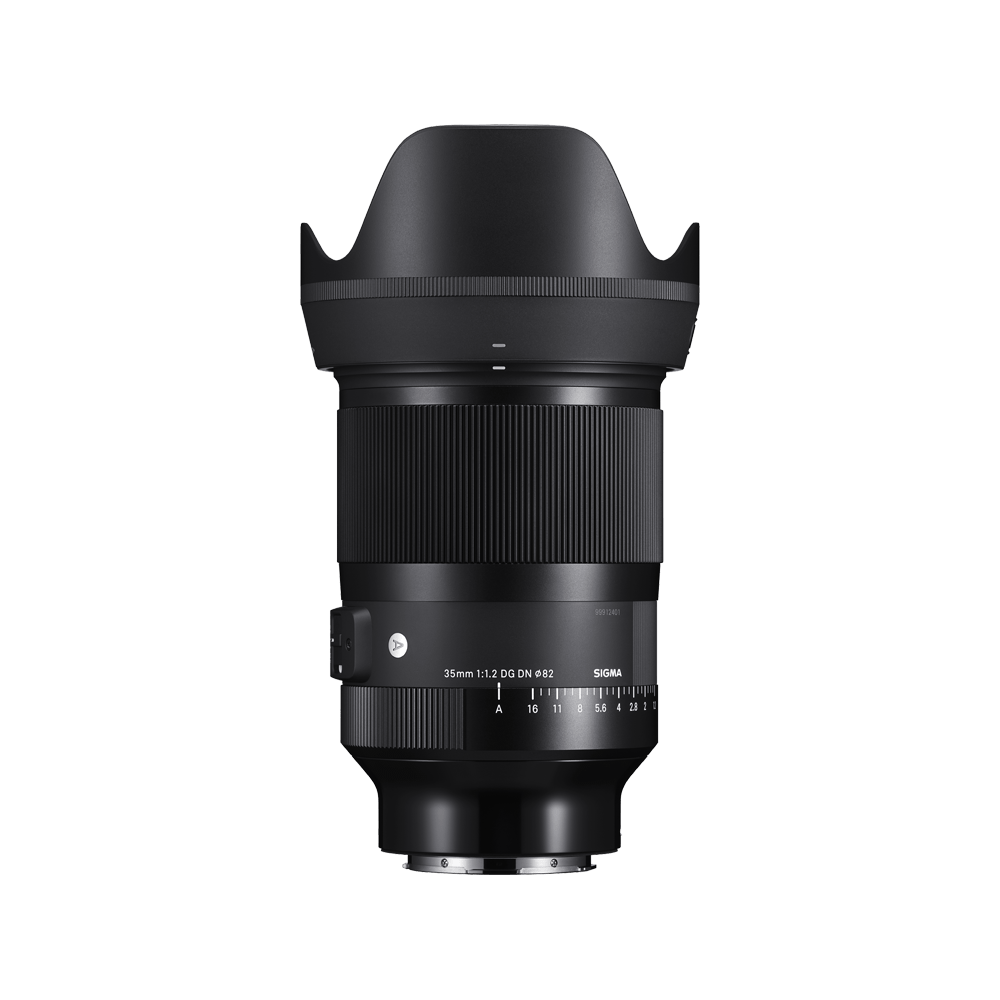

    35mm F1.2 DG DN | Art

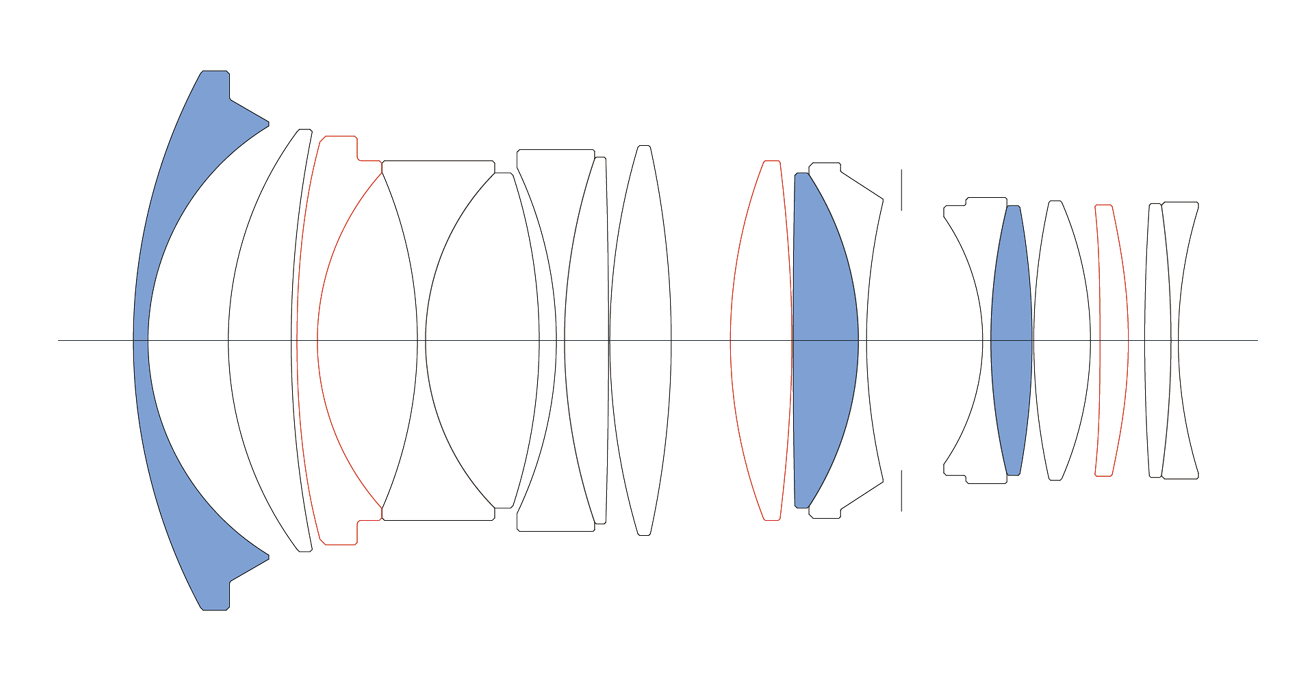

    Lens Construction

    • SLD glass
    • ASPHERICAL LENS

    Lens Construction

    17 elements in 12 groups

    Angle of View

    • L-Mount
      63.4°
    • Sony E-Mount
      63.4°

    Number of Diaphragm Blades

    11 (Rounded diaphragm)

    Minimum Aperture

    F16

    Minimum Focusing Distance

    30cm / 11.8in.

    Maximum Magnification Ratio

    1:5.1

    Filter size

    φ82mm

    Dimensions (Diameter × Length)

    • L-Mount
      φ87.8mm × 136.2mm / φ3.5in. × 5.4in.
    • Sony E-Mount
      φ87.8mm × 138.2mm / φ3.4in. × 5.4in.
    • *The length of a lens is measured from the filter surface to its mount.

    Weight

    • L-Mount
      1,090g / 38.4oz.
    • Sony E-Mount
      1,080g / 38.1oz.

    Edition Number

    A019

    Supplied Accessories

    Case, Petal Type Hood with Lock(LH878-02)supplied.

    Corresponding AF Mounts / Barcode No.

    • Sony E-Mount
      00-85126-34165-7
    • L-Mount
      00-85126-34169-5

    Technologies

    Performance / Data

    MTF Chart

    Diffraction MTF

    Geometrical MTF

    The MTF chart gives the result at the wide-open aperture
    Spatial frequency S:Sagittal Line M:Meridional Line
    10lp/mm
    30lp/mm

    MTF chart guide

    Product Lineup

    35mm F1.2 DG DN | Art

    • Sony E-mount

      Supplied Accessories

      Case, Petal Type Hood with Lock(LH878-02)supplied.

      Barcode No.
      00-85126-34165-7
    • L-Mount

      Supplied Accessories

      Case, Petal Type Hood with Lock(LH878-02)supplied.

      Barcode No.
      00-85126-34169-5

    Accessories

    Supplied Accessories

    LENS HOOD LH878-02

    Barcode No.
    00-85126-93728-7

    FRONT CAP LCF-82mm Ⅲ

    Barcode No.
    00-85126-93002-8

    REAR CAP LCR Ⅱ

    * The image is for SIGMA.

    • L-Mount

      Barcode No.
      00-85126-93725-6
    • Sony E-mount

      Barcode No.
      00-85126-92987-9

    Separately Sold Accessories

    WR CERAMIC PROTECTOR 82mm

    With many applications in aerospace and other industries, glass ceramic is an extremely tough type of crystallized glass that serves as the foundation for Clear Glass Ceramic. While featuring the high transmittance required of optical devices, this advanced new material combines greater hardness than chemically strengthened glass and greater flexibility than sapphire crystal glass. These qualities make Clear Glass Ceramic the ideal material for protective lens filters.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93183-4

    PROTECTOR 82mm

    Normal type. Protector is developed to protect the lens surface from dirt and dust as well as scratches. It is an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93110-0

    WR PROTECTOR 82mm

    Water-repellent, Antistatic type. Protector is developed to protect the lens surface from dirt and dust as well as scratches. It is an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93097-4

    WR UV FILTER 82mm

    UV Water-repellent, Antistatic type. UV filter prevents the bluish tone that generates when the weather is fine, by absorbing ultraviolet rays. It is effective in most situations, such as landscape, portrait and general photography on a sunny day. It is also an ideal filter for regular use as it is completely colorless so does not affect color reproduction.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93071-4

    WR CIRCULAR PL FILTER 82mm

    PL Water-repellent, Antistatic type. Circular PL filter removes the reflection of water surface and glass windows, and increases the contrast in landscape photography.

    * Thinner frame wide type.

    Barcode No.
    00-85126-93084-4

    USB DOCK UD-11

    • L-Mount

      Barcode No.
      00-85126-87869-6
