SPORTS

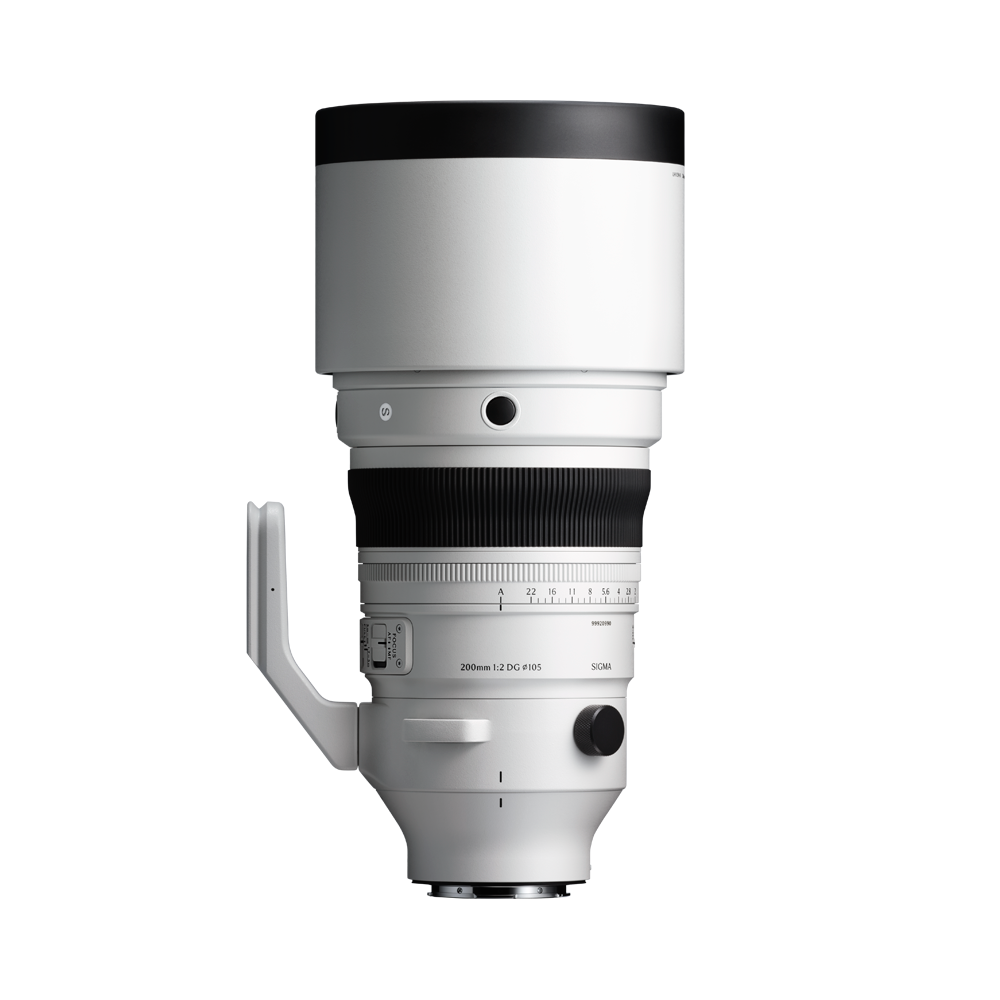

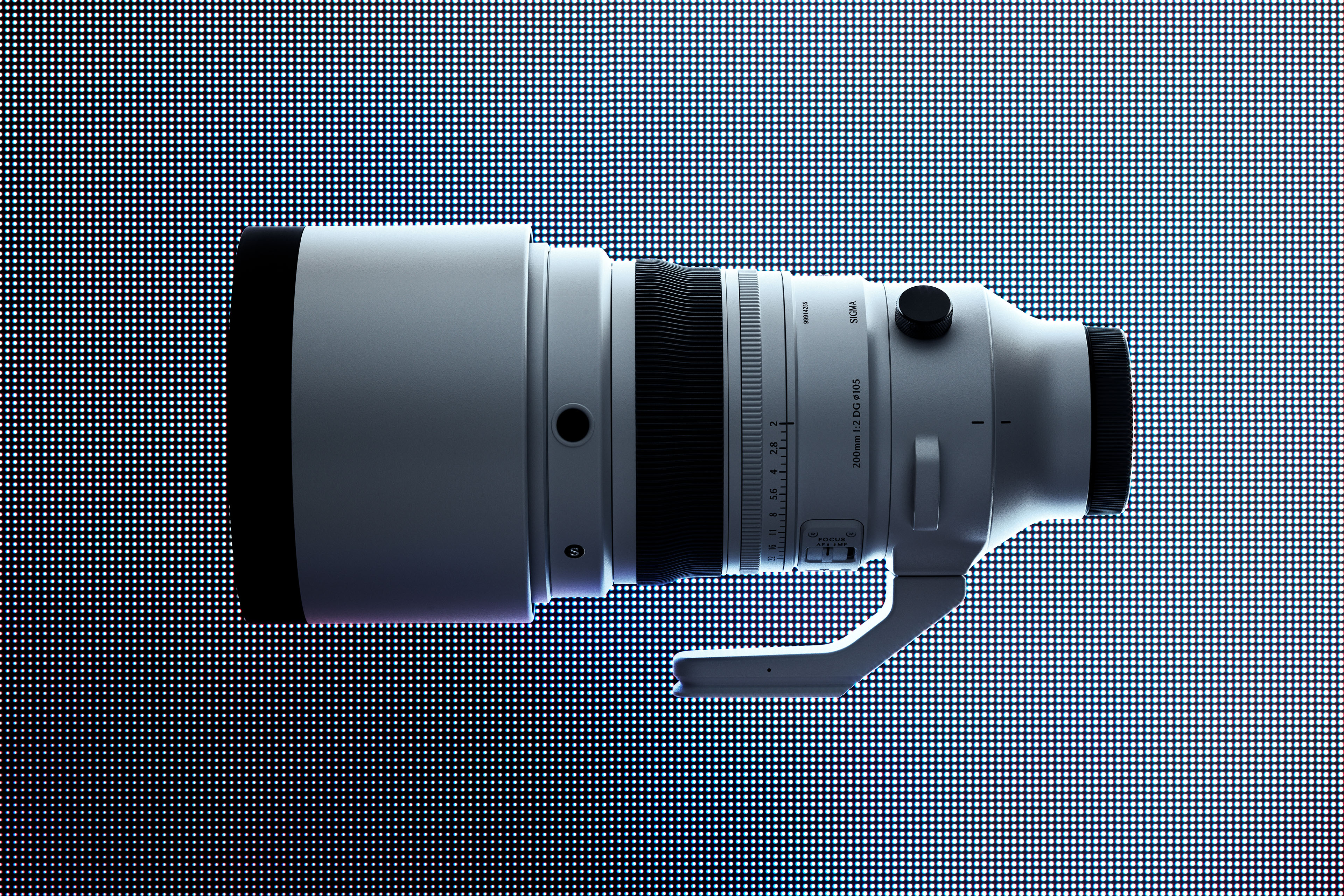

200mm F2 DG OS

• Camera Type

  Mirrorless

• Corresponding Mount

  L-Mount, Sony E-mount

• Sensor Format

  Full-frame [DG]

• Lens Construction

  19 elements in 14 groups (2 FLD, 2 SLD)

• Angle of View

  L-Mount: 12.3°
  Sony E-mount: 12.3°

• Number of Diaphragm Blades

  11

• Minimum Aperture

  F22

• Minimum Focusing Distance

  170cm / 67.0in.

• Maximum Magnification Ratio

  1:7.6

• Filter Size

  φ105mm

• Dimensions (Diameter × Length)

  L-Mount: φ118.9mm x 201.0mm / φ4.7in. x 7.9in.
  Sony E-mount: φ118.9mm x 203.0mm / φ4.7in. x 8.0in.
  *The length of a lens is measured from the front of the lens to its mount

• Weight

  L-Mount: 1,820g / 64.2oz.
  Sony E-mount: 1,800g / 63.5oz.

• Edition Number

  S025

  The three-digit code on the surface of the lens is to indicate the year the lens was first released.
  (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

• Supplied Accessories

  ・Pouch
  ・Lens Hood LH1139-01
  ・Front Cap LCF-105 IV
  ・Rear Cap LCR III
  ・Shoulder Strap
  ・Tripod Socket TS-171

• Mount / Product Barcode

  L-Mount: 00-85126-227692
  Sony E-mount: 00-85126-227654

• Camera Compatibility

  LINK

• * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
  * L-Mount is a registered trademark of Leica Camera AG.

• Excellent resolution even at maximum aperture

  By adopting an optical design of 19 elements in 14 groups, including 2 FLD and 2 SLD glass elements, axial chromatic aberration and magnification chromatic aberration, which are easily noticeable in telephoto lenses, are thoroughly corrected, achieving exceptionally high optical performance. Even at wide-open aperture, it delivers finely detailed rendering that maintains high resolution and contrast from the center to the edges of the frame.

• Impressive portraits made possible by the exceptional bokeh

  With the large bokeh enabled by the F2 aperture, which boasts twice the light amount of F2.8, and the compression effect of the 200mm focal length, the lens delivers a gorgeous background blur that brings out the subject, achieving a unique expression. Combined with its exceptional optical performance, it makes it possible to take impressive portraits like no other.

• Also powerful for indoor sports photography

  The F2 brightness allows for a faster shutter speed even in low-light environments, making it a powerful tool for indoor sports photography. The large bokeh enhances the movements and expressions of the athletes, creating dynamic images, and with the high-speed AF made possible by the HLA (High-response Linear Actuator) motor and Optical Stabilization (OS), that decisive moment is not missed, even in fast-moving sports scenes.

• Designed to minimize flare and ghosting

  Using advanced simulation technology, flare and ghosting have been largely eliminated, ensuring that the lens renders rich, high-contrast results in all conditions. In addition, Sigma’s Nano Porous Coating and Super Multi-Layer Coating have been applied to further suppress flare and ghosting.

• HLA-driven high-speed AF

  The HLA (High-response Linear Actuator) motor is incorporated, achieving high-speed AF. It combines accelerated focusing speed with outstanding accuracy.

• Powerful optical stabilization using the OS2 algorithm

  The OS2 optical stabilization algorithm provides an outstanding image stabilization effect of 6.5 stops*1. The lens is equipped with two OS modes: Mode 1 is suitable for general shooting, and Mode 2 is ideal for panning shots of motorsports and other sports. In Mode 2, Sigma’s Intelligent OS, an algorithm specially designed for panning shots, enables effective image stabilization even when the camera is moved vertically or diagonally, regardless of the horizontal and vertical orientation. This ensures that the subject’s movement can be captured without losing the panning shot effect.

  *1. Based on CIPA guidelines. (Measured at a focal length of 200mm with a 35mm full-frame camera)

• Thermal insulation paint for perfect lens performance

  The exterior of the lens body is coated with a thermal insulation paint that effectively suppresses heat absorption from sunlight. This prevents the lens from heating up, even during long outdoor shoots in sunny weather.

• Weatherability of Sigma’s Sports line specifications

  The mount joints, manual focus ring, zoom ring, custom switches, and exterior joints are all protected from dust and splash by a dust- and splash-resistant structure*1. Further, the frontmost surface of the lens is coated with a water- and oil-repellent coating to facilitate maintenance when water droplets or dust adhere to the lens.

  *1. The structure is designed to be dust- and splash-resistant, but not waterproof. Be careful not to bring the lens in contact with a large amount of water. Water inside the lens may cause major damage and even render the lens unrepairable.

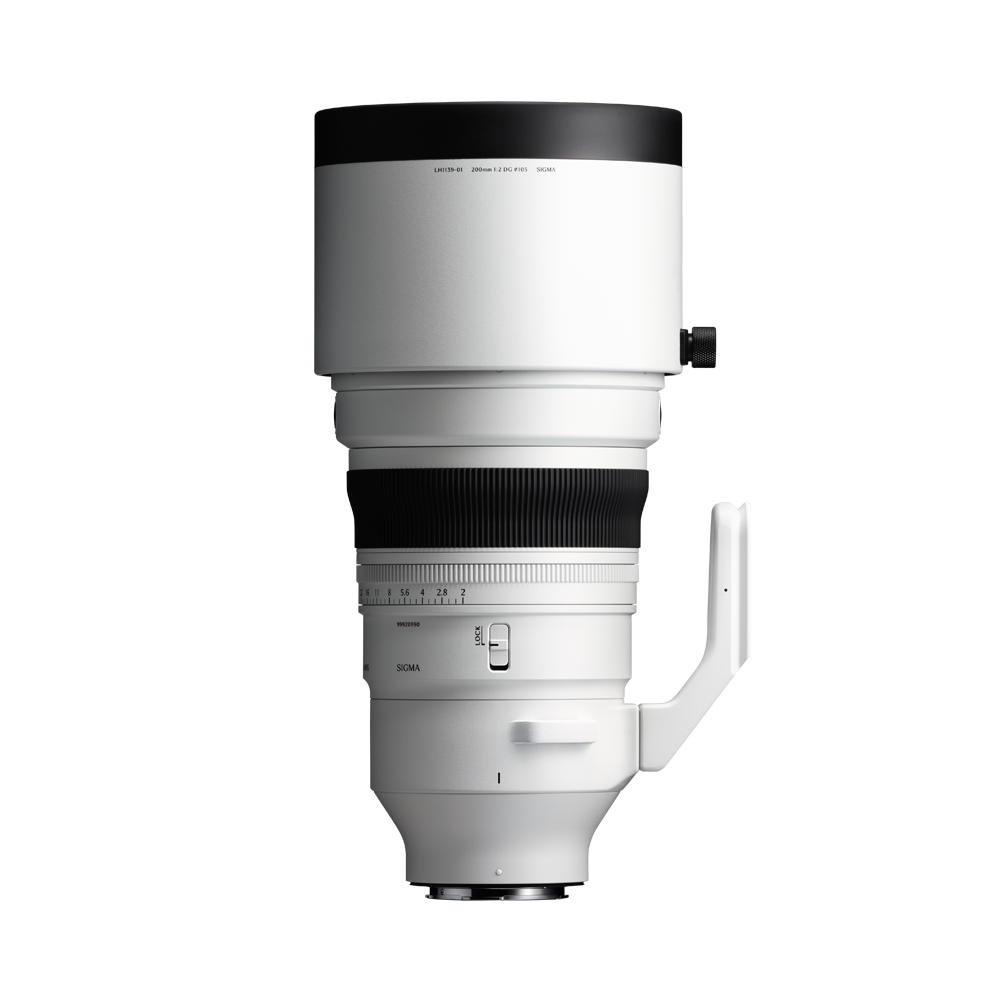

• Newly designed tripod socket

  A new tripod socket, TS-171, has been designed with its use as a carrying handle in mind, featuring a longer base and wider spacing between it and the lens. The tripod ring incorporates a 90° click mechanism, allowing for smooth and secure rotation, and the foot is compatible with Arca-Swiss type clamps.

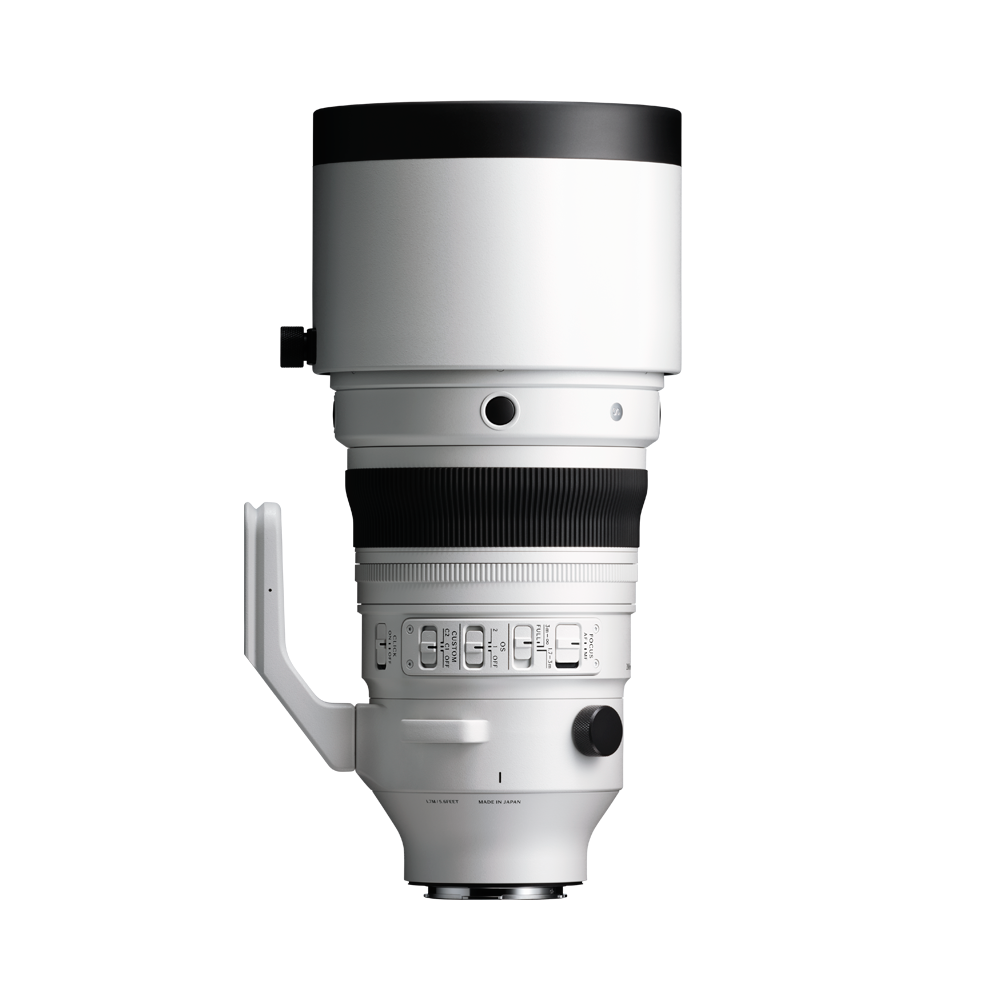

• Equipped with various functions to support shooting

  There are various functions to support shooting, including AFL buttons in three different locations, a focus mode switch, a focus limiter switch, an OS switch (Mode 1/2), and a custom mode switch.

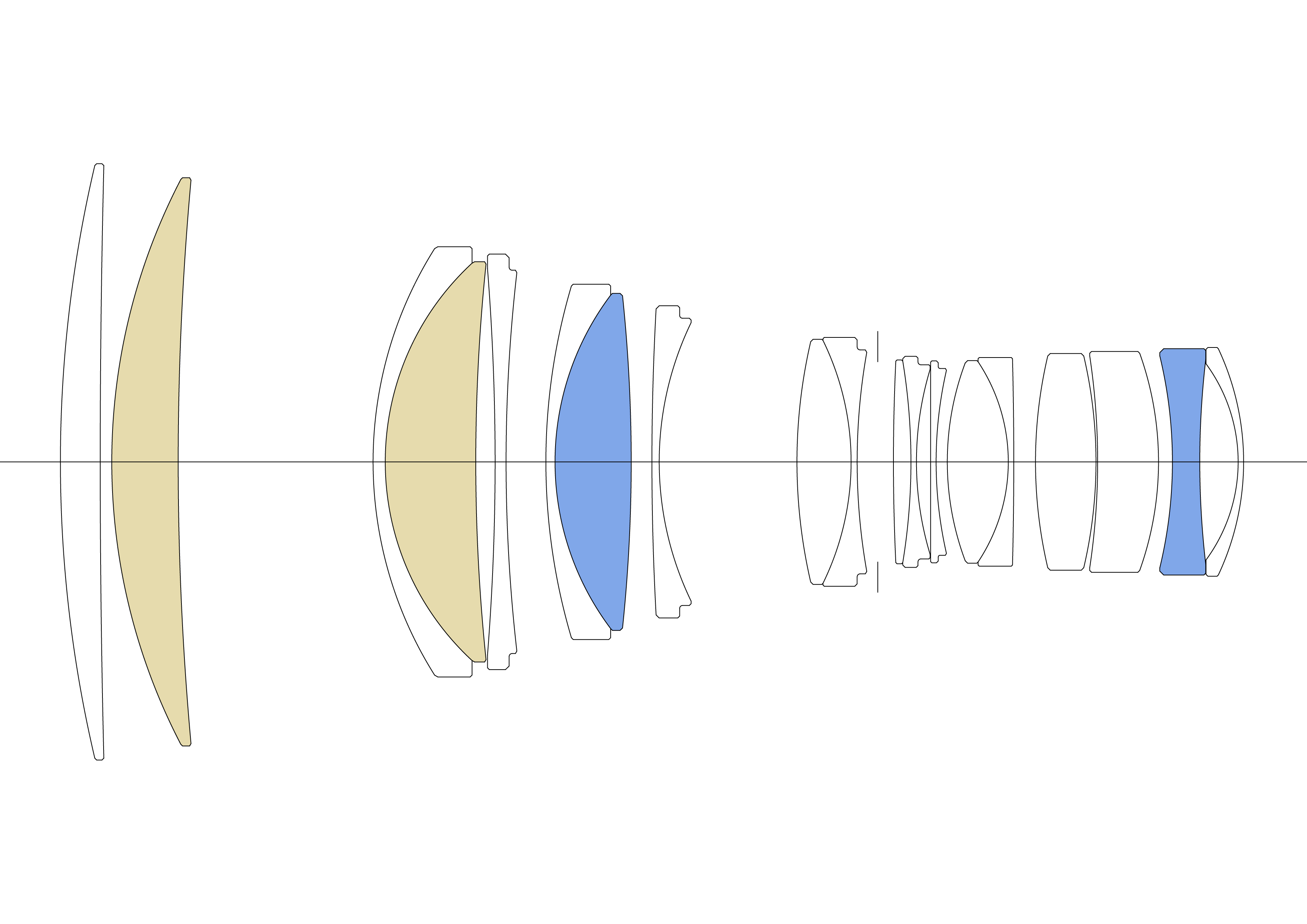

Lens construction

FLD glass

SLD glass

• Spatial frequency

  S:Sagittal Line

  M:Meridional Line

• 10lp/mm

• 30lp/mm

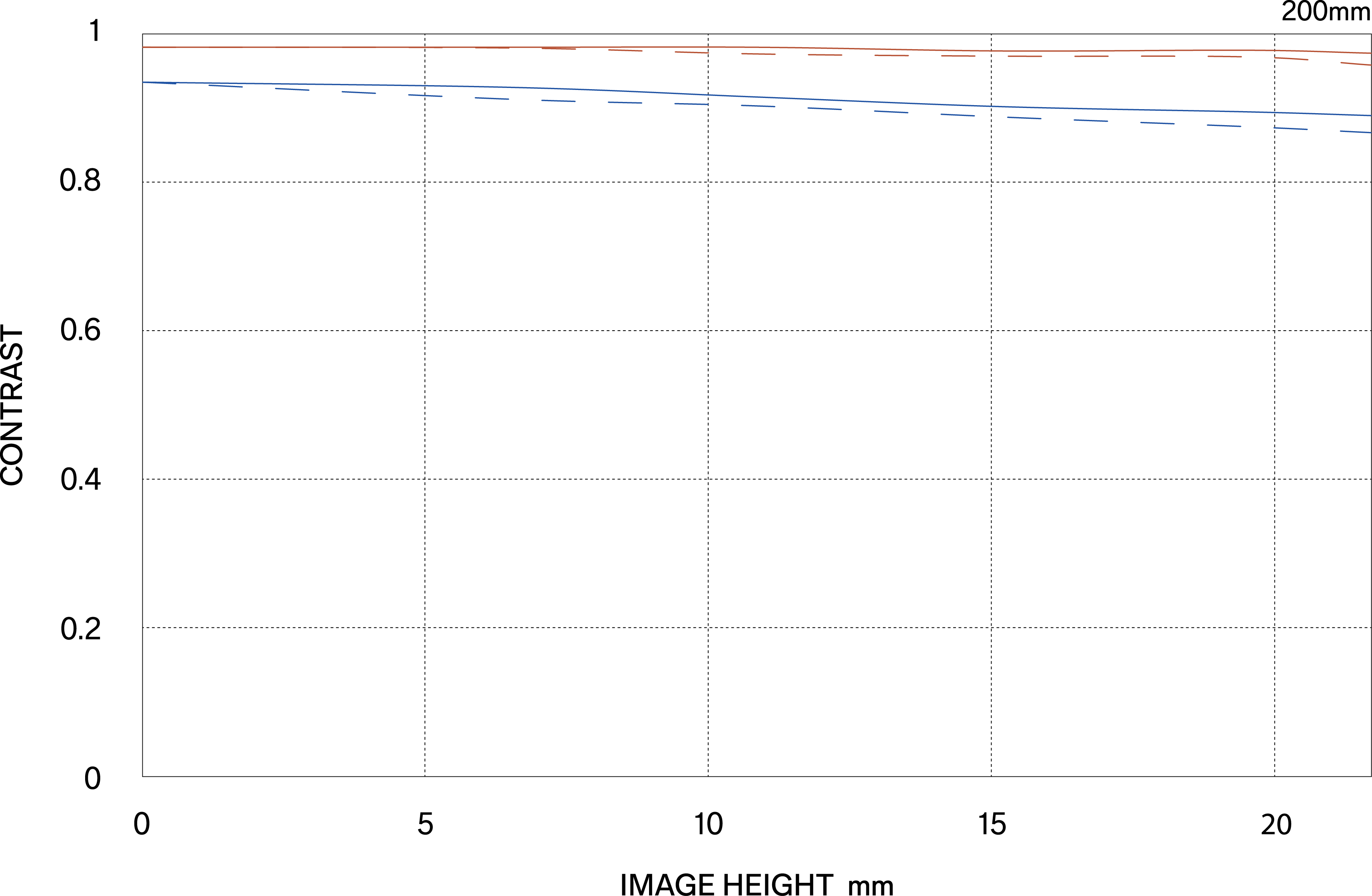

Diffraction MTF

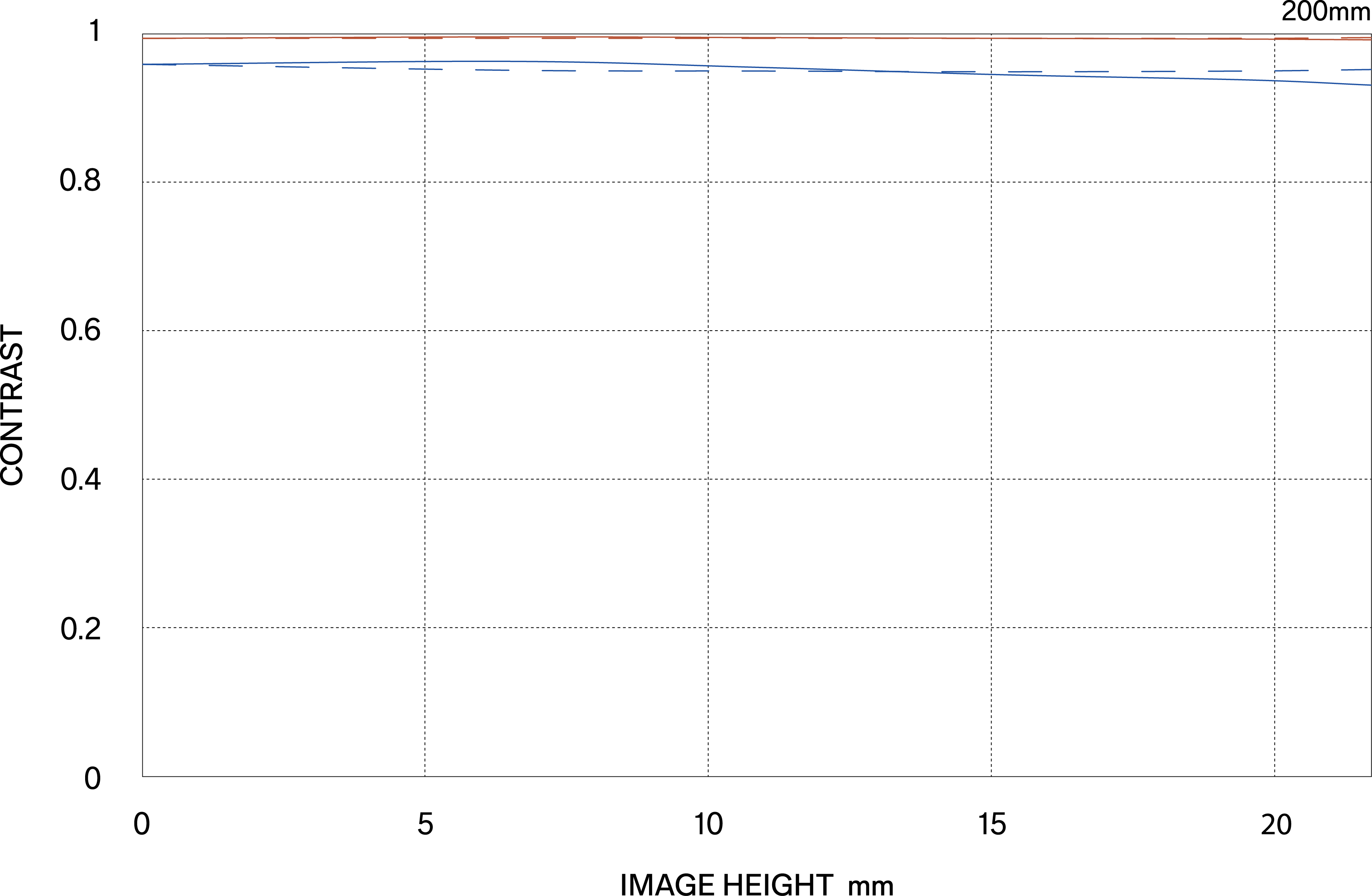

Geometrical MTF

• OS Switch

• Focus Limiter switch

• Custom Mode Switch

• Mount Conversion Service available

• Support for switching between linear and non-linear focus ring settings (for L-Mount only)*

  * Only cameras that are compatible with the system are allowed to use the system.

• Compatible with Sigma USB Dock UD-11 (sold separately / for L-Mount only)

• Every single lens undergoes Sigma’s proprietary MTF measuring system
